315-630 mm HDPE Water Supply Pipe Production Ine

Model NO.	SJ 90/38
Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001
Customized	Customized
Condition	New
After-sales Service	Site Installation
Suitable Material	HDPE PPR
Pipe Size	315-630 mm
Machine Output	1000 Kg/H
Delivery Time	60 Days
Loading Port	Qingdao Port
Machine Certificate	CE
Transport Package	Film
Specification	20-63mm
Trademark	CHANGYUE
Origin	Shandong, China
HS Code	84772090

HDPE pipe production line

Prouduct description
PE pipe extrusion machine is mainly used for producing agricultural irrigation pipes,drainage pipes,gas pipes,water supplying pipes,cable conduit pipes etc. The pipe has some excellent features such as heating resistant,etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise,Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the priecise of the pipes.Turn key solution can be provided, like laser printer , crusher,shredder, water chiller,air compressor etc. to achieve high-grade and automatic tube production.

Process Flow:
Raw material+master batches-Mixing-Vacuum feeder-Plastic hopper drier-Single screw extruder- Co-extruder for color string&multi layers-Mould-Vacuum calibration tank-Spray cooling water tank-Haul off-No dust cutter-double/single disc winding/stacker-Final product inspecting&packing

Technical parameter

pipe range(mm)20-6320-11075-25090-315110-450250-630400-800 extruder modelSJ65/33SJ65/33SJ60/38SJ75/38SJ75/38SJ90/38SJ120/38 extruder power(kw)4575110160160280315 max.output(kg/h)1302204105805809001150

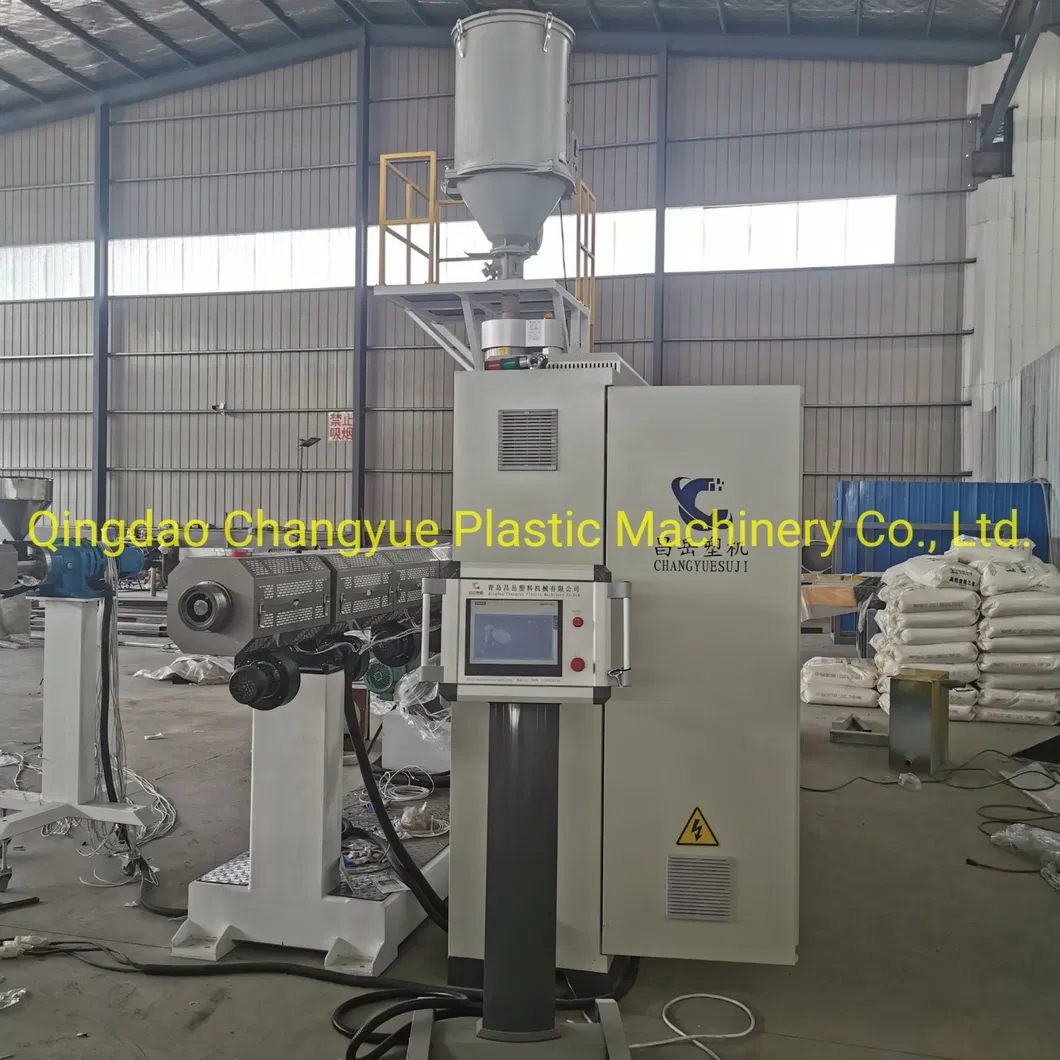

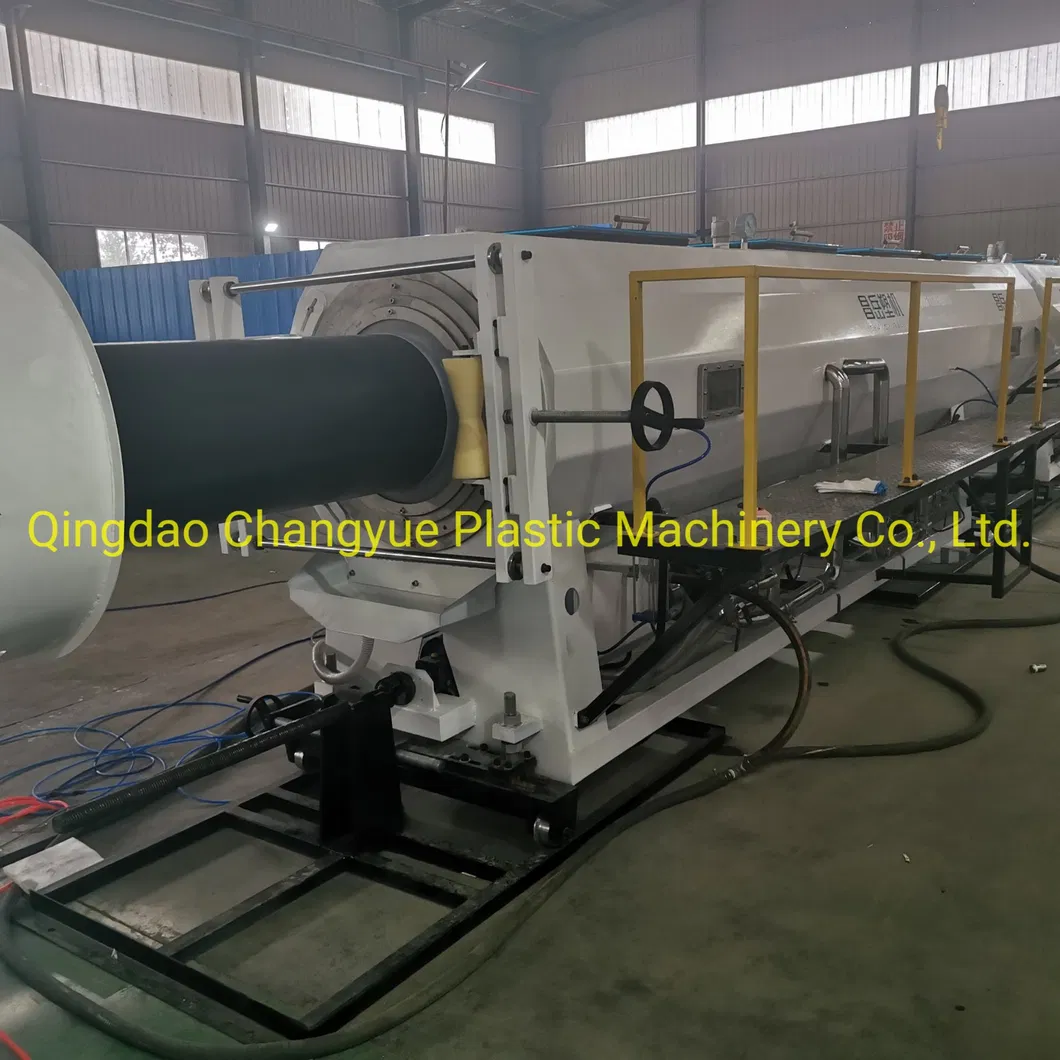

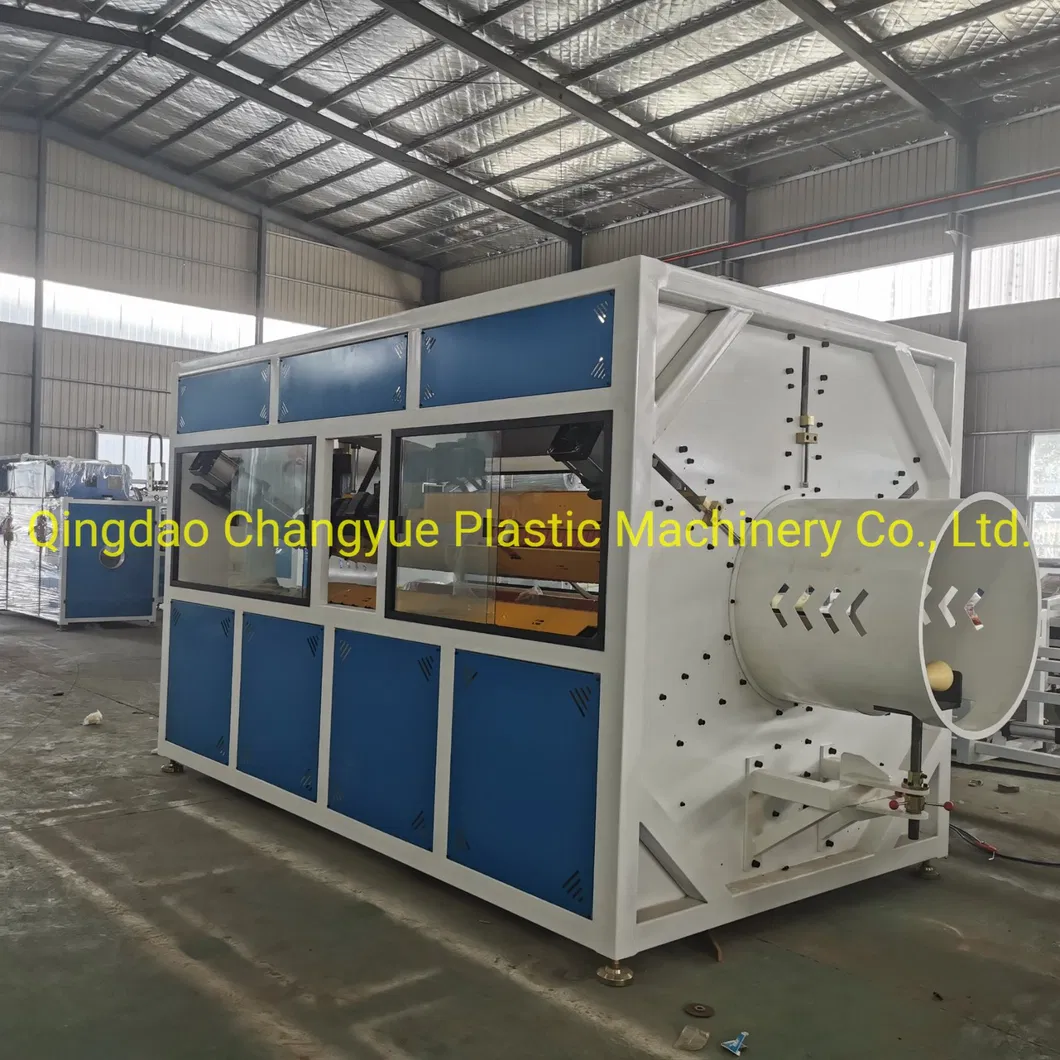

Machine details



Our customer&exhibition
