Nft Hydroponic Channel Growing Plants Flowers Vegetables Fruits Strawberry PVC Plastic Pipe Factory

Hydroponic NFT system is an efficient growing system, and especially suitable for vegetables.
Advantage of our 100x50mm NFT:
1. Easy assembled , convenient management, less labor cost, time-saving.

2. Food Grade,Anti-UV, environmentally friendly material, heavy metal free, RoHS Certified
3. Save the land, no soil is needed for hydroponics.
4. Meet different demand of planting way: hydroponic growing, Aquaponic growing, Organic farming,Seedling
5. All the growing conditions can be controlled with hydroponics system, stable and high productivity with NFT channel.
Plants grow healthier and easy to harvest.

6. Life span is more than 10 years.

7. The trapezoid design on the bottom allows liquids flow in the middle, to save water and fertilizer and energy up to 80%.

8. Removable lid allows you to clean the internal of the channel easily , exclude light and reduce algae growing in the growing system, reduce pests or diseases and increase yield.

PVC NFT Channel 100x50mm

3rd Generation NFT Channel
1. The NFT Channel is third generation patent design product (G&N patent design product, patent No. ZL 2015 3 0540157.9). 2.It's
made by food grade PVC material which compliant to RoHs standards, environmentally friendly, heavy metal free

3.The high quality PVC allow our NFT channel to withstand high strength, adult of 80Kgs standing on it and there's no deformation.
4.Long lifespan: It can last over 10 years in the greenhouse.

5.Size: 100 x 55mm, thickness 2.0mm
Perfect size for leafy vegetables. Depth is 55mm, 5mm above of the water to allow roots to touch more oxygen.

Water and Fertilizer saving for 80%

With the trapezoid design on the bottom, our NFT channel can save 80% water,fertilizer and energy.Compared with round pipe and square channels, we only need much less water for the vegetables, for difference please refer to the above picture. What's more,water will only flow in Center part with our channel, while it may go sides with flat bottom channel from other suppliers. Even when the plant is small, it won't die because lack of water.
Moreover, this design can reduce mass growing in the channel because lack of water in the sides.

Removable cover

1. G&N NFT channel cover is removable, you can easily open it and clean the internal of channel Which save you many time on
management.2. The double sided convex foot design can increase the strength of anti-deformation,easy to fix on the table.

3. The round edge is beautiful and protect your hands when install the system.

4. Top grade A quality, our NFT channel can bent for 180 degree without breaking.

5. Easy install for the trapezoid design, water keeps in the center of the bottom, no need strict slope for the metal stands.

Accessories for NFT gutter

End cap for irrigation

End cap for drainge

Connector for 2 NFT channels

Vertica "A" Type System

1.Make better use of the space to increase yield of vegetables.

2. Design the direction of the metal rack according to direction and sunshine.

3. A type is suitable for small and medium size greenhouse.

4. Also suitable for indoor planting, only using LED grow light.

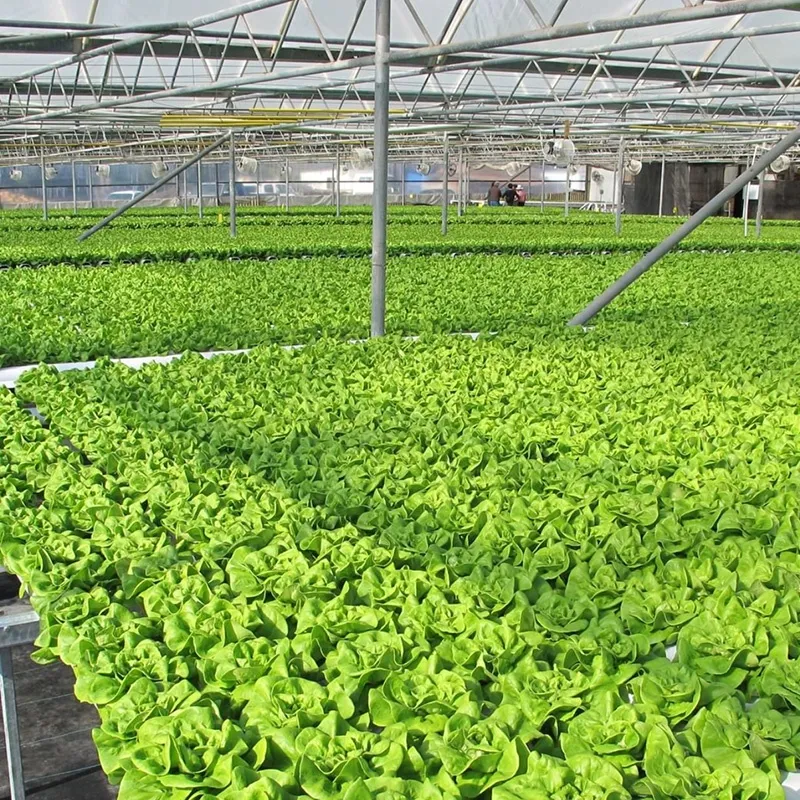

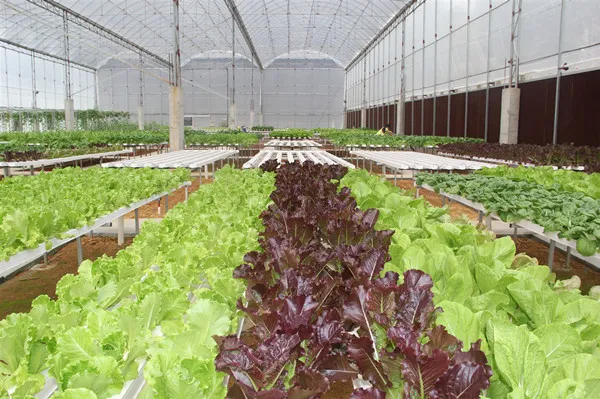

Horizontal Type

1.Sufficient sunlight, better air circulation.

2. No directional restrictions for the metal rack, easy installation.

3.Low labour cost, easy to manage planting and picking.

4. Especially suitable for hydroponics planting in large scale.

Indoor system

1.Customized designs for indoor vertical hydroponic systems.

2.Complete accessories are included: irrigation and drainage pipes and fittings, NFT channel, net pots, metal rack, LED grow lights etc.

Different holes with different package

Hole diameter: 40mm,45mm,50mm,60mm or customized.

Hole distance: 150cm,200cm or customized.

Quantity for loading

20GP container: 5000meters or 6200meters

40HQ container: 12000meters or 15000meters
