Three Layer Plastic PVC Solid Wall Pipe Co-Extrusion Production Line Jwell Global Supplier Supply Hi

Model NO.	Three layer PVC Solid Wall Pipe Co-extrusion line
Product Type	Plastic Pipe
Screw	Multi-Screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Servo Motor	Siemens
Inverter	ABB or Siemens
Feeding Mode	Multiple Feed
Screw Channel Structure	Non Deep Screw
Engagement System	Full Intermeshing
Assembly Structure	Integral Type Extruder/Separate Type Extruder
Screw Brand	Jinhailuo
T Die	Jc-Times or Jwell
Transport Package	Sea, Land and Air/Polyethylene Film and Wood Boxes
Specification	Medical Consumable Packaging
Trademark	JWELL
Origin	China Taicang
HS Code	84778000

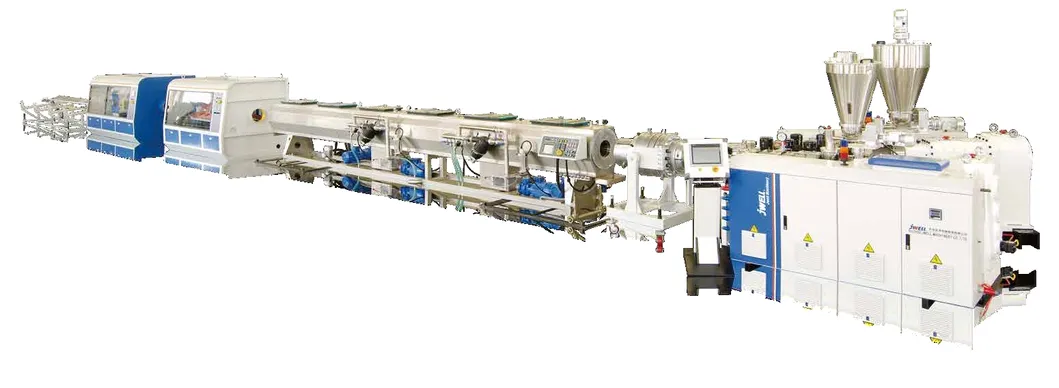

JWELL-Three-layer PVC Solid Wall Pipe Co-extrusion line

Performance & Advantages:

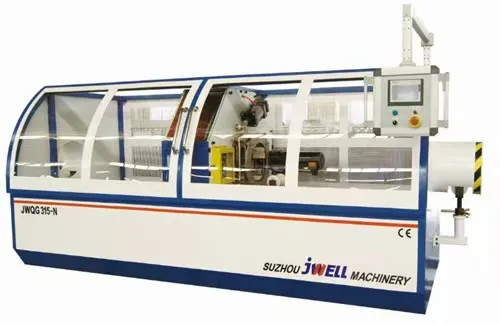

Use two or more SJZ series conical twin screw extruder to implement co-extruded three-layer PVC pipe. The sandwich layer of the pipe is high-calcium PVC or PVC foam raw material. 1. The extruder uses super wear-resistant alloy screw barrel; the twin-screw feeds evenly and the powder doesn't bridge. 2. Optimized design of PVC three-layer mold, the internal flow channel is chrome-plated and highly polished, wear and corrosion resistant; with special sizing sleeve, the pipe product has high speed and good surface. 3. Cutting machine adopts rotating clamping device to adapt to different pipe diameters, eliminating the trouble of frequent replacement of fixtures. Equipped with a new type of adjustable floating chamfering mechanism, the size of chamfer can be adjusted according to the pipe diameter and wall thickness, cutting and chamfering can be performed in one step. Closed suction device, better chip suction effect.







Technical parameters

model

Pipe Spec (mm)

ExtruderMain Power(kw)Output (kg/h) JWG-PVC250 Three-layer Φ75~Φ250 SJZ65/132+55/110 37+22 300-400 JWG-PVC450 Three-layerΦ200~Φ450 SJZ80/156+65/132 55+37 400-600 JWG-PVC630 Three-layerΦ315~Φ630SJZ92/188+65/132110+37740-900 Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

JWELL is a global supplier of complete solutions on extrusion technology.

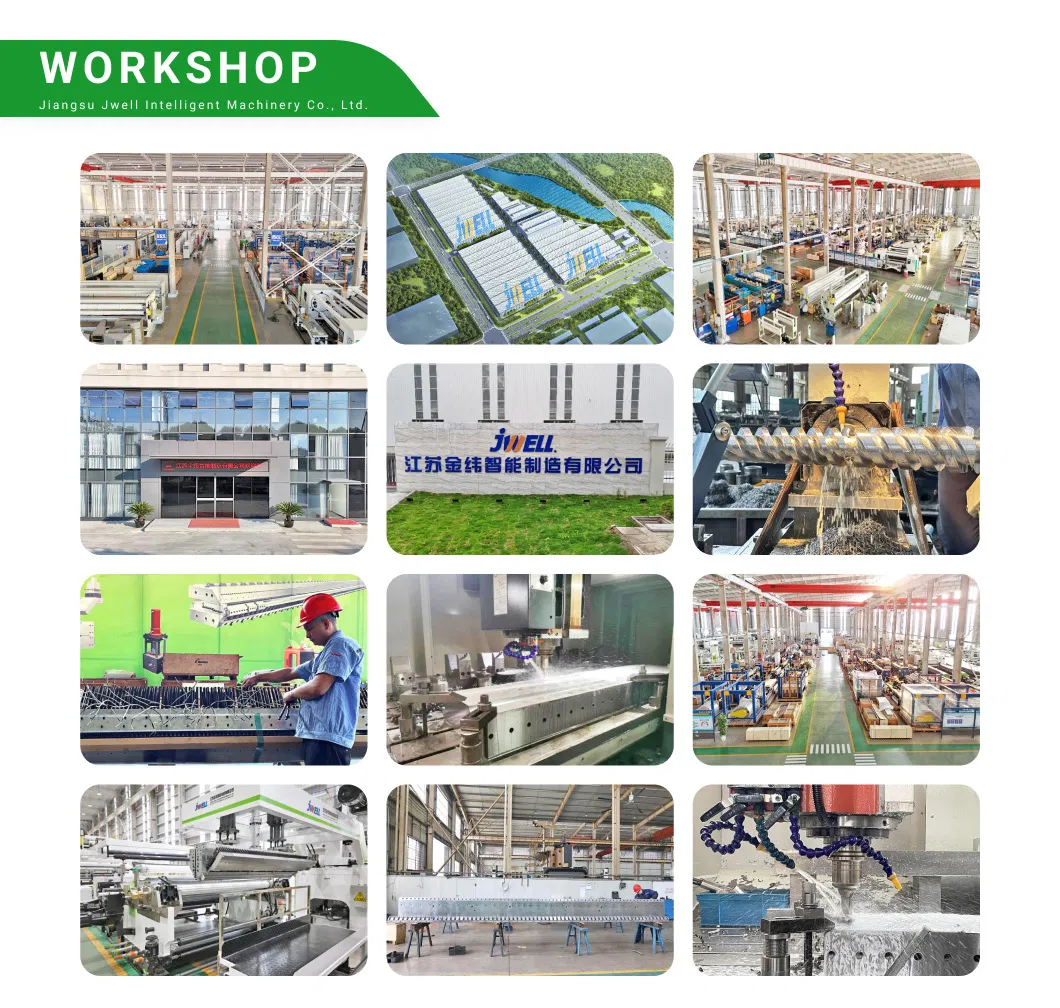

Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world.

Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
