1/2" - 3/4" UL PVC Corrugated Conduit Pipe Electrical Flexible PVC Pipes Fireproof UV Resi

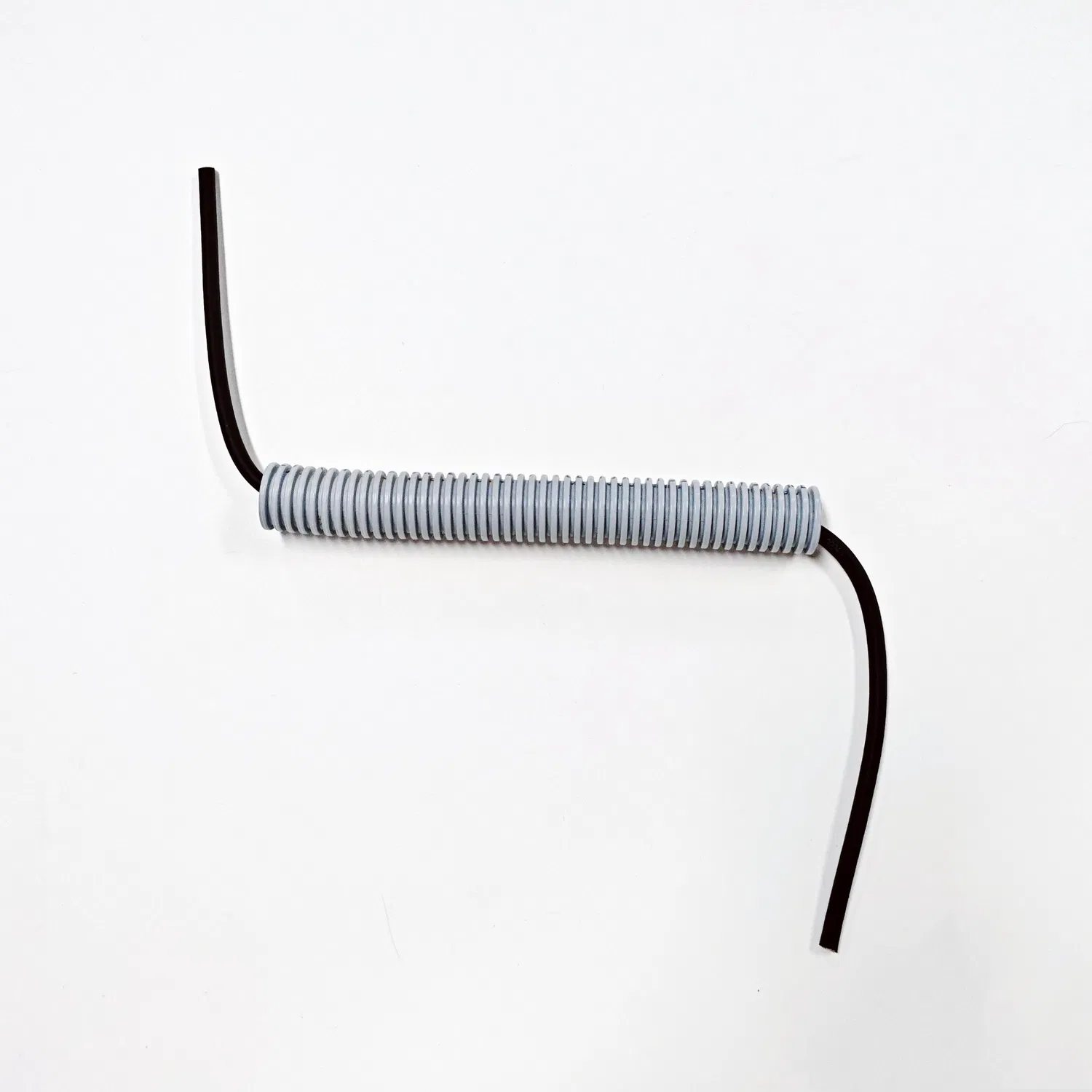

1/2" - 3/4" UL PVC Corrugated Conduit Pipe Electrical Flexible PVC Pipes Fireproof UV Resistant Grey Plastic Electric Tube Pipe

UL American Standard BellowsDeveloped and designed specifically for the U.S. and Canadian markets. UL1653 flexible corrugated conduit and fittings are UL listed. For concrete and underground environments, Maithong has optimized its product process.

Quick connect fittings are used to help you solve problems quickly.

UL651 American Standard

Asia Pacific Certified Manufacturer

UL651 American Standard Certified Manufacturer is the best choice for your project. Product Details & Specifications

In current projects, we need a product that is lightweight, easy to bend, and resistant to corrosion. It can help us install and wire in more complex landscapes such as corners. It is the origin of ENT flexible electrical conduit.

We need higher-grade raw materials, better design, and production processes than a normal flexible conduit. To meet the relevant requirements of UL 1653, we have upgraded raw materials, processes, and formulations. At present, our quality has fully met or exceeded the relevant requirements of UL.

At the same time, to adapt to harsh environments such as being directly buried in concrete, we have fully considered every detail of the product to ensure that the corrugated pipe will not have problems in actual use (such as a wall or floor installation).

In a word, ENT flexible electrical conduit is lightweight, high strength, can be directly buried, and easily and completely

adapted to different environments, saving many labor costs for your project. So it is widely used in home decoration, hospitals, government projects, etc.

Easy to install

Flexible toughness


High-strength tensile strength, very flexible and resistant to stamping, so that you do not have to worry about cracking and damage caused by the quality of the wire pipe during the construction process.

Non-metallic conduit

Rustproof Insulation


When electrical conduit is used for a long period of time, it rusts and corrodes the wires and cables, affecting their service life. Maidstone UL651 American Standard series conduits are insulated, corrosion-resistant, and rust-resistant.

V0 fire rating


Self-extinguishing within 5 seconds

Effectively prevent the spread of fire, guarding the safety of life and property.

UV protection


Effectively prevent aging

Impact Resistant2.7J (2.0ft-lbf) Anti-BendUp to 4448N (1000 lb), No Cracked Pull ResistantUp to 170 lbs Fire Resistant2 Hour & 4 Hour Noncombustible Concrete TightUL Approved Tension TestUp to 134N (300lbf) Permanency of PrintingYes Rust & Sunlight ResistantYes ColorGrey, Blue, Red, Yellow or Customized MaterialPVC Customized ServicesAvailable ShippingBy sea or air LengthBy Pack

1. High corrosion resistance
Non-metallic bellows has very good corrosion resistance and can be used for a long time in corrosive environments such as acid, alkali, salt, etc. without rusting or corrosion like metallic bellows. This makes non-metallic bellows especially suitable for chemical, food processing and other industries with high corrosion requirements.

2. Light weight
Compared to metallic bellows, non-metallic bellows are much lighter in weight, making them easier to handle and install. This not only reduces labor costs, but also improves installation efficiency, especially in scenarios where a large number of pipes need to be laid.

3. Excellent electrical insulation properties
Non-metallic bellows has excellent electrical insulation, which can effectively prevent current leakage and ensure the safety of electrical equipment. This makes it widely used in electrical equipment, power systems and communication lines.

4. Good waterproof performance
Certain non-metallic bellows have good waterproof performance and can be used in humid environments to protect cables from moisture. They are particularly suitable for electrical conduits laid underground or exposed to humid environments.

5. High and low temperature resistance
Non-metallic corrugated pipes show excellent high and low temperature resistance performance within a certain temperature range. For example, PVC bellows can withstand higher temperatures, while certain materials such as nylon bellows can withstand low temperatures. Depending on the choice of materials, they can be used in a variety of environments.

6. Abrasion and impact resistance
Although the abrasion resistance of non-metallic bellows is not as good as that of metal pipes, its shock and vibration resistance is still better, which can effectively protect cables and wires in some special environments.

7. Economy
Non-metallic bellows is usually cheaper than metallic bellows because of its relatively low production cost. Non-metallic bellows provides a cost-effective alternative for large-scale electrical installation projects with limited budgets.

8. Non-toxic and environmentally friendly
Many non-metallic bellows (e.g., PVC, PE) are non-toxic and environmentally friendly, making them suitable for use in applications that require compliance with environmental standards, such as the food industry or medical device protection.

Size(in)Part No.OD(in)ID(in)Length Feet 1/2LA-ENTFC120.8400.574200 3/4LA-ENTFC191.0500.778100 1LA-ENTFC251.3151.000100 1-1/4LA-ENTFC311.6601.340500 1-1/2LA-ENTFC381.9001.610300 2LA-ENTFC502.3752.020225

Purpose:


Prefabricated Buildings

Direct Burial

Concrete

Floor & Ceiling

Industrial
