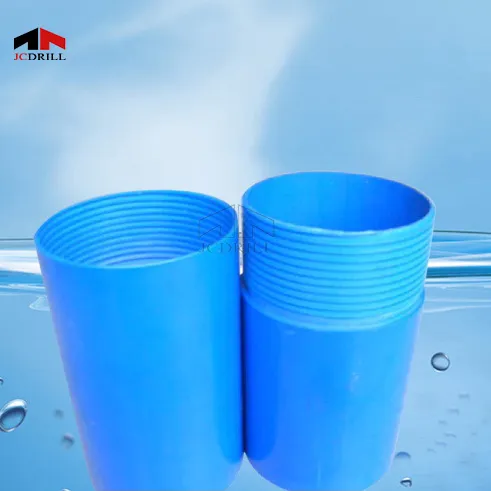

Jcdrill Deep Well PVC Casing Pipes and PVC Water Well Screens
Detailed specification for Jcdrill Deep Well PVC Casing Pipes and PVC Water Well Screens
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 225x6000mm |
| Type | Thermosetting Plastic Pipe |
| Color | Color |
| Hollow | Hollow |
| Shape | Round |
| Usage | Water Supply Pipe |
| Transport Package | 20' Container |
| Specification | Diameter 40-315mm |
| Trademark | JCDRILL |
| Origin | China |
| Production Capacity | 50000pieces/Year |

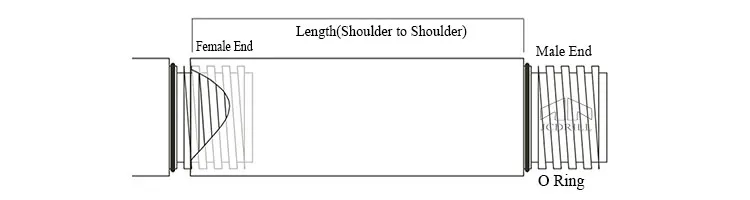

Technology Parameters
(Out Diameter)

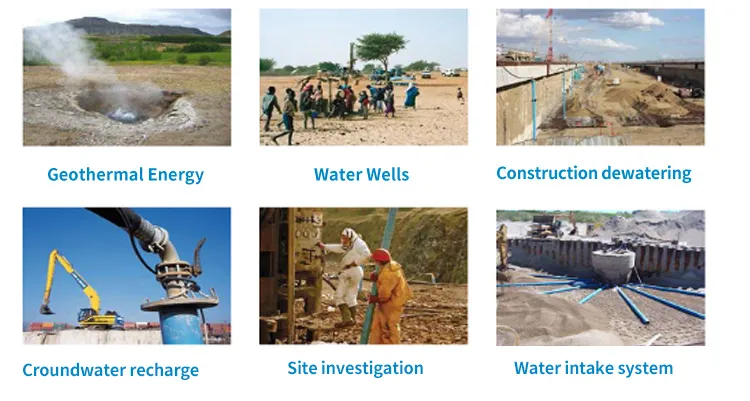

Application

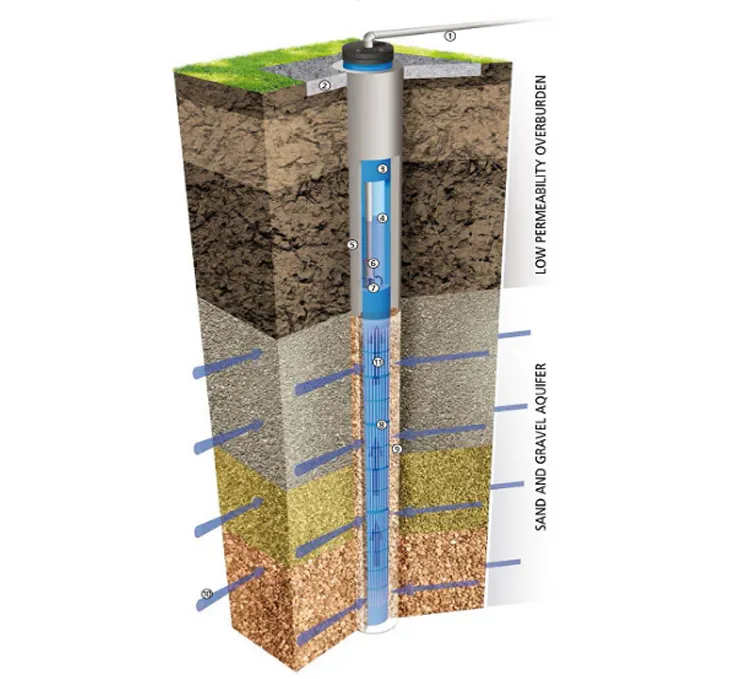

Technology Design
1. Discharge Pipe Well Head
2. Concrete Slab For The Well
House Foundations
3. PVC Pump Chamber Casing
4. Pumping Water Level In The Borehole
5. Cement Or Bentonite Grout
Sealing The Annulus Around
The Pump Chamber Casing
6. Electric Submersible Pump
7. Water Inflow To The Pump Intake
8. PVC Well Screen
9. Gravel Filter Pack Filling
The Annulus Around The Well Screen
10. Groundwater Is Drawn
Through The Screen Slots And
Flows Up To The Pump Intake
11. Groundwater Flows Through
The Sand And Gravel Aquifer
To The Well ScreenAdvantages

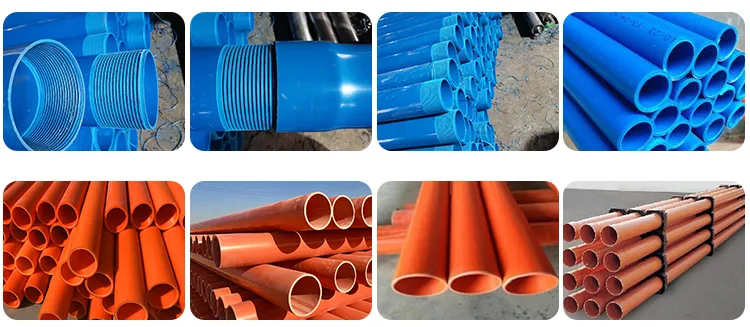

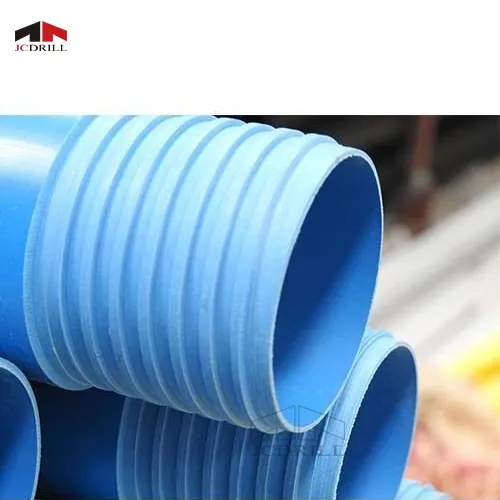

Pictures
Tensile Strength
The tensile strength required can be calculated on the basis of pipe weight. In addition to the pipe weight, gravel that gets
stuck in the joints during the assembly and settlement phase should be considered in design calculations. The lower load
bearing capacity of screen pipes with slots should be considered when developing the well or when pumping (due to large
differences in water level). The effect of such pressures cannot be precisely determined. When sinking pipes through clay
layers, additional compressive forces are exerted due to swelling clays. This can happen at any depth and in extreme
cases may cause considerable strain on the material surface. The values indicated in the tables of this brochure are based
on the minimum wall thickness of the pipes, their diameters and material composition.
Impact of Temperature
Temperature conditions prevailing during the laying of PVC-U well pipes will influence the mechanical properties of the
material. High temperature between 30° C and 40° C as indicated by the creep strength in relation to time, the PVC-U
material properties provide sufficient safety factor for the intended use. It is however important to determine the other
influences while encasing the well pipes with concrete to seal the drill holes. Temperature increases can be caused by
the hydration heat of concrete. Calculations however show that these temperatures do not normally exceed 15°C.
With the temperature of unset concrete reaching approx. 18°C, the temperature within the seal will be slightly more
than 30°C and that is within the optimum limits.
Packing & Delivery
