HDPE PE PPR Plastic Pipe Tube Water Gas Supply Extruder Machine

Model NO.	HDPE Pipe Making Machine
Automation	Automatic
Computerized	Computerized
Certification	CE
Customized	Customized
Condition	New
After-sales Service	Engineers Available to Service Machinery Overseas
Name	Large Diameter HDPE Pipe Production Line
Extruder Model	Sj65/38, Sj80/38, Sj92/38
Screw Design	Single Screw
Weight	20000 Kg-30000 Kg
Voltage	380V 50Hz or Customizable
Raw Material	PP PE Granules
Motor Brand	Siemens
PLC Brand	Siemens
Inverter Brand	ABB/Delta
Temperature Controller Brand	Omoron
Automatic Grade	Fully Automait
Pipe Dimater	16mm-2000mm Customized
Transport Package	by Sea
Specification	16-1200mm
Trademark	Hanhai
Origin	Qingdao, China
HS Code	84772090

HDPE PE PPR Plastic Pipe Tube Water Gas Supply Extruder Machine

This machine developed by Hanhai company is featured of unique structure, high degree of automatic, easy operation
and stable reliable continuous manufacture performance. It consists of the following six parts:

NO.

Name

Quantity

1

Single screw extruder (with automatic
feeding system)

1set

2

Die head (Mold)

1set

3

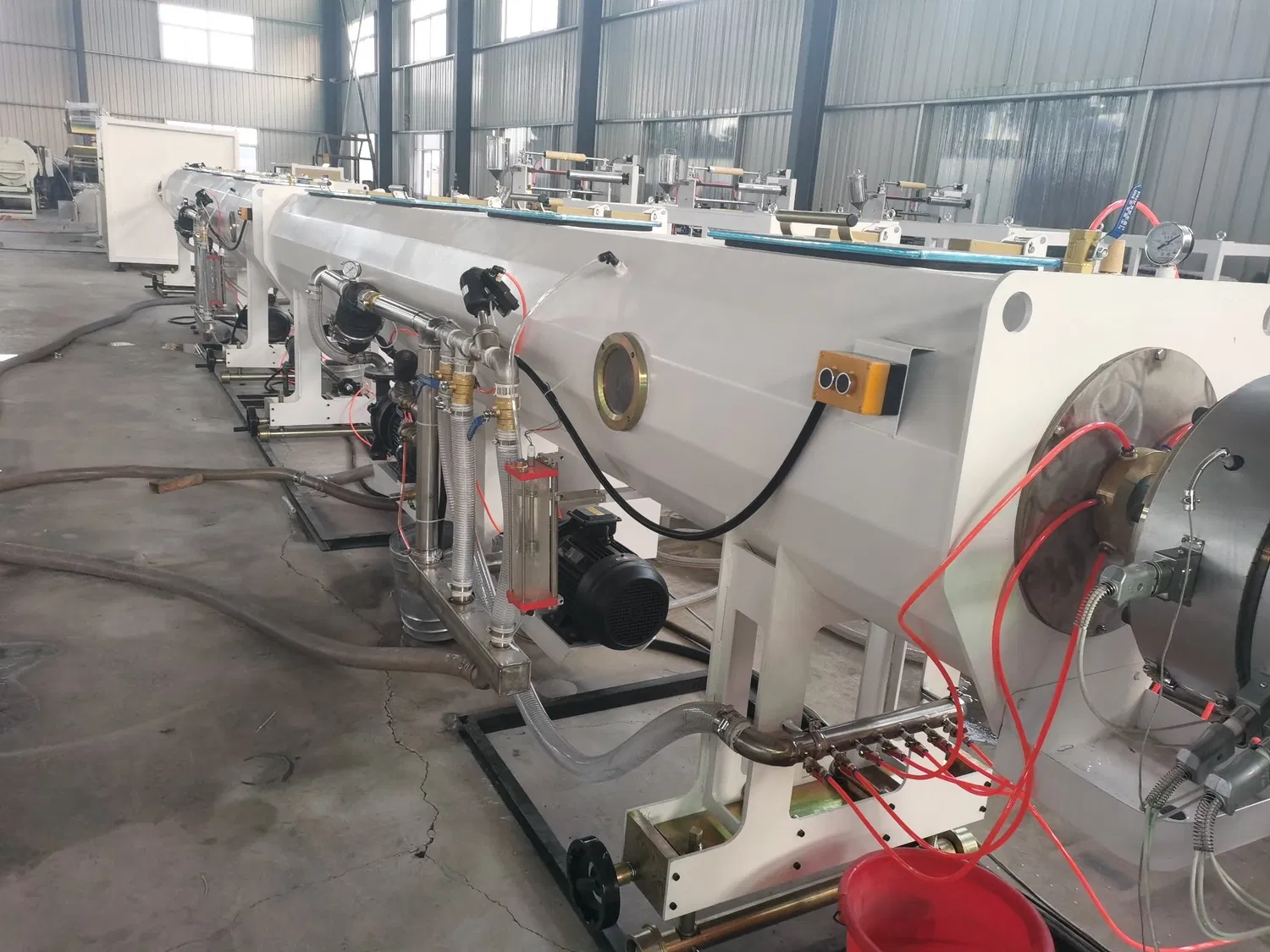

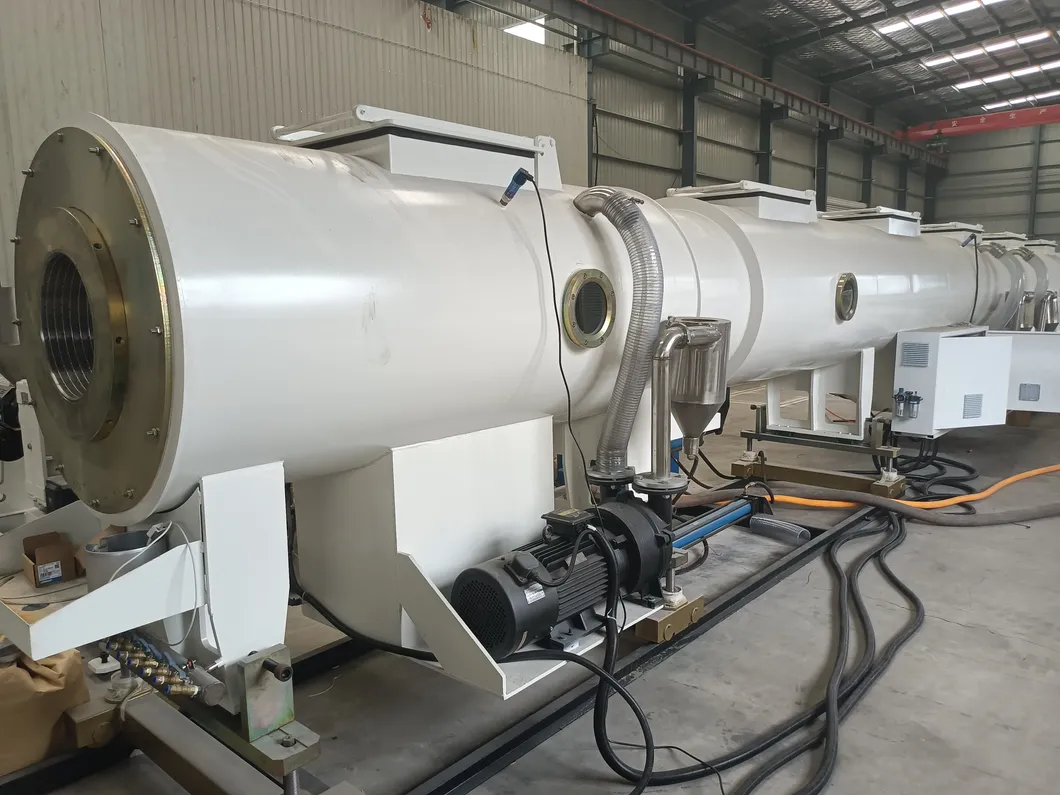

Calibrating and cooling tank

1set

4

Haul-off machine

1set

5

Cutting machine

1set

6

Stacker

1set

Extruder Model

Pipe Diameter

(mm)

Production Capacity

(kg/h)

Total Power

(kw/h)

SJ50

16~63

100~150

75

SJ65

75~160

300~350

160

SJ75

200~400

600~700

280

Production flow of PPR water pipe making machine

Raw material→ vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould →
vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Detailed Images:

1.Single screw extruder (with automatic feeding system)

1.Motor brand: Siemens
2. Inverter: ABB/Delta
3.Contactor: Siemens
4. Heating method: Ceramic or cast aluminum
5.Screw and barrel: 38CrMoAlA.
6.Extruder model: SJ45/SJ55/SJ65/SJ75/SJ90/SJ100/SJ120/ SJ150

2.Mold

1.Material: 3GR17

2.Diameter: Customized

3.Pipe diameter:16-1200mm

4.Pipe pressure grade:

0.6MPa,0.8MPa,1.0MPa,1.25MPa,1.6MPa

SDR26,SDR21,SDR17,SDR13.6,SDR11, etc.

 3.Calibrating and cooling tank

1.Raw material: #340 stainless steel

2.Pipe diameter:16-1200mm

3.Spray cooling:ABS nozzle

4.Vaccum pump , Water pump :Simens brand

4.Haul-off machine

1.Model:belt type/ two claws /three claws/four claws/six claws/eight claws.

2.Servo motor support

3. Diameter :16-1200mm

4.Counter meter

5.Cutting machine

1.Cutting method: chipless / planet cutting

2.Pipe range:16-1200mm

6. Stacker

1. Raw material :stailess steel

2. Lenght:6m /12 m



Features HDPE pipes:

1. Size: 16mm to 1800mm

2, Thickness: 2 3-162mm
3. Pressure Rating: 0.6mpa, 0. 8mpa, 1. 0mpa, 1.25mpa, 1.6,2.0mpa
4. Color: black, black with blue stripes, other colors available on request
5. Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint

You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.

2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the
running production line.)

3. Delivery.

4. We will provide after-sales service:

(1) Field installation and commissioning;

(2) Field training your workers;
(3) Field maintenance and repair service ;

(4) Free Spare Parts ;

(5) Video/online technical support.
