Agricultural PE HDPE Cylindrical Drip Irrigation Pipe Tube Hose Making Machine

Model NO.	PEG63 PEG110 PEG160 PEG250 PEG315 PEG450 PEG630
Screw No.	Single Screw, Double Screw
Automation	Automatic, Automatic
Computerized	Computerized, Computerized
Certification	CE, ISO9001:2008, CE, ISO9001:2008, SGS
Customized	Customized, Customized
Condition	New
After-sales Service	Lifetime
Type	Pipe Extruder
Plastic Processed	PE
Feeding Mode	One Feed
Assembly Structure	Integral Type Extruder
Screw	Single-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Don't Exhaust
After-Sales Service	Lifetime
Pipe Diameter	From 16mm-1600mm
Pipe Usage	Water, Engergy, Gas, Irrigation, etc.
Advantages	Long Life/High Efficiency/High Capacity
Extruder Control	by Siemens PLC Screen Touch
Electrical Components	Siemens, ABB, Omron, FUJI, etc.
Production Speed	Around 0.5-20meter/Minute
Delivery Time	Around 40 Days
Motor Brand	Siemens
Shipment	LCL and FCL
Machine Installation	Available
Motor Drive/Inverter	Siemens/ABB Brand
Keywords	Pipe Machinery
Raw Material	PE
Transport Package	Plastic Film and Wooden Pallet
Specification	29m
Trademark	YILI
Origin	China
HS Code	84778000

Introduction

HDPE Pipe Extrusion Machine is widely used in the whole country water supply, water sewage, gas supply and house water supply project. It includes HDPE Plastic pipe extrusion machine, LDPE Plastic pipe extrusion machines, PPR/PERT Pipe extrusion lines, ect. YILI machinery adopts European most advance technology and develops with its own technical Strategy to ensure unique structure, high configuration, highly automation, easy operation of the whole pipe extrusion machine.
The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.

Technical Specification

33D Series Classical Production Line: ModelOD (mm)ExtruderMax. Output (kg/hr)Max.Haul-off speed (m/min) PEG63Φ20-63SJ65/3322015 PEG110Φ20-110SJ65/3322015 PEG160Φ50-160SJ75/3340012 PEG250Φ75-250SJ75/3340010 PEG315Φ90-315SJ90/335008 PEG450Φ110-450SJ90/335005 PEG630Φ280-630SJ120/338503.3 PEG800Φ400-800SJ120/3310001.8 PEG1200Φ800-1200SJ150/3313000.8   38D Series High Efficient Production Line: ModelOD (mm)ExtruderMax. Output (kg/hr)Max.Haul-off speed (m/min) HPEG63Φ20-63HSJ60/3832030 HPEG110Φ20-110HSJ60/3838025 HPEG160Φ50-160HSJ60/3846015 HPEG250Φ75-250HSJ75/3860012 HPEG315Φ90-315HSJ75/3865010 HPEG450Φ110-450HSJ90/388008 HPEG630Φ280-630HSJ90/389505 HPEG800Φ400-800HSJ120/3813002.5 HPEG1200Φ800-1200HSJ75/38
HSJ90/3814001.2 HPEG1600Φ1000-1600HSJ90/38
HSJ90/3816000.7

Tech Features & Advantages


1. We offer optimum spiral bush, which highly improves the capacity of extruder
2. We offer unique screw design to ensure better plasticization of raw material
3. We offer high torque and precisely designed gearbox to guarantee stable running of machinery
4. We offer accurate temperature controlling system to optimize best the material melting performance
5. We offer automatic water temperature and water level control of the vacuum and cooling tanks with large filters
6. We offer 2-12 caterpillars of haul-off with servo motor control
7. We offer SIEMENS most advanced PLC control to ensure the whole line to have best synchronization.

Technology Process

-High performance Extruder, which is the key important part in the whole production line, it ensure high capacity, high efficiency and excellent plasticization

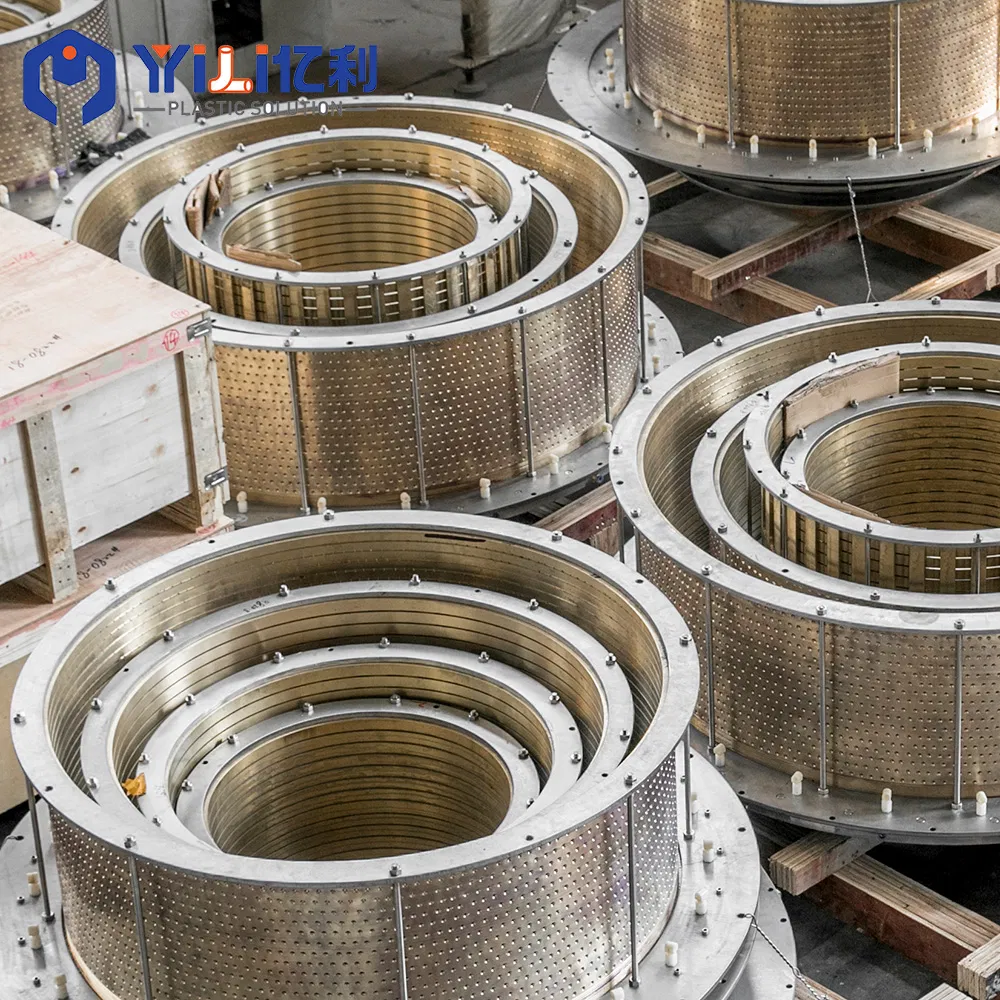

-Mould
Material: 40Cr
Design: Spiral or Basket
Single layer or Multi-layer design

-Vacuum tank
Material: SUS304, 5mm-7mm
Automatic water temperature and level control technology
Accurate calibration

-Cooling tank
Material:  SUS304, 3mm-5mm
Fast cooling

-Haul-off
Drive: by frequency inverter to servo motor driving
High quality rubber belts or blocks
With encoder for pipe metering



-No-dust cutter

Design: Universal or Cast Aluminum fixture unit
No-dust smooth cutting
Servo motor synchronization control



-Dual Position coiler

Automatic pipe arranging
Pipe size: 16mm-110mm
