PP/PE/PVC/EVA/PA Single Wall Corrugated Hose Pipe Production Machine Line

Model NO.	CX
Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	7*24
Pipe Type	Corrugated Pipe
Wall Type	Single Wall
Extruder	Single Screw Extruder
Screw and Barrel	45/30
Module Block	50 Pairs
Compressor	Air Compressor
Inverter	ABB
Motor	Xi'an Xima
Heater	Cast Aluminum
Coiler	Single Disc or Double Disc
Transport Package	Sea Worth Packing
Specification	9-32mm
Trademark	chenxing
Origin	China
HS Code	8477800000

Product Description

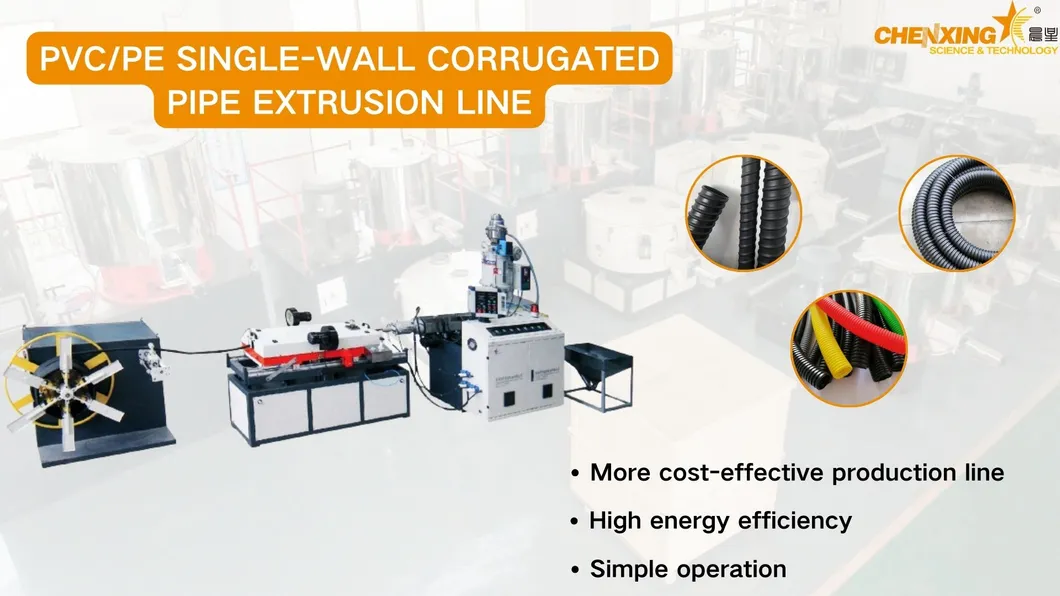

Single wall PP PE PVC corrugated pipe line

1. Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder

2. Production description:
It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is
                      ultraviolet resistant.
Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is
                      ultraviolet resistant.
PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Application:
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.


Product Parameters



Pipe diameter range(mm)4.5-99-3232-50 Main machine modelSJ-30SJ-45SJ-65 Main machine l/d30:128:130:1 Production capacity kg/h104080 Main motor capacity kw41118.5 Moiding machine capacity kw1.11.51.5 Pair of modules423838 Cooling modeWater cooling and fan cooling Production (m/min)6-108-128-15 Metering modeinductiing mode Coiling machine modeMotor-drivenManually-operated

Detailed Photos

(1)Hopper Dryer

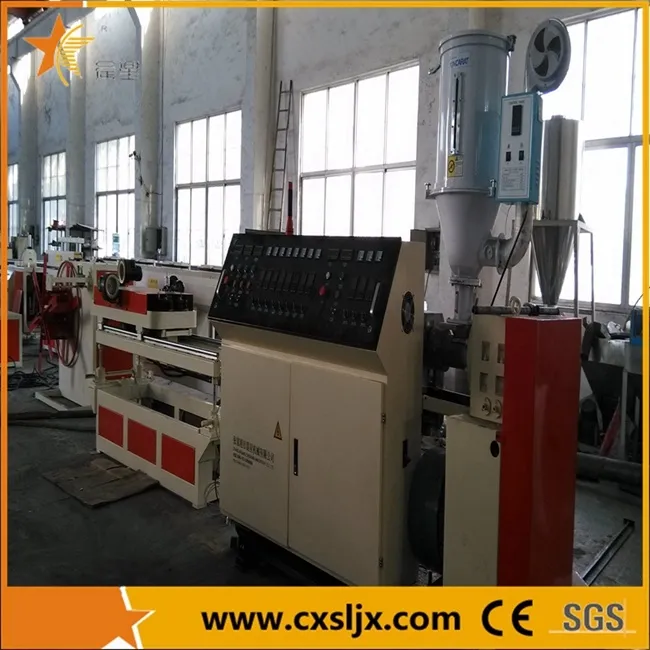

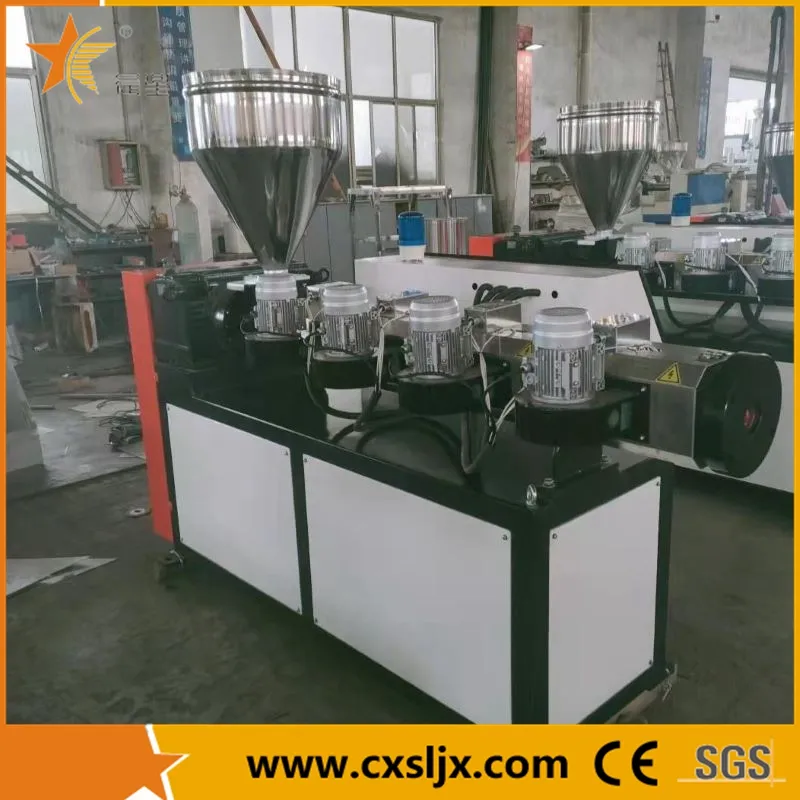

(2)Single Screw Extruder

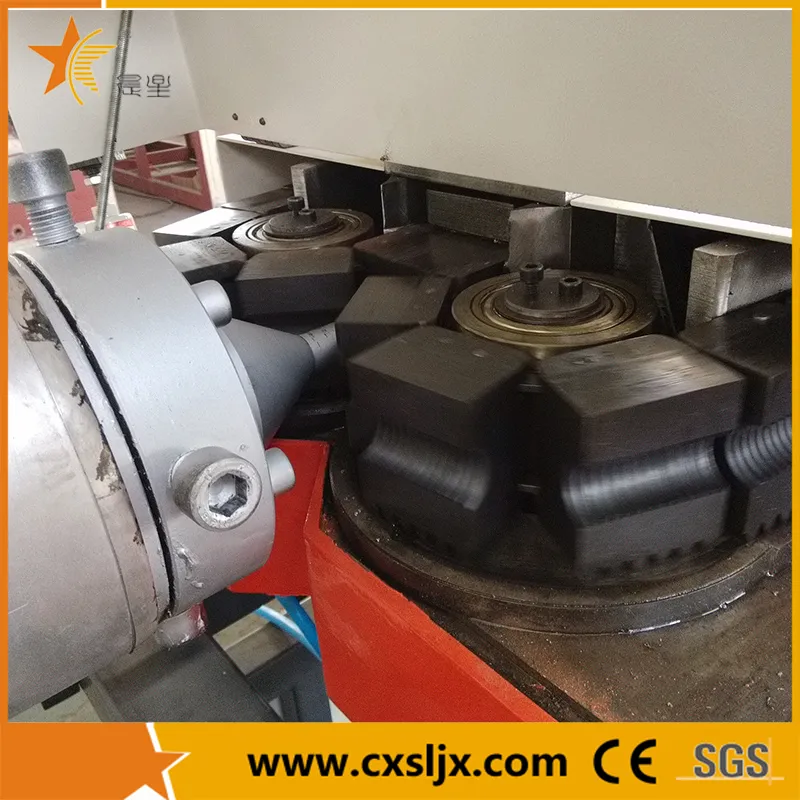

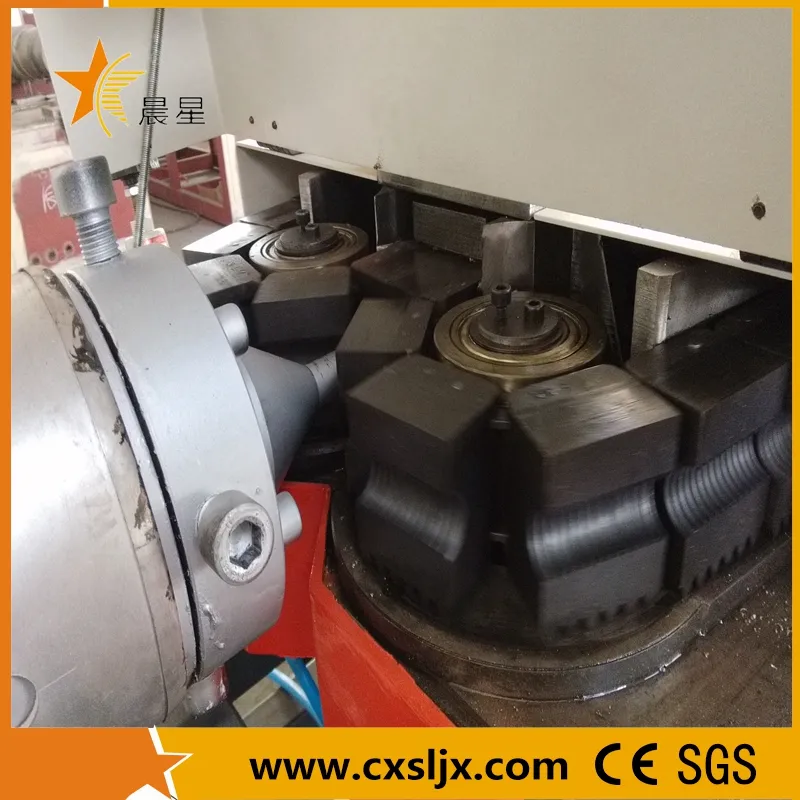

(3)mould

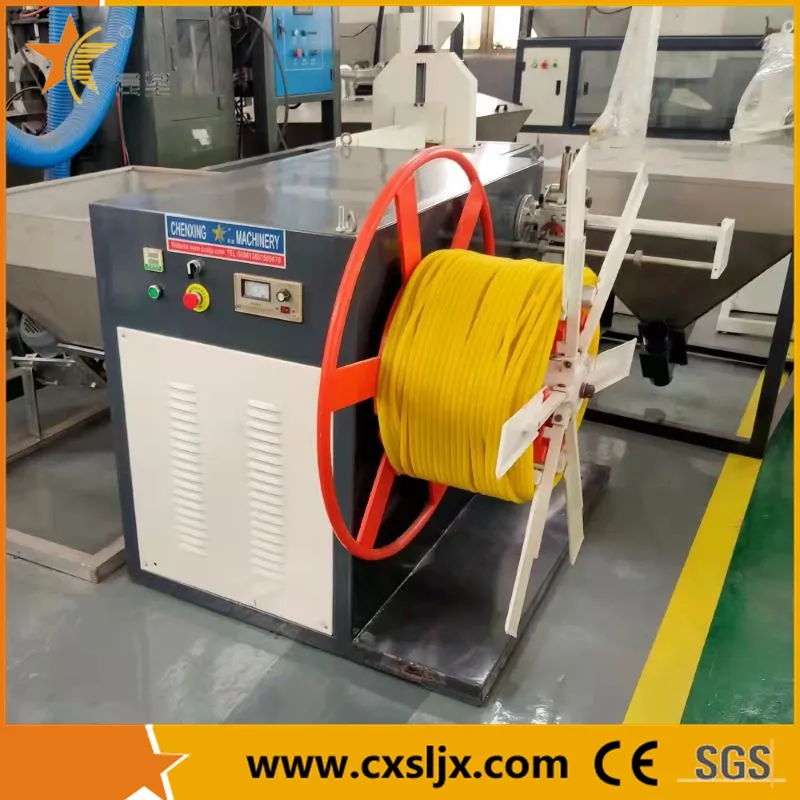

(4)Stacker
