Durable Reinforced PVC Pipe for Efficient Liquid Transfer

Model NO.	pvc suction hose
Color	Color
W.P	10 Bar
B.P	30 Bar
I.D	20-203mm
Length	50m
Weight	140-2800 G/M
Certification	ISO,SGS
Shape	Round
Transport Package	Seaworthy Package
Specification	3/4"-8'
Trademark	OEM
Origin	China
HS Code	39173900
Production Capacity	1000000 Meters Per Month

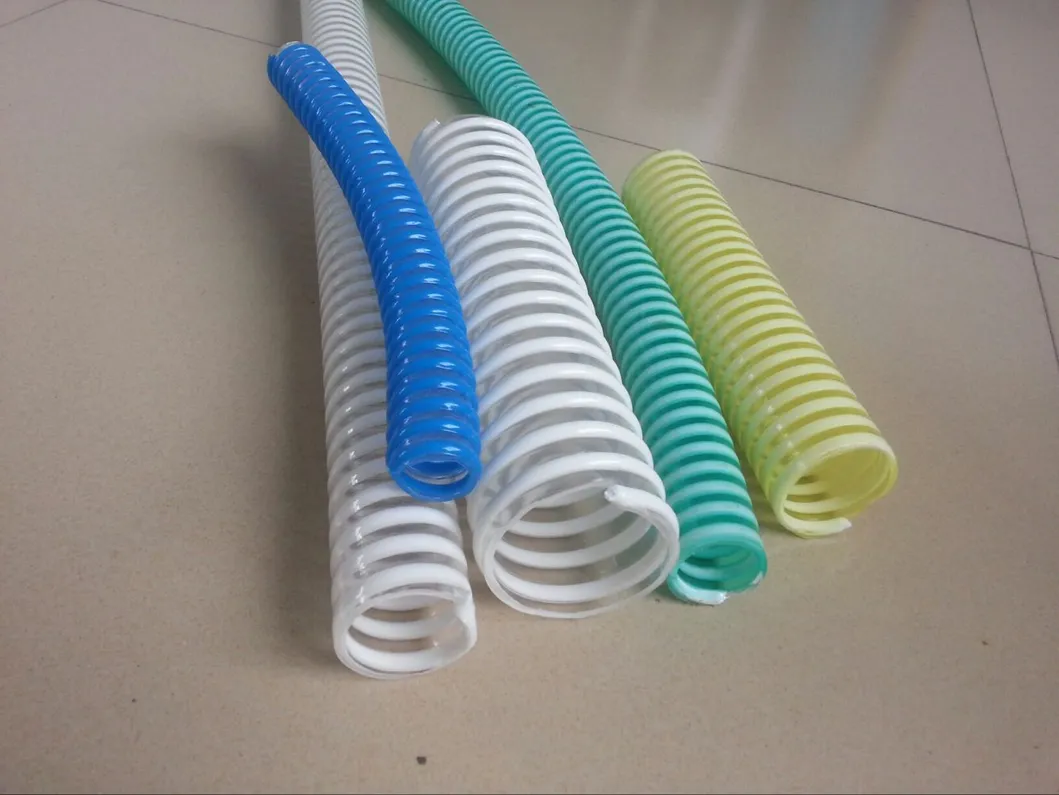

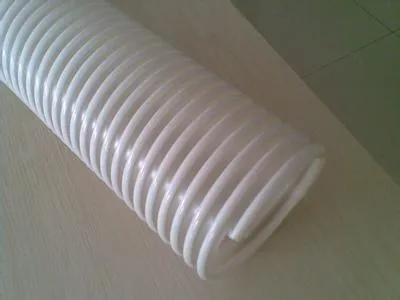

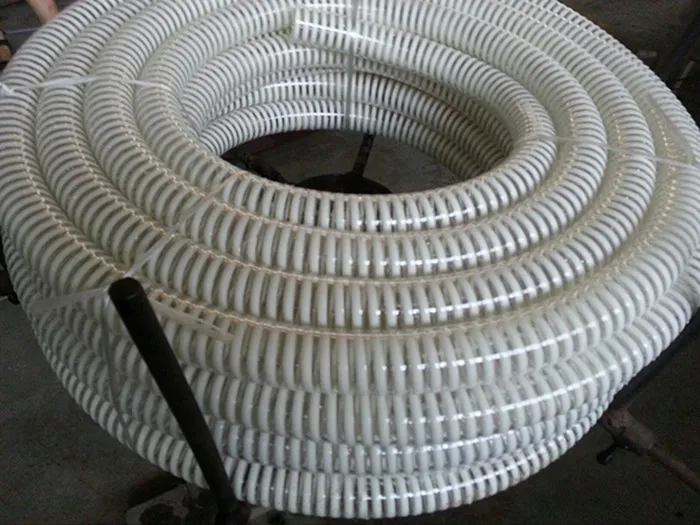

Clear Flexible PVC Pipe Plastic Reinforced Spiral Suction Hose
Production Informations:

1. Rigid PVC spiral reinforced between walls.
2. Inside absolutely smooth, outside spiral.
3. Temperature: -15° C~70° C, shortly in 80° C.
4. Lengths: Max 30meters
5. Inside diameter: 19-250mm.
6. Colors: As required.
7. UV protected is available.
8. Suitable for suction water, some solids and oils in industry.

Specifications:

INCH ID(mm) OD(mm) W.P (Bar) B.P (Bar) Length(M) 3/4" 19 25 9 31 30 1" 25 32 9 31 30 1-1/4" 32 38 9 31 30 1-1/2" 38 46 9 31 30 2" 50 60 8 28 30 2-1/2" 64 73 7 24 30 3" 76 86 6 21 30 4" 102 113 6 21 30 5" 127 139 5 17 30 6" 152 166 5 17 30 8" 203 219 4 14 8
