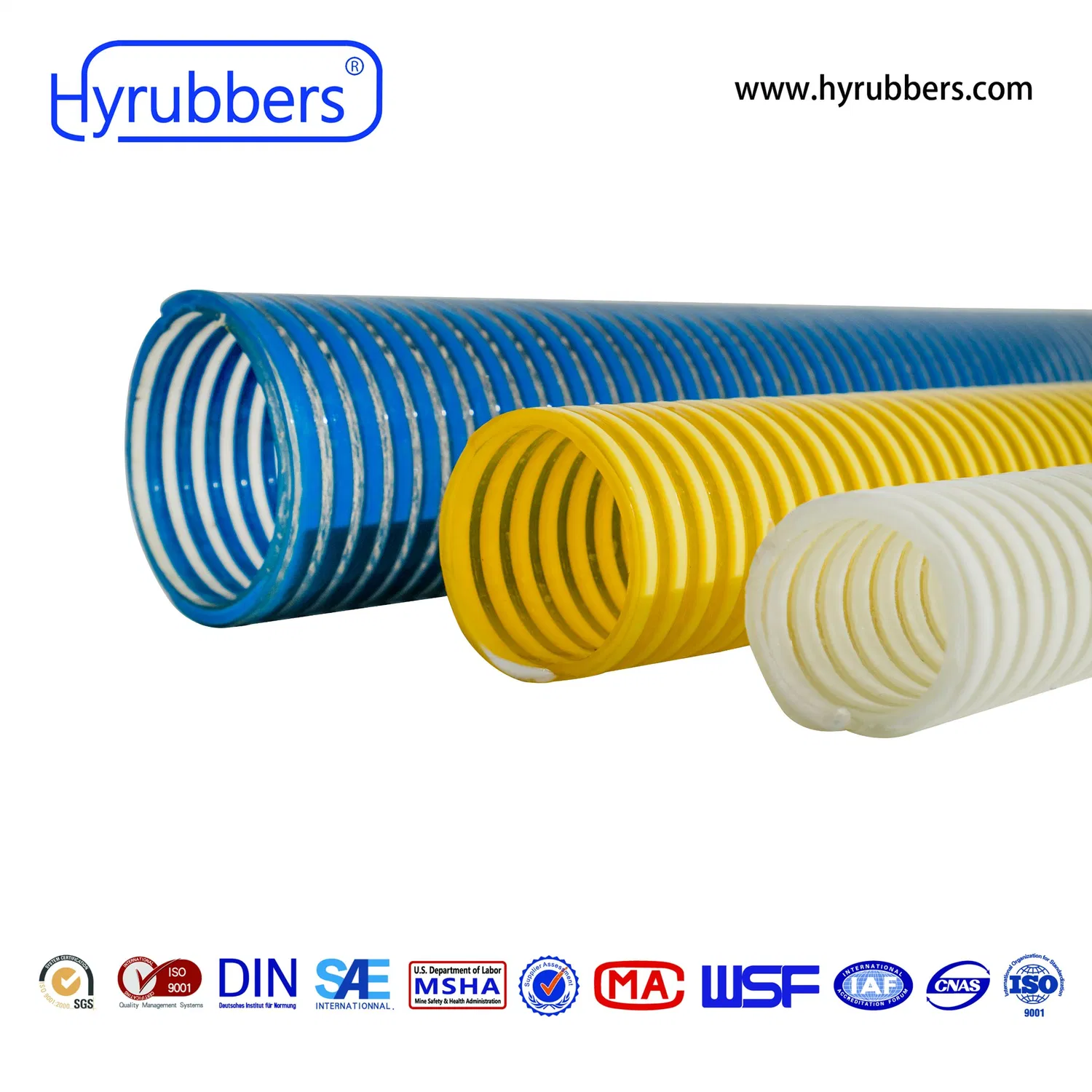

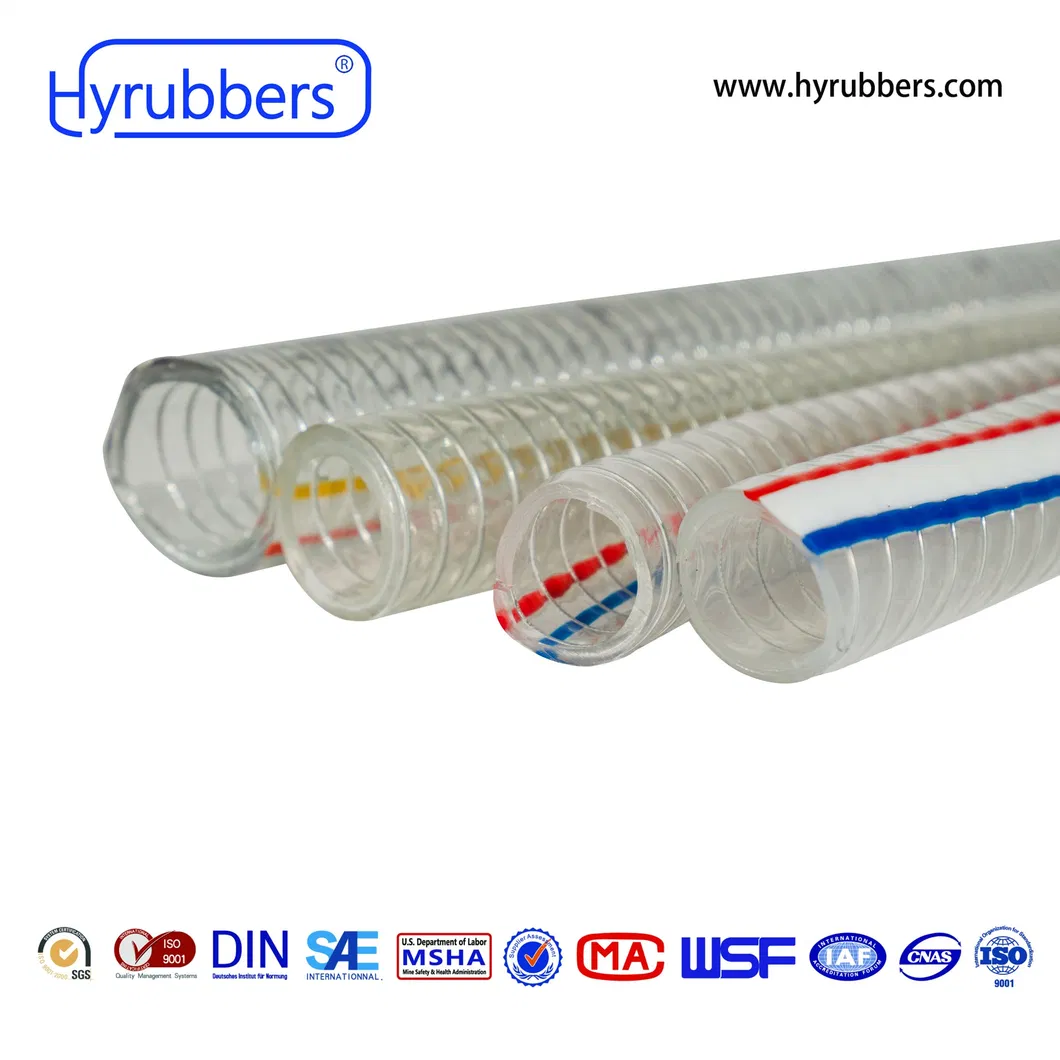

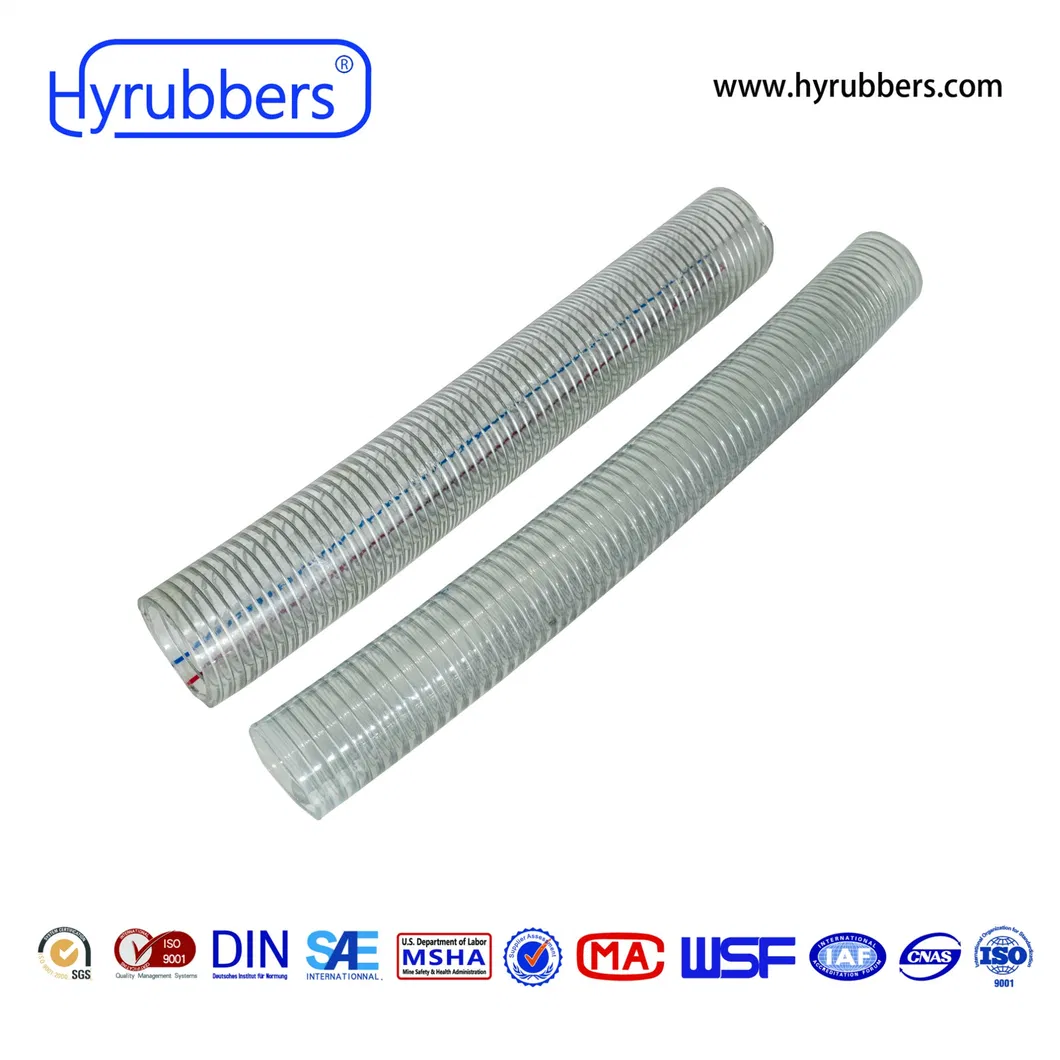

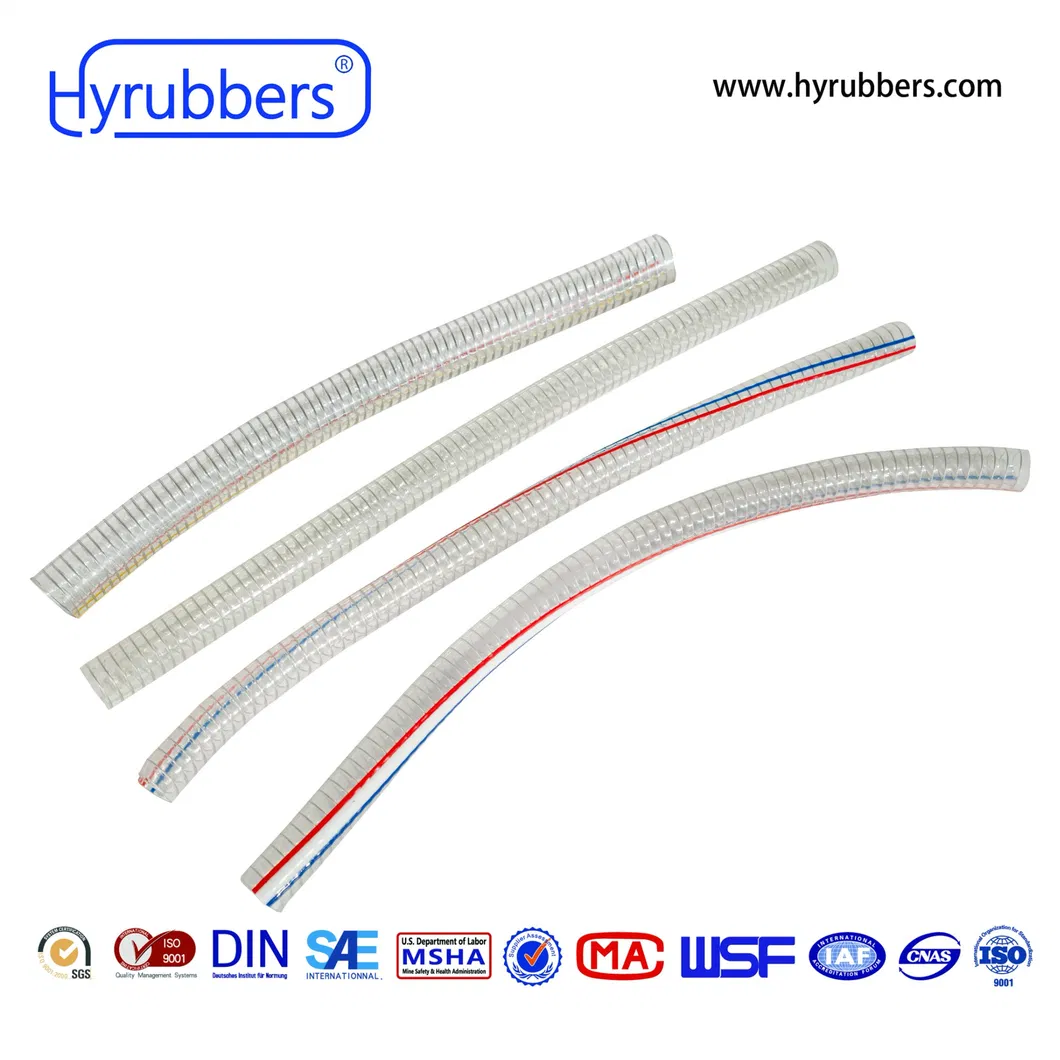

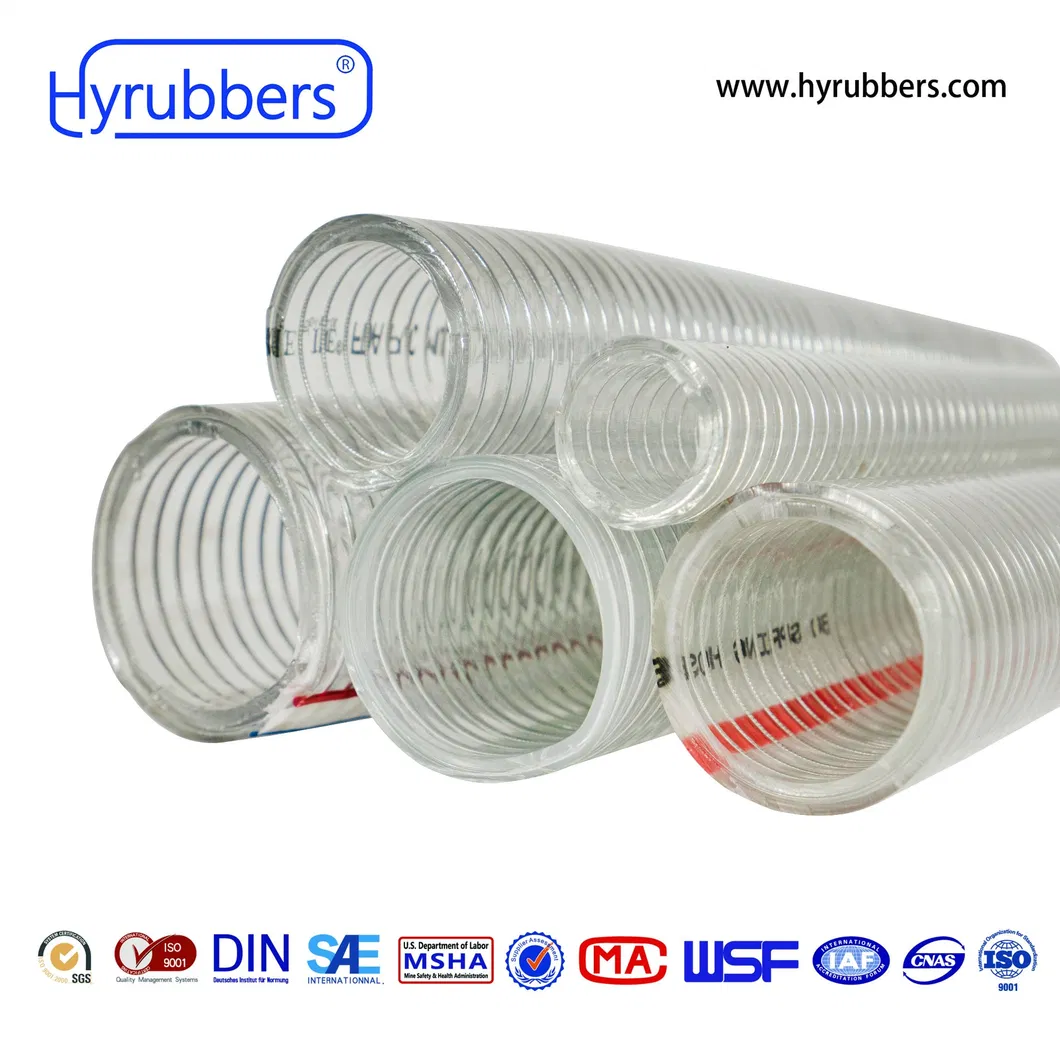

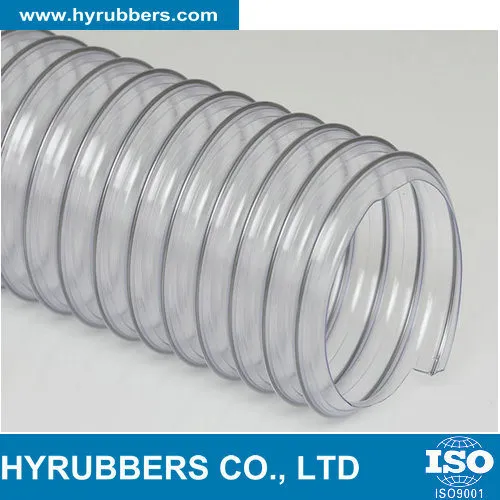

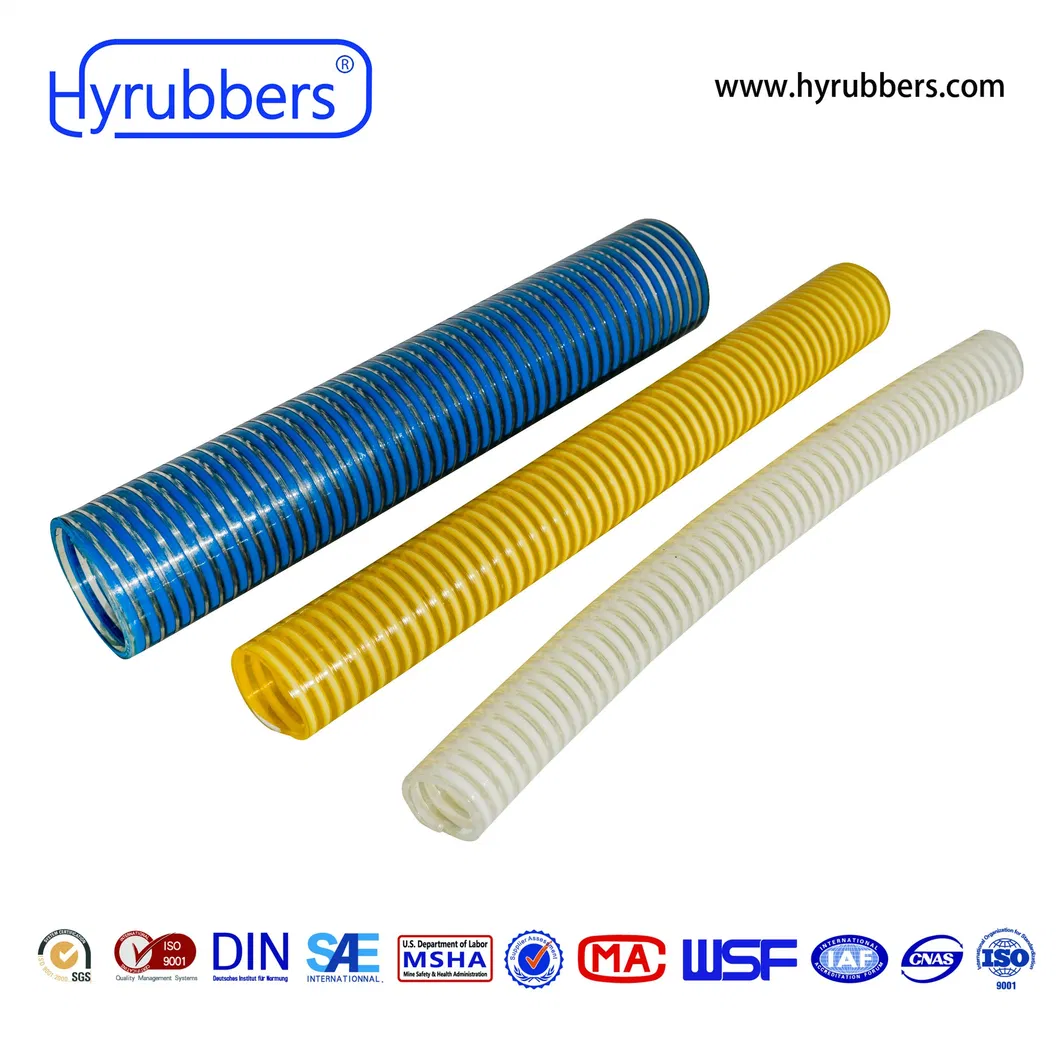

PVC Water and Air Discharge Suction Hose Pipe

Model NO.	pvc hose
Water Absorption	1.5%~3.5%
Contraction Percentage	2.0%~5.0%
Size	3/4""-8"
Length	20-50m/Roll
Transport Package	Nylon Belts
Specification	ISO, CE
Trademark	HYRUBBERS
Origin	Shandong, China
HS Code	39173900
Production Capacity	10000m Within a Month

PVC Helix Suction Hose
Product Description

 Material:  Wall:  Special abrasion resistant materials
                  Spiral: Rigid PVC spiral outside

Features:
1. Extremely abrasive resistant
2. Extremely anti crush
3. Inside surface perfectly smooth, outside corrugated
4. Could be manufactured anti-static upon request
5. High tensile strength and tear resistant
6. Good resistance to oil and fuel
7. Good resistance to UV and ozone
8. Could be resistant to chemicals
9. Comply to REACH

Technical data of PVC suction hose, PVC corrugated hose:


Light Duty PVC suction hose

Inch
I.D.
mm
O.D.
mm
W.P.
bar
B.P.
bar
g/meter
meter/roll
3/4"
19
23
6
18
230
30
1"
25
29
6
18
290
30
1 1/4"
32
36
6
18
350
30
1 1/2"
38
44
6
18
550
30
2"3
50
54
5
15
550
30
2 1/2"
63
69
4
12
880
30
3"
75
81
3
9
1160
30
4"
100
108
3
9
1950
30
5"
125
135
3
9
3000
10


Heavy Duty PVC suction hose

Inch
I.D.
mm
O.D.
mm
W.P.
bar
B.P.
bar
meter/roll
g/meter
3/4"
19
25
8
24
30
280
1"
25
31
8
24
30
350
1 1/4"
32
40
8
24
30
500
1 1/2"
38
48
8
24
30
750
2"
50
58
7
21
30
920
2 1/2"
63
73
6
18
30
1300
3"
75
85
5
15
30
1650
4"
100
111
5
15
30
2550
5"
125
137
4
12
10
3300
6"
152
167
4
12
10
4200
8"
200
216
3
10
10
6400
