Durable Plastic Pipe Extruder for Precision Drip Irrigation Systems

Model NO.	PPR32, PPR63, PPR110, PPR160
Screw No.	Single Screw, Double Screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Lifetime
Type	Pipe Extruder
Plastic Processed	PP
Feeding Mode	One Feed
Assembly Structure	Integral Type Extruder
Engagement System	Full Intermeshing
Exhaust	Don't Exhaust
Pipe Diameter	From 16mm-250mm
Pipe Usage	Water, Engergy, Gas, Irrigation, etc.
Advantages	Long Life/High Efficiency/High Capacity
Extruder Control	by Siemens PLC Screen Touch
Electrical Components	Siemens, ABB, Omron, FUJI, etc.
Production Speed	Around 5-35meter/Minute
Machine Installation	Available
Keywords	Pipe Machinery
Raw Material	PPR
Transport Package	Plastic Film and Wooden Pallet
Specification	29m
Trademark	YILI
Origin	China
HS Code	84778000

Introduction

PPR PP pipe production line of YILI Machinery can achieve full automatic control from material feeding till pipe collection, with high speed and excellent performance. It can be used to make PPR pipes, PERT pipes, PP pipes, which are mainly used in indoor floor heating system and indoor hot water supply system. The whole production line is controlled by PLC integrated control system, easy operation with automatic fault alarm system. The pipes ranges from 16mm to 250mm with thickness up to 30mm.

Technical Specification

33D Series Classical Production Line: ModelOD (mm)ExtruderMax. Output (kg/hr)Max.Haul-off speed (m/min) PPR63Φ20-63SJ65/3315010 PPR110Φ20-110SJ65/3318012 PPR160Φ50-160SJ75/333008 PPR250Φ63-250SJ75/333306   38D Series High Efficient Production Line: ModelOD (mm)ExtruderMax. Output (kg/hr)Max.Haul-off speed (m/min) HPPR63 SingleΦ20-63HSJ60/3828020 HPPR63 DualΦ20-63HSJ60/3836018*2 HPPR110 SingleΦ20-110HSJ60/3828020 HPPR110 DualΦ20-110HSJ75/3845018*2 HPEG160Φ50-160HSJ60/3836012 HPEG250Φ75-250HSJ75/3845010

Tech Features & Advantages


1. High performance extruder with special screw structure, good plasticization and low energy consumption;
2. Extrusion head with spiral structure, make sure the melt inside distributed evenly to achieve best plasticization;
3. Calibrator design with water ring which is easy to clean, and to achieve best cooling and fastest forming;
4. Advanced pipe line layout design and adjustable spray angle for better cooling effect;
5. Various kinds of haul-off unit meets requirements for different pipe size and different speed requirement;
6. No-dust cutter serves with Servo drive, which ensure accurate cutting of pipes.

Technology Process

-Extruder and Die set-



-Calibrator specially designed for PPR pipes-

- Vacuum & Cooling tank-

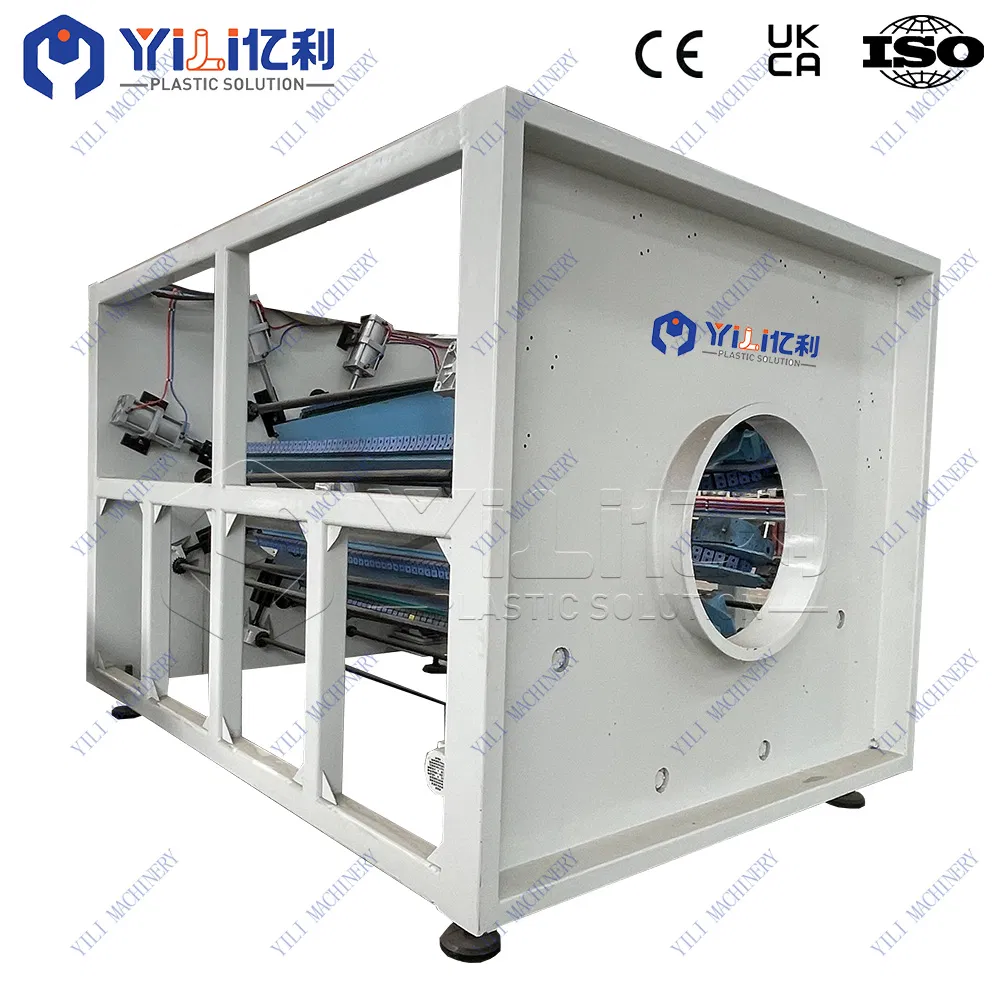

-Haul-off & Cutter-
