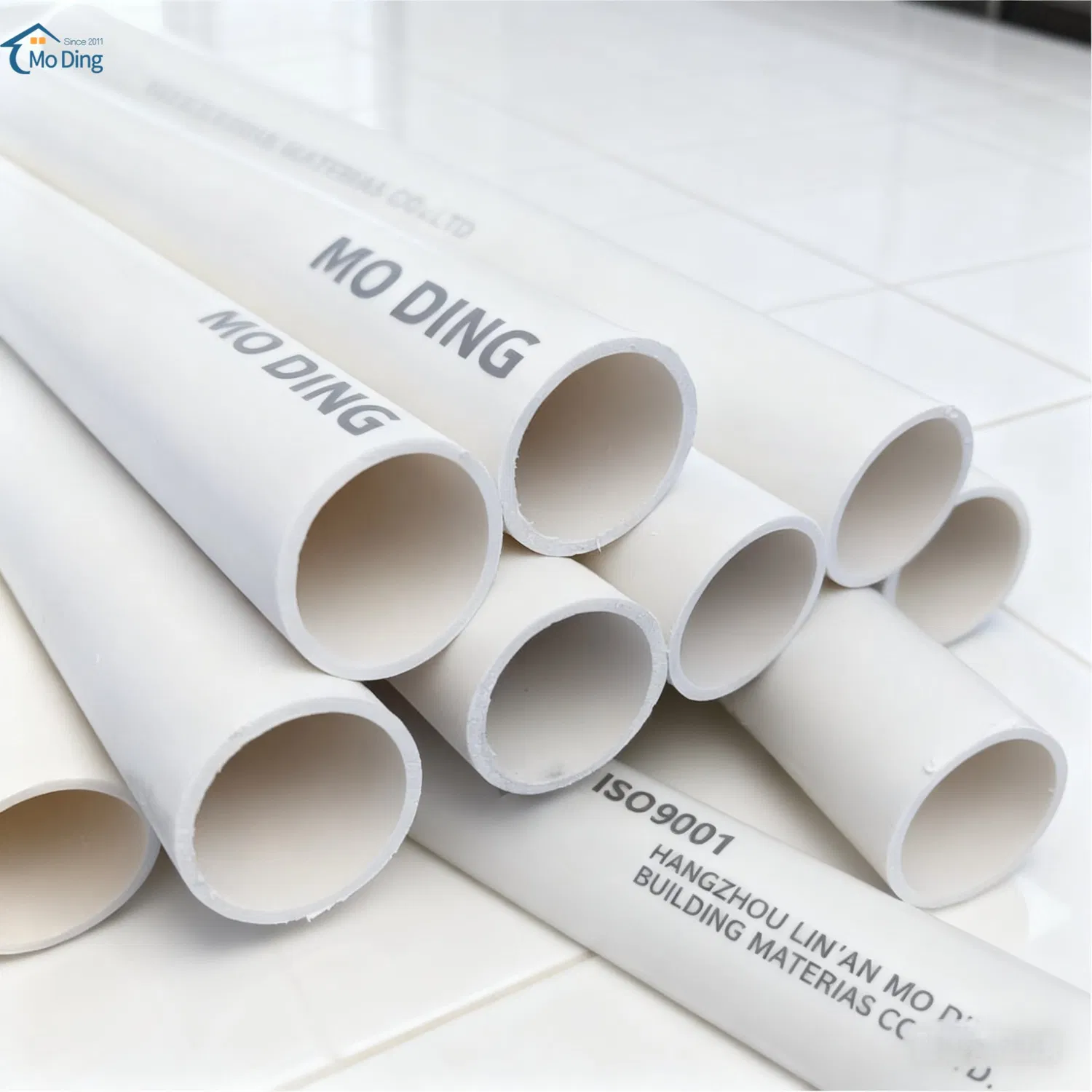

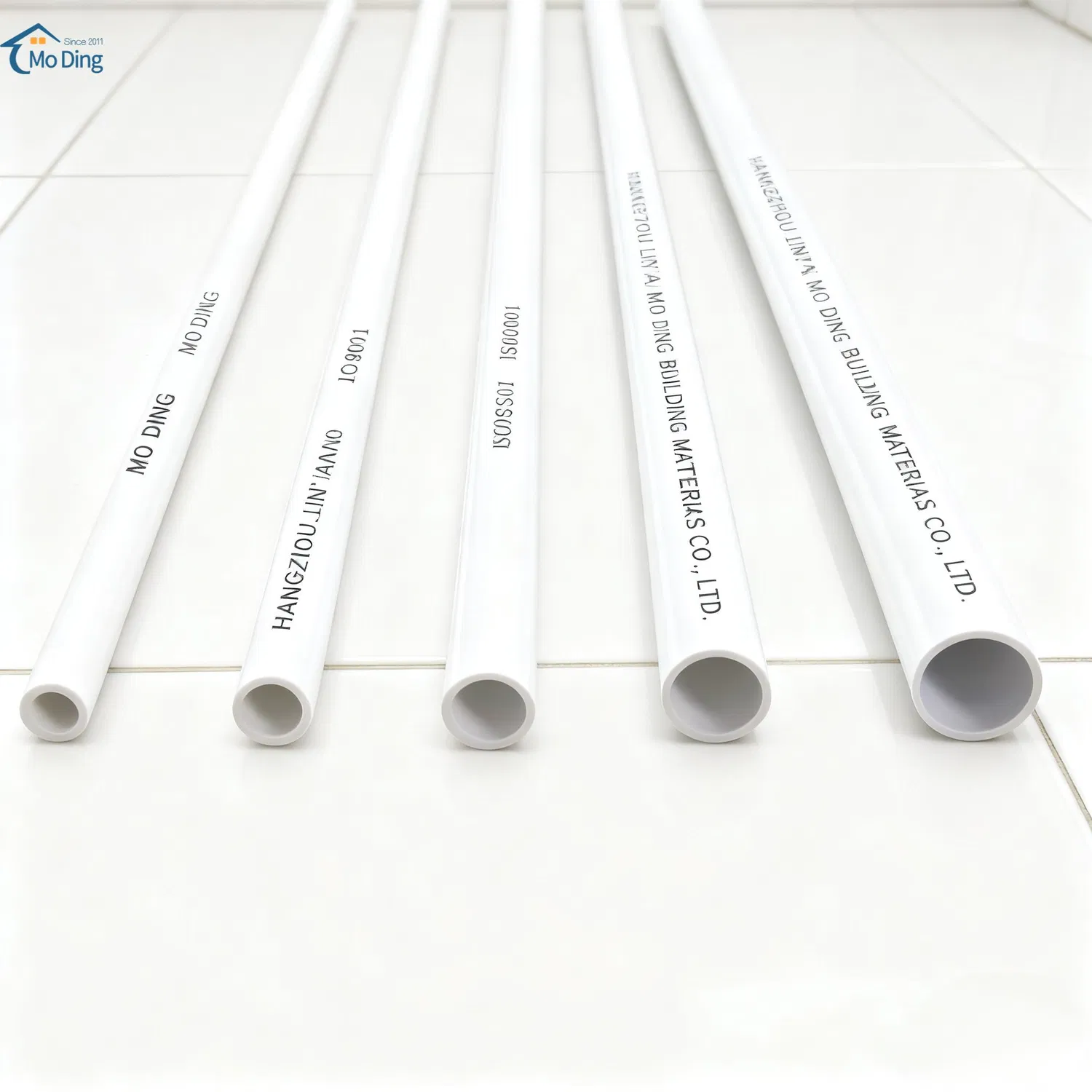

Mo Ding PVC Gutter System: High-Flow Round Pipe

Upgrade your rainwater management with the Mo Ding PVC Gutter System Round Pipe, a high-quality, cost-effective, and easy-to-install solution for both new construction and remodels.

This lightweight yet durable PVCu rainwater pipe (68mm) is part of a traditional round system designed for reliable performance and quick fitting directly to the fascia. Its simplicity and robust construction make it an ideal choice for budget-conscious projects that refuse to compromise on quality or flow capacity.

Key Features of the Mo Ding Round Pipe:

• Cost-Effective Solution: A budget-friendly choice without sacrificing quality or longevity.

• High Flow Capacity: The 68mm pipe diameter provides excellent drainage, making it suitable even for larger roof areas.

• Easy Installation: Lightweight and simple to install, the pipe can be quickly cut with a fine-toothed saw.

• Traditional Aesthetics: Features a high-quality finish in a classic round style.

• Color Selection: Available in standard colors including Black, White, or Brown to match your exterior trim.

• Standard Dimensions: Supplied in a generous 4-meter (4000mm) length.

Pair the round pipe with our complementary guttering, such as the 112mm half-round gutter system, to ensure a water-tight, professional installation that will stand the test of time.

Product Highlights:

• Square section for vertical rainwater drainage

• Available in multiple colors to match various roof and wall finishes

• Compatible with standard PVC gutter systems

• Optional uPVC clamps for secure wall mounting

• Excellent chemical and corrosion resistance

• Typical size: 320 mm (custom sizes available)

• Backed by a 10-year warranty for quality assurance

• Product Specifications - PVC 7-Inch Square-to-Round Adapter

  ParameterDetails Product NamePVC 7-Inch Square-to-Round Adapter FunctionTransitions a 7" square gutter outlet to a round downpipe MaterialUnplasticized Polyvinyl Chloride (uPVC) ColorWhite / Gray / Customizable upon request Outer Dimension (Square End)7 in × 7 in (approx. 178 mm × 178 mm) Inner Diameter (Round End)Ø 4 in, Ø 5 in, Ø 6 in (customizable to fit standard pipes) Wall Thickness2.5 mm - 4.0 mm (depending on structural requirement) Height (Overall)150 mm - 200 mm WeightApprox. 400-600 g (depending on size and wall thickness) Operating Temperature Range-10°C to 60°C (14°F to 140°F) UV ResistanceYes - UV-stabilized for outdoor use Chemical ResistanceResistant to acids, alkalis, and environmental pollutants Standards ComplianceISO 3633 / ASTM D1785 / EN 607 (as applicable) Installation TypePush-fit or solvent weld connection PackagingBulk or individual packaging with PE bag + carton box Typical ApplicationsResidential, commercial, and industrial gutter drainage systems

1. Material Sourcing

PVC Resin:
Source high-grade unplasticized PVC (uPVC) resin that meets international standards for outdoor building components. The selected resin should offer high weather resistance, low water absorption, and UV stability to withstand harsh sunlight and seasonal temperature variations.

Functional Additives:
The formulation should include:

• UV Stabilizers - to prevent discoloration and degradation under sunlight.

• Impact Modifiers - to enhance durability and crack resistance, especially in colder climates.

• Processing Aids - to improve extrusion and molding performance.

All additives must be carefully selected to meet the structural and functional demands of rainwater hopper systems.

2. Design and Prototyping

Custom Design Options:
based on installation preferences and regional requirements, develop a range of hopper configurations compatible with Mo Ding's 7-inch gutter systems. Key focus areas include:

• Hopper shape (round, square, tapered)

• Outlet positioning and sizing

• Compatibility with downpipes and leaf guards

Prototype Validation:
Produce physical samples for evaluation. Conduct functional testing to ensure:

• Efficient water flow

• Secure fit with gutters and downpipes

• Structural integrity under load

• Ease of installation for end users

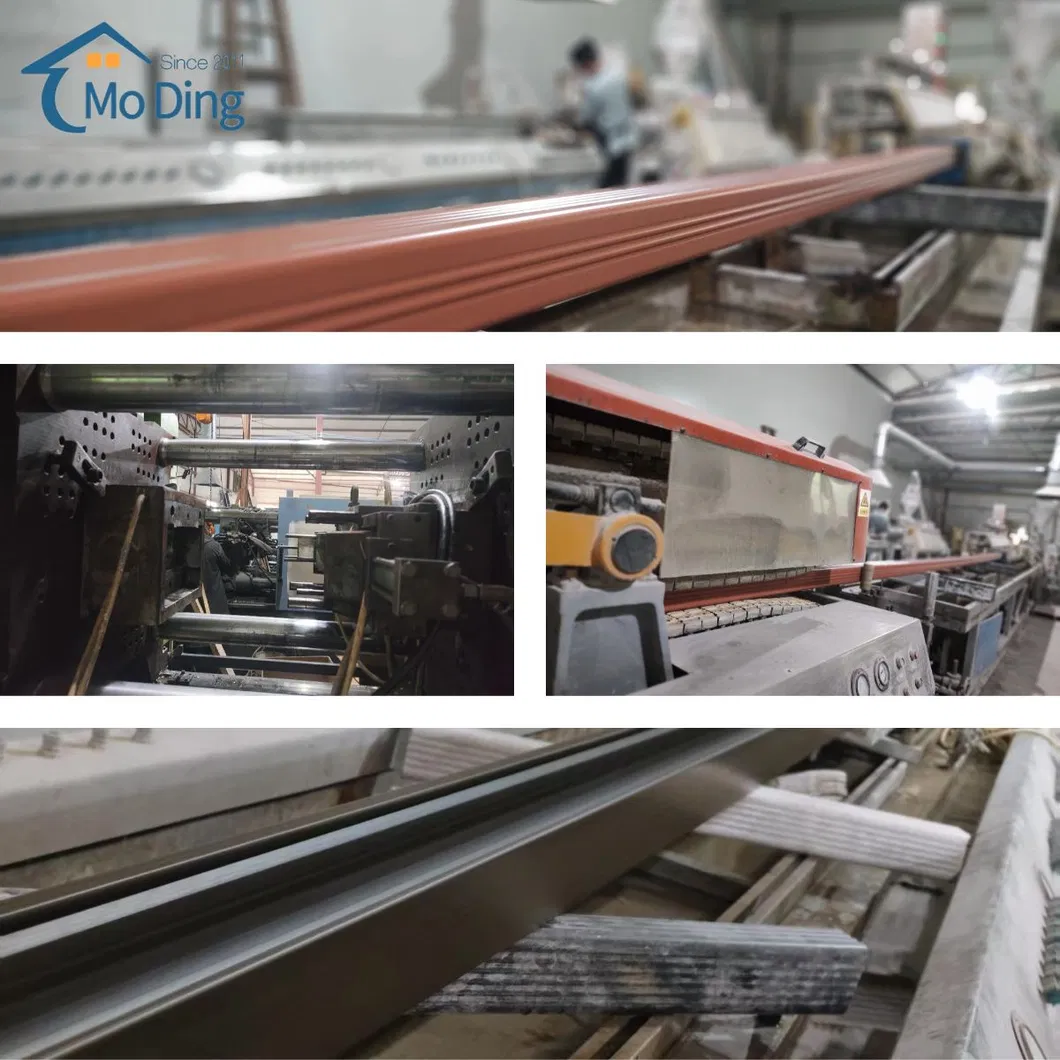

3. Manufacturing Process

Injection Molding:
Rainwater hoppers are typically produced via injection molding for accurate form, consistent wall thickness, and high repeatability. Ensure:

• Molds are maintained and free from wear

• Machine settings are optimized for PVC (temperature, pressure, cycle time)

• Demolding and cooling systems preserve product shape

Surface Finish & Labeling:
Apply textured finishes or smooth gloss as required. Product labeling (size, logo, batch code) may be hot-stamped or engraved.

4. Quality Control

Dimensional Accuracy:
Conduct regular measurements of:

• Inlet and outlet diameters

• Wall thickness

• Overall hopper dimensions
  Tolerance levels should align with industry standards.

Impact and Strength Testing:
Use drop tests and static load simulations to ensure the hopper performs under real-world stress and weather conditions.

UV and Weather Resistance Tests:
Accelerated aging and UV chamber testing are performed to verify long-term outdoor stability.

Water Tightness:
Perform leak tests at all joints and outlet points to ensure water flows correctly with no seepage under pressure.

5. Logistics and Distribution

Inventory Management:
Implement digital inventory tracking to monitor:

• Raw material stock levels

• Production throughput

• Finished goods ready for shipment

Packaging Solutions:
Each hopper is packed in protective wrap or shrink film, with carton or crate options for bulk transport. Custom labeling and QR codes can be added for easy logistics and tracking.

Shipping Protocols:
Ensure secure, upright positioning during transport to avoid deformation. Use stackable crates or modular packaging to maximize space and reduce freight costs.

6. Customer Feedback and Product Improvement

On-Site Monitoring:
Gather customer usage data post-installation. Monitor reports on:

• Leaks or clogging

• Fit with 7-inch systems

• Weather-induced damage

Continuous Optimization:
Integrate feedback into design iterations and production improvements. Explore automation and precision tooling to enhance efficiency, consistency, and cost control.

7. Compliance and Certifications

Ensure all Mo Ding 7-inch rainwater hopper products meet or exceed relevant standards, including but not limited to:

• ISO 1452 for plastic piping systems

• ASTM D1785 for PVC components

• EN 607 / EN 12200 for rainwater accessories

• Compliance with regional environmental and building codes

Apply for third-party certifications where applicable to enhance trust and product credibility.

Key Focus Areas for Mo Ding Production Success

• Efficiency: Optimize molding cycles, reduce waste, and streamline logistics for maximum productivity.

• Sustainability: Reuse PVC scrap in non-critical parts and adopt recyclable packaging materials.

• Customer Service: Offer installation guidance, technical support, and responsive after-sales service to build long-term trust.

The Mo Ding 7-Inch Gutter System stands as a benchmark for large-capacity, high-performance PVC rainwater solutions. Designed to handle significant water runoff with ease, this system is not just about size and flow; it is built upon a foundation of rigorous quality control and precision engineering to ensure decades of reliable, leak-free performance.

Unlike standard gutter systems, the Mo Ding line is subjected to a comprehensive 10-point Quality Control process-from raw material inspection to final packaging-guaranteeing that every component, particularly the critical Rainwater Hopper, meets the highest standards for durability and dimensional accuracy.

Commitment to Quality:

• Premium uPVC Formulation: We begin by verifying the purity and consistency of our uPVC resin, ensuring the perfect balance of UV stabilizers and Impact Modifiers for long-term outdoor use and exceptional strength.

• Precision Molding: Every hopper is created under strict process parameters, resulting in uniform wall thickness and smooth, dimensionally accurate profiles, eliminating common defects like warping or voids.

• Verified Strength: Components undergo demanding mechanical tests, including the Drop Impact Test and Hydraulic Leak Resistance Tests, confirming their ability to withstand surges in water pressure and physical stress.

• Guaranteed Fit: Dimensional tolerances are held to strict standards ($pm 0.2 text{ mm}$ to $pm 0.5 text{ mm}$) to ensure perfect compatibility with Mo Ding 7-inch gutter profiles and downpipes, guaranteeing a water-tight seal.

When you choose the Mo Ding 7-Inch Gutter System, you are investing in superior flow capacity backed by meticulous Quality Control and Testing Standards (including ASTM and ISO standards for UV exposure and impact resistance).

Proper packaging and delivery of rainwater hoppers are critical to maintaining product quality and ensuring safe arrival at customer sites. The following procedures outline best practices for preparing, packing, and shipping Mo Ding's 7-Inch Gutter System Rainwater Hoppers.

1. Preparation and Materials Needed

Before packing, gather the following materials:

• 7-Inch Rainwater Hoppers (clean, dry, and quality-checked)

• Bubble wrap or foam padding (for surface protection)

• Stretch film or shrink wrap (to secure bundles)

• Corrugated cardboard sheets or protective edge guards

• Zip ties or high-strength packing tape

• Durable plastic or steel strapping

• Heavy-duty cardboard boxes or wooden crates (for export or long-distance delivery)

• Pallets (optional for bulk shipments)

2. Packing Process

a. Clean and Inspect

• Ensure each hopper is clean, dry, and free from visible defects or deformation.

• Perform a final quality check for scratches, cracks, or dimensional irregularities.

b. Group and Bundle

• Group hoppers of the same model and dimensions together for efficient stacking.

• Nest or align hoppers carefully to avoid shifting during transport.

• Use zip ties or strapping to tightly secure grouped hoppers-tight enough to prevent movement, but not so tight that it deforms the plastic body.

c. Protect Critical Areas

• Wrap each hopper or bundle with bubble wrap or foam padding, focusing on sensitive edges and outlet openings.

• Use corner guards or corrugated cardboard at vulnerable points to prevent impact damage during stacking or handling.

d. Wrap and Seal

• After padding, wrap the entire bundle in stretch film or shrink wrap to hold it securely.

• Ensure the wrap is tight, covering all sides to protect from dust, moisture, and minor abrasion.

3. Delivery Guidelines

a. Clear Labeling

• Attach water-resistant labels to each bundle or box.

• Include key details such as:

  • Product Name & Size (e.g., 7-Inch Rainwater Hopper)

  • Quantity

  • Handling Instructions ("Fragile", "Do Not Stack", "Top Load Only", etc.)

  • Destination and batch tracking info

b. Strategic Loading

• Load hoppers flat and evenly supported inside transport vehicles or containers.

• Avoid placing heavy objects on top of hopper bundles to prevent crushing.

• For larger items or long hoppers, ensure vehicle support spans the full base length to prevent bending or stress points.

c. Palletization (for Bulk Orders)

• Place bundles on sturdy pallets, stacked uniformly for balance.

• Secure the load with strapping and wrap the entire pallet in shrink film for extra protection.

• Label the pallet clearly with order information and ensure forklifts can access it without damaging the contents.

Additional Tips for Export or Long-Distance Shipping

• Use wooden crates or reinforced cardboard cartons for overseas or fragile shipments.

• Desiccant bags can be added to packaging for moisture-sensitive orders.

• Include a packing list or bill of lading with every shipment for traceability and customs clearance.

Applications of PVC Gutters and Accessories in Building Construction

Mo Ding's high-performance PVC gutter systems and accessories are engineered to support efficient rainwater management in both residential and commercial structures. Their lightweight, durable, and corrosion-resistant properties make them a preferred choice for modern construction projects.

1. Roof Rainwater Drainage

Primary Function:
PVC gutters are designed to collect and direct rainwater from the roof to downpipes, preventing water damage to walls, foundations, and landscaping.

Benefits:

• Prevents erosion and structural dampness

• Eliminates overflow and water stains on exterior walls

• Low maintenance and rust-free operation

2. Rainwater Harvesting Systems

Application:
When paired with downspouts and collection tanks, PVC gutter systems efficiently channel rainwater for non-potable uses such as garden irrigation, flushing toilets, or washing vehicles.

Advantages:

• Improves sustainability in green building projects

• Maintains clean water flow with smooth interior surfaces

• Easy to integrate with filters and first-flush diverters

3. Stormwater Management

Application:
Gutters and accessories like elbows and drop outlets help divert stormwater safely away from buildings during heavy rainfall.

Advantages:

• Reduces the risk of basement flooding

• Prevents soil washout near foundations

• Compatible with underground drainage systems

4. Façade and Foundation Protection

Application:
Properly installed gutter systems prevent rainwater from dripping down exterior walls and accumulating at the base of a structure.

Benefits:

• Protects exterior paint and cladding

• Minimizes the risk of mold and mildew

• Preserves the integrity of foundations and basements

5. Aesthetic Integration

Application:
Modern PVC gutter profiles are available in various colors and finishes, allowing seamless blending with the building's architectural style.

Benefits:

• Conceals drainage functionality with clean lines

• Offers visual uniformity without compromising on performance

• Color-stable and UV-resistant for long-lasting appearance

Gutter Accessories and Their Functional Applications

AccessoryFunction / Application DownspoutsChannel rainwater from the gutters down to the ground drainage system or rainwater tanks. ElbowsRedirect water flow-commonly used to turn downspouts from vertical to horizontal, or to connect around corners. End CapsSeal off the ends of gutter runs to prevent water leakage and ensure directional flow. Gutter JoinersJoin two straight gutter sections, maintaining structural integrity and ensuring a leak-free connection. Brackets/ClipsSecure the gutter to the fascia board or wall, providing stable support during heavy rain or snow loads. Leaf GuardsPrevent leaves, twigs, and debris from clogging the gutter, reducing the need for frequent cleaning and improving water flow. Drop OutletsConnect the gutter channel to a downspout, ensuring smooth and controlled drainage of rainwater. Expansion JointsAllow the gutter system to expand and contract with temperature changes, preventing cracking, warping, or joint separation.

AccessoryFunction / Application

Introduction to Services Offered by Hangzhou Lin'an Mo Ding Building Materials Co., Ltd.

Founded in 2011 and based in Gaohong Industrial Park, Hangzhou Lin'an Mo Ding Building Materials Co., Ltd. is a high-tech enterprise specializing in the research, development, production, sales, and technical support of advanced building materials. The company is a recognized leader in high-performance drainage systems and eco-friendly construction solutions.

Mo Ding offers a comprehensive range of products and services, including PVC and aluminum alloy drainage systems, wall and ceiling panels, and a full suite of components designed for durability and environmental sustainability. Its flagship product-the Ward high-performance rainwater system-features innovative design and materials that deliver twice the drainage efficiency and exceptional resistance to harsh weather conditions.

The company provides end-to-end solutions, from design consultation and technical guidance to installation and after-sales service. With a strong commitment to quality, Mo Ding adheres to ISO 9001 standards and offers certified, lead-free products that support green building initiatives. Serving both domestic and international markets, Mo Ding partners with architects and developers to deliver stylish, long-lasting, and leak-free drainage solutions for residential, commercial, and landmark projects.

Driven by innovation and sustainable development, Mo Ding continues to expand its global presence and strives to be a leading brand in green building materials.
