3/8+3/4 PVC Foam Insulated Pancake Coil Copper Aluminum Connecting Pipe for HVAC

Model NO.	1/4"+1/2"
Certification	ROHS, CE
Type	Straight Copper Pipe
Shape	Round
Alloy	Alloy
Grade	Tp2
State	Soft
Color	Customized
Size	Customized
Weight	Customized
Layer	Three Layers
Warranty Period	2 Years
Insulated Pipe Total Length	3-50m
Package	Carton
Delivery Time	15-20 Days
Transport Package	Carton
Specification	1hp/2hp/3hp
Trademark	Andwin
Origin	Jiangsu, China
HS Code	8415901000

Product Description

Customized Length is accepted(Max length=50M)

Customized O.D and Thickness are accept.

Insulated tube can be made covered with copper nuts

Specification Copper tube Insulation tube Suitable for Length(m) Out diameter×thickness Inner diameter(mm) d2×t2 / d1×t1 (mm)   1/4"+3/8" 6.35×0.8+9.52×0.8 φ8(±0.5)+φ12(±0.5) 1HP 3-30 1/4"+1/2" 6.35×0.8+12.70×0.8 φ8(±0.5)+φ14(±0.5) 1.5HP 3-30 1/4"+5/8" 6.35×0.8+15.88×1.0 φ8(±0.5)+φ18(±0.5) 2HP 3-30 3/8"+5/8" 9.52×0.8+15.88×1.0 φ12(±0.5)+φ18(±0.5) 3HP 3-30 3/8"+3/4" 9.52×0.8+19.05×1.0 φ12(±0.5)+φ22(±1) 4HP 3-30 1/2"+3/4" 12.70×0.8+19.05×1.0 φ14(±0.5)+φ22(±1) 5HP 3-30

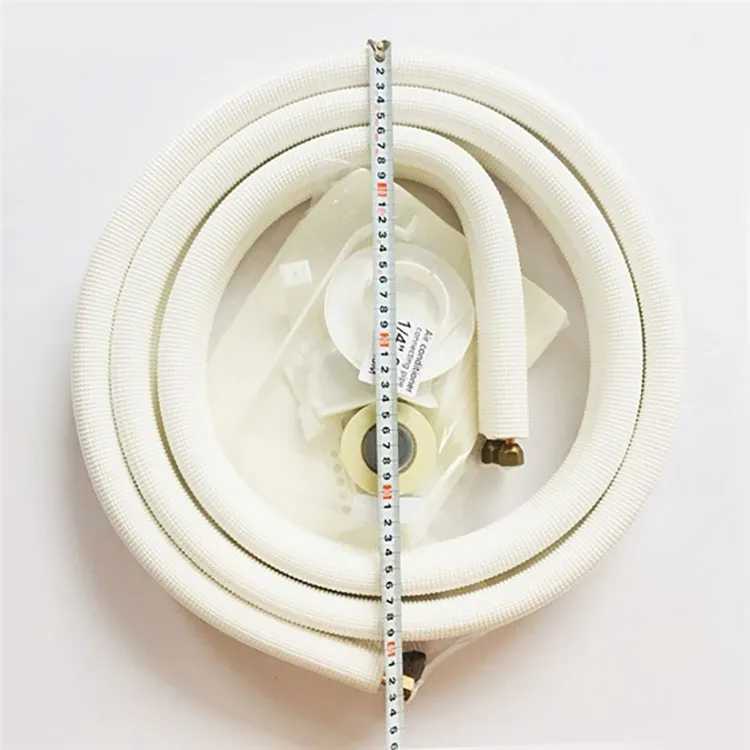

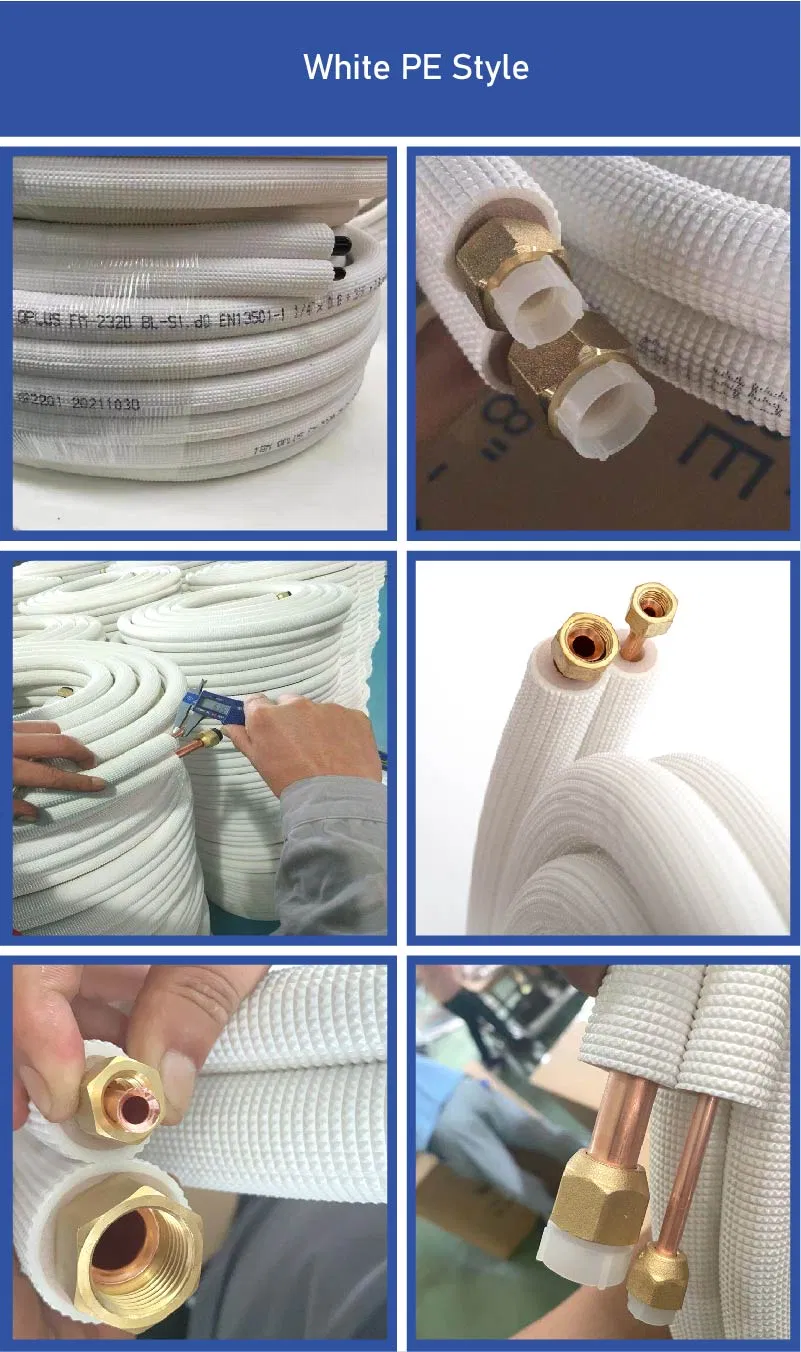

This copper aluminum pair coils with white PE insulation is manufacturerd by our own factory, we have focused on supplying high quality copper pair coils products for all our customers since 2014. And this copper pair coils are mainly for US, Australia, New Zealand, and Euro-market. We support customized wall thickness of copper, spare parts for installation, special packages with your logos or something else you want.

Production process


Package and shipment
About packages for copper line set, we normally use cartons for it, but we also support other packing ways, such as pallets. Customized information on the cartons is available, such as printing your logos or your company names on it, that would be ok.

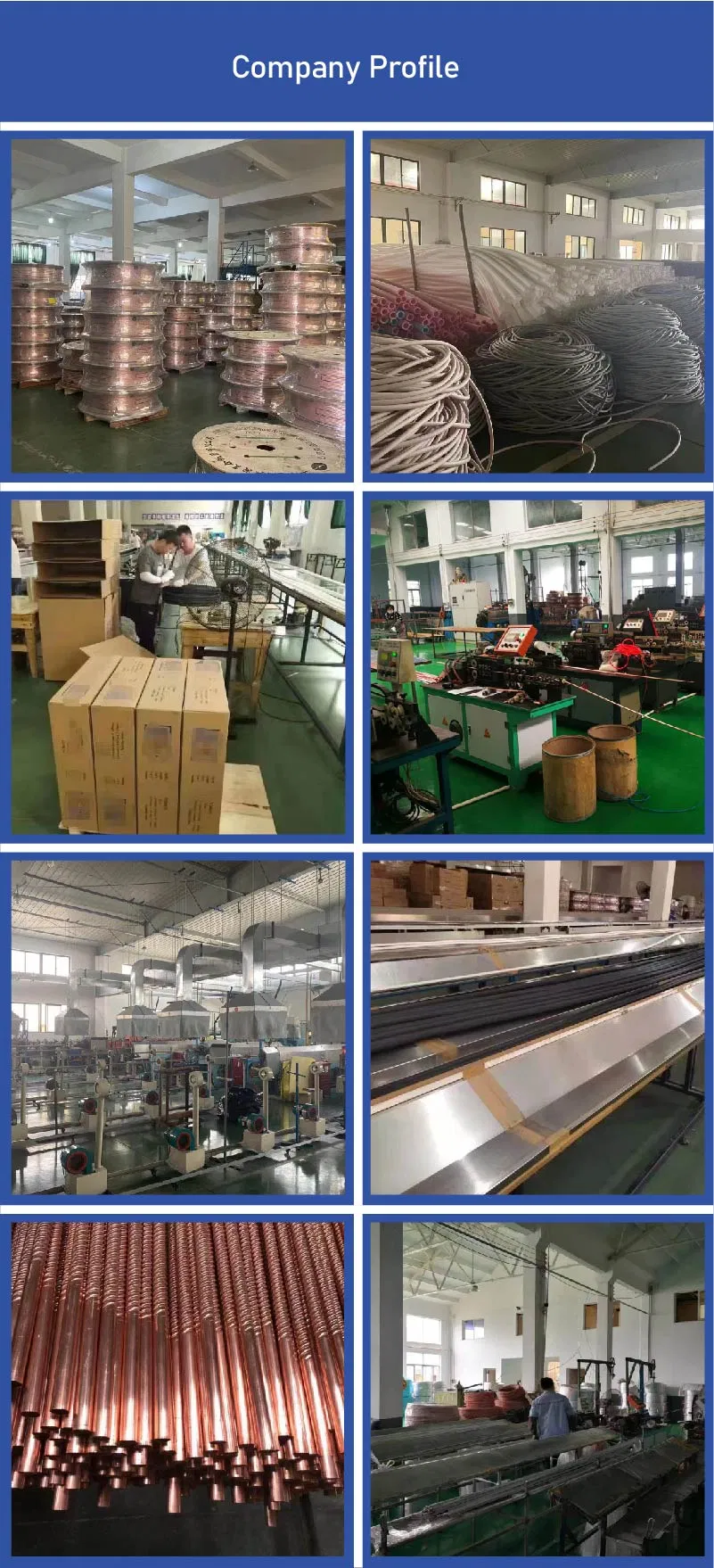

Our company
