PVC Garden Hose Making Machine PVC Fiber Reinforced Soft Hose Pipe Production

Flexible PVC Garden Hose Machine PVC Braided Pipe Making Machine

High pressure Fiber braided PVC Hose is used for conveying water, oil and gas under high working pressure in the factory, farm, ship, building and family. It can be also used for gardening, car spray washing, floor cleaning and other daily life uses.

High pressure Fiber braided PVC Hose Characteristics:
1. polyester open mesh braiding permanently encapsulated in walls of clear, flexible PVC tubing
2. Compound does not contain any known cancer-causing chemicals
3. Constructed of three PVC layers, it offers far higher pressure resistent capabilities than unreinforced PVC tubing
4. Mirror smooth interior permits outstanding flow characteristics, more beautiful by adding symbol lines on the surface of the hose
5. anti-UV, flexible
6. Corrosion and abrasion resistant with flexibility similar to rubber but with much longer life

We are offering the pvc high pressure fiber brading hose extruder machine / production line.

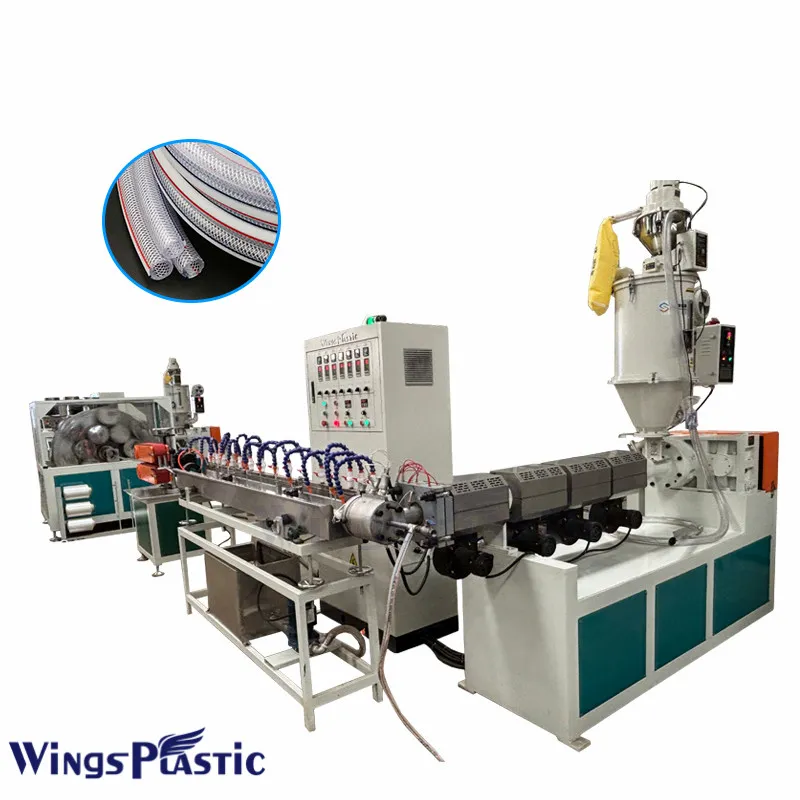

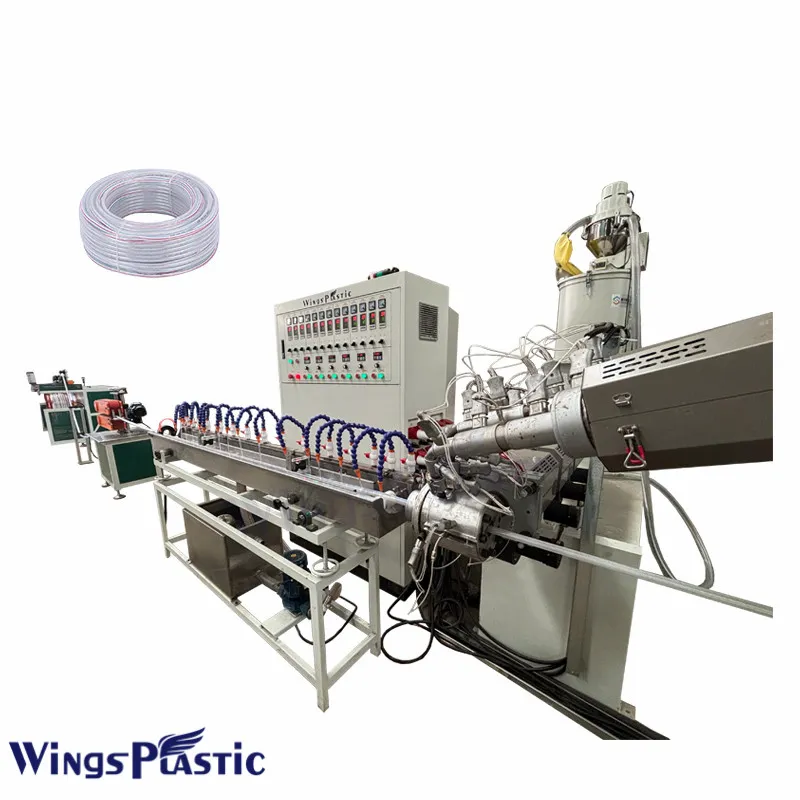

This Line consists of main extruders,water cooling tank, haul off machine, fiber braiding machine,coiler etc, which has reasonable design, unique structure, stable performance ,easy operation and maintenance, constant production capacity, warmly welcomed by customers.

Model

Extruder Configuration

Applicable Hose Diameter (OD)

Max. Output Capacity

Key Features & Applications

XWG-45

Single Screw, SJ45/30, 11 kW

6 - 25 mm

Up to 50 kg/h

For small diameter garden hoses, car wash hoses. Features 3-layer structure, UV resistant.

XWG-55

Single Screw, SJ55/30, 15 kW

8 - 50 mm

Up to 80 kg/h

Versatile for medium pressure hoses used in farming, cleaning. Polyester mesh braiding reinforcement.

XWG-65

Single Screw, SJ65/30, 22 kW

20 - 70 mm

Up to 130 kg/h

For high-pressure industrial hoses (water, oil, gas). Mirror smooth interior for optimal flow.
