Advanced PVC and CPVC Pipe Solutions for Global Distribution

Automation	Automatic
Computerized	Non-Computerized
Certification	CE, ISO9001:2008
Customized	Non-Customized
Condition	New
High Capacity	800kg/H Capacity
Haul off	Servo Motor
Inverter	Schneider
Contacter	Schneider
Cutter	Dust Free
Screw	Bimetallic
Transport Package	Wooden Packing
Specification	CE
Trademark	Middle tech industry
Origin	China
HS Code	84772090
Production Capacity	800kg/Hr

Application of Pipe:

PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

Charaacterizer of MT extruder:

 Capacity increased (20% higher),
 High standard (Bimetallic & PLC Intelligence),
 Reliable quality (vertical gearbox by SKF bearing)


Equipmnet List :

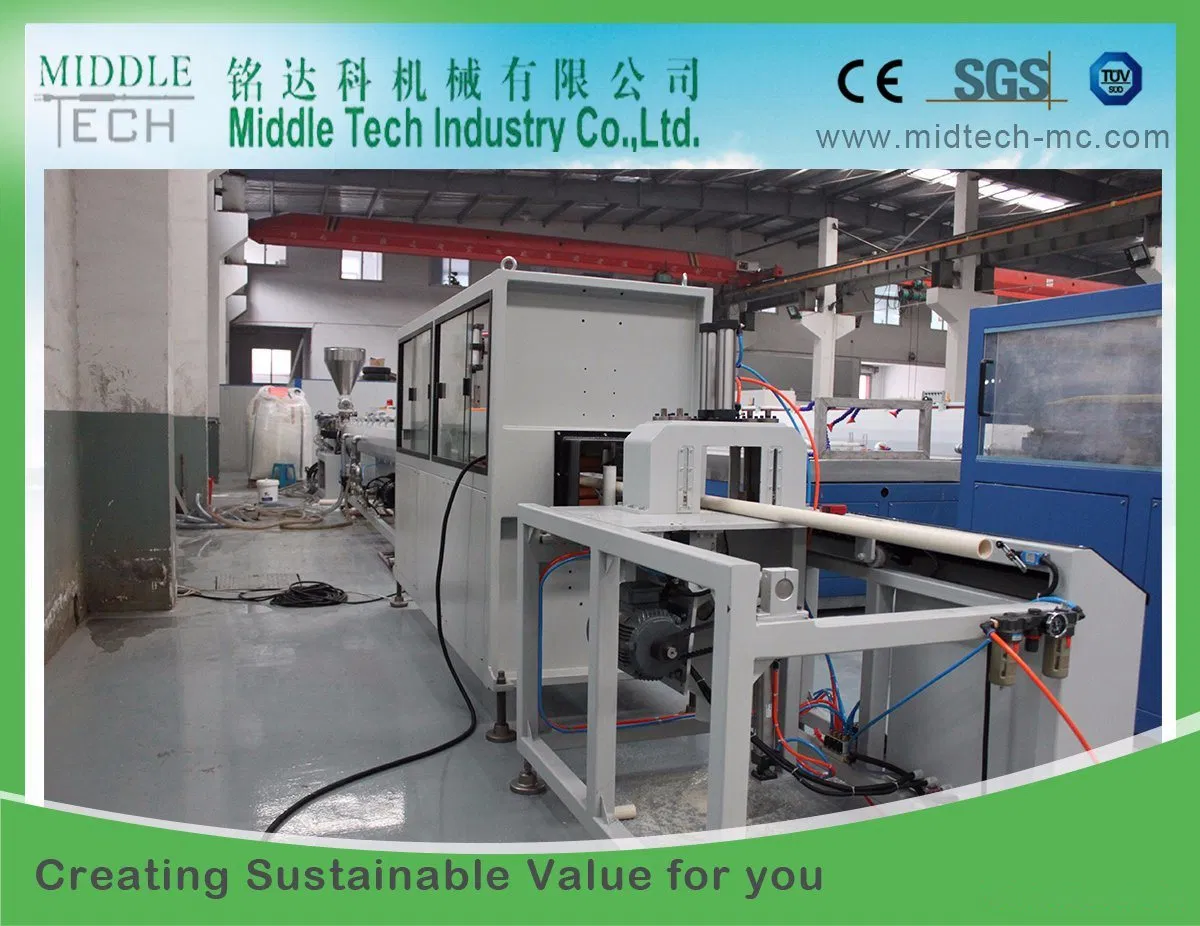

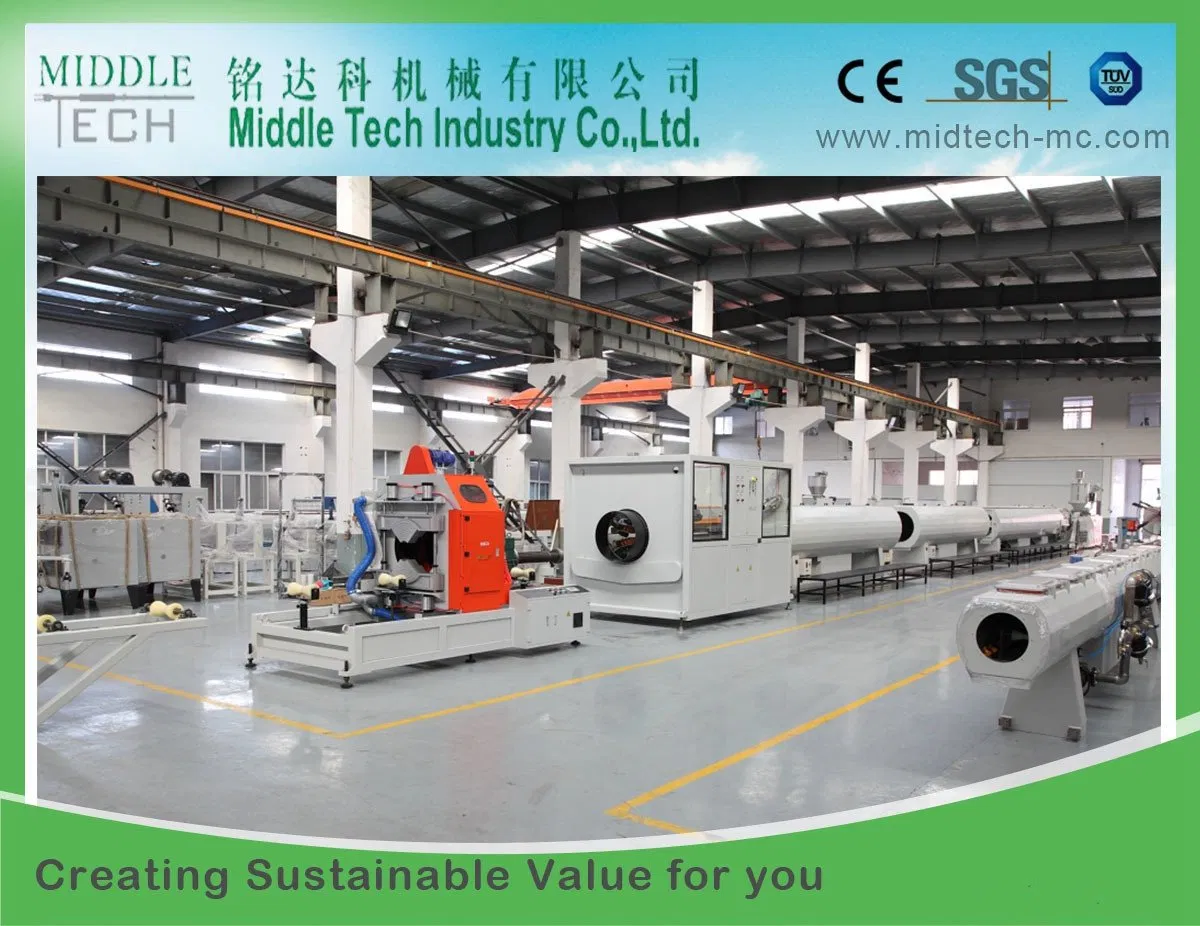

PVC pipe extruder machine line : consists mainly of

Twin screw conical (parallel) extruder,




Mould


Vacuum calibrating tank,

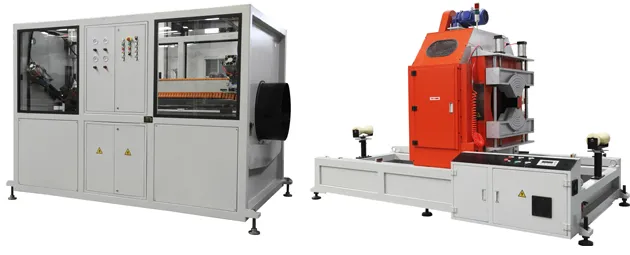

 Haul-off unit &Cutting unit,
Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

If you are interest in our machine, that would be our honor to provide information for you.
Main parameter of PVC pipe production line extruder machine

Extruder modelSJSZ-50/105SJSZ-55/110SJSZ-65/132SJSZ-80/156SJSZ-92/188 Driving motor (kw)1537375590 Pipe diameter range(mm)16-4020-11050-200200-400400-630 Water pump3kw4kw5.5kw5.5kw X 2pcs7.5kw X 2pcs Vacuum pump2.2kw X 2pcs4kw4kw4kw X 2pcs7.5kw 5.5kw X 2pcs Caliber Length(mm)50006000600080006000, 3000 Water cooling tankNoNo50006000100000 Hauling motor0.75kw 4pcs2.2kw3.7kw7.5kw18.5kw Hauling belt4pcs2pcs2pcs4pcs6pcs Cutting motor1.1kw 2pcs2.2kw3.7kw3.7kw3.7kw Inverter brandABBABBABBABBABB Contactor brandSchneiderSchneiderSchneiderSchneiderSchneider


If you need any support, please don't hesitate to contact us .
