PVC Plastic Coated Galvanized Steel Flexible Metal Conduits Pipes
Detailed specification for PVC Plastic Coated Galvanized Steel Flexible Metal Conduits Pipes
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Comflex |
| Surface Treatment | Galvanised |
| Application | Underground |
| Material | Stainless Steel |
| Certification | CE |
| Name | Stainless Steel Flexible Electrical Conduit |
| Max Working Pressure | 10 MPa |
| Outer/Nominal Diameter | 5-110mm |
| PVC Coated Od | 6-112 |
| Material Grade | Stainless Steel 304/316/316L/321/Galvanized Steel |
| Diameter | 3-102 mm |
| Medium | Liquid |
| Standard | ASTM, GB, API, DIN, JIS |
| Coating | PP/PE/PVC |
| Pressure | -10 to 100 Bar |
| Transport Package | Standard Seaworthy Package |
| Specification | ASTM, AISI, DIN, EN, GB, JIS, Other |
| Trademark | Comflex |
| Origin | Jiangsu, China |
| HS Code | 8307900000 |
| Production Capacity | as Requested |

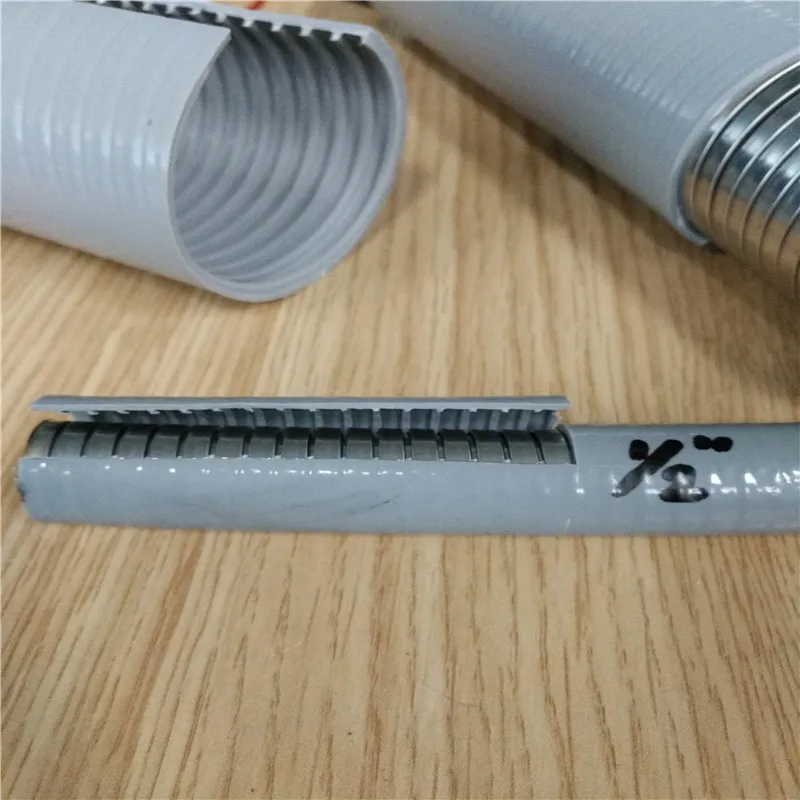

PVC Plastic Coated Galvanized Steel Flexible Metal Conduits Pipes
Product Description
*Structure: Interlock
*Nominal Conduit Size: 1/4"-2-1/2"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
This"Reinforced Type' product has been reformed to be much tighter on profile. That has enhanced the protective effect of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments.

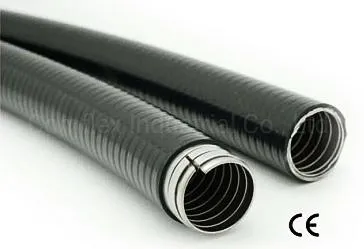

*Structure: Square-lock
*Nominal Conduit Size: 1/4"-4"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
Widely used for protection of power, data, and signal cables in/on industrial, commercial, or residential buildings, elevators, machines, automobiles, telecommunication networks, power supply systems and etc.
Technical Parameters
(inch)
(mm)
(mm)
(M)
Application

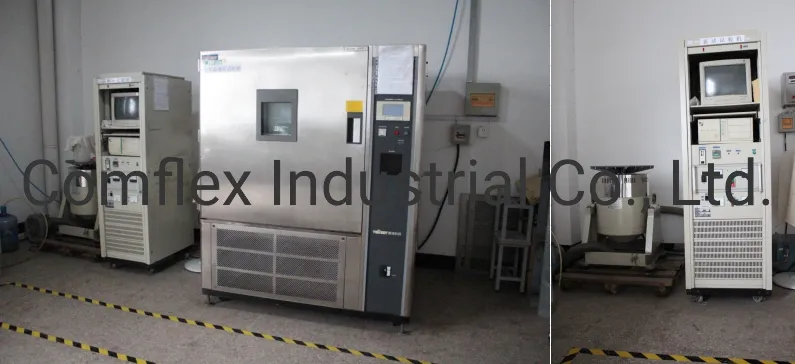

Testing machine
Certifications
Packages&Delivery
Packaging Details: The packing of the corrugated pipe is 100m/roll,50m/roll, As you wish
Delivery Details: 7-15 days, depending on quantity and available in stock
Company Information
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, PTFE hose, hose making machine, etc... The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace, and other industries. Our products have been exported to many countries such as Russia, Ukraine, the USA, Australia, New Zealand, Poland, etc.
