PPR PP PE Pipe Extrusion Machine, PPR Water Pipe Extrusion Line

PPR PP PE Pipe Production Line, PP-R Water Pipe Extrusion Line

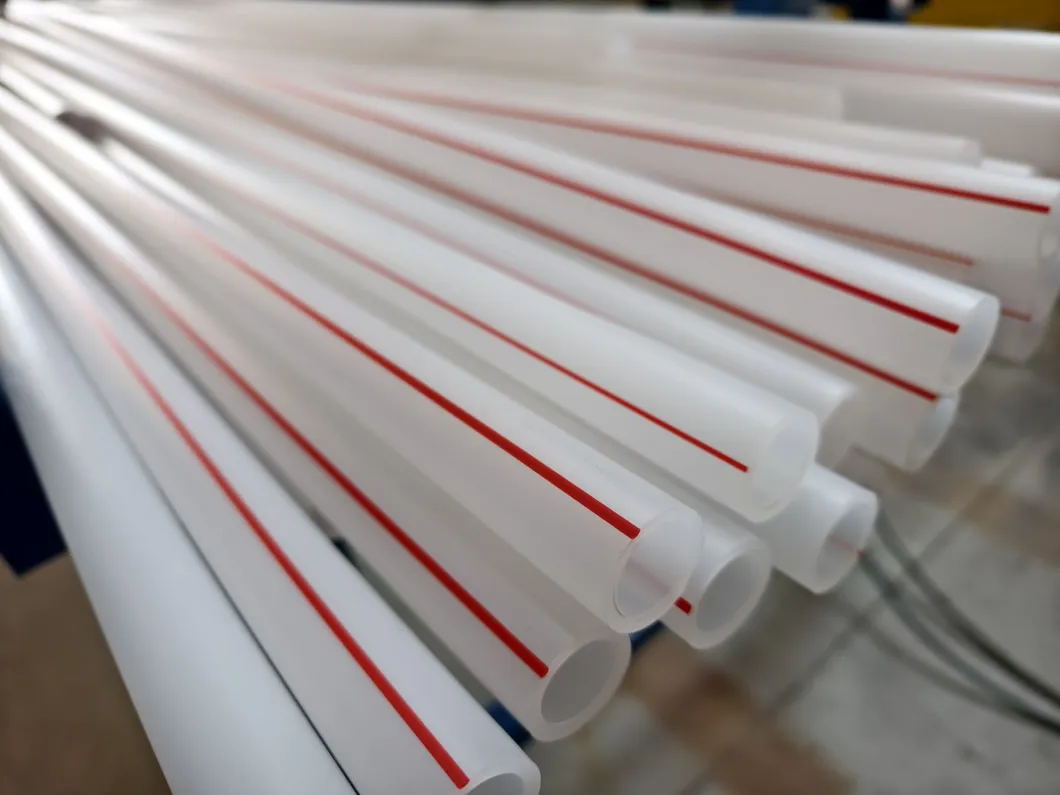

Introduction for PPR pipes

PPR plastic pipes have become the most reliable components in plumbing systems for hot and cold water use with service life of 50 years.

PPR plastic pipe is a crucial type of building material and is largely used in many fields. You can find it in Portable water supplies in hotels, offices, hospitals etc. but also in Pipe systems for rainwater utilization.Because of its chemical characteristics, these plastic pipes are widely used in agriculture and horticulture for transit of aggressive chemicals and fluids.

Another very important feature of PPR plastic pipe is its high level of temperature resistance and taking that into the consideration, this plastic pipe is commonly used in heating systems in residential houses.

PPR plastic pipe is also very light weight which is a big advantage for installation and handling and its fusion welding guarantee perfect seal and therefore prevent leakage. Chemical components of PPR plastic pipe material prevent from any bacterial growth and makes these pipes highly hygienic and non-toxic.

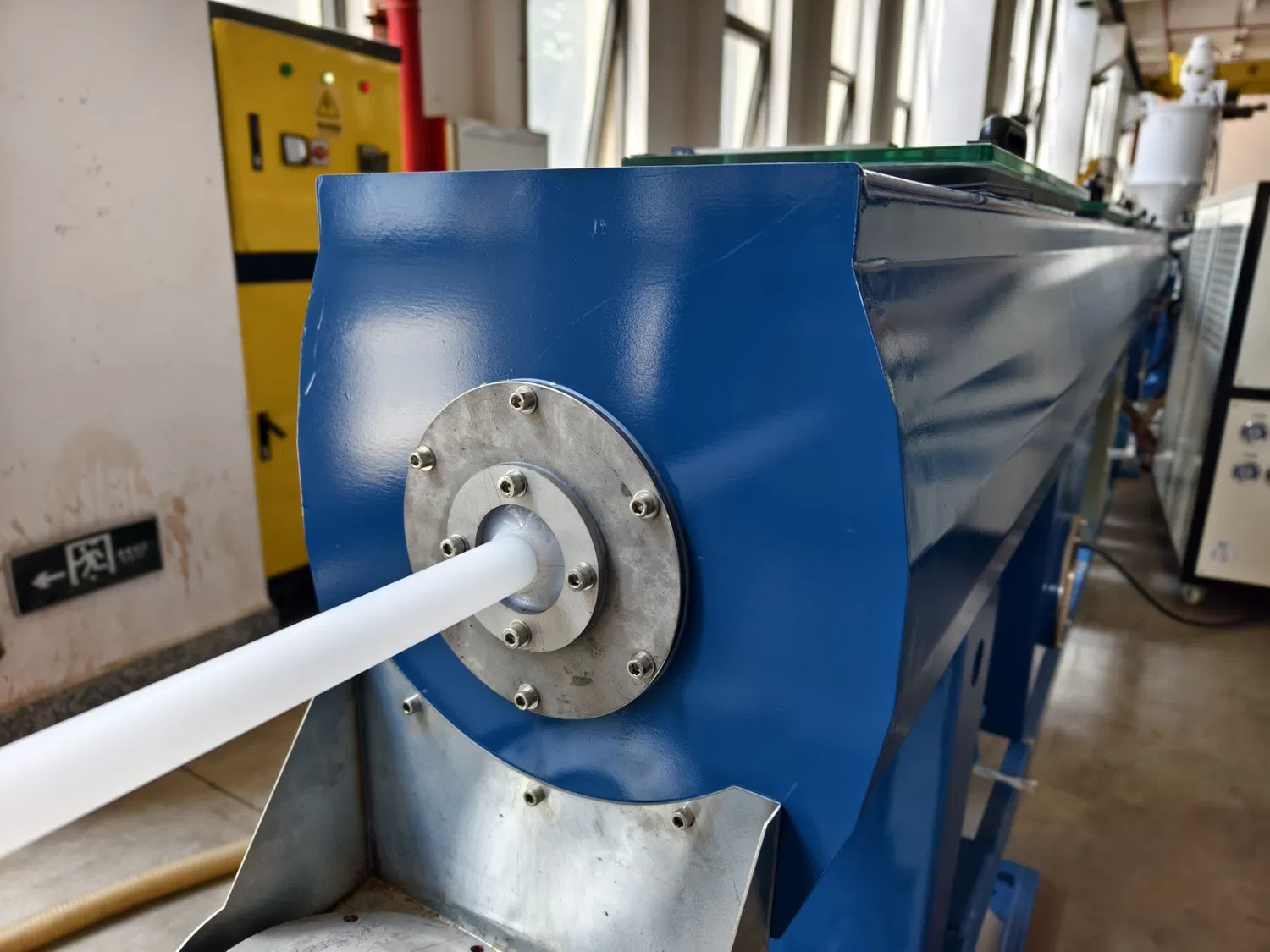

This plastic PPR pipe extrusion machinery adopts high efficiency single screw extruder, equipped with the PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.

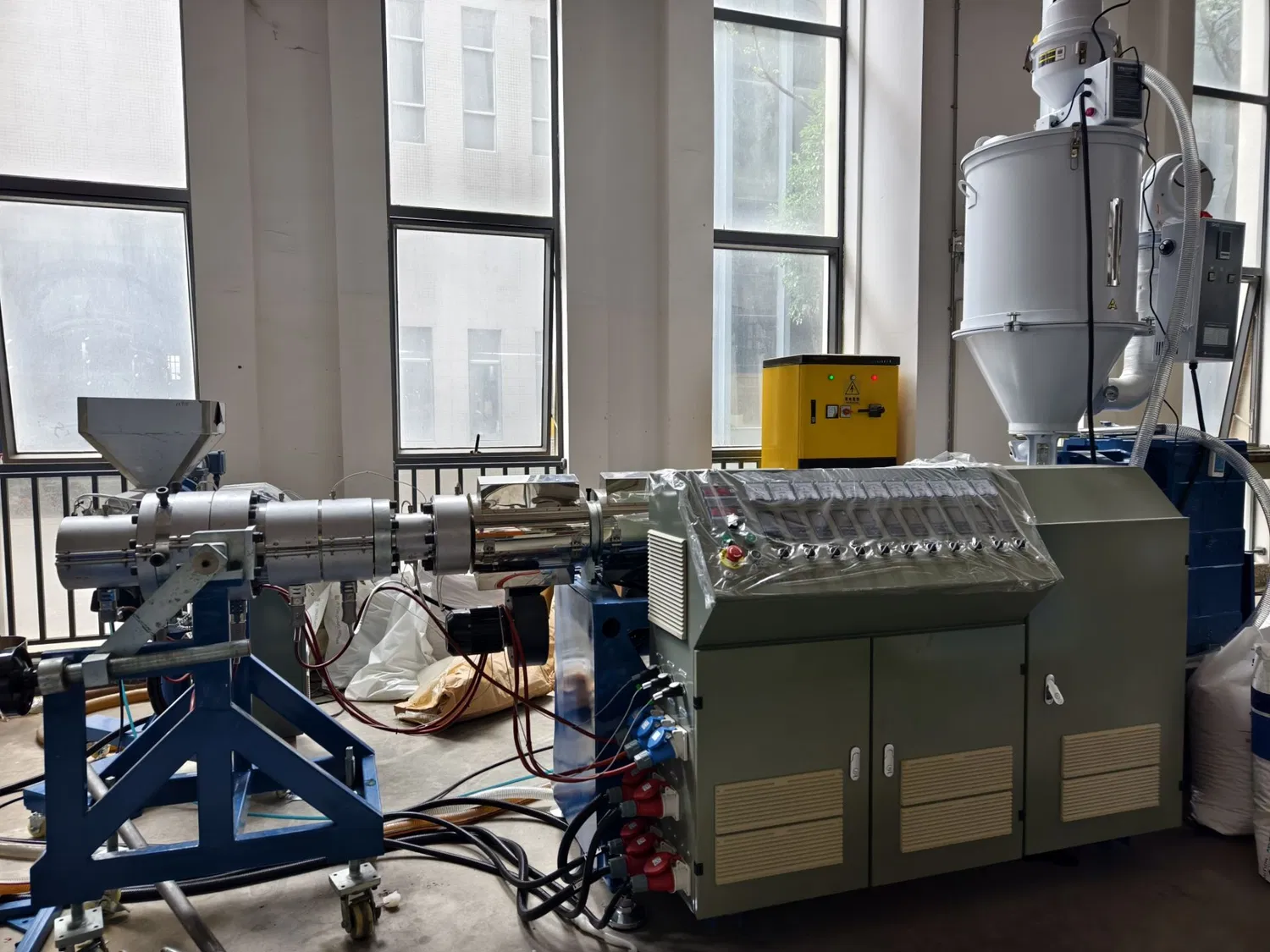

This line consists of main loader,hopper dryer,extruder,mould,vacuum calibration tank,haul-off machine,cutter machine,stacker.And there are pipe crushers,belling machine,high speed mixer,weighing system,etc. for you to choose.
which has reasonable design, unique structure, stable performance, easy operation and maintenance, constant production capacity, warmly welcomed by customers.

There are Two different models with different production capacity.

Model Number PPR65 PPR65 Extruder Φ65 Φ65 Driving power 37KW 37KW Rrange of pipe diameter Φ16-63 Φ50-110

Product Features

1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

5,The plastic pipe machine is used to produced PP-R pipe produce a new kind of pipe of green protecting environment. And it also can be changed to produce PPA, PPC, PP, PE pipe.

Product Application

The pipe is mainly used in the fields of water supply and hot water for warm for resident life and industry. The pipe is new environmentally friendly product which has the features of sanitation, non-poison, non-rust, heat resistance and long life.It can replace copper pipe and aluminium pipe.

Packaging and shipping

PACKAGINGplastic film + stretch film + wooden case + drying agent. DELIVERYAbout 90 days (all new parts) SHIPPINGWe place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALEa. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference; IN PRODUCTIONa. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status; AFTER SALEa. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
