High-Efficiency HDPE and PPR Pipe Extrusion Equipment for Professionals

Model NO.	MT63
Automation	Automatic
Computerized	Computerized
Certification	CE
Customized	Customized
Condition	New
High Speed	30m/Min
Transport Package	Wood
Specification	ce
Trademark	Middle tech industry
Origin	Zhangjiagang City
HS Code	84772090
Production Capacity	30 Unit/Year

Production introduce:

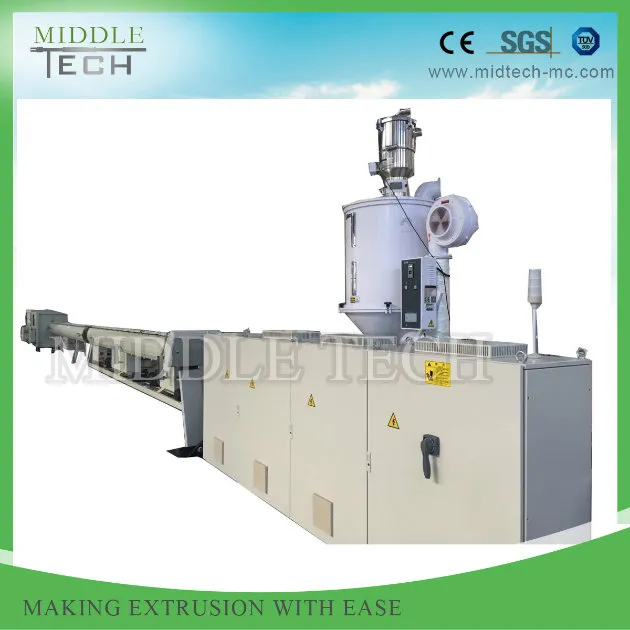

LDPE plastic Pipe machine extrusion and production line

PART 1 INTRODUCTION:
HDPE/PPR/LDPE series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc. This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.

 PART 2  FEATURES OF THIS LINE

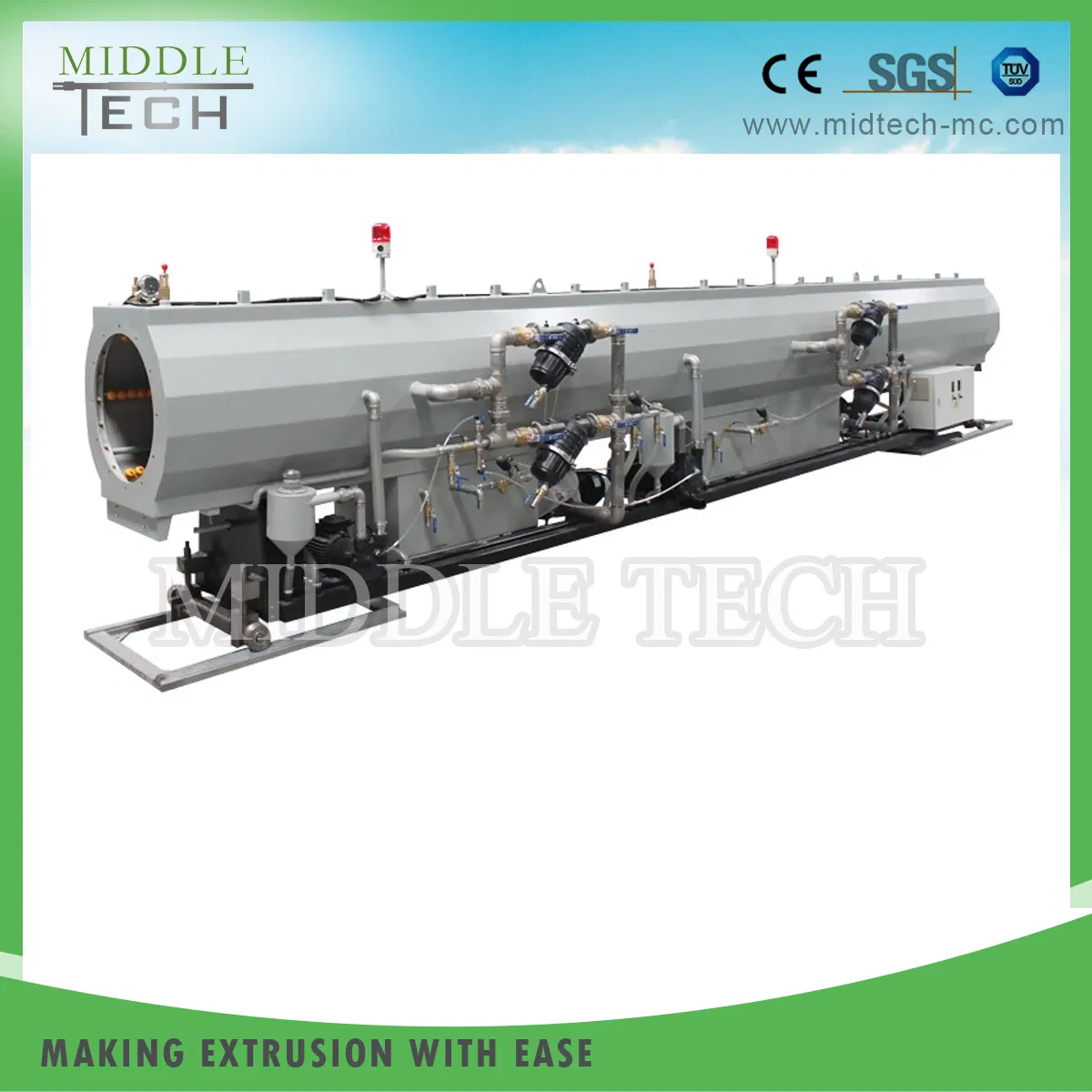

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

1)  Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

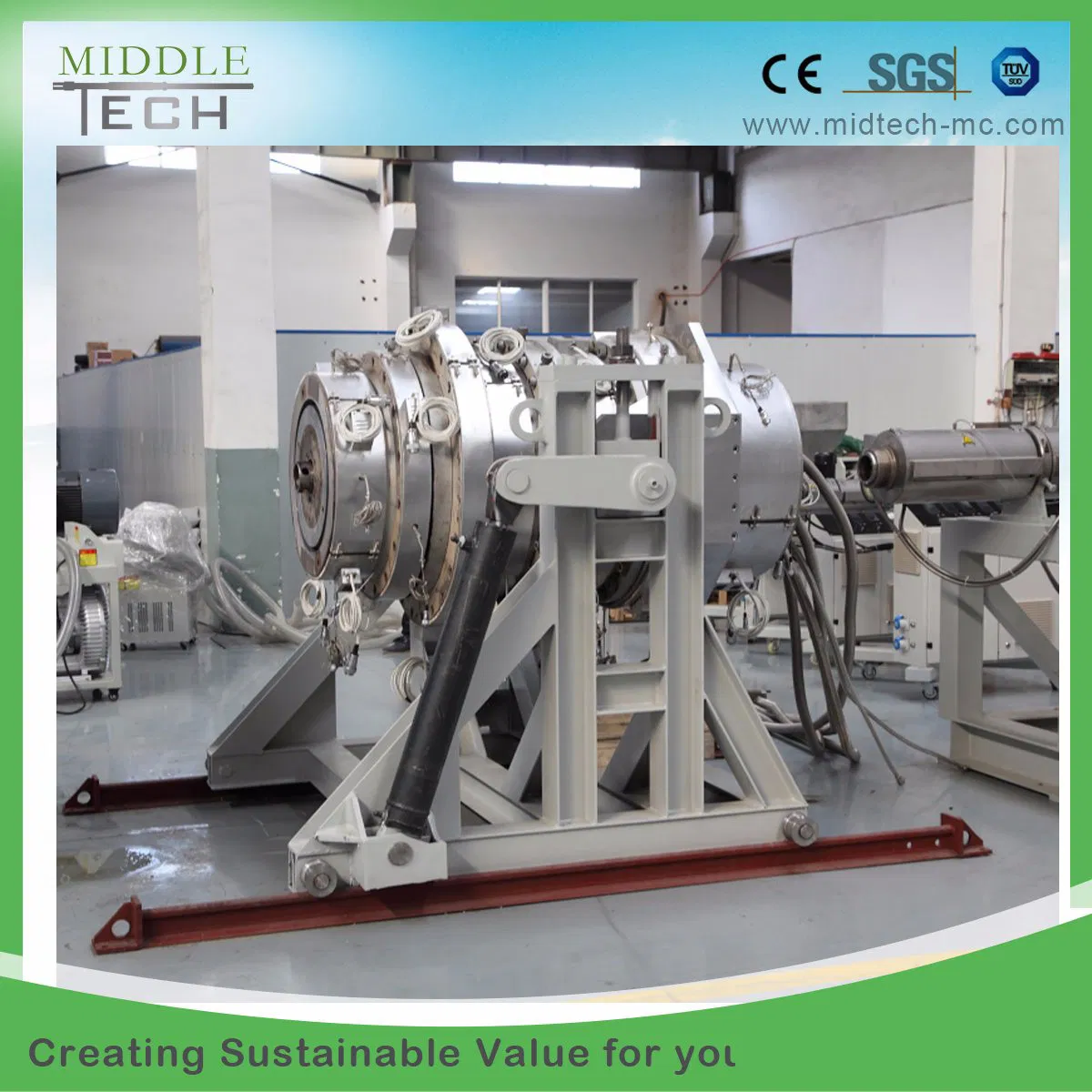

2)  Extrusion die head
is spiral type, good calibrating makes good quality pipe production.

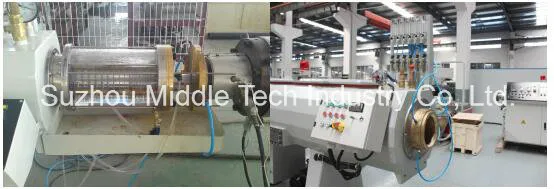

Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

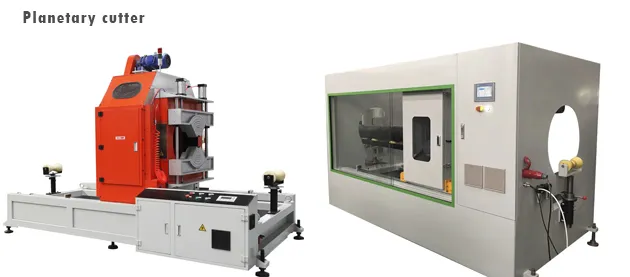

5)  Non-scraped cutting, saw cutting or planetary cutting
can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.

PART 4 ADVANTAGES OF THE PIPES PRODUCED BY THIS LINE
Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipe line.




Model/dataPipe diameter(mm)Co-extruder modelSpeed
(m/min)Max capacity
(kg/h)Installed power(kw)Dimension(m)weight(t) LSG65/3016-63LSJ25/251.2-151007532*3.0*2.29.5 LSG65/3320-110LSJ25/250.3-12150-1809836*3.1*2.210.5 LSG75/3363-160LSJ25/250.5-522012040*3.2*2.412.5 LSG90/33160-400LSJ30/250.5-245032052*3.3*2.627.5 LSG120/33355-630LSJ30/250.1-180051060*3.5*2.841 LSG150/33400--800LSJ45/250.1-0.5100063068*3.6*3.062.1 LSG150/33800-1200LSJ45/250.07-0.8120079072*3.8*3.081.3 LSG150/331000-1600LSJ45/250.03-0.4140088075*4.0*3.292.5


 If you do need any support, please don't hesitate to contact me
