PVC Fiber Reinforced Soft Pipe Extrusion machinery

Model NO.	SJSZ-65/28
Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Provide
Assembly Structure	Separate Type Extruder
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Layers	3 Layers
Pipe Diaemeter	12-63mm
Transport Package	Export Standard Packing
Specification	SJSZ-65/28
Trademark	Weier
Origin	Qingdao, China
HS Code	84772090
Production Capacity	10 Sets/Month

Specifications

PVC garden fiber hose production line

1>Single screw extruder machine
2>3 layers hose, soft
3>Used for water pipe
 We export our machines to about 40 countries,welcome to visit us.We aim to do long term business with our clients
Production description

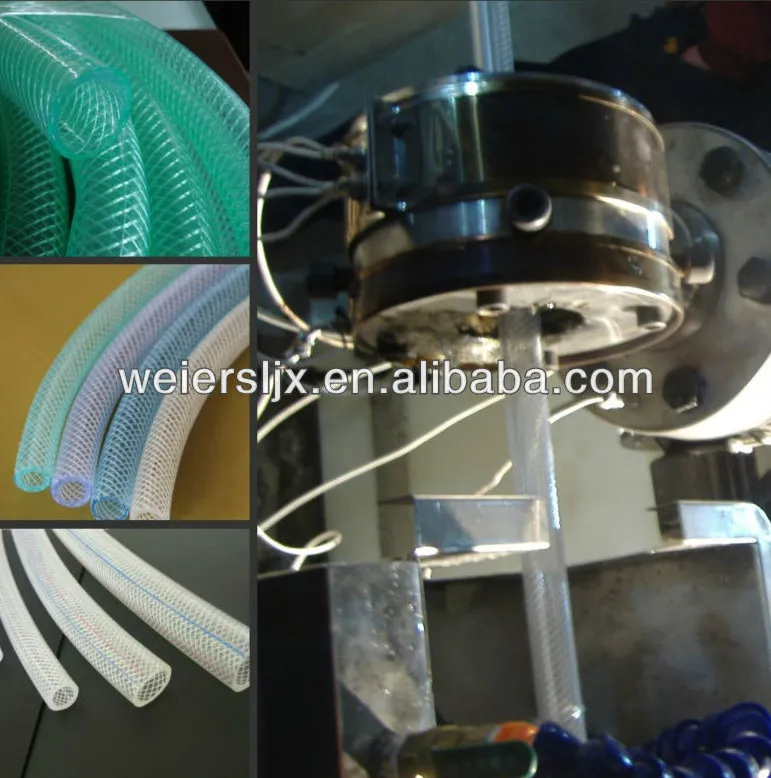

PVC fiber reinforced soft pipe, also called as PVC net grid pipe, is commonly called as plastic plica tube, suitable for transporting corrosive and compressive gas and liquid. extensively apply to machinery, colliery, petroleum, chemical industry, agriculture irrigation, building construction and civil construction (such as solar water heater, gas tank, natural gas and so on). Now it is also used for irrigating parterre and lawn.)

Main technical parameter

Diameter range8-50mm MaterialPVC granule Power supplyThree-phase, 380V, 50HZ ( as per customers' city power condition) CapacityMax.80-120kg/hr Install power50kw Dimension 16000*4000*2400(mm)

Equipment list

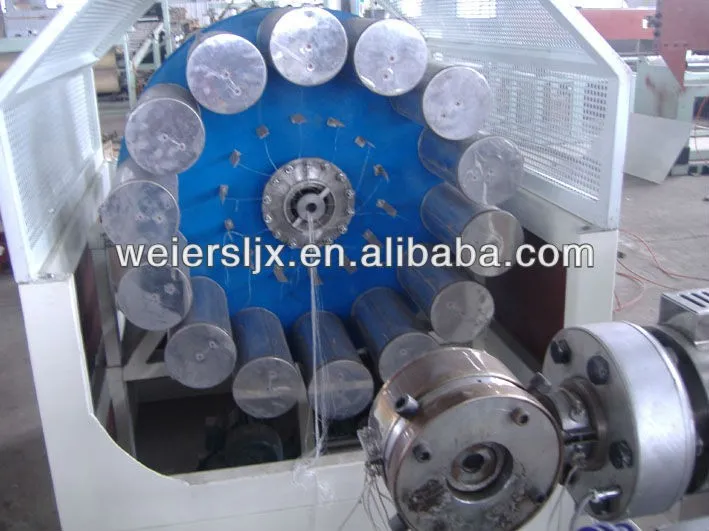

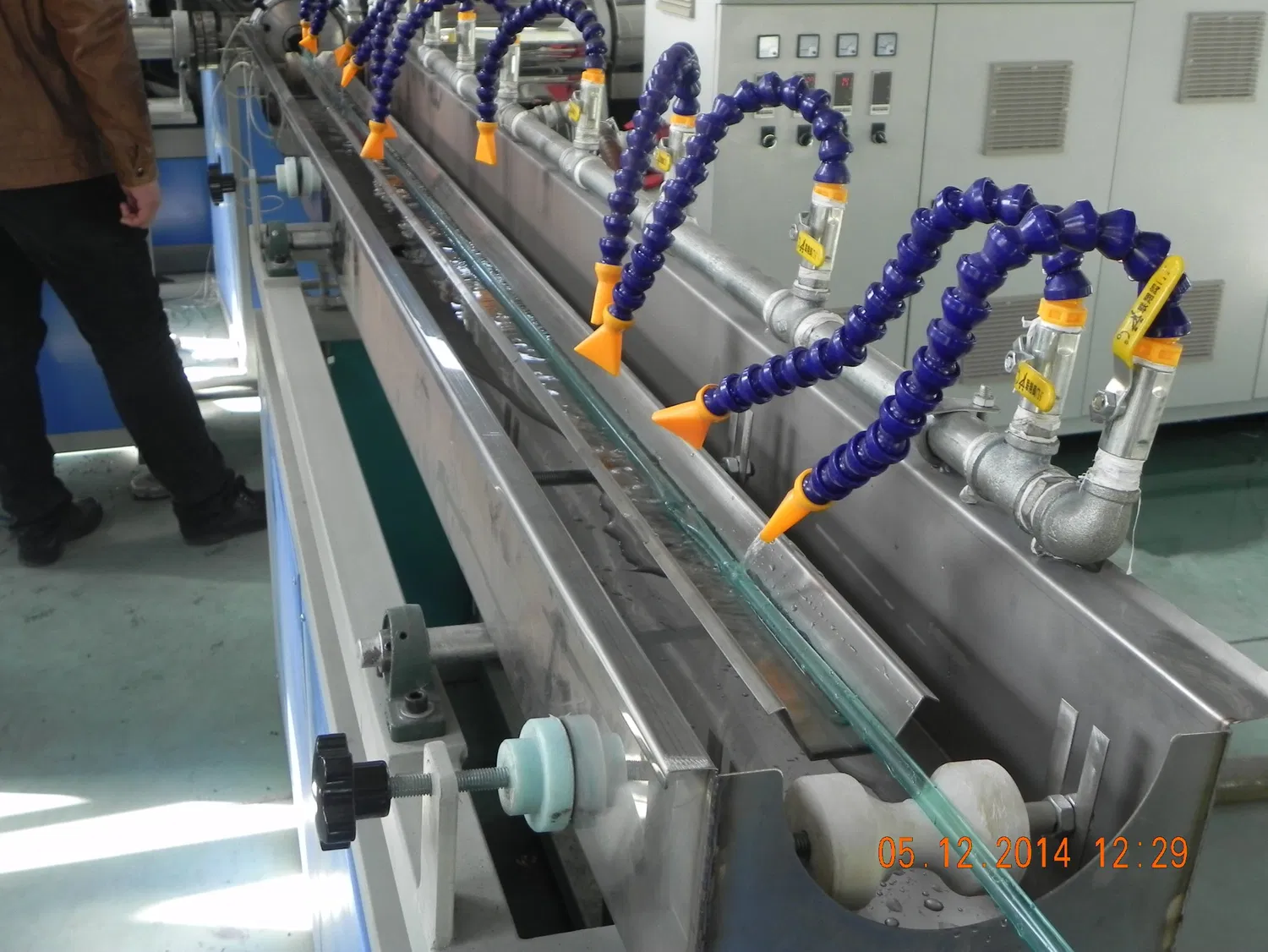

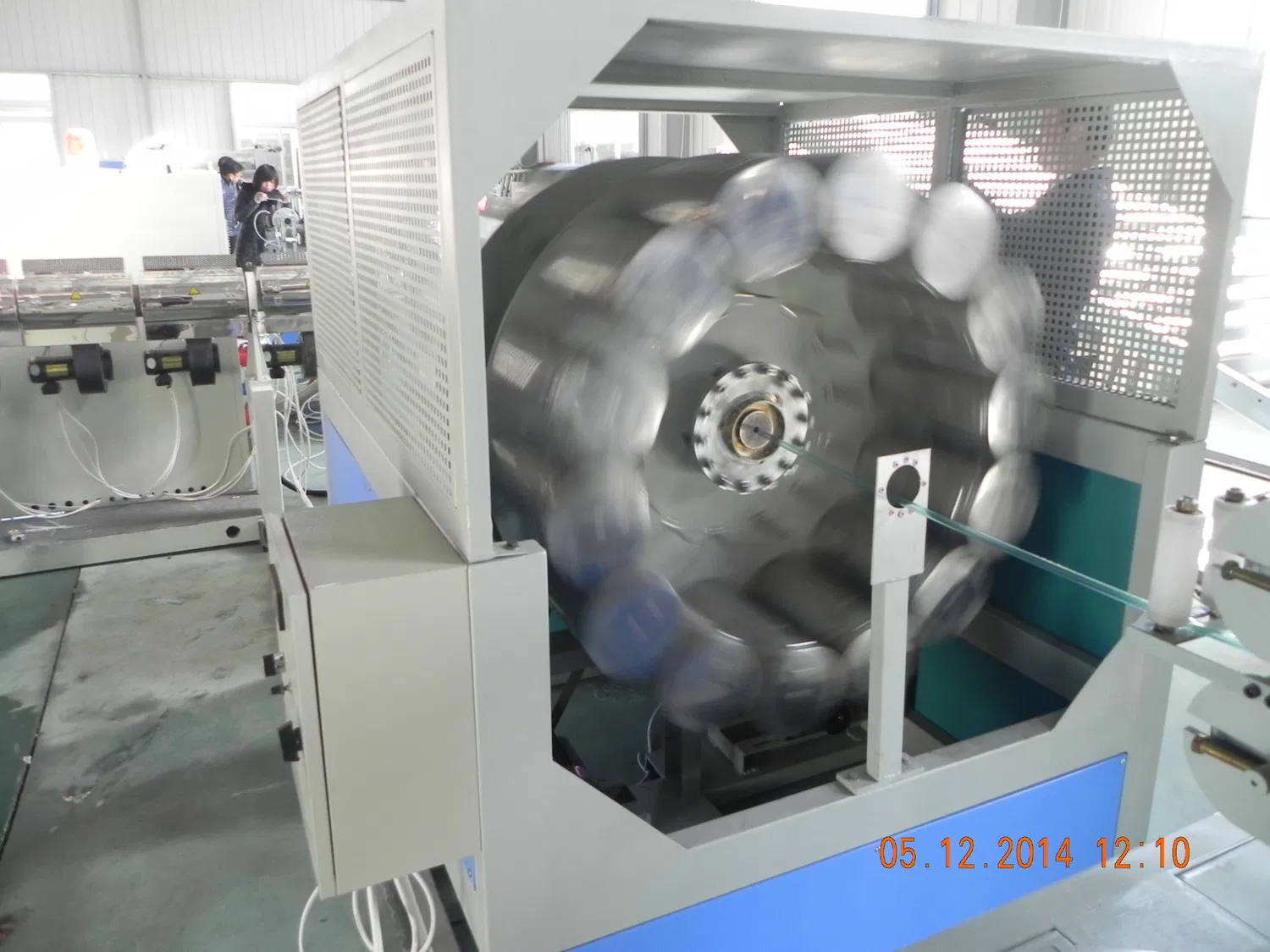

1SJ-65/28 single screw extruder two sets 2Die head One suit 3Cooling tank two sets 4Haul-off machine two sets  5Braided machine One set 6Winder One set

Optional list  for your reference only
SJ-90/25 PVC granule making line   One set
SHL-200/500 Mixer                         One set
Process : raw materials-extruding out-cooling unit-traction - Winding-extruding
out-traction - winding

Spare parts

No.ItemQua. 1Air fan for barrel of extruderThree sets 2Tools for taking out screwTwo sets 3Special tools for T-dieOne set 4Solid state relay Three Pieces 5ContactorThree Pieces 6Omron relayThree Pieces 7Air tube diameter 8mm60m 8BladeTwo pieces

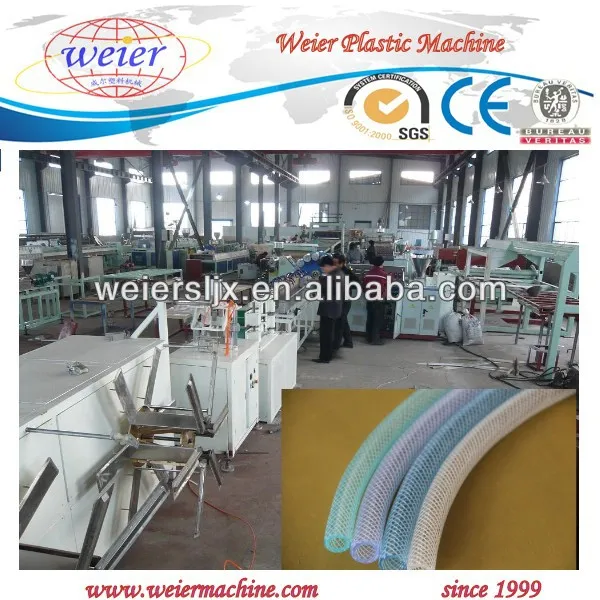

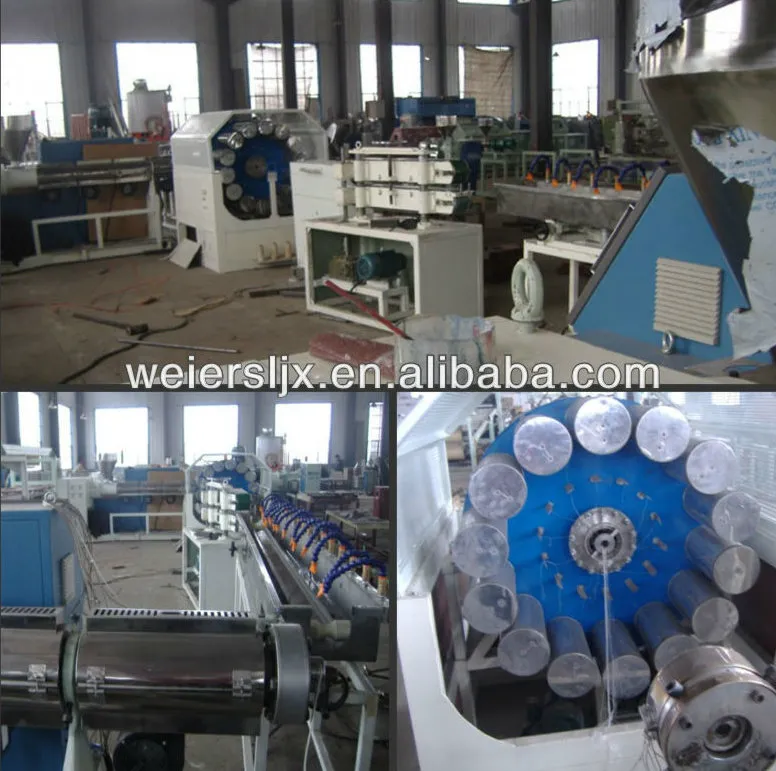

Machine pictures







More details  about  our services:

the supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing.

the supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year .


The seller will send one or two technician to the buyer'plant  to debugging,and the tickets ,eating ,transportation and visa fee will bepaid by the buyer ,also including 50USD salary/person /day
