Efficient PVC Pipe Manufacturing Solutions for International Distributors

Model NO.	PVC32, PVC 63, PVC110, PVC250, PVC400, PVC630
Screw No.	Single Screw, Double Screw, Twin Screw
Automation	Automatic, Automatic
Computerized	Computerized, Computerized
Certification	CE, ISO9001:2008, CE, ISO9001:2008, SGS
Customized	Customized, Customized
Condition	New
After-sales Service	Lifetime
Type	Pipe Extruder
Plastic Processed	PVC
Feeding Mode	One Feed
Assembly Structure	Integral Type Extruder
Screw	Twin-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
After-Sales Service	18 Months
Pipe Diameter	From 16mm-630mm
Pipe Usage	Water, Engergy, Gas, Irrigation, etc.
Advantages	Long Life/High Efficiency/High Capacity
Extruder Control	by Siemens PLC Screen Touch
Electrical Components	Siemens, ABB, Omron, FUJI, etc.
Production Speed	Around 0.5-20meter/Minute
Delivery Time	Around 40 Days
Motor Brand	Siemens
Shipment	LCL and FCL
Machine Installation	Available
Motor Drive/Inverter	Siemens/ABB Brand
Keywords	Pipe Machinery
Raw Material	PVC
Transport Package	Plastic Film and Wooden Pallet
Specification	29m
Trademark	YILI
Origin	China
HS Code	84778000

Introduction

YILI machinery supplies full ranges of PVC pipe making machines, which apply for U-PVC, C-PVC, M-PVC, O-PVC material. The PVC pipe extrusion line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 16mm to 630mm, wall thickness range of 1-30mm.

Technical Specification

ModelPipe Diameter (ID)
(mm)Extruder TypeMax Capacity
(kg)Max. Haul off speed
(m/min) YL-PVC32 (Four)16mm-32mmSJZ65/1322508*4 YL-PVC63 (Dual)20mm-63mmSJZ65/13225012*2 YL-PVC6320mm-63mmSJZ55/11015015 YL-PVC11040mm-110mmSJZ65/1322508 YL-PVC16050mm-160mmSJZ65/1322506 YL-PVC20063mm-200mmSJZ65/1322503.5 YL-PVC315110mm-315mmSJZ80/1564503 YL-PVC450200mm-450mmSJZ80/1565002.5 YL-PVC630315mm-630mmSJZ92/1888001.2

Tech Features & Advantages


1. Special screw structure, efficient plasticization for different type of formula;
2. Flexible use conical and parallel extruder for pipes with different pressure levels and CaCO3 conditions;
3. Spiral type die reduces the melt seam on pipes, high compression ratio ensures the pipes with high density and good mechanical properties.
4. Use an efficient single or double chambers vacuum and cooling tank;
5. Adopt a Servo/frequency speed controlling and independent multi-track structure haul-off to guarantee the pipe pulling evenly, no deformation;
6. Planetary cutter adopts both mechanical and hydraulic way to feed blades and to cut and chamfer synchronously.

Technology Process

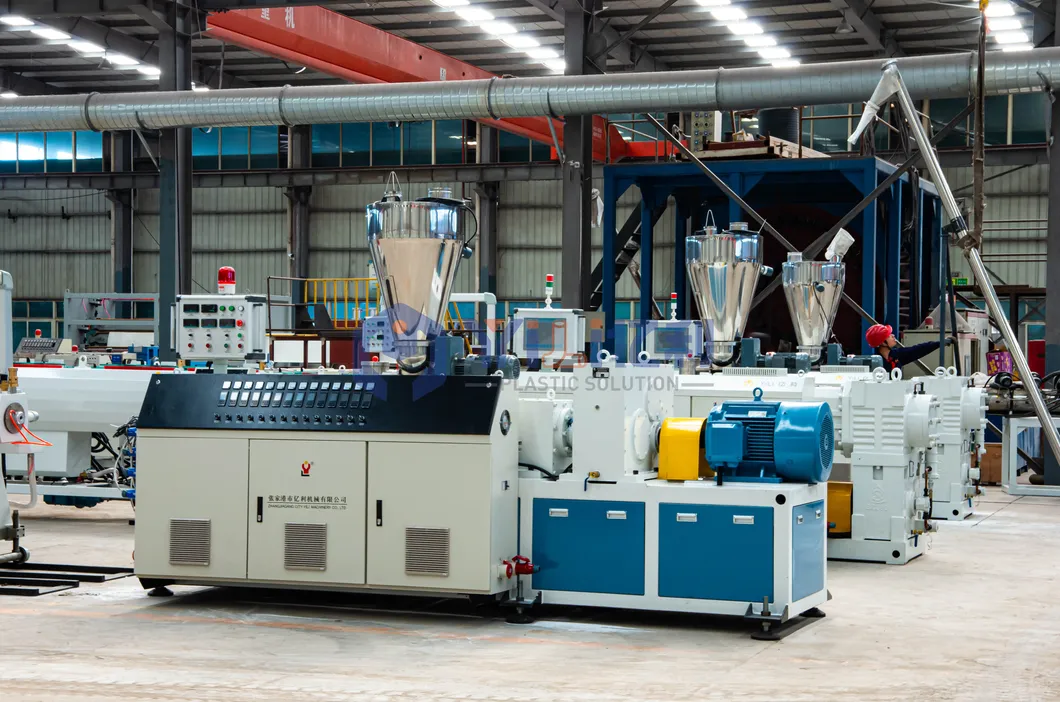

-Extruder-

-Mould-

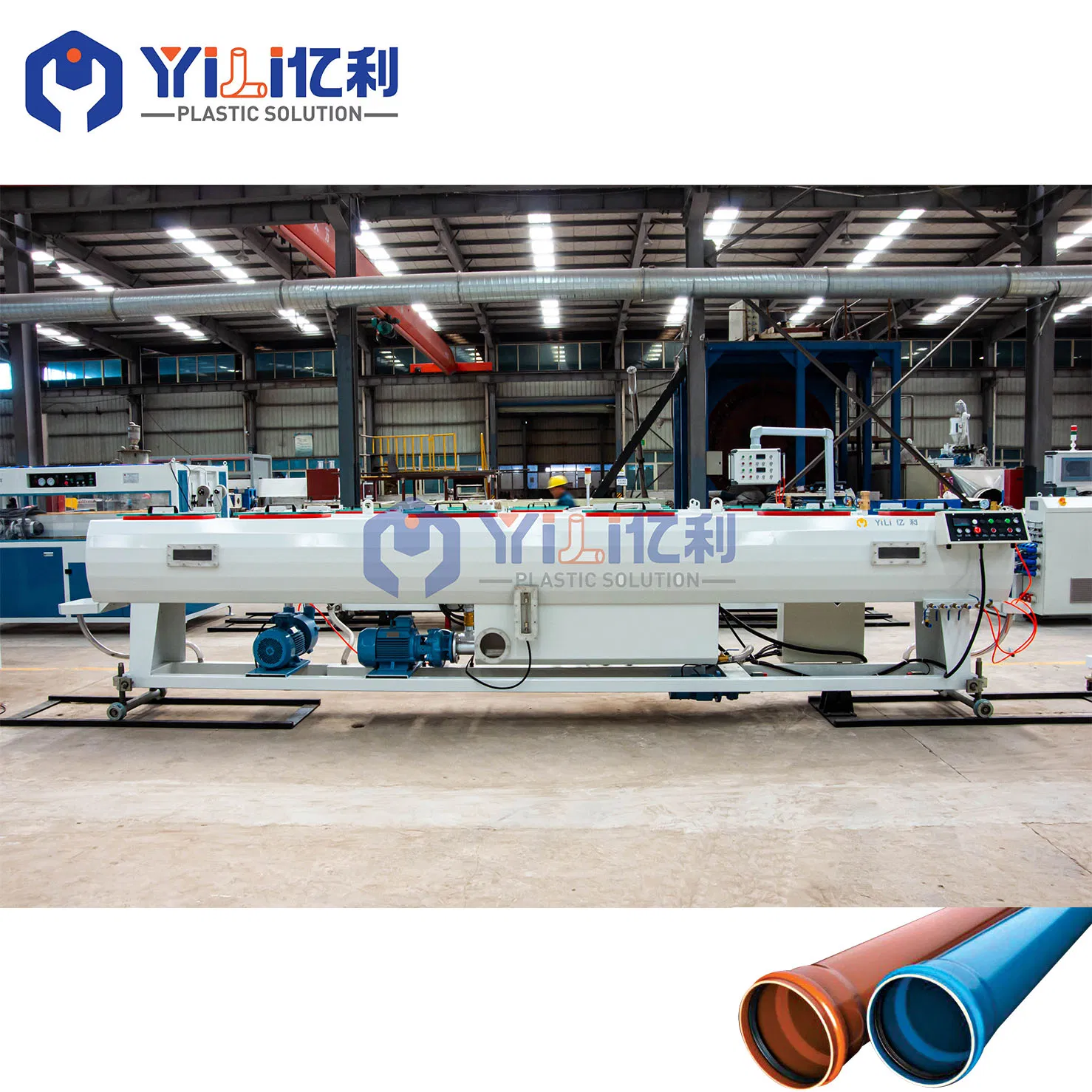

- Vacuum tank-

-Haul-off-

- Planetary cutter-

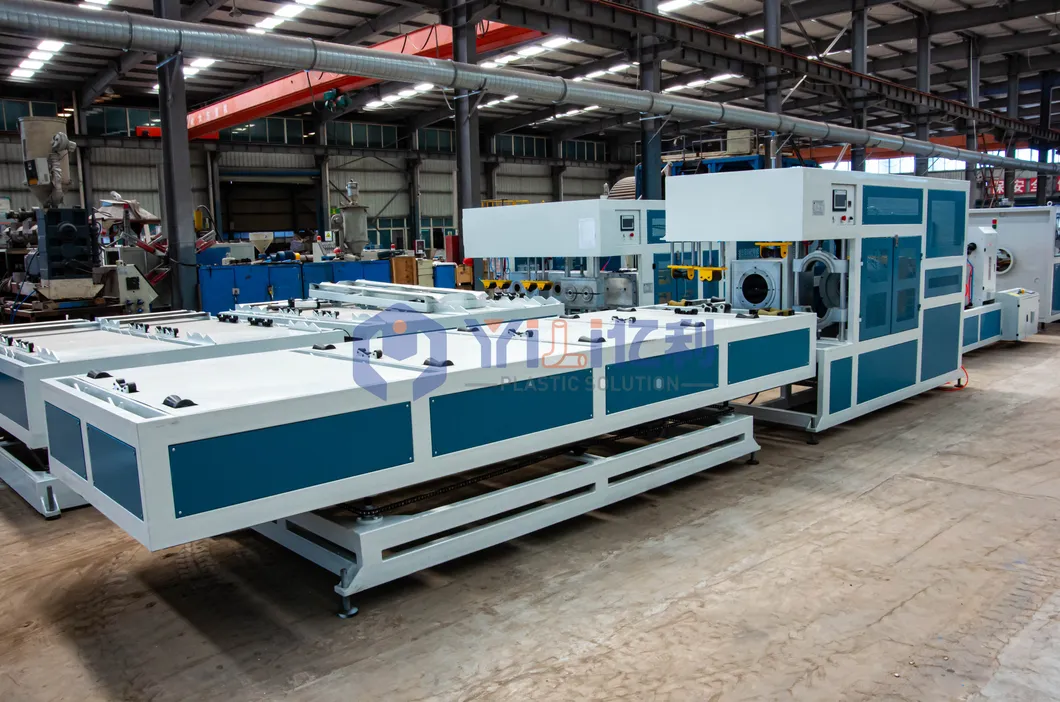

-Automatic belling machine-
