Small Diameter PVC Double Pipe Production/Extrusion Line 16-63mm Small Diameter PVC Twin Pipe Making

Screw No.	Double-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	1 Year
Extruder	Conical Twin Screw Extruder
Screw and Barrel	65/132
Motor Brand	Xi'an Xima
Inverter	ABB
Screw Barrel Raw Material	38crmoaia
Haul off	Pneumatic
Heater	Cast Aluminum
Temperature Controller	Omron
Feeder	Spring Feeder
Transport Package	Sea Worth Package
Specification	16-50mm
Trademark	chenxing
Origin	China
HS Code	8477800000

Small Diameter PVC Double Pipe Production/Extrusion Line
16-63mm Small Diameter PVC Twin Pipe Making

Product Description

PVC Pipe Production Line (Double Cavity Mould)

This production line  is mainly used to produce all kinds of UPVC pipes for agriclutural water supply and drainage, building water supply and drainage and cable laying etc.  Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe. Conical twin screw extruder and parallel twin screw extruder for choice.

Produce process for PVC pipe production line:
Raw material  →mixing →hopper dryer →extruder →mould →vacuum calibration tank →haul-off →cutting →stacker

Features and application

1.Unique screw design achieves better plasticizing and high quality products;

2.PLC control, high degree of automation

3.Easy operate and need less worker

4.On the premise of ensuring product quality, the equipment reduces the equipment input cost and production input cost,Greatly increase production volume and reduce production time.

Technical parameters

Main technical datas of PVC double pipe extruder machine:

Max output of extruder(kg/h) 120-240 Length of vacuum tank(m) 4 Haul-off speed(m/min) 0-15 Max.diameter of twin pipe(mm) Ø50 Haul-off force(N) 2000 Driver notor power(kw) 0.75*4

Remarks: all informance above is only for reference; please gather the exact data by contacting us.q

Picture For Reference

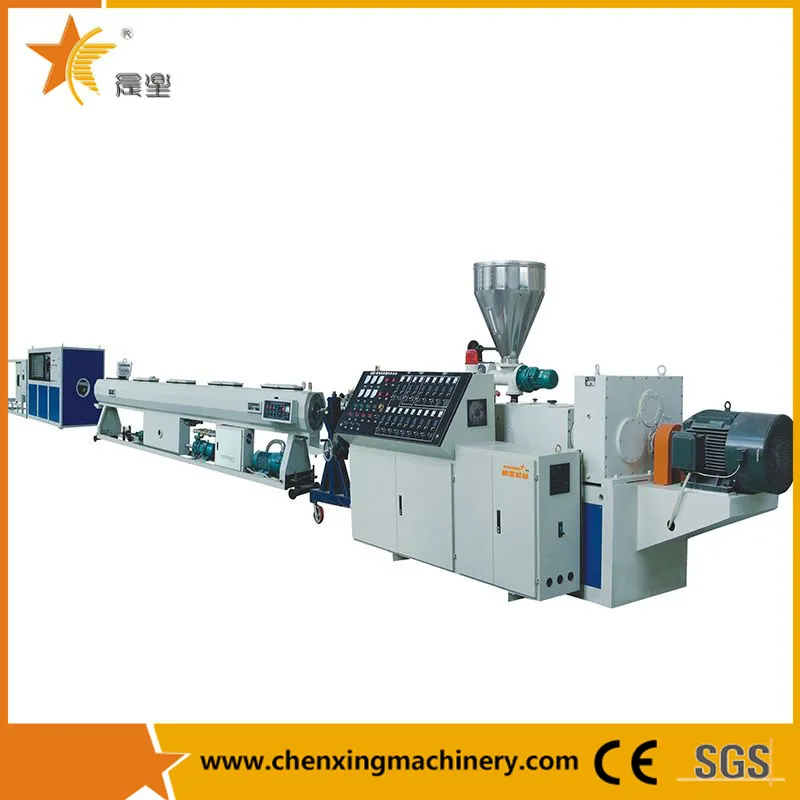

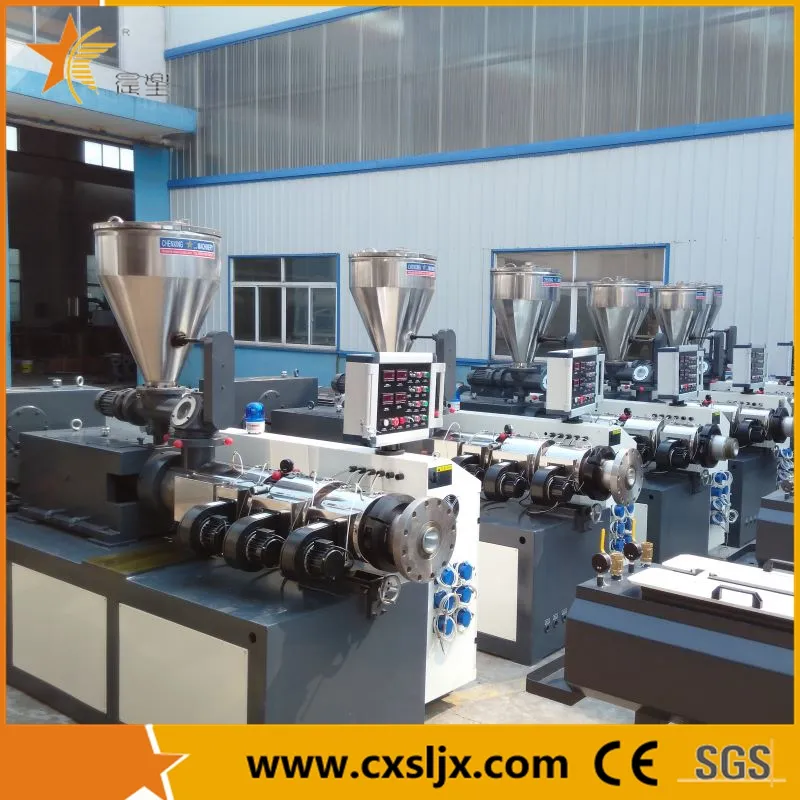

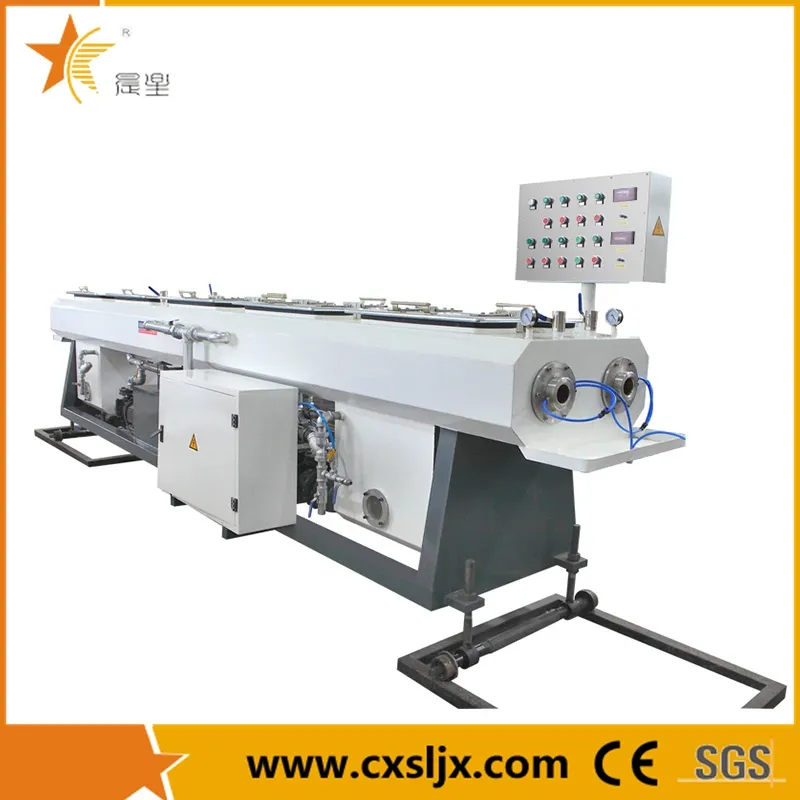

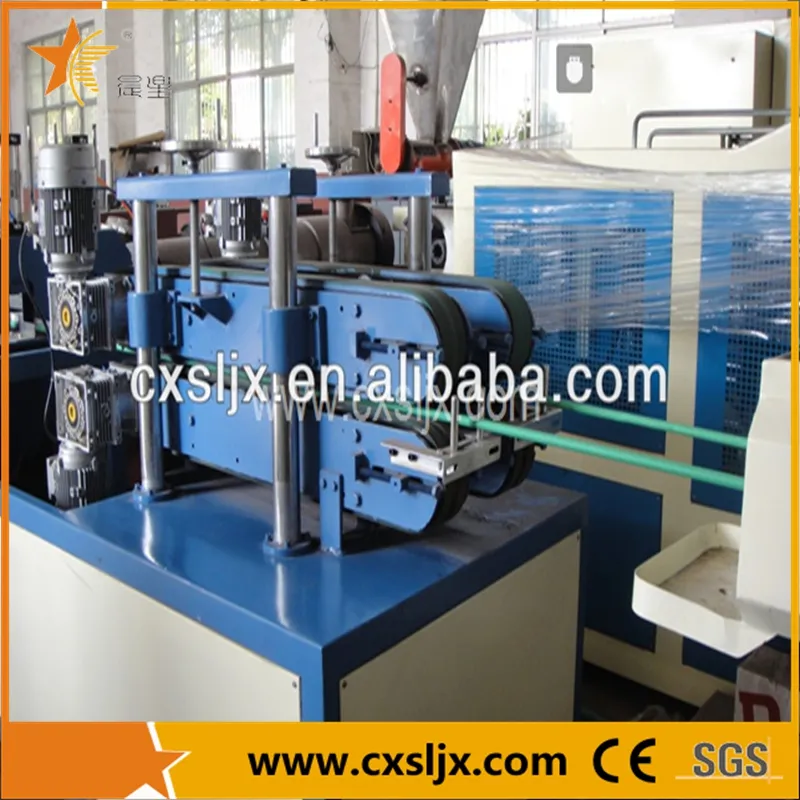

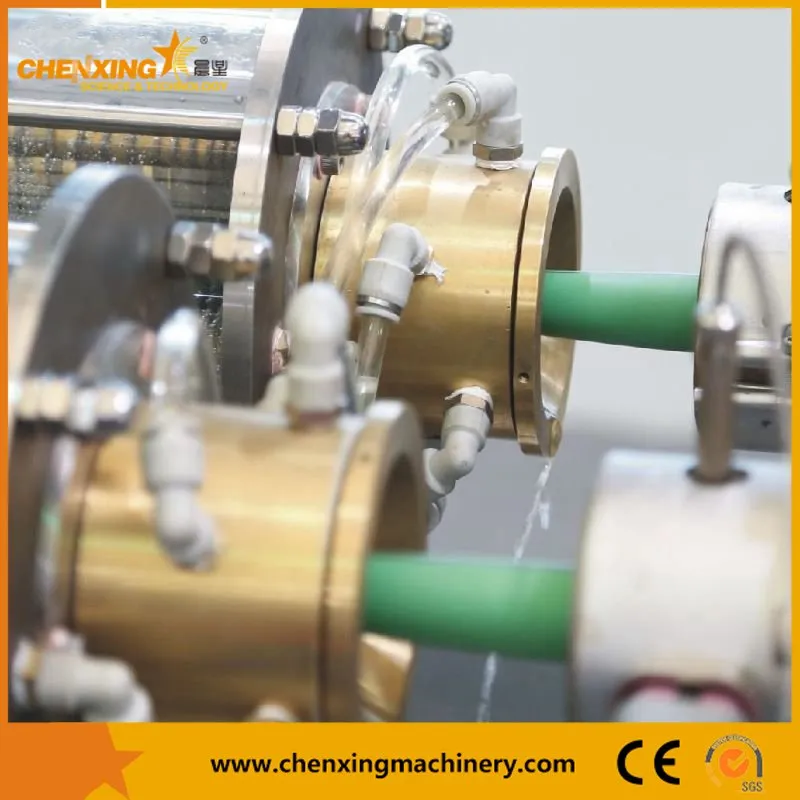

1.Machine Display:

2.Product Display:

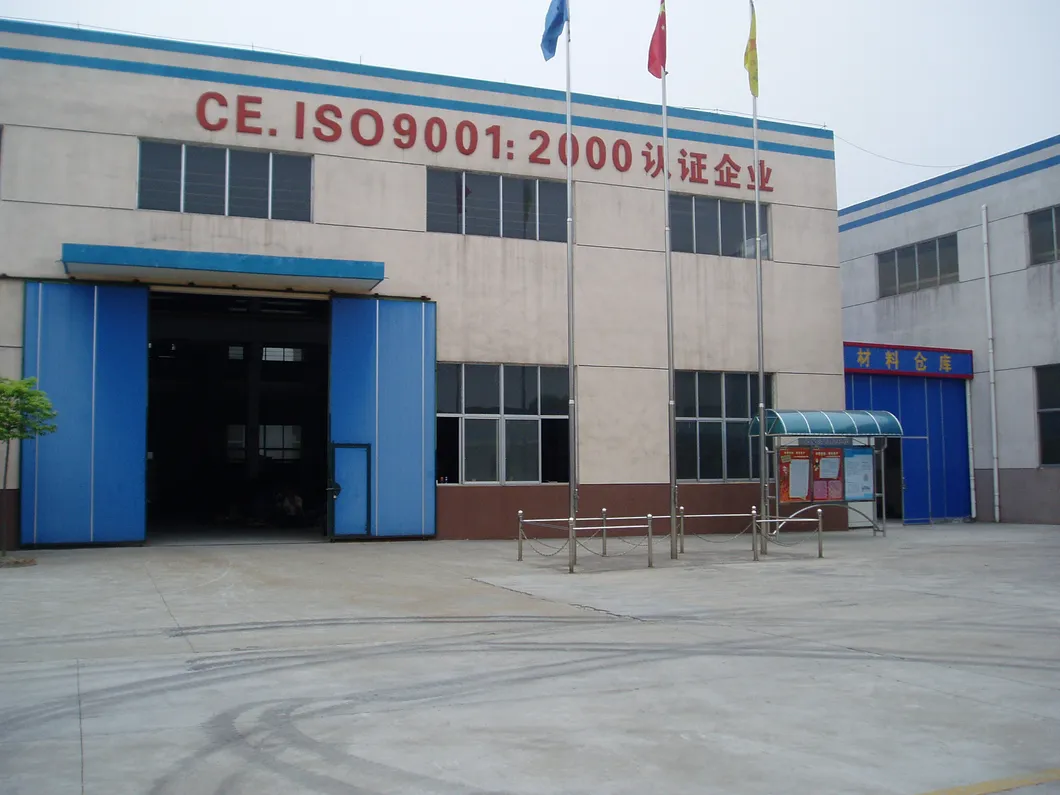

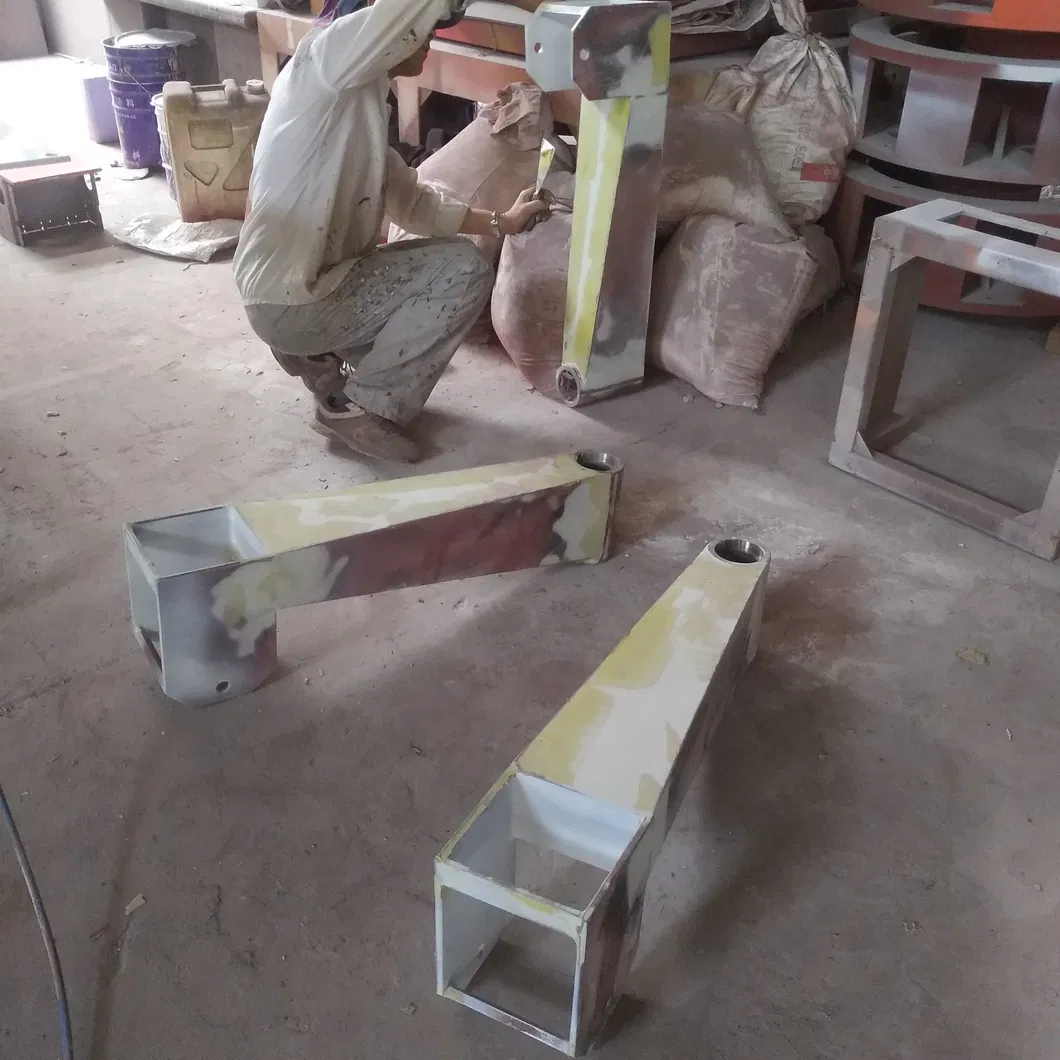

3.Factory Display:

4.Other hot sale product:
