Installation Tools for PPR Pipe HDPE Pipe Extruder Hose Pipe Making Machine

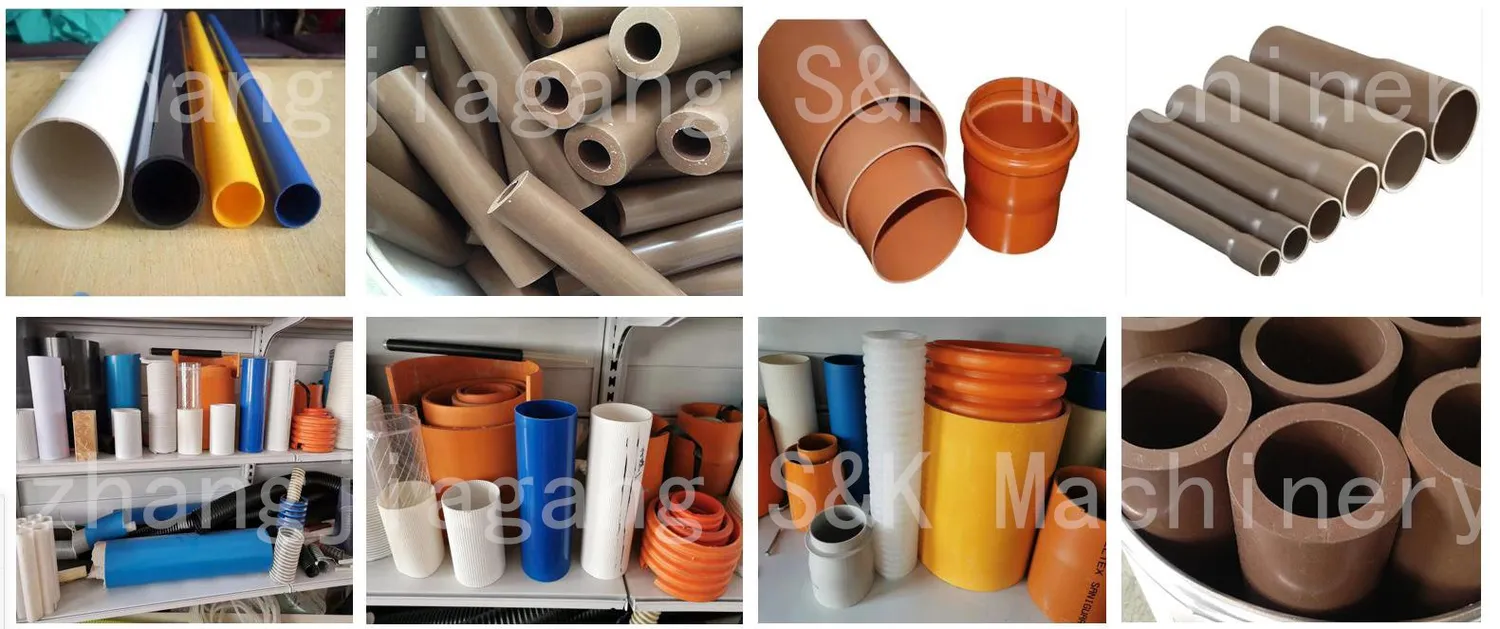

Different Sizes and Material for PP/PE/PPR/PVC Water electric drip irrigation medical threaded Twin/Double and Single Screw Pipe Extrusion Production Line in Hot Sale

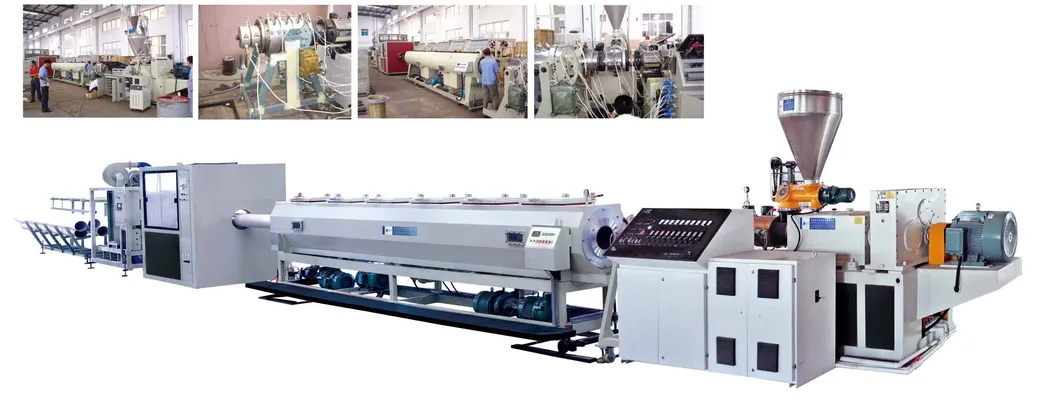

PPR pipe production machine/line, PPR water supply pipe machine, PPRGas and water supply pipe machine:Specially-designed spiral moulds

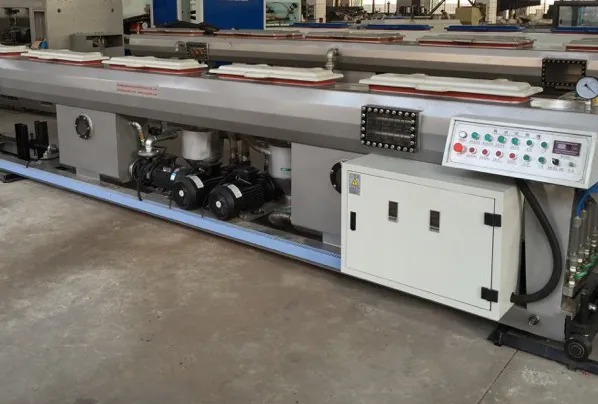

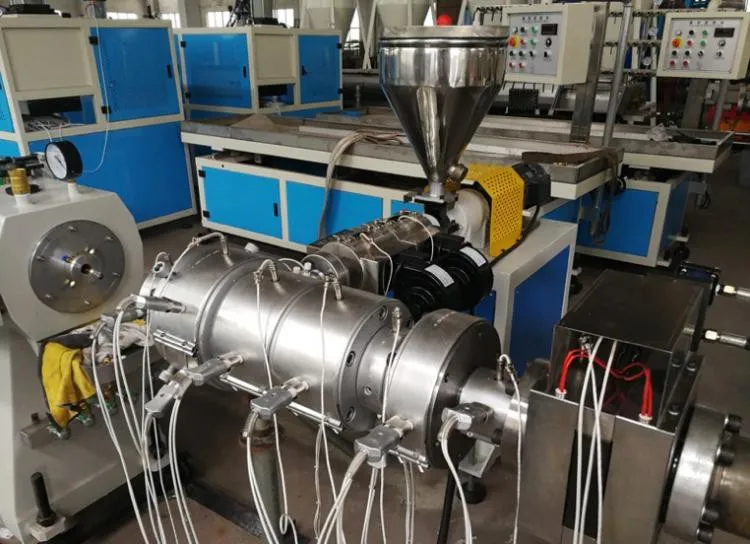

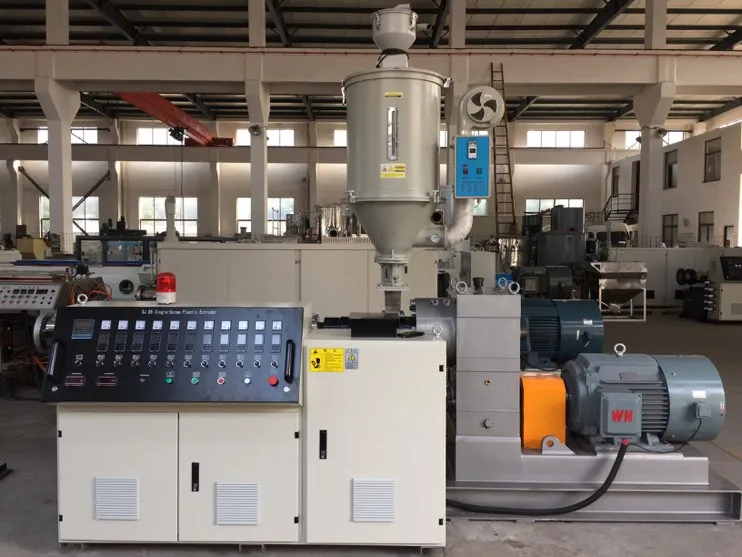

for PPR pipes, with inside oil controlling temperature system.plastic machin,Extruder adopts big L/D and multi mixing structure, which is more suitable for the PPR low temperature extrusion production.with inside oil controlling temperature ,beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special

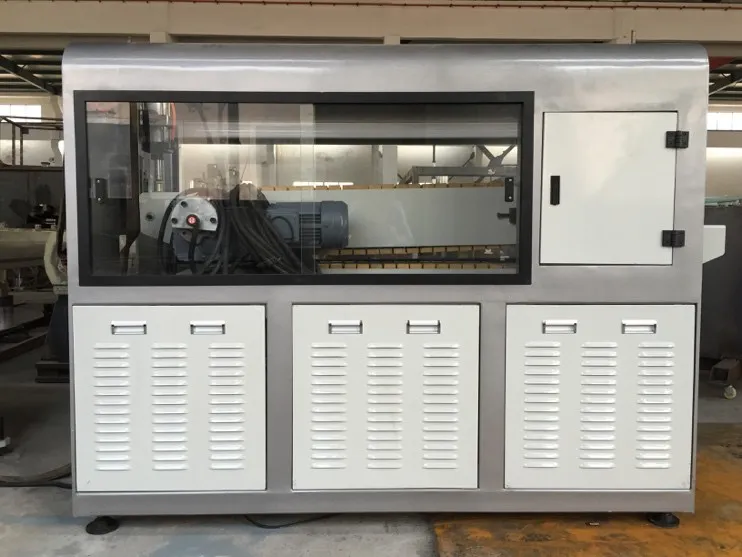

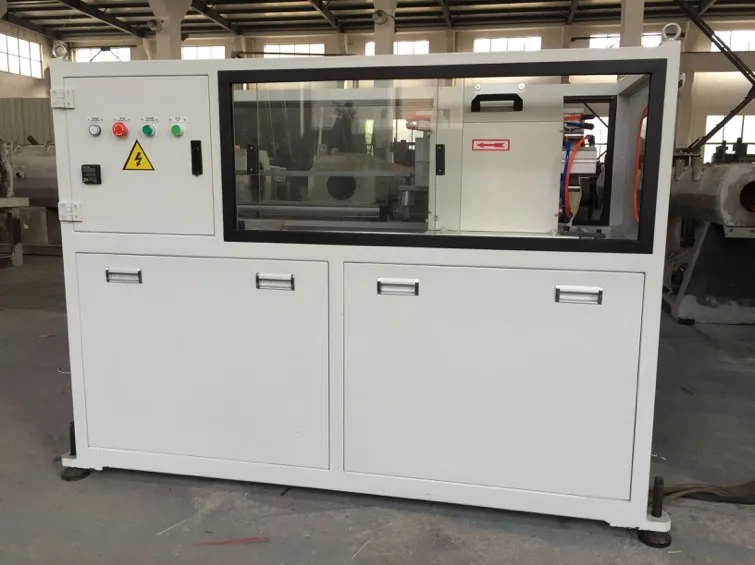

water position, water temperature system make the machine more intelligent,Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.The unit is of reliable performance and high production efficiency .

Main Technical Parameter :

Model number

16/63

20/110

50/160

75/250

110/315

200/450

315/630

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

Max output

150kg/h

200kg/h

350kg/h

350kg/h

350kg/h

450kg/h

850kg/h

Production rate

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

Installation area

35x3.0x2.0m

38*3.1*2.2m

38*3.1*2.2m

40*3.2*2.4m

42*3.2*2.4m

52*3.3*2.6 m

60*3.5*2.8m

Extruder:Screw and Barrel: Material 38CrMoAlA, Mould:Extrusion mold material: 40Cr. Vacuum Tank:Calibration Tank Length: 6m, Adopt Nitriding,Surface Chrome plate, Nitriding Layer Calibration mold material: Wearable tin 3mm thickness stainless steel board,Adopt 0.75KW
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV. bronze ZQSn5-2-5. Gearbox ,Speed Reducer Motor, Adjusting:Distance equal to 800mm

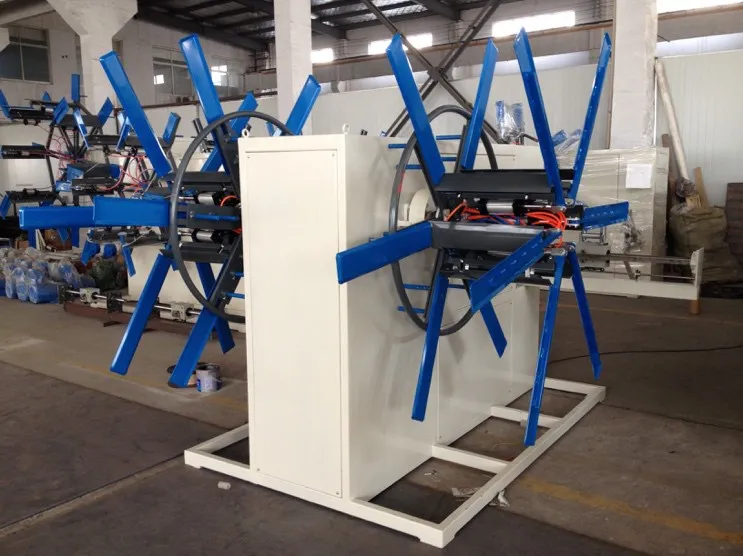

Haul-off:Haul-off Bracket Length 1200mm, Cutthing machine :Cutting motor model:Y90L-4 Winding Machine diameter:550-1500 mm Max.
Adopt Pneumatic gas cylinder,Adopt 1.5kw*2sets Cutting motor power:2.2KW,Blade material:9C1Si outer diameter :1310-2260mm ,Winding max. speed:
ABB Inverter, Belt 80mm*2500mm. Blade material:9C1Si ,Cutting stroke:80mm 30 m/min,Winding width:300-500 mm

Factory overview:

Our service:

Pre-sale :

We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals

In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard

After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.

• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.

• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.

Competitive Advantage:

1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.

2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.

S&K Machinery has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
