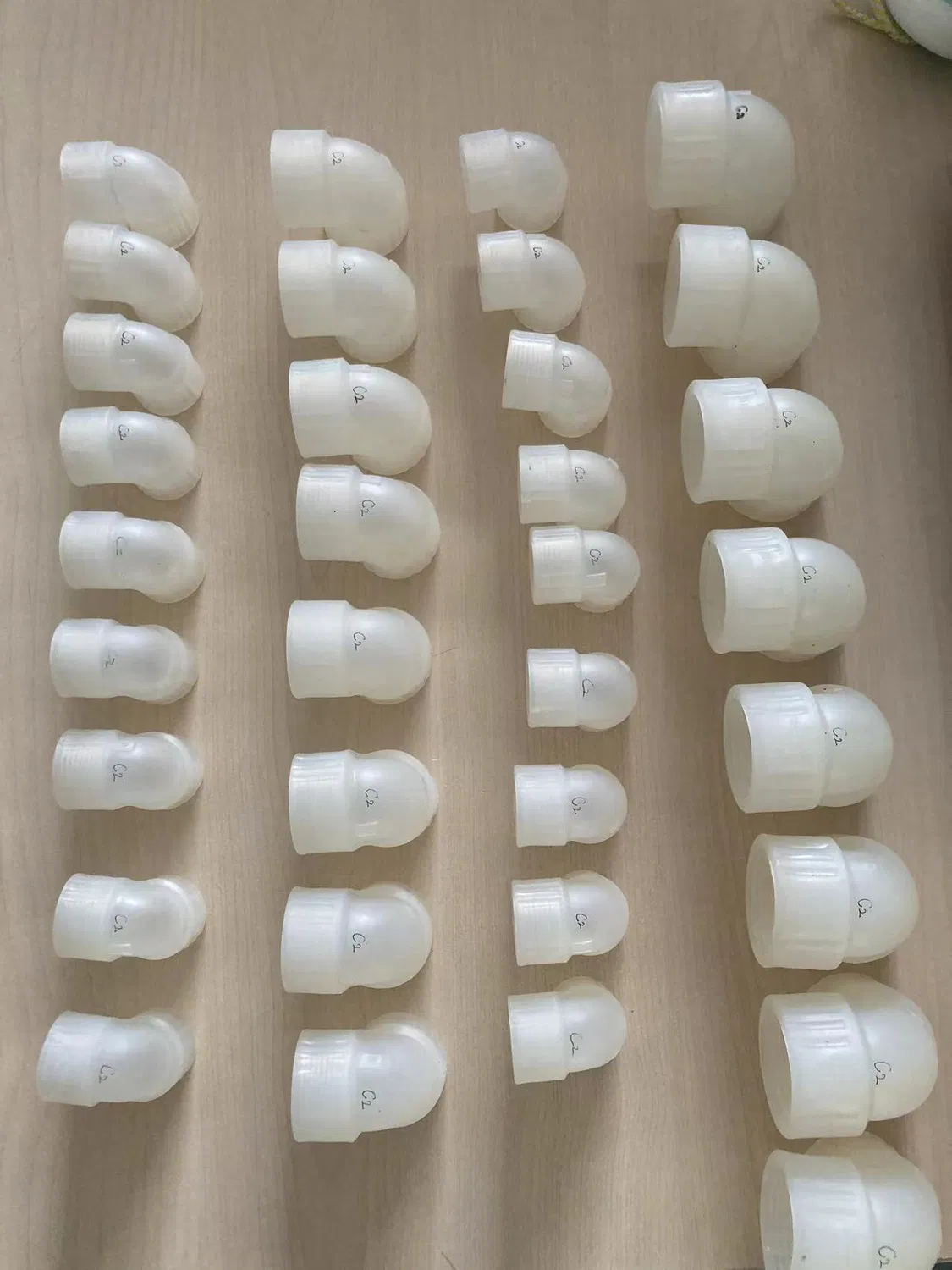

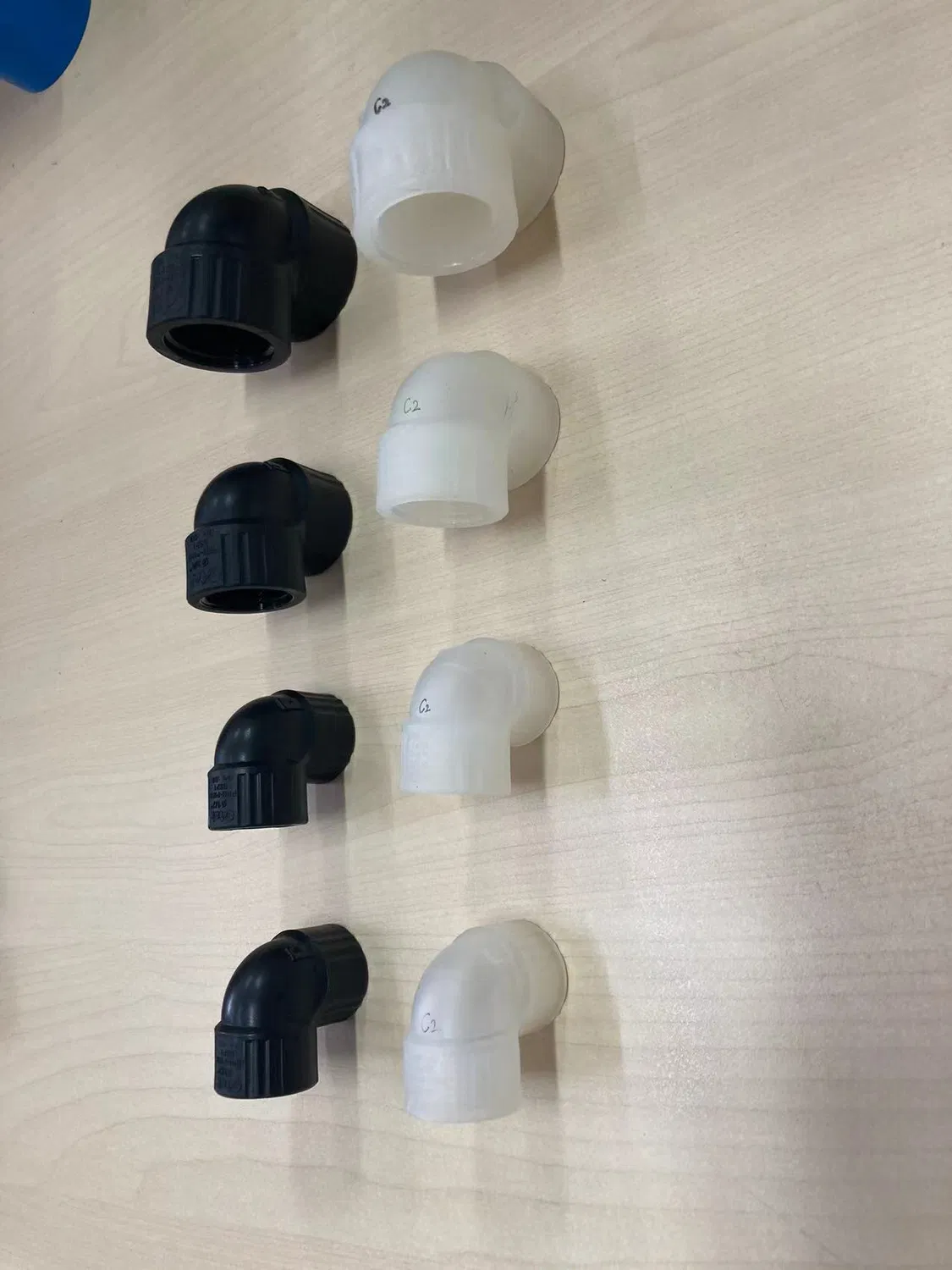

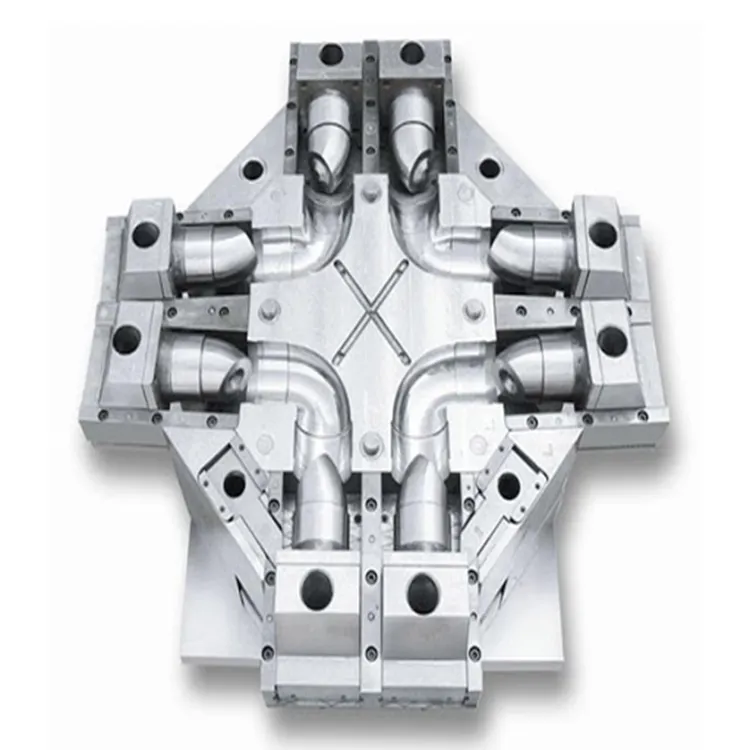

Full-Automatic Plastic PVC PPR Pipe Fittings Making Injection Molding Machine
Detailed specification for Full-Automatic Plastic PVC PPR Pipe Fittings Making Injection Molding Machine
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | SZ-4800A |
| Type | Injection Molding |
| Structure | Horizontal |
| Plastic Type | Thermoplastic |
| Plasticizing Way | Screw Type |
| Clamping Way | Hydraulic & Mechanical |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008, SGS |
| Keyword | Vegetable Fruit Turnover Crate Making Machine |
| Function | Multifunctional Plastic Products Making |
| Motor | Servo Energy Saving |
| Advantages | Energy Efficient,Long Service Life |
| Operation Language | Multilingual, You Can Choose |
| Color | Customers' Request |
| Price | Ex-Factory Price |
| Experience | 20 Years of Rich Experience |
| Quality | Professional Quality Control Team |
| After Sale | Product Lifetime Maintenance |
| Brand | Shenzhou,China Certified Brand |
| Service | One-Stop Complete Solution |
| Certificate | CE;ISO;SGS |
| Export Experience | More Than 15 Years |
| Customer | More Than 2000 |
| Transport Package | Standard Export Wooden Box |
| Specification | 7.5*2.1*2.45m |
| Trademark | SHENZHOU |
| Origin | Suzhou, Jiangsu, China |
| HS Code | 8477101090 |
| Production Capacity | 50sets Per Month |
Product Paramenters

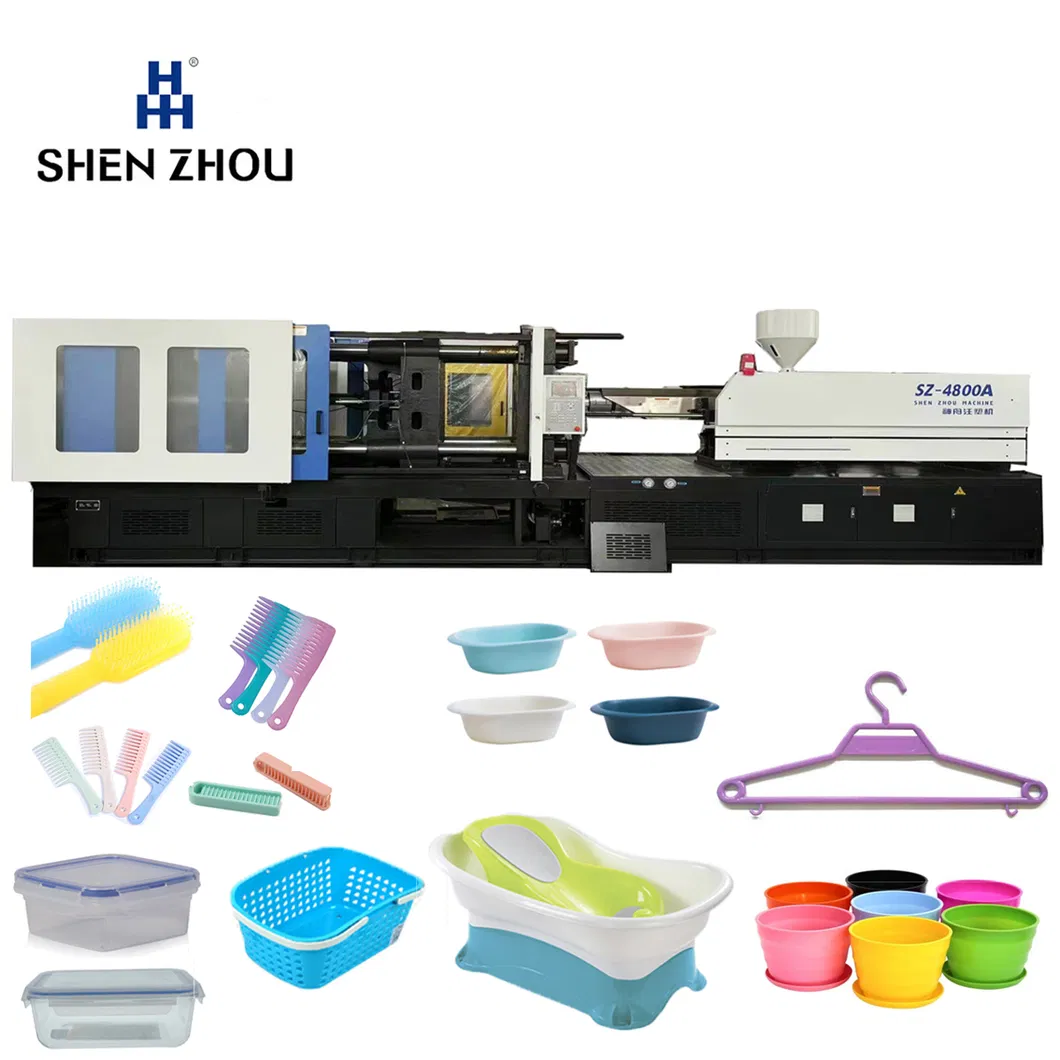

SZ-4800A INJECTION UNIT
ITEM
UNIT
VALUE
SCREW DIAMETER
mm
70
75
80
SCREW L/D RATIO
L/D
22.6
21
19.7
Theoretical Shot Volume
cm^3
1346
1545
1758
SHOW WEIGHT(PS)
g
1225
1406
1600
INJECTION PRESSURE
Mpa
201
175
154
THEORETICAL INJECTION RATE(PS)
g/s
370
423
484
PLASTICISING CAPACITY
g/s
60.4
71.4
83.7
SCREW TORQUE
N.m
3490
MAX.SCREW ROTATE SPEED
r/min
150
INJECTION STROKE
mm
350
SZ-4800A CLAMPING UNIT
ITEM
UNIT
VALUE
MAX.CLAMPING FORCE
KN
4800
MAX.OPENING STROKE
mm
770
SPACE BETWEEN TIE BARS
mm
760*760
MOULD HEIGHT
mm
280-790
MAX.DAYLIGHT
mm
1560
EJECTOR FORCE
KN
113.4
EJECTOR STROKE
mm
195
EJECTOR QUANTITY
13
SZ-4800A OTHER
ITEM
UNIT
VALUE
PUMP MOTOR POWER
kw
45
PUMP PRESSURE
Mpa
16
HEATING POWER
kw
28
HEATING ZONE
5
SIZE
m
7.5*2.1*2.45
NET WEIGHT
t
20
OIL TANK CAPACITY
L
850
INTERNATIonAL DESIGNATION
4800-2710

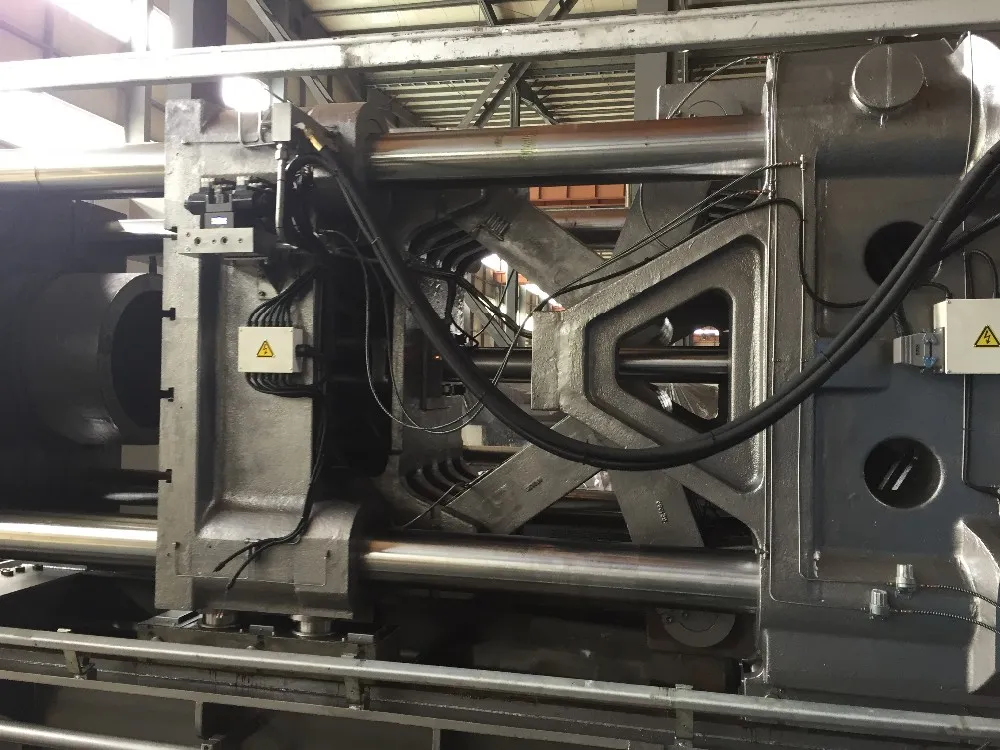

New type 5-point toggle device of stable movement curve,gentle shock.
Superior mould platen to ensure no out of shape if high-pressure clamping.
Hard chrome plated high tensile strength tie bars made of superior alloy.
Wear-resistant guide for moving platen.
Transducer control clamping stroke.
Many step control for speed and pressure of clamping and opening.
Eiection device offer dwell,single,more, vibration function.
Low pressure mould protection function.
Hydraulic mould height adjustment with roungh and fine operation.
Mechanical and electrical dual safety interlock.
Automatic centralized lubrication system with far pressure detector.

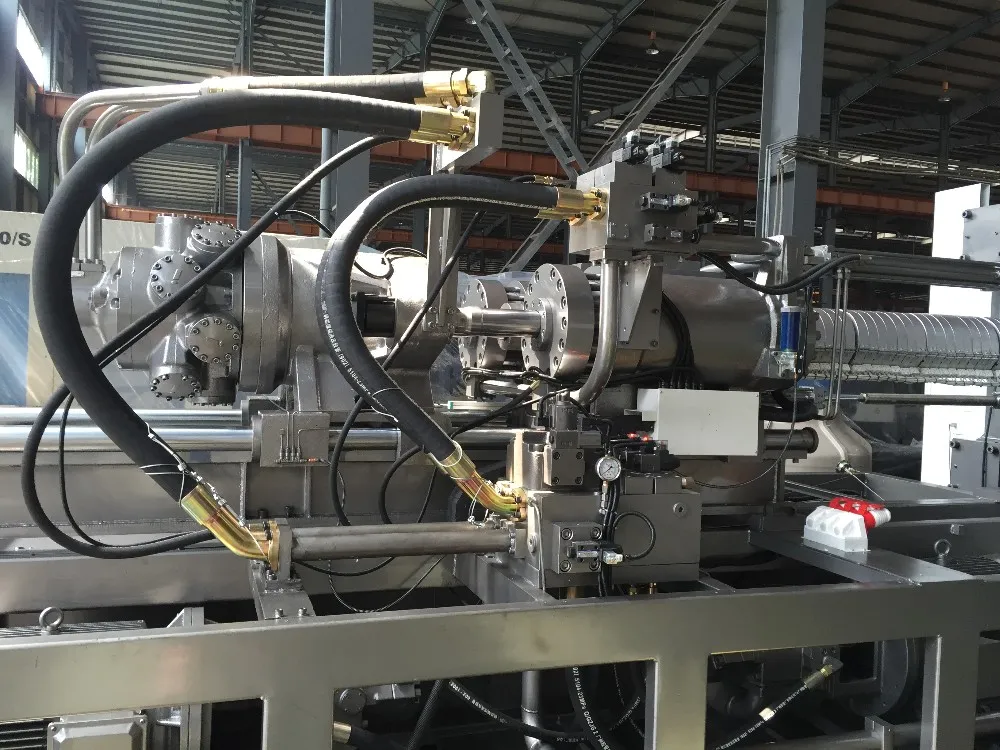

Proportional pressure and flow control with fine adjustment and precision.
Know-how manifold design,compact,reasonable and fast respond.

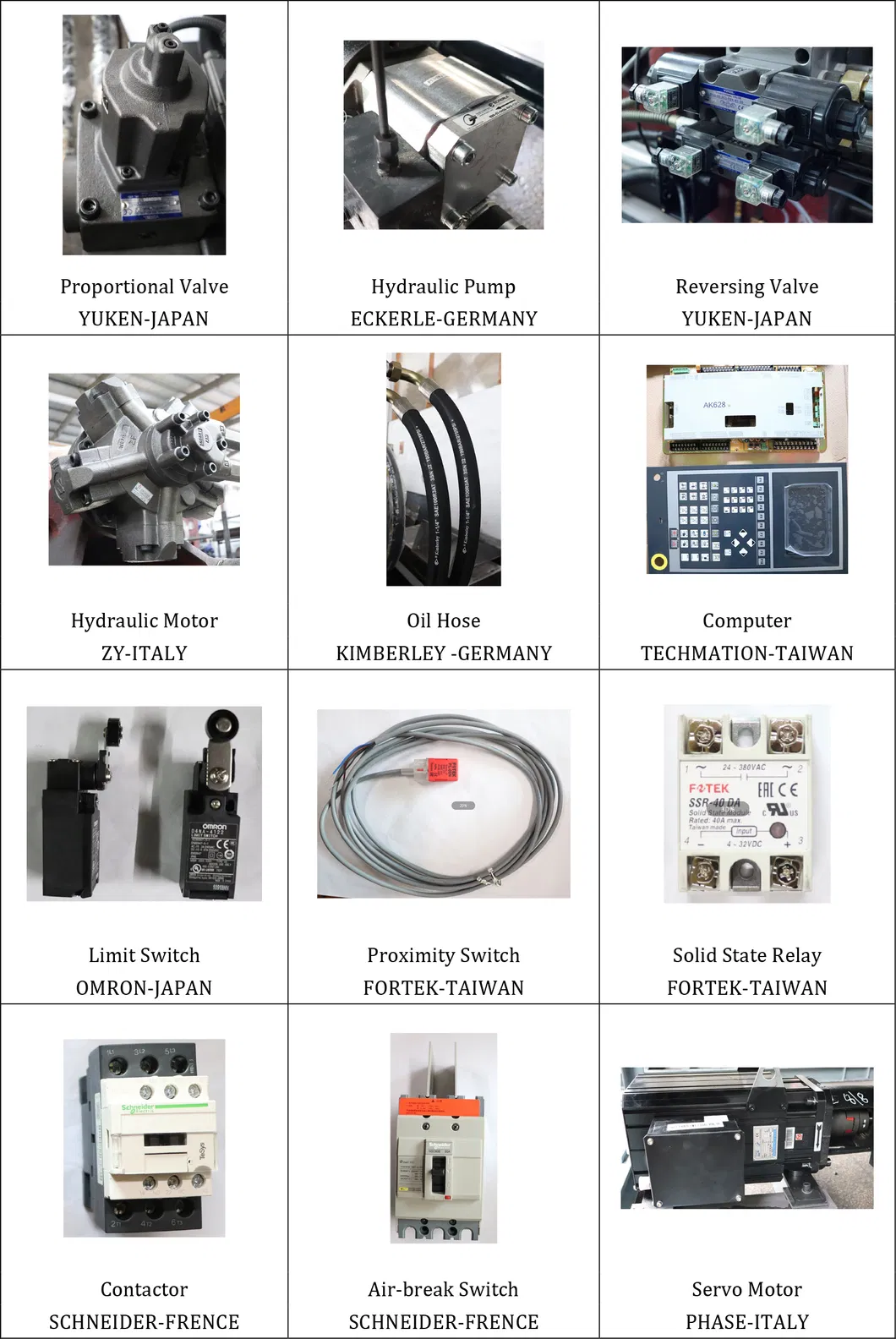

imported world famous hydraulic valves.
imported world famous hydraulic sealing rings.
imported technology hydraulic hose and fittings.
Low noise hydraulic system.
Precision oil filter and oil cooler.

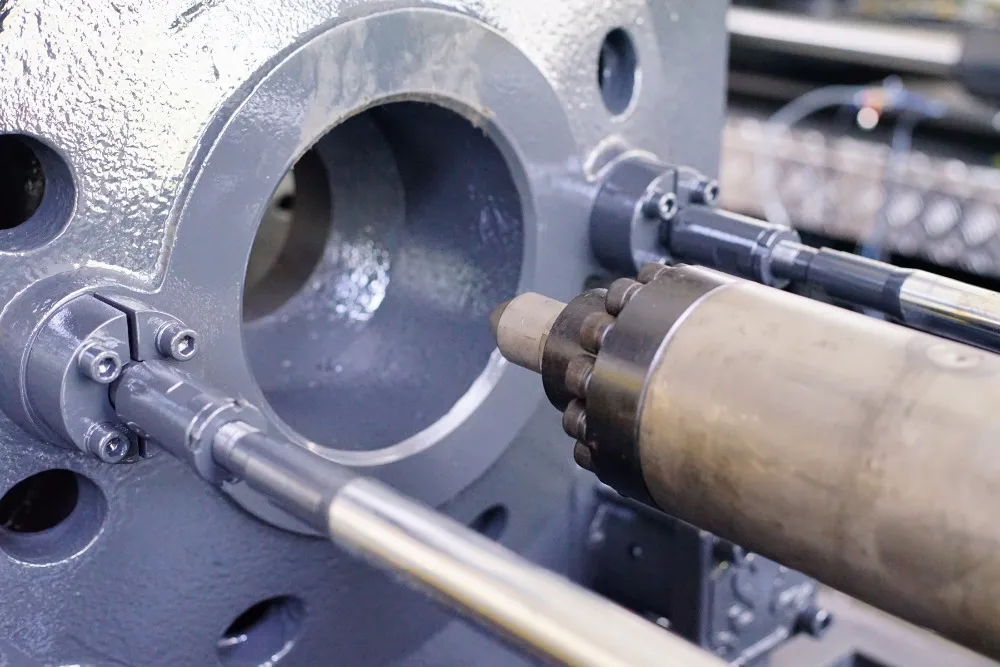

Nitrided screw and barrel with long service life.
Smelted screw with big L/D ratio with good plasticizing and color-fixing.
Double injection cylinder of compact construction and good equilibrant.
Transducer control injection stroke.
The speed of low speed and large torque hydraulic motor can be adjusted.
Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
Injection-catriage can be used for slacking,re-feedingor fixed-feeding.
Speed and pressure of injecting and holding controlled by time or position.
Equipped with reverse device to be easily removed and cleaned.
Why Choose Us
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6.Ex-factory price
Company Profile
SHENZHOU-Your trusted plastic processing partner
Our company - injection molding machine, blow molding machine, main blower, mold, computer embroidery machine professional manufacturer - located in the national new port city of Zhangjiagang City, Xizhang Town, close to the Yanjiang Expressway and 204 National Road, close to Shanghai, Nanjing, Suzhou, Wuxi Large and medium-sized cities such as Nantong have convenient transportation.The company has accumulated rich experience in manufacturing injection molding machines for many years, high standard design and precision processing, using imported famous brand hydraulic, electrical and sealing components, and fully creating SZ series automatic computer injection molding machine and peripheral supporting equipment, with its excellent quality and stability. The performance, superior price performance ratio, to the greatest extent to meet the interests and needs of customers.
Packing & DeliveryWe will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.
