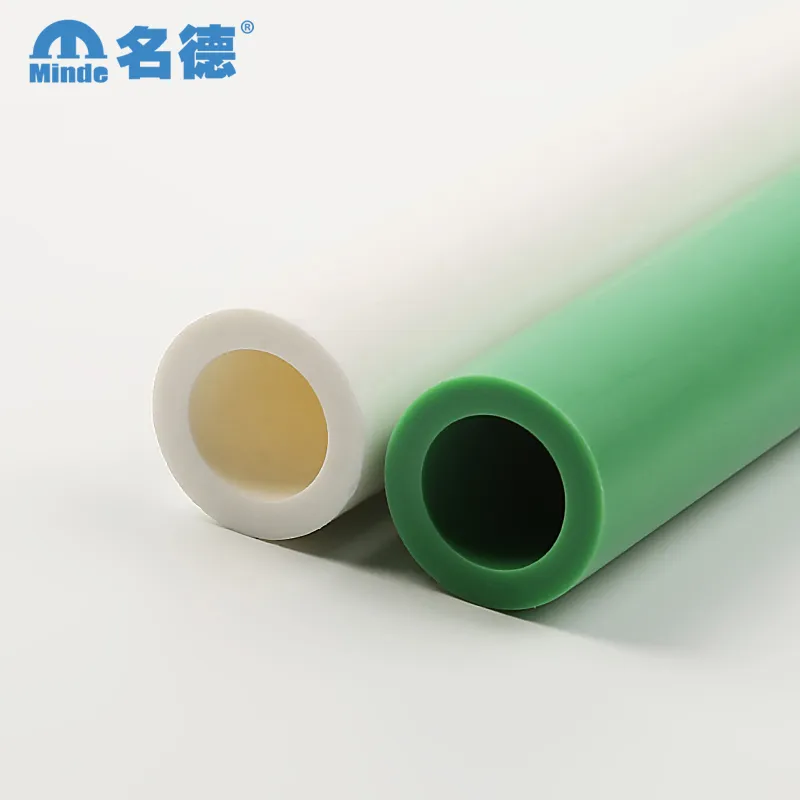

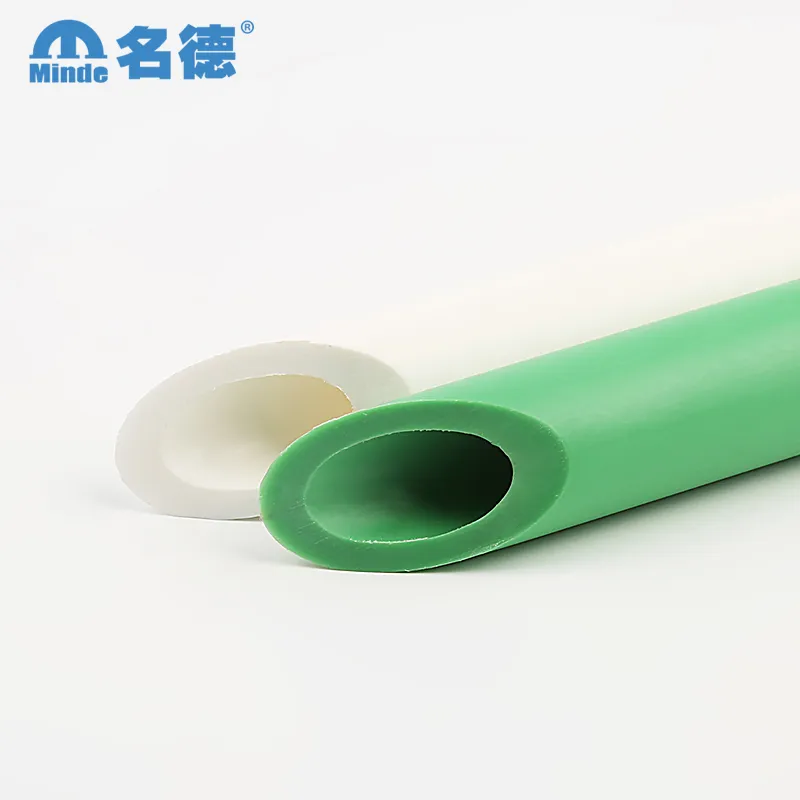

PPR Pipe - FB-PPR Fiberglass Composite Pipe

Model NO.	MDA001-MDA310
Compound Material	Plastic Composite Pipe
Material	PPR
Installation and Connection	Hot Melt Type Installation
Aluminium Plastic Compound Pipe Use	Water Heater Tube, Water Distribution Pipe in Building
Transport Package	Minde Standard Package
Specification	20mm, 25mm. 32mm. 40mm, 50mm, 63mm
Trademark	Minde
Origin	China
HS Code	3917220000
Production Capacity	7 days for 1*40HQ

FR-PPR glass fiber reinforced hot and cold water composite pipe is a high-performance pipe, which uses multi-layer co-extruded, low-temperature high-speed production with special techniques and equipment. Maintaining merits of PP-R pipe, it also has the following characteristics:
1. Linear expansion coefficiernt is only 20-30% of ordiary PP-R pipe; Completely resolves the stretching problem of common plastic pipe.
2. Enhances pipe rigid, prevents droop down phenomenon, and also reduces the density and number of supporting points, thus cuts down the total cost of installation.
3. Higher pressure resistant level and longer working life under usual vibration.
4. Better high temperature resistance, and obvious energy saving effect; FR-PPR used in water heating systems, the normal temperature is up to 95-100 degrees, It not only increases the medium temperature and also reduces the thickness of thermal insulation material. The overall cost is lower.
5. Large Water flow: Under the same pressure, FR-PPR pipe has thinnr wall thickness, increases the diameter of the pipe, and thererby improves the water flow (increases 20%).
6. Solves the oxygen permeability of the pipeline, the inner surface is non-toxic, fine sealing and sphagnum will not appear. The middle layer of FR-PPR pipe completely prevents outside air from infiltration into pipe inside, thereby inhibits algae growth, and maintains fresh pure water.

FB-PP-R FIBRE GLASS COMPOSITE PIPES SERIES        SDR9/S4/PN16  SDR7.4/S3.2/PN20  SDR6/S2.5/PN25    MDFB001D20*2.3120 MDFB101D20*2.8120 MDFB201D20*3.4120 MDFB002D25*2.8100MDFB102D25*3.5100MDFB202D25*4.2100 MDFB003D32*3.660MDFB103D32*4.460MDFB203D32*5.460 MDFB004D40*4.540MDFB104D40*5.540MDFB204D40*6.740 MDFB005D50*5.624MDFB105D50*6.924MDFB205D50*8.324 MDFB006D63*7.116MDFB106D63*8.616MDFB206D63*10.516
