PTFE-Po-PP Lined Pipe Fittings Chemical Reactor Equipment

Type	Reaction Kettle
Structure	Multiple Parallel
Pressure	Negative
Tower Reactor Type	Spray Tower Reactor
Heat Transfer Structure	Jacketed
Automatic Grade	Semi-Automatic
Condition	New
Transport Package	Other
Specification	According to the product
Trademark	HanChei
Origin	China
HS Code	8419899090
Production Capacity	5000PCS/Year

Shandong Hanchei Industrial Equipment Co.,Ltd.
is a rising comprehensive industrial company, which integrates in design, development, manufacturing, installation, sales and after-sales services. With it's own factories, research institute and the strategic cooperation with main adventage manufactories in China, Shandong Hanchei has served and developed solutions for global customers for more than a decade.

Our main products: glass lined reactors, enamel reactors,stainless steel reaction vessel,hastelloy reactor, High pressure reaction vessel, hydrogenation reactor,Nickel reactor,titanium reactor,zirconium reactor, storage tanks, receivers, glass lined condenser, heat exchanger and high pressure mixer tanks etc.

1-Glass lined Equipment Description:
Glass-lined equipment, also known as enameled, are essential vessels in various industries. These tanks are crafted by fusing a layer of glass onto a metal substrate, typically carbon steel or stainless steel, through a high-temperature firing process. This unique combination endows them with excellent corrosion resistance, making them ideal for storing highly corrosive chemicals, acids, alkalis, and solvents. The glass lining acts as a protective barrier, preventing the stored media from coming into direct contact with the metal, thus avoiding rust, degradation, and contamination.

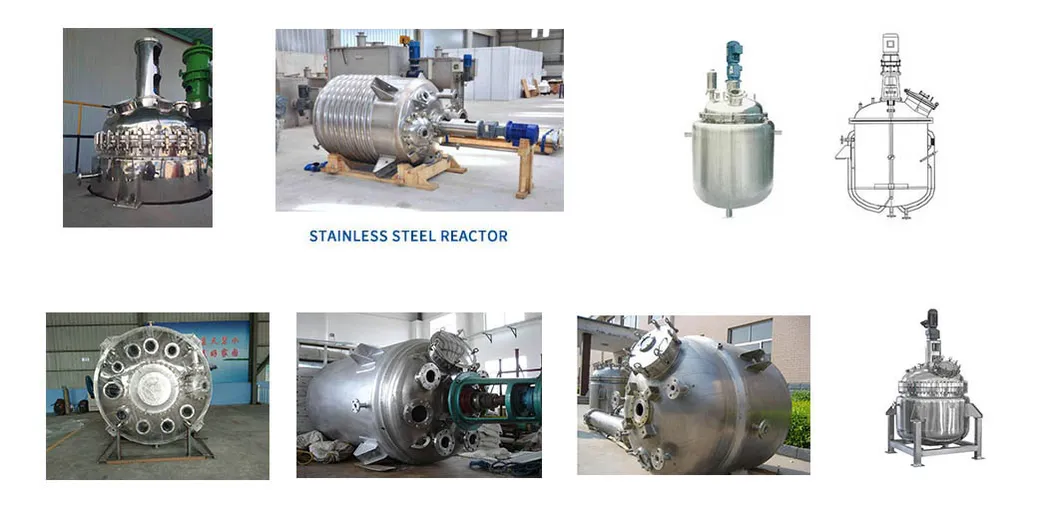

2-Stainless steel reaction vessel
Our stainless steel reactor blends 304/316L corrosion resistance (ideal for harsh chemicals) with precise temp/pressure control. Seamless design ensures zero leakage, easy cleaning, and long service life. Customizable sizes (10L-5000L) fit pharma, food, chemical needs. Energy-efficient, compliant with global standards-your reliable partner for safe, consistent production.


3-Hastelloy/Zirconium/Titanium/Hydrogenation Reactor
This hydrogenation reactor stands out with its premium material trio: Hastelloy, Zirconium, and Titanium. Hastelloy delivers exceptional corrosion resistance against harsh hydrogenation media, ensuring long-term stability. Zirconium boosts durability in high-temperature/pressure conditions, while Titanium offers lightweight strength and excellent biocompatibility, reducing overall reactor weight without compromising performance.
Tailored for hydrogenation processes, it ensures efficient reactant mixing, uniform temperature distribution, and optimal hydrogen utilization-elevating reaction efficiency and product purity. Its robust build minimizes maintenance needs, cuts downtime, and suits diverse industrial applications (petrochemicals, pharmaceuticals, fine chemicals), making it a reliable, high-value solution for demanding hydrogenation tasks.

4-Heat Exchanger
A heat exchanger transfers heat between fluids without mixing. It's widely used. In HVAC systems, it helps with heating and cooling air. In power plants, it recovers waste heat, enhancing efficiency. In industrial processes like chemical manufacturing, it regulates fluid temperatures.
Our heat exchanger features a compact design, saving space. Its high - efficiency heat transfer maximizes energy use. Made with corrosion - resistant materials, it ensures long - term, stable operation.

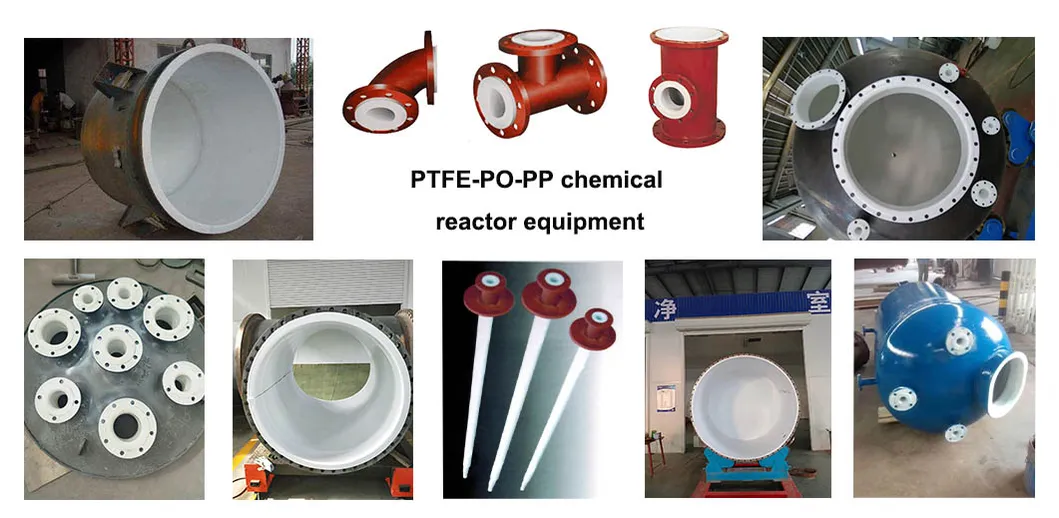

5-PTFE-PFA-PO-PP Lined reactor and fittings
Our PTFE / PFA / PO/ PP Lined reactors excel in superior corrosion resistance-PTFE resists almost all strong acids, alkalis and organic solvents, keeping reactants pure.
They boast a wide temperature range (-80ºC to 230ºC for steel-lined models, ~200ºC for full PTFE ones), fitting diverse reactions.
The smooth PTFE surface avoids material adhesion, enabling easy cleaning and lowering cross-contamination risks-ideal for pharma/food use.
With reliable sealing and good insulation, they ensure safe, stable operation. Offered as full PTFE (lab) or steel-lined (industrial), they suit R&D and mass production, promising long durability.

Applications:
Chemical industry: Storage of HCl, H2SO4, organic solvents, and reactive intermediates.
Pharmaceuticals: Bulk drug storage, raw material preservation.
Food processing: Holding corrosive additives or acidic ingredients.
Environmental engineering: Waste acid/alkali containment.


Technical Parameters

Specification ModelK-50K-100K-200K-300K-500K-1000K-1500K-2000K-3000K-5000 Nominal Capacity (L)5010020030050010001500200030005000 Actual Capacity (L)7112824736958812501720216033805224 Heat Exchange Area(m²)0.340.661.261.752.644.545.347.028.6113 Dimension mmD150060070080090012001300130016001750 D2600700800900100013001450145017501900 D37068169181028113014681622162219642152 H1265300345380405480505505580617 H2400500700800100012001400174517402050 H3300320350350400500500500600670 H49459459531154115412761276127613261326 H1705184521102440270030003310365037854800

Reactor accessories

Production field

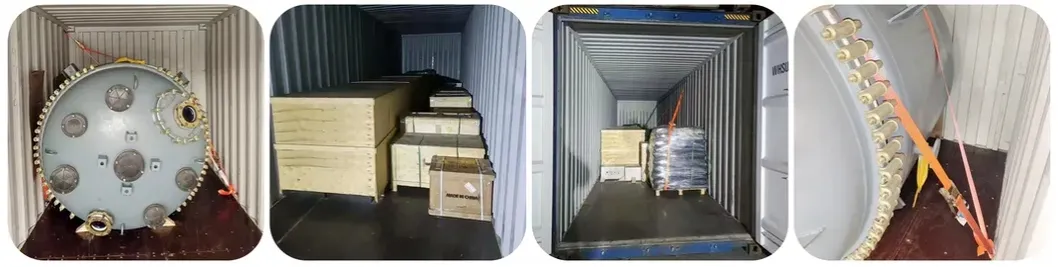

Packing and shipping
