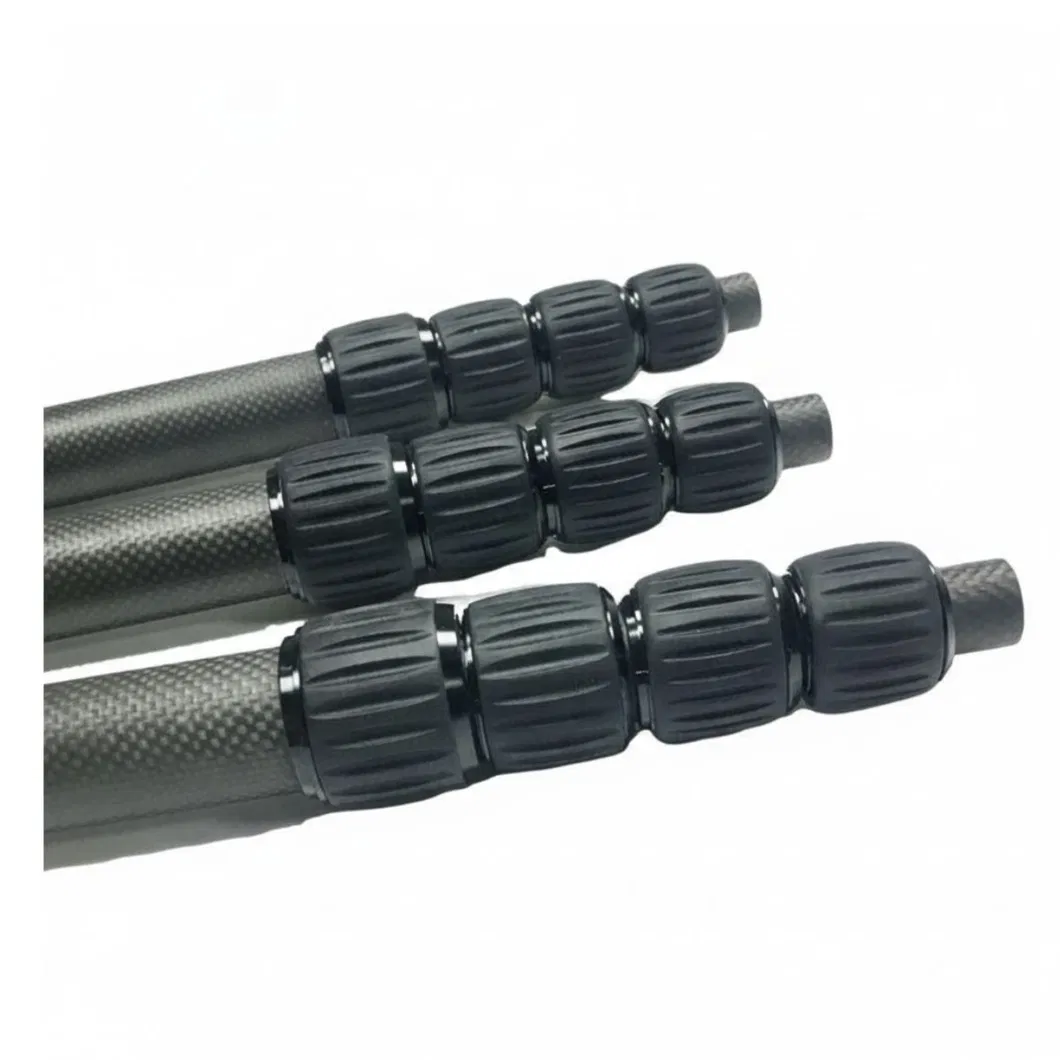

20FT Carbon Fiber Telescopic Tube High Strength Design for Camera Mast Systems

20FT Carbon Fiber Telescopic Tube High Strength Design for Camera Mast Systems

The 20FT Carbon Fiber Telescopic Tube is a high-strength and lightweight structural solution engineered for camera mast systems and professional imaging setups. Constructed from premium 3K twill carbon fiber, it delivers exceptional rigidity, low weight, and resistance to bending or vibration during extended use. Its telescopic design allows for smooth extension and secure locking, ensuring precise positioning for elevated camera systems. The matte surface finish reduces light reflection, making it ideal for outdoor filming and photography environments. Combining strength, portability, and visual elegance, this telescopic tube provides superior performance for camera masts, aerial photography, and inspection systems requiring stable height adjustment and professional reliability.

Key Features & Benefits

• High Strength-to-Weight Ratio: Made from 3K twill carbon fiber for exceptional stiffness and minimal weight, ensuring stable elevation for camera systems.

• Smooth Telescopic Functionality: Each section extends and locks securely, providing steady support during photography or videography operations.

• Matte Anti-Reflective Finish: Eliminates unwanted glare and reflections, ideal for professional lighting or outdoor shooting conditions.

• Vibration and Flex Resistance: Maintains structural integrity during extended use, preventing shake and ensuring clear, stable shots.

• Weather and Corrosion Resistant: Performs reliably under outdoor conditions, including humidity, UV exposure, and temperature fluctuations.

• Compact and Portable: The telescopic structure collapses into a small size for convenient transportation and quick setup.

• OEM Customization Available: Adjustable diameters, wall thicknesses, and connection types available to match camera system requirements.

Technical Specifications

ParameterDescription Product Name20FT Carbon Fiber Telescopic Tube Length (Extended)20 feet (6.1 meters) MaterialHigh-strength 3K twill carbon fiber Surface FinishMatte, anti-reflective Structure TypeMulti-section telescopic design Outer Diameter RangeCustomizable per section Wall ThicknessTypically 1.0-1.6 mm Weight AdvantageUp to 75% lighter than aluminum Connection TypePrecision-fit or threaded locking system ApplicationsCamera mast systems, aerial photography poles, inspection masts Customization OptionsOEM logo, section design, joint style, and diameter adjustment

Material & Manufacturing

Our carbon fiber telescopic tubes are produced using high-quality PAN-based carbon fibers and advanced epoxy resin systems. The carbon fibers are woven into 3K twill or plain fabrics, which are then impregnated with epoxy resin to form strong and stable prepregs.

During production, multiple layers of these prepregs are carefully wrapped onto mandrels, aligned to achieve maximum strength in both axial and radial directions. The tubes are then cured under high temperature and pressure, ensuring excellent bonding and dimensional accuracy.

After curing, each telescopic tube undergoes CNC machining for trimming, drilling, and custom shaping. This process guarantees precise tolerances, smooth surfaces, and compatibility with custom fittings. Finally, surface finishing options such as glossy, matte, or sanded are applied to meet customer preferences.

The combination of premium materials, advanced resin systems, and precision manufacturing makes our carbon fiber telescopic tubes highly reliable for industrial, automotive, aerospace, and photography applications.

SequenceLength of Each Section (mm)Outside Diameter (mm)Wall Thickness (mm)Total Length (M) 01195019.00.8 - 1.1≤ 2M 02190522.00.8 - 1.1≤ 2M 03186025.10.8 - 1.1≤ 2M 04181528.20.8 - 1.2≤ 2M 05177031.30.8 - 1.2≤ 2M 06172534.30.8 - 1.2≤ 2M 07168037.50.8 - 1.3≤ 2M 08163541.10.8 - 1.3≤ 2M 09159044.40.8 - 1.3≤ 2M 10154547.70.8 - 1.3≤ 2M 11150051.00.8 - 1.3≤ 2M

Remark:
These are our regularly available sizes. If your required dimensions are not listed here, we can manufacture according to your custom specifications, including both small prototypes and large-format sheets.

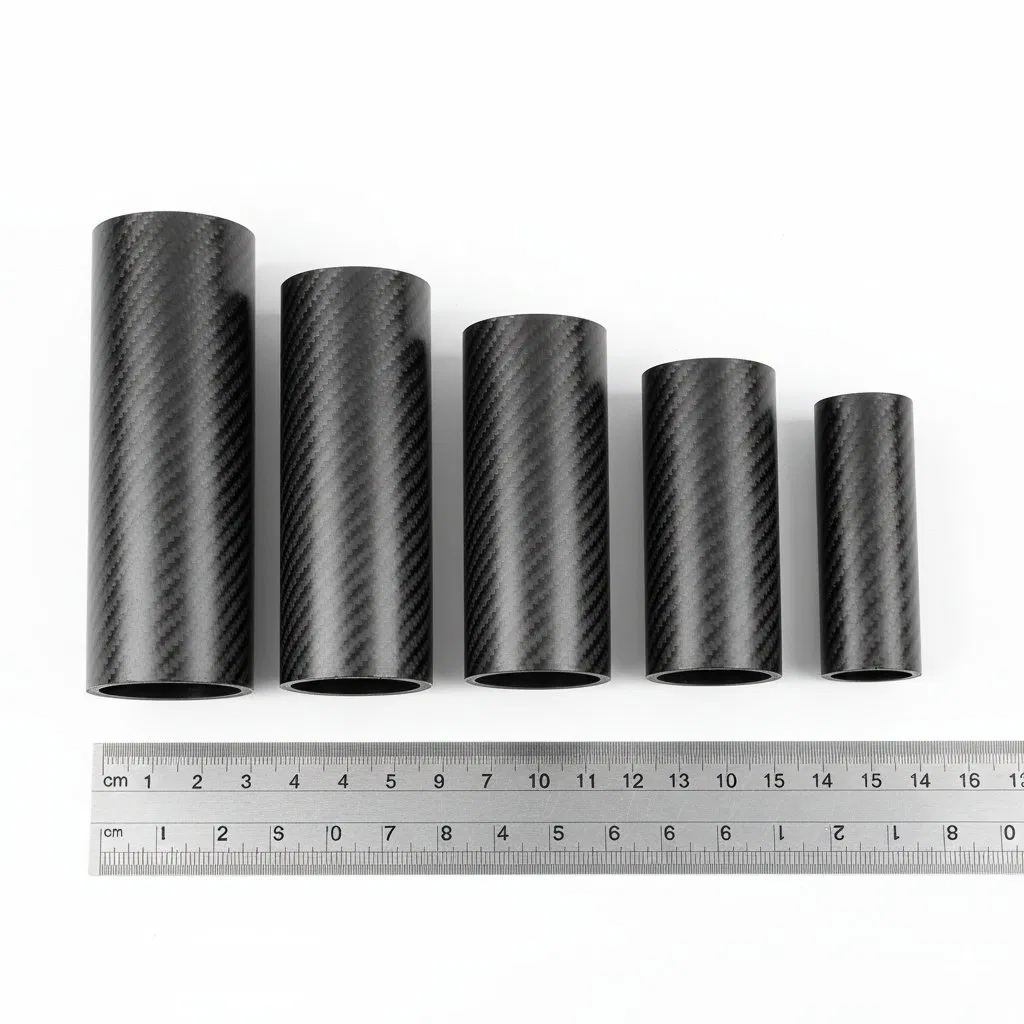

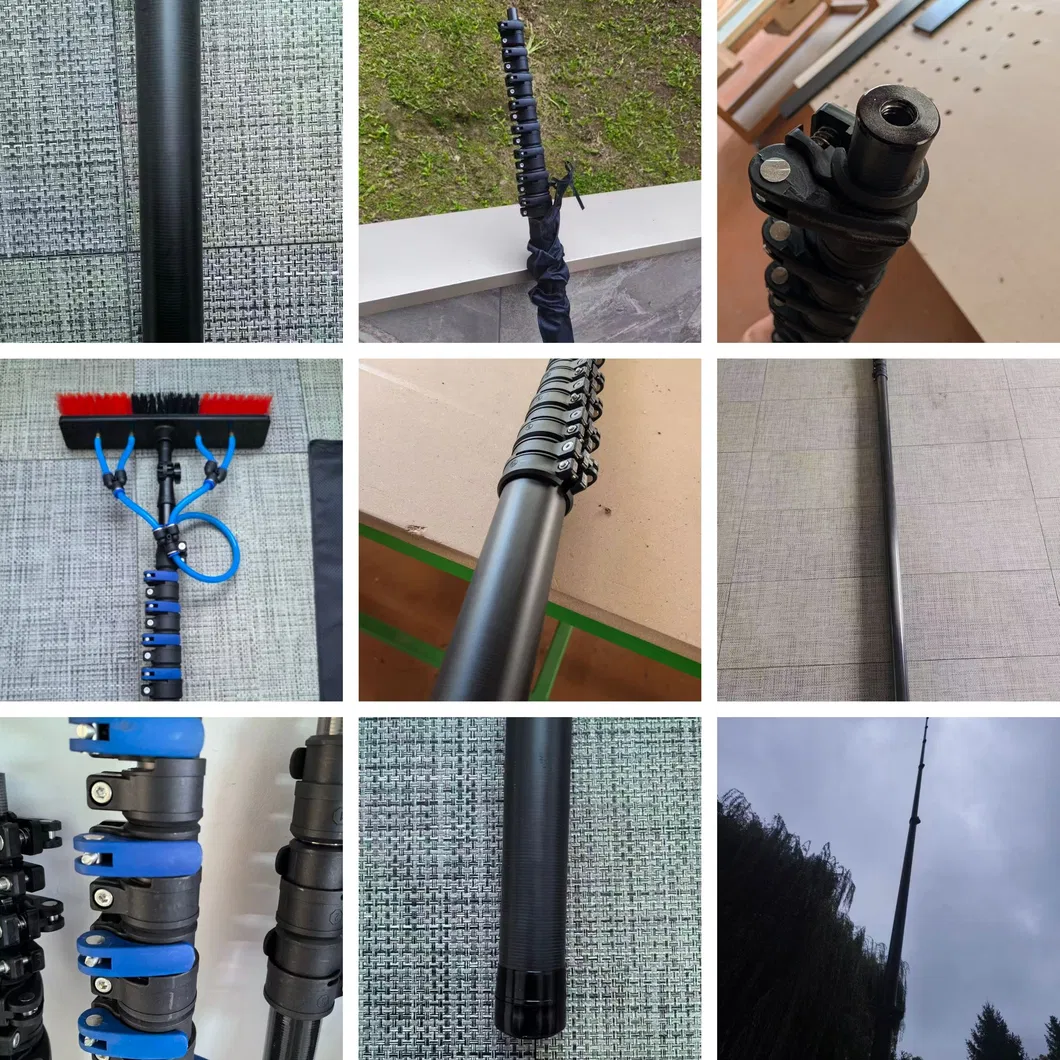

Here are real product images of our carbon fiber telescopic tubes. Each tube is made with high-quality PAN-based carbon fiber, epoxy laminated for durability, and precision machined to ensure smooth telescopic extension.

• Multiple sizes and diameters are available, ranging from 19mm to 51mm.

• Tubes are shown in both extended and collapsed forms.

• Surface finishes include glossy and matte options.

• Designed for real applications in photography, drones, industrial monitoring, and outdoor equipment.

These real product displays demonstrate the premium texture, professional craftsmanship, and reliable performance of our telescopic tubes.

Surface Options

We provide a variety of surface finishes to meet different needs:

• 3K Twill Glossy

• 3K Twill Matte

• 3K Plain Glossy

• 3K Plain Matte

• Forged Carbon Texture

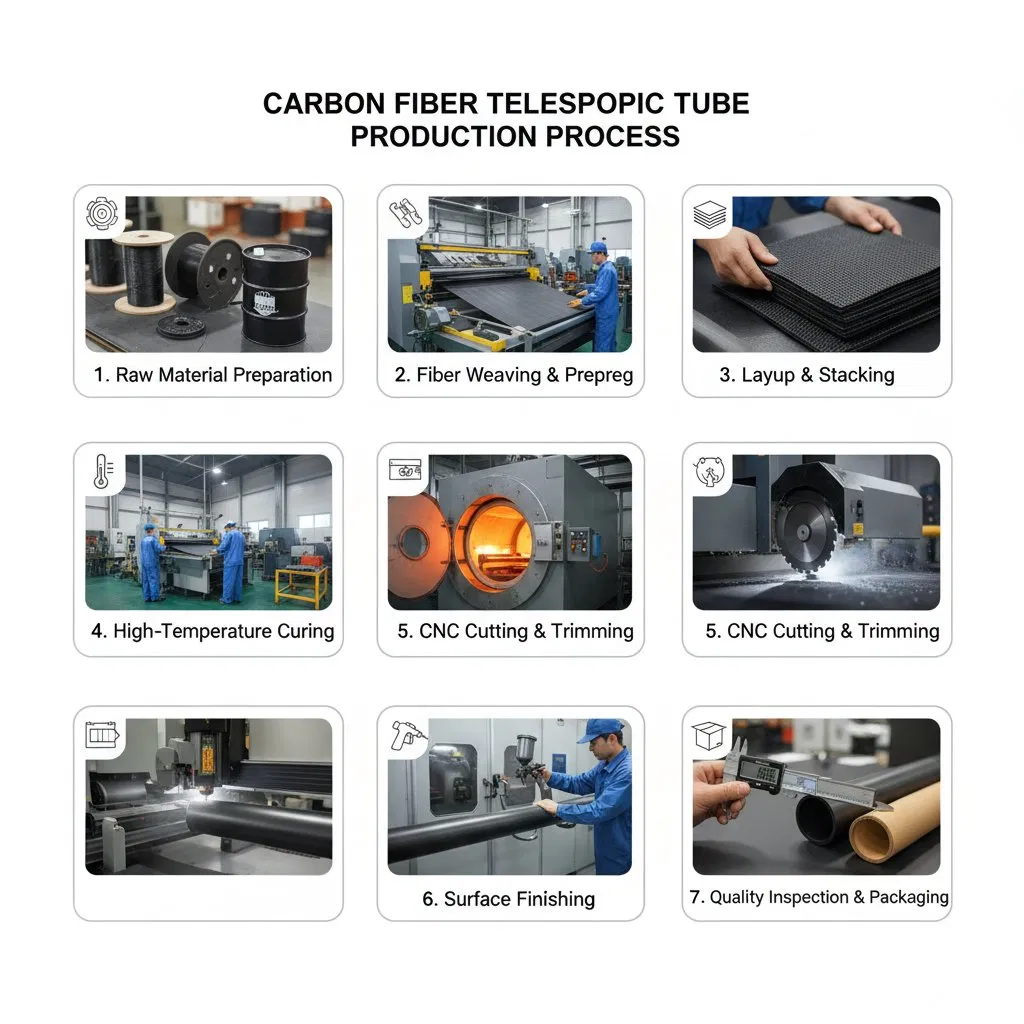

Our carbon fiber telescopic tubes are manufactured through a precise and standardized process to ensure high strength, lightweight design, and durability. Every production stage is strictly monitored under ISO-certified procedures to guarantee stable quality and consistency.

1. Raw Material Preparation
We source high-performance PAN-based carbon fibers and premium epoxy resin. The fibers are carefully inspected for uniformity before production begins.

2. Fiber Weaving & Prepreg
Carbon fiber yarns are woven into 3K twill or plain weave fabrics, which are then impregnated with epoxy resin to form prepregs, ensuring stability and high bonding strength.

3. Molding & Telescopic Tube Formation
Prepreg layers are precisely cut and wrapped onto mandrels, followed by high-temperature curing to create telescopic tubes with accurate diameter and wall thickness.

4. CNC Machining & Trimming
After curing, each telescopic tube undergoes CNC machining for trimming, drilling, and surface finishing to meet custom specifications.

5. Surface Treatment
Tubes can be finished in glossy, matte, or sanded surfaces, providing excellent aesthetics and protection against wear and corrosion.

6. Quality Inspection
Every batch is inspected for dimensional accuracy, tensile strength, and visual quality to ensure flawless delivery.

7. Packaging & Delivery
Finally, the carbon fiber telescopic tubes are carefully packaged with PE film, foam separation, and export cartons or wooden crates, ensuring safe transport worldwide.

Photography & Video: Used in tripods, monopods, lighting booms, and microphone poles, offering lightweight and stable support.

Drone Equipment: Applied in drone arms and aerial camera rigs, ensuring strength without adding excess weight.

Sports & Outdoor Gear: Useful for telescopic poles in camping, hiking, or sports training applications.

Industrial Monitoring: Supports inspection cameras and sensors in hard-to-reach areas, combining strength and portability.

Advantages Compared with Traditional Materials

PropertyCarbon Fiber CompositeAluminum AlloySteel WeightUltra-light, 70% lighterMediumHeavy StrengthExtremely highMediumHigh StiffnessExcellentFairGood Corrosion ResistanceExcellentLimitedLimited AppearancePremium 3K weave finishPlainPlain

Carbon fiber composites provide superior strength-to-weight ratio, improved corrosion resistance, and premium aesthetics compared with traditional metals such as aluminum and steel.

Packaging & Shipping

• Each product is wrapped in protective PE film.

• Foam separators are used between layers to avoid scratches.

• Standard export cartons or wooden crates ensure safety during international transport.

• Suitable for sea freight, air freight, or express courier delivery.

• Customized packaging with OEM labeling is available upon request.

We provide full OEM and customization services to meet diverse project requirements:

• CNC machining for precision cutting, drilling, and shaping.

• Custom dimensions, thicknesses, and surface finishes.

• Options for glossy, matte, or sanded finishes.

• OEM branding, logo printing, and custom packaging.

• Flexible solutions for prototypes or mass production.


With over 15 years of experience in carbon fiber sheet manufacturing, we have grown into a trusted supplier for global customers across aerospace, automotive, sports equipment, UAV drones, robotics, and industrial machinery.

1. Our Factory
Our facility is located in Shandong, China, covering more than 8,000 square meters. It is equipped with advanced production lines including prepreg facilities, autoclaves, CNC machining centers, and quality inspection laboratories. We operate under a strict ISO9001 quality management system to guarantee stable and reliable production.

2. Production Capacity
We can produce over 30,000 pieces of carbon fiber sheets per month in standard sizes. Our factory is flexible enough to handle both small prototype orders and large-volume production. OEM/ODM customization is fully supported, and rapid sampling services are available.

3. Quality Control
Every step of the production process is strictly monitored. We conduct 100% inspection of raw materials, semi-finished products, and finished goods. Our in-house testing equipment evaluates tensile strength, flexural strength, modulus, and thermal resistance. Surface inspections ensure that the weave pattern and finish (glossy or matte) remain consistent across all batches.

4. Professional Team
Our engineering team is highly experienced in composite materials and CNC machining. Our international sales team has over 10 years of export experience, ensuring smooth communication and professional service. We also provide strong technical support for customized projects.

5. Global Customers
We export to more than 50 countries worldwide, including Europe, North America, South America, and Asia. We have long-term cooperation with OEMs in automotive tuning, UAV development, and sports brands. Our products receive positive feedback for quality, delivery speed, and after-sales support.

6. Why Choose Us

• Direct factory supply with competitive pricing

• Fast response and professional customer service

• Strong R&D capability for new materials and applications

• Reliable packaging and logistics network for global shipments
