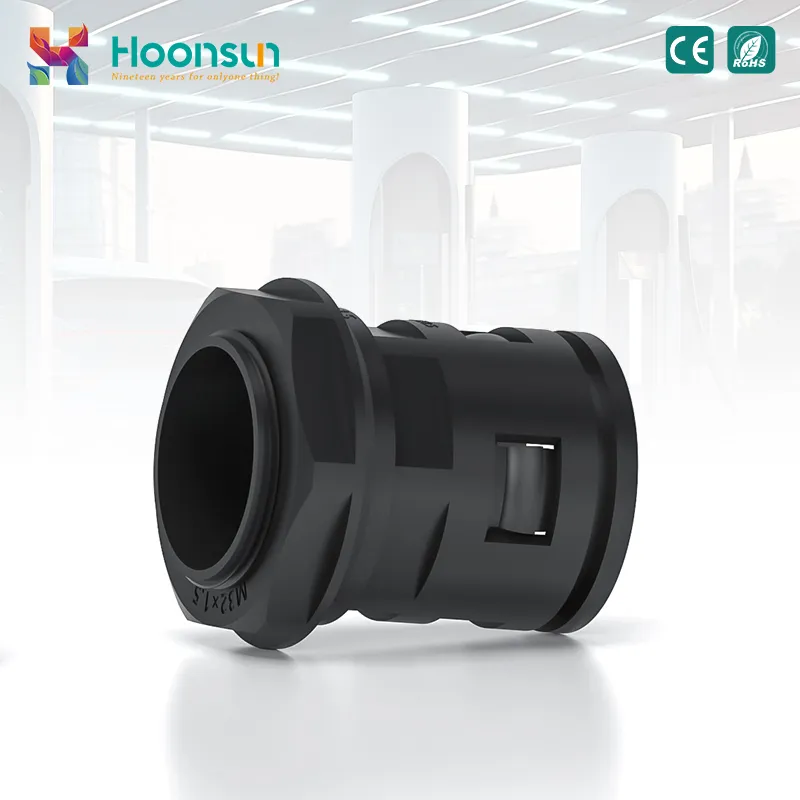

Self-Aligning Quick Connect Twist-Seal Kink-Resistant Nylon Union for Flexible Pipe

Product Description

Technical features
1. Material advantages
1. Nylon 6 (PA6): high toughness, impact resistance, suitable for conventional fluid transmission.
2. Nylon 66 (PA66): high temperature resistance (long-term + 100ºC), excellent oil resistance, suitable for high temperature scenes such as engine compartments.
3. Reinforced nylon: adding glass fiber or carbon fiber to improve strength and wear resistance, and can withstand higher pressure (≤10 bar).
2. Sealing and connection design
1. Elastic clamping: built-in serrated claws or corrugated structure, automatically adapt to the outer diameter of the hose, and can be installed without tools.
2. Threaded connection: compatible with standard threads such as NPT, BSP, Metric, etc., with sealing up to IP68.
3. Quick connector: one-button plug-in design, support pressure operation, suitable for scenes that require frequent disassembly.
3. High protection level
1. Protection level up to IP68.
2. Can withstand - 40ºC to + 120ºC temperature range, adapt to extreme environments.
4. Lightweight and cost-effective
1. With a density of only 1.1g/cm³, the weight is about 1/3 of that of metal connectors, which is suitable for weight-sensitive applications.
2. The injection molding process is mature and the cost is lower than that of metal or composite connectors.
5. Strong adaptability
1. Compatible with a variety of hose types (such as PA hose, PU hose, PE hose), supporting mixed connection with metal pipes and plastic boxes.

Detailed Photos

Product Parameters
