Factory Sale Metal Tube Laser Cutter
Detailed specification for Factory Sale Metal Tube Laser Cutter
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | VMD-26025FAR |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Gantry Type |
| Laser Classification | Fiber Laser |
| Laser Source | Reci/Raycus/Ipg |
| Working Area | 1500*3000mm/2000*4000*(X, Y) |
| Laser Head Brand | Raytools Autofocus |
| Guiderail Brand | Taiwan Hinwin |
| Certification | CE, ISO |
| Servo Motor Brand | Japenese Yaskawa Servo |
| Laser Power | 1500W-12000W |
| Cutting Materials | Stainless Steel Carbon Steel etc( Metal Laser Cut |
| Running Speed | 180m/Min |
| Marketing Type | Hot Product 2024 |
| Positioning Accuracy | 0.01mm |
| Repeat Positioning Accuracy | 0.02mm |
| Transport Package | Waterproof Plywood Wooden Box |
| Trademark | VMADE |
| Origin | China |
| HS Code | 8456110090 |
| Production Capacity | 100sets/Month |

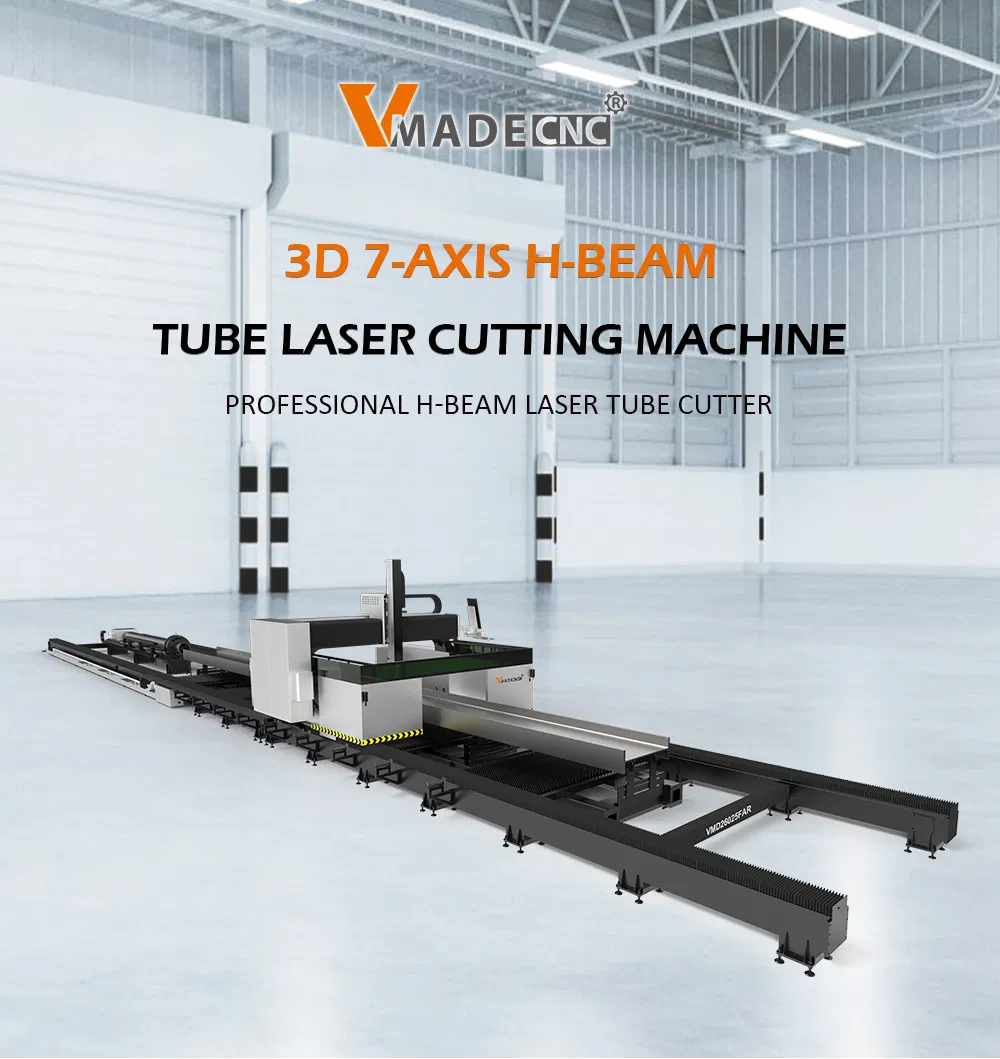

Fiber Laser Tube Cutting Machine 12000W 6000W
This is VLF1530P ,With automatic focus and electric exchange platform and protective cover
with camera function, can accept OEM customization,
All accessories adopt global excellent industrial products,
Can achieve high output, high efficiency, high speed, high profit
Complete cutting process parameter library, with personalized parameter interface, can realize "one-key setting" processing technology according to the type of pipe, and can also modify laser cutting process parameters in real time in the interface; equipped with servo proportional valve, accurately control the pressure of cutting auxiliary gas and the size of chuck force to achieve the best cutting effect; the linear positioning speed of the fiber laser cutting pipe machine reaches 100m/min, and the rotation positioning speed can reach 120m/min
Item
Value
Application
LASER CUTTING
Applicable Material
Metal
Laser Type
Fiber Laser
30Cutting Area
1500mm*3000mm
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness
16mmMS 8mm SS 8mm Alu 6mm brass
Laser Source Brand
RAYCUS, IPG
Laser Head Brand
Raytools
Servo Motor Brand
Yaskawa
Guiderail Brand
HIWIN
Control System Brand
Cypcut
Feature
Water-cooled
Power
1500W-3000W
