Metal CNC Fiber Laser Cutting Machine Carbon Steel Aluminium Sheet Plate Tube
Detailed specification for Metal CNC Fiber Laser Cutting Machine Carbon Steel Aluminium Sheet Plate Tube
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | sheet and tube laser cutting machine |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Sheet and Tube Laser |
| Laser Classification | Ipg/Raucus |
| Laser Technology | Laser Control Fault Cutting |
| Keywords | Laser Cutting Machine Factory |
| Product Name | Sheet & Tube Laser Cutting Machine |
| Cutting Material | Stainless Steel, Carbon Steel, Aluminum... |
| Cutting | Plate and Tube |
| Transport Package | Standard |
| Specification | / |
| Trademark | hsg |
| Origin | China |
Hsg 3015 Fiber Laser Metal Cutting Machine Price 2000W / 3000W Laser Power
Application Materials(HSG Metal Tube And Plate Fiber Laser Cutting Machine With Rotary Device)
Fiber Laser Cutting Equipment One machine dual-use, small floor area, fast production
- Fully automatic pneumatic chuck1.Cut Both Sheet and Tube Metals
2. Load from Front, Left and Right Side
3.Autofocus Cutting Head
4.Carbon Steel Welded Machine Bed
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
Detailed Photos
Integrated Electric Cabinet
The cabinet is integrated with machine body with no needless cable connection. Its high-standard sealing can prevent electric elements from dust and wipe out any possible ignition.

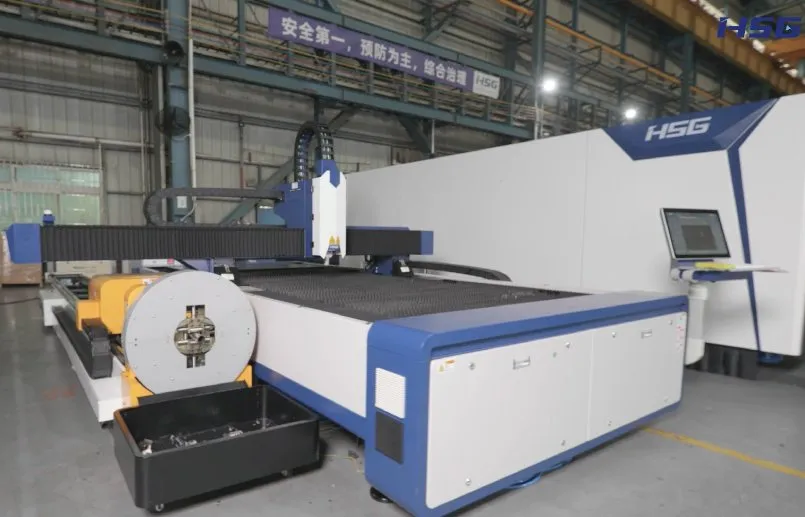

Open Structure
Machine running is intuitively visible and materials can be loaded from front, left and right side easily
Simply-designed Structure
As a sheet & tube 2-in-1 machine, GB can help users to save costs of purchase by 40%. It has single platform and simple design, with 50% less occupied area and high workshop utilization.
Optional Features:
Safety light curtain: halt the machine instantly while detecting any intruder to protect machine and workers
Fiber laser cutting machine with rotary axis
About fiber laser cutting machine rotary axis, please tell us your pipe/tube material diameter and length, then we can recommend the suitable rotary axis size to you.
Compact Size GB has single platform and its size is only 8400*3150mm (G3015B).The machine is open-structured and its work process is visible. Materials are loaded from front, left or right side.

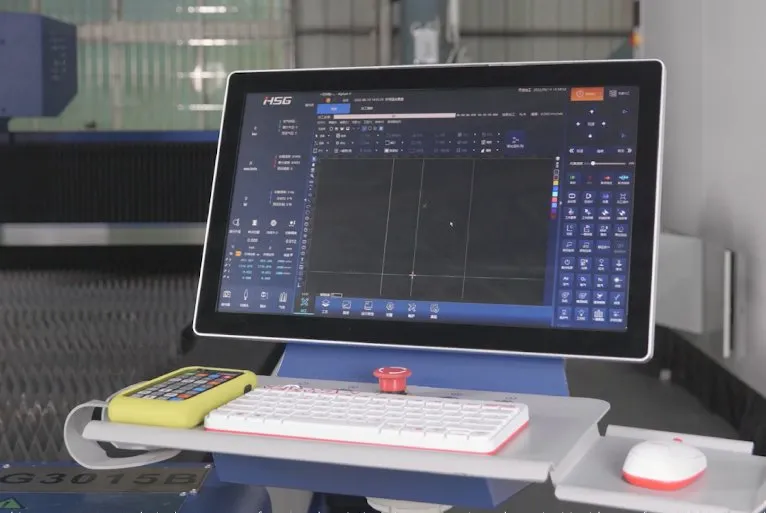

Alpha A CNC System
Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST Nesting Software
HSG-NEST works as a standalone and network-free software. Nesting will start instantly after inputting parts graphics, message and sheet size. Relevant machining reports are also available to be output.
* HSG-NEST is a standard configuration for 4000W+ models and optional for machines below 4000W.
Carbon Steel Welded Machine Bed
Due to 500Mpa tensile strength and welding stress elimination by low annealing and vibration aging, the machine bed will keep high precision and stability for over 20 years. Covered with military-level anti-burning manganese steel plate, it can also help to prevent thermal deformation.

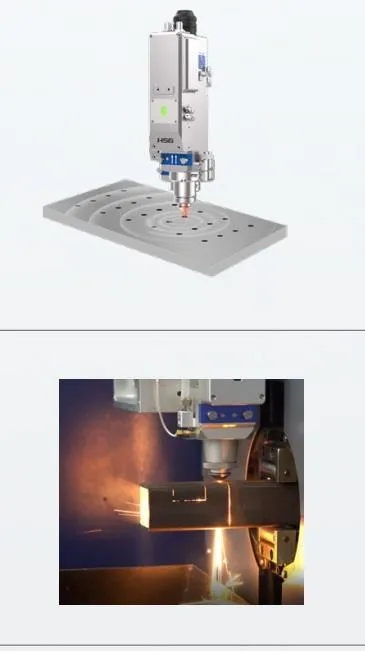

High-precision Autofocus Laser Cutting Head
based on Japanese technology, the cutting head can adjust its focus according to laser beam mode to make sure of mirror-like surface. It is easy to cut thin and thick sheets stably, and repair or maintain at low costs.
- * Autofocus accuracy ±0.01mm
- * Automatic cooling and obstacle avoidance
- * Anti-pollution design
- * Give early warning if abnormal
- Tailor-made Lasers
HSG has reached cooperation with Raycus to launch tailor-made 6600W lasers. Its power is enhanced from 6000W to 6600W at unchanged price.

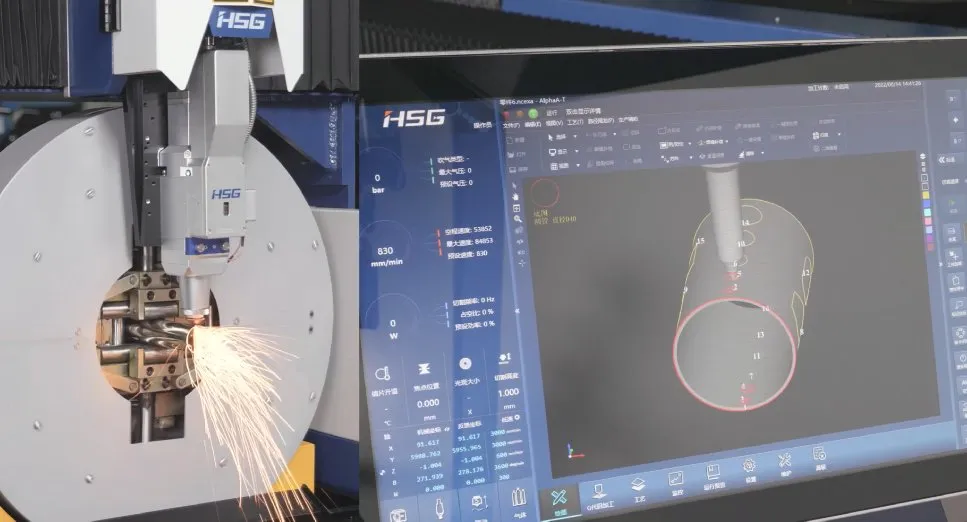

Double Pneumatic Chucks
The chucks are featured by wireless control, one-key clamping and auto centering. The clamping force keeps constant to clamp heavy tube tightly. Concave supports are also adopted to prop up tube.
Φ20-210mm
20*20-150*150mm
Rectangular diagonal≤210mm
1.5kw 2kw 3kw 4kw 6kw 8kw 12kw Mild Stainless Steel Aluminum Copper CNC Sheet Metal or Tube Pipe Automatic Fiber Laser laser Cutting Machine
Quality Inspection Process(HSG Laser Co.,ltd)
