Product Overview

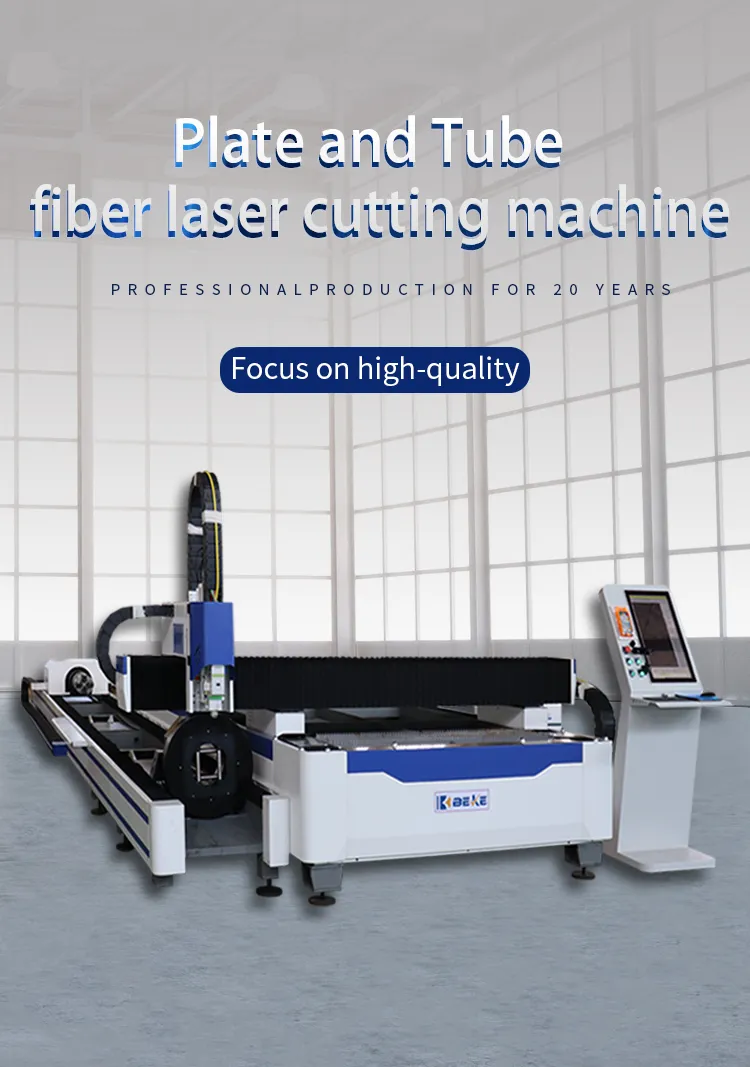

Detailed specification for Beke Fiber Laser Cutting Machines Stainless Steel Carbon Steel Size 3015 3000W Tube and Sheet
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 3015 |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry |
| Cooling System | Air Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Desktop |
| Laser Technology | Fiber Laser |
| Standard Output Power | 3000W |
| Laser Wavelength | 1070nm |
| Effective Cutting Range | 3000mm*1500mm |
| Laser Type | Fiber Laser |
| Model No. | Bk-3000W-D220-6m |
| Transport Package | Container Directly |
| Specification | 4800*2200*1800 |
| Trademark | BEKE |
| Origin | China |
| Model | BK-3015-3kw |
| Output power | 3000W |
| Laser type | Fiber Laser |
| Laser wavelength | 1070±10nm |
| Laser repetition rate | CW |
| Output power stability | ±1% |
| Minimum cutting line width | 0.2mm (material below 0.4mm) |
| Maximum cutting width | 3000mm×1500mm |
| Mass production thickness | ≤25mm (carbon steel), oxygen purity above 99.95%
≤16mm (stainless steel), nitrogen purity over 99.999% |
| Workbench mechanical precision | ±0.03mm/m |
| Repeatability | ±0.02mm/m |
| Software | The software has the function of segment cutting |
| Power | Three-phase five-wire AC 380V±5%, 50Hz±1% |
Remarks:
The cutting material carbon steel is Q235, and stainless steel is 304. The surface of the material must be free of oil, rust, paint and scale, meeting the national ISO standard. |
| | |

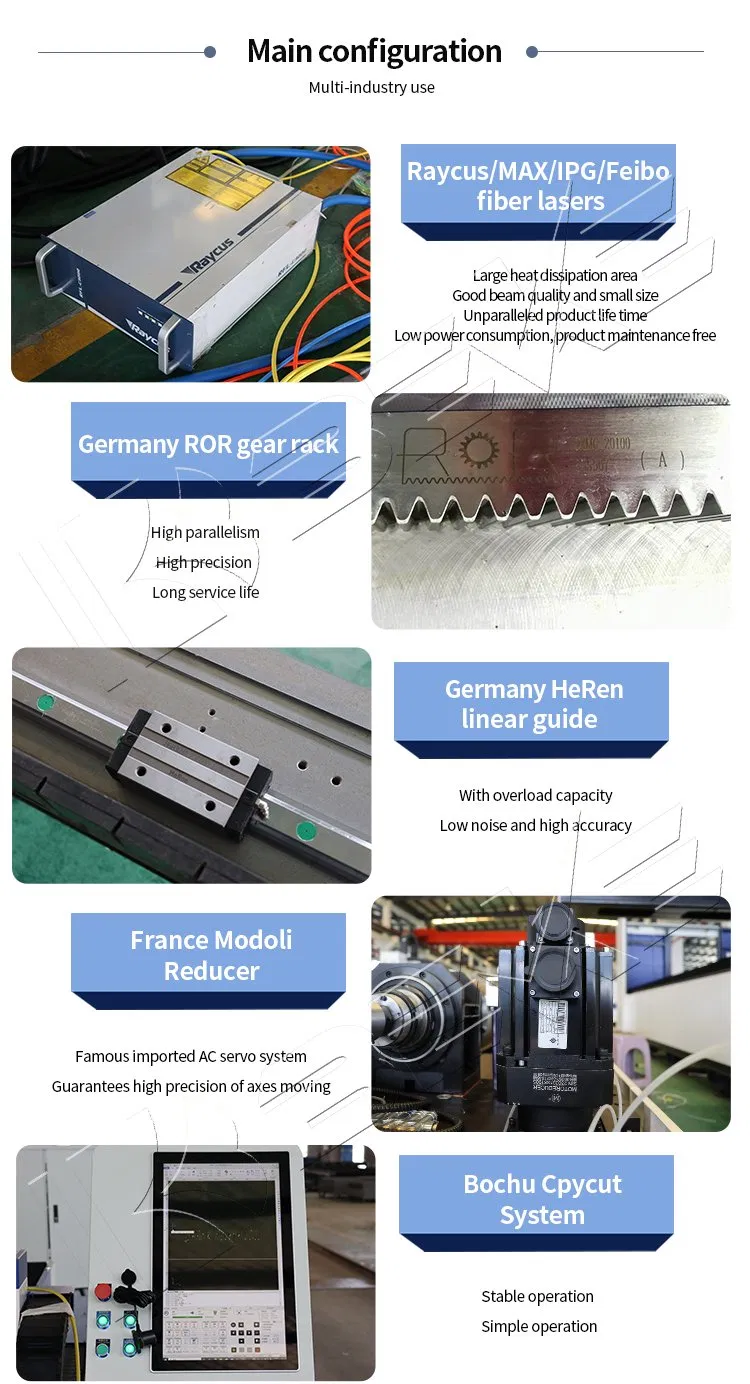

| No. | Item | Model | Brand |
| 1 | Fiber laser cutting machine | BK-3015/3000W | BEKE technology |
| 2 | Cutting head | Raytool | Swiss |
| 3 | Laser | Raycus | China |
| 4 | Servo drive and motor | Fuji | Japan |
| 5 | Special CNC cutting system | Cypcut | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Japan |
| 8 | Proximity switch, etc | Schneder | France |
| 9 | Precision rack | ROR | German |
| 10 | Reducer | Modori | France |
| | | | |
| Model NO. BK-3000W-D220-6M Structure Type Desktop Laser Classification Fiber Laser Laser Technology Fiber Laser Cutting Laser Type Fiber Laser Cooling Method Water-Cooling Standard Output Power 3000W Effective Cutting Range 3000mm*1500mm Rated Power Consumption 3kw Cuttable Material Stainless Steel, Carbon Steel, Aluminum, Copper Laser Repetition Rate Cw Laser Wavelength 1070nm Transport Package Container Directly Specification 4800*2200*1800 Trademark BEKE Origin China HS Code 8456110090 Production Capacity 50 Set/Month |
