Nylon Oil Pipe, Plastic Hollow Nylon Pipe, Acid and Alkali Resistant Hose, CNC Lathe Lubrication Oil

Model Size Colour B.P MIN 20ºC WP. Rmin.MIN Est mm Int mm Mm Bar Bar Mm Mm Mm RSD201A 4*2,2 Transparent,Black 110 36 20 0,1 0,1 RSD201B 4*2,5 Transparent,Black 95 31 20 0,1 0,1 RSD201C 5*2,6 Transparent,Black 127 38 20 0,1 0,1 RSD201D 6*4 Transparent,Black 80 27 20 0,1 0,1 RSD201E 6*3 Black 127 38 20 0,1 0,1 RSD202A 6*3 Black 270 90 20 0,1 0,1 RSD202B 8*5 Black 230 90 30 0,1 0,1

Product parameters
Plastic pipe made of PA  tested  in accordance to  DIN 73378

HOSE  OD.:6+0.1/-0.1MM

HOSE  Id:3.0MM

wall thickness;1.5MM+0.1/-0.1MM

Max Betriebsdruck Statisch:90Bar

Burst pressure at 20ºC:270Bar

Safety Factor:3:1

Weight: 2.25kg/100m

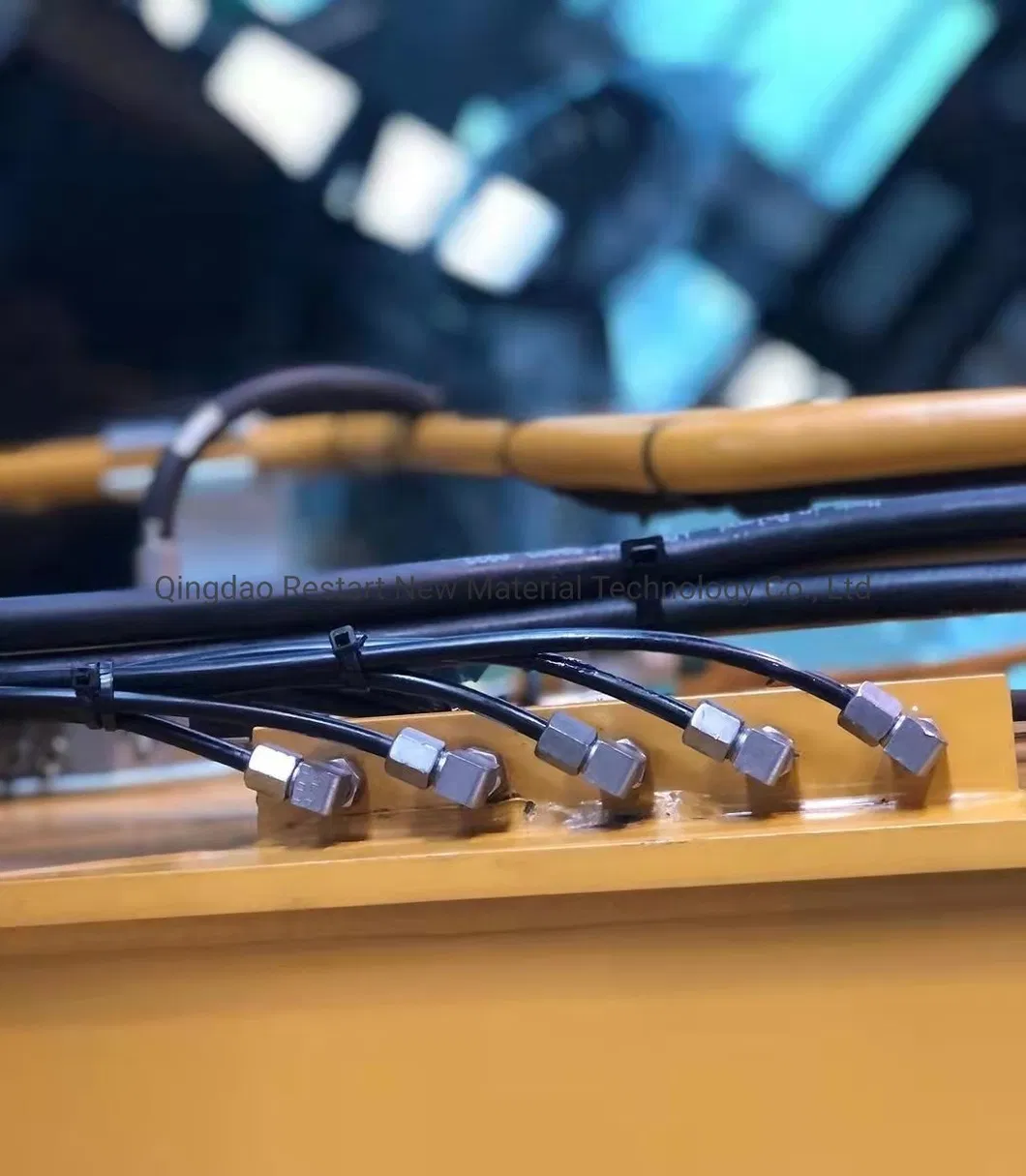

Product use

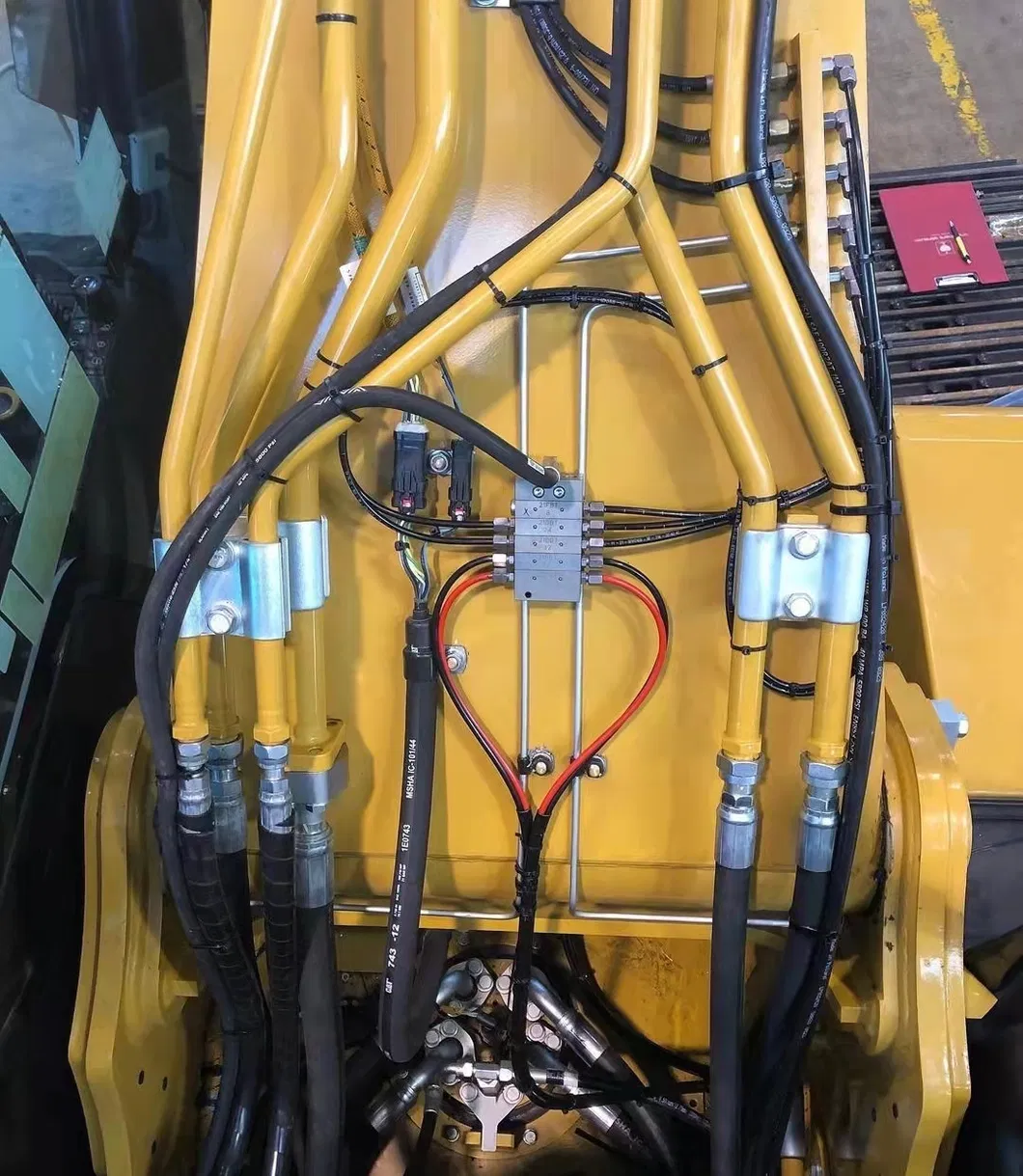

We offer 4 types of Remote Grease Line Systems:
1)6mm high pressure grease tube, with compression fittings.
2)6mm high pressure grease tube, with high pressure pushin fittings.
3)8.6mm extreme high pressure grease tube, with field adaptable fitting.
4)11.3mm super extreme high pressure grease tube, with field adaptable fittings.

1.Quality test: 100% pressure test and leakage test before packing.
2.Packing details: standard export packing or according to customer's special requirements.
3.Delivery Detail:The specific delivery time depends on the items and the quantity.

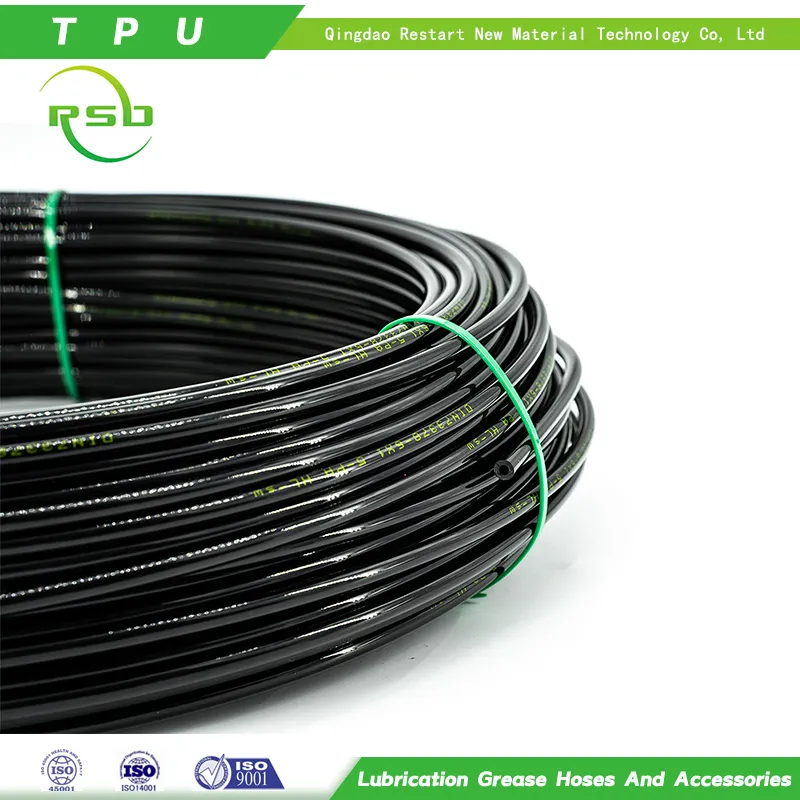

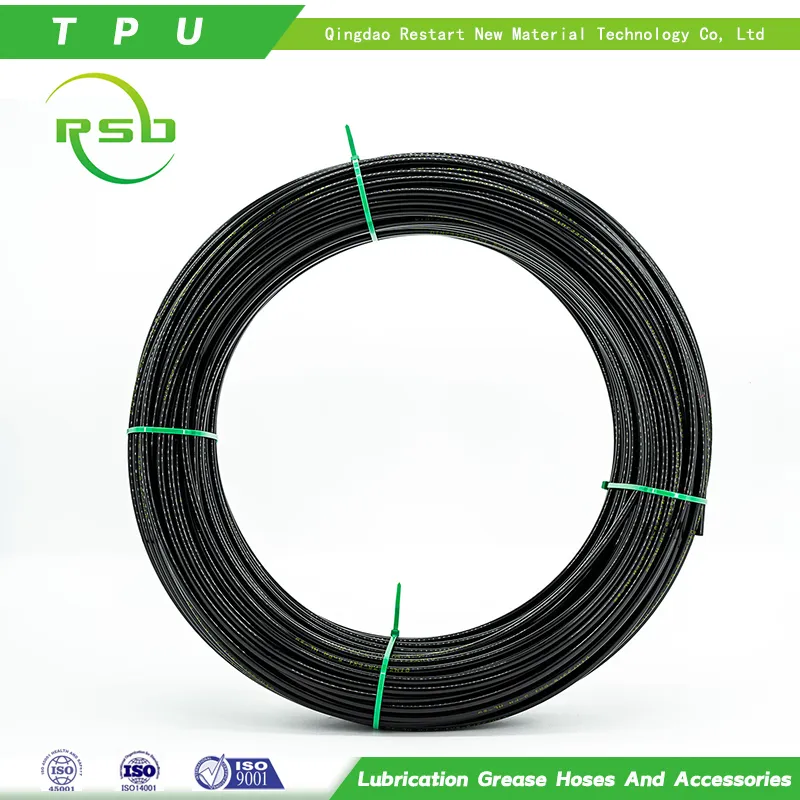

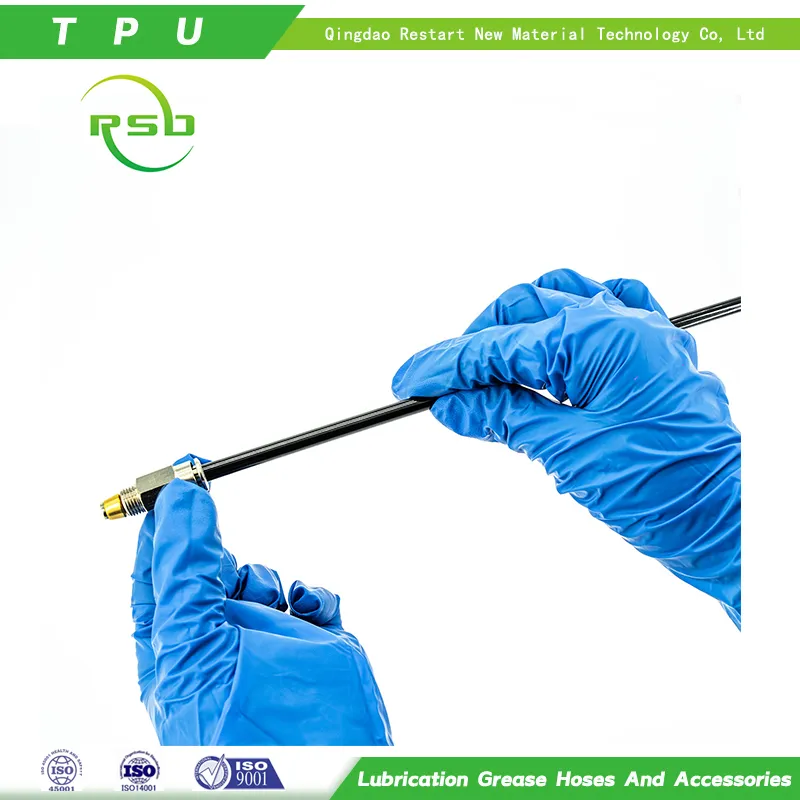

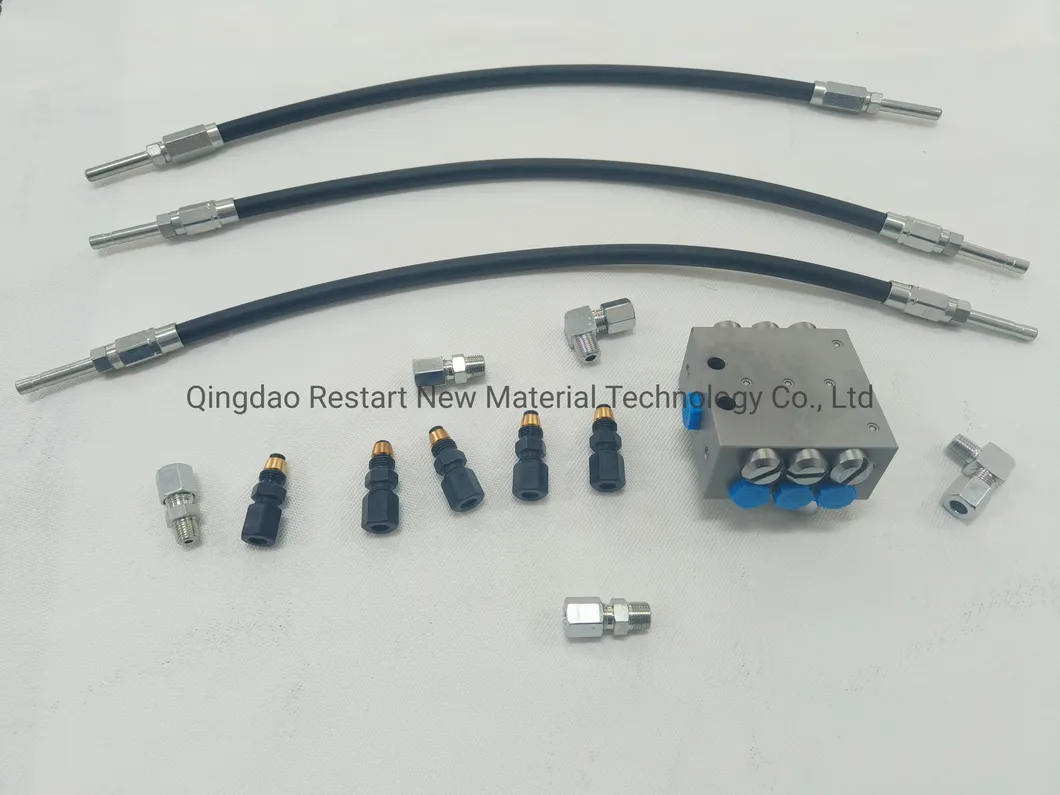

Product picture
