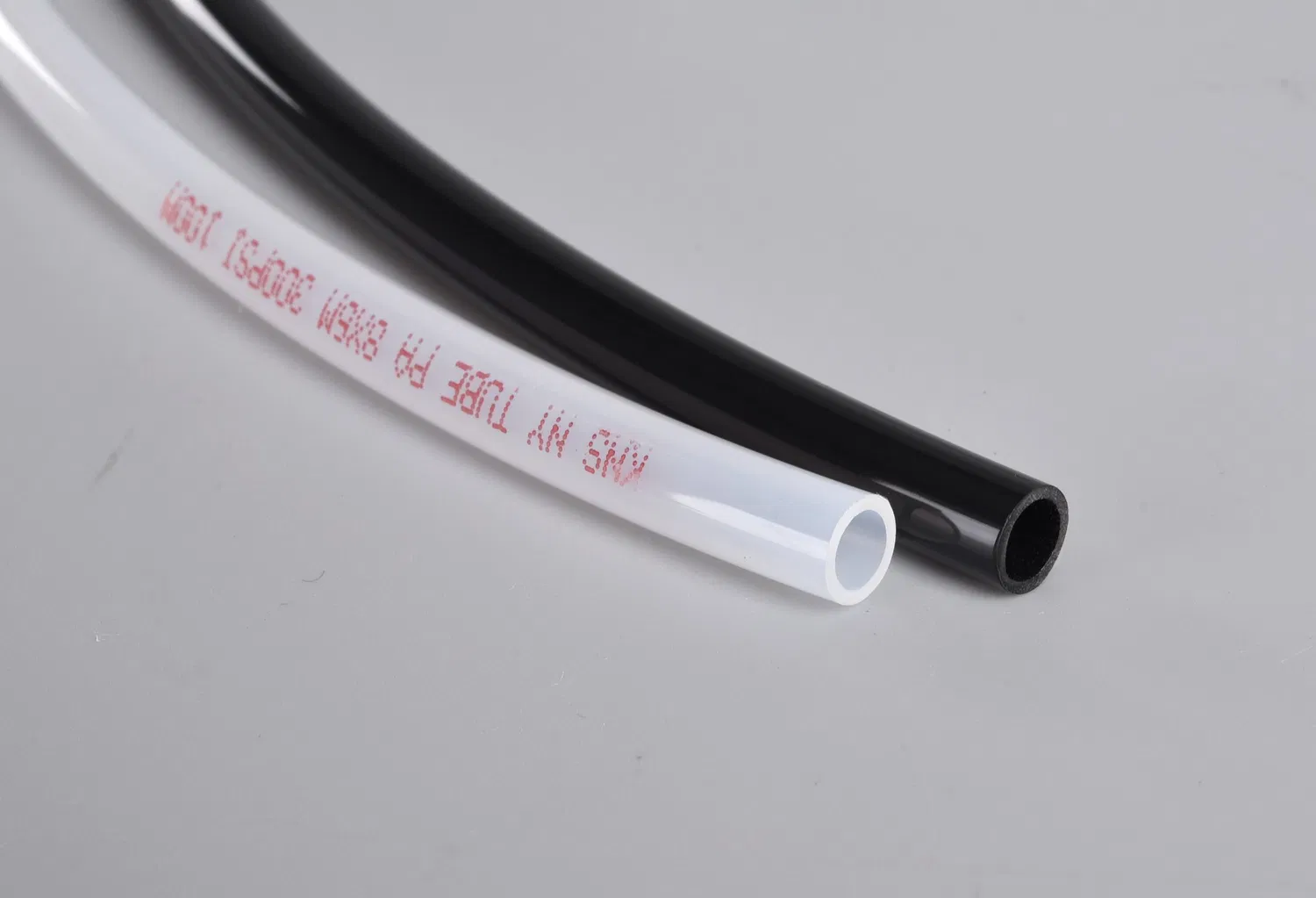

Nylon Tube Oil Acid Liquid Transfer Pipe High Pressure Hose Customized
Detailed specification for Nylon Tube Oil Acid Liquid Transfer Pipe High Pressure Hose Customized
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | KNS-NY-5*3 |
| Diameter | 5mm |
| Length | 200m |
| Material | Nylon |
| Certs | Reach,RoHS, ISO 9001 |
| Od | 5mm |
| ID | 3mm |
| Available with | Air/Water/Oil/Alkali/Acid |

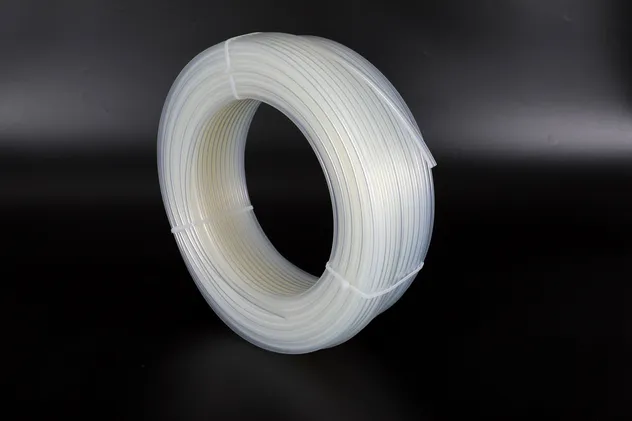

| Transport Package | Roll |
| Specification | 200MTR/ROLL |
| Trademark | KNS |
| Origin | China |
| Production Capacity | 200000mtrs/Day |
Features:
Typical Parameter:
Applications:
Material: Nylon PA6
Hardness:64D
Fluid Available:Air,Water, Oil, alkaline and acids
Working Temperature: -40~+100 ℃
High hardness, high temperature and high pressure resistance, good corrosion resistance.
Wear Resistance: 10-20mg
Utimate Elongation rate: 40%-70%
Burst Pressure: 20-25kgf/cm²
Working Vacuum: -25"hg60c-15kgf/cm²
Tensile Strength: 600-800kgf/cm²
Recommend Working Pressure: 40-75Bar.
Suitable for air, water ,oil and normal alkaline and acids transfer, working in instruments line, irrigation control system, automative accessories, fuel conveyor pipes.
All size can be customized.
Technical Specifications:
(Special Requirements can be customzide, pls contact with our sales)
Item No
OD(MM)
ID(MM)
L(M)
Rmi(MM)
Working Pressure (kgf/square cm)
KNS-PU-NY-4*2.5
4
2.5
200
10
0~30
KNS-PU-NY-5*3
5
3
200
12
0~30
KNS-PU-NY-6*4
6
4
200
12
0~30
KNS-PU-NY-8*6
8
6
100
15
0~20
KNS-PU-NY-10*7.5
10
10
100
25
0~20
KNS-PU-NY-12*9
12
12
100
30
0~18
Certification
Kenaisi Technology have been certificated by ISO 9001:2015, ISO13485:2016, IATF 16949:2002, procust have been with the certs of REACH,RoHs, FDA and so on.
