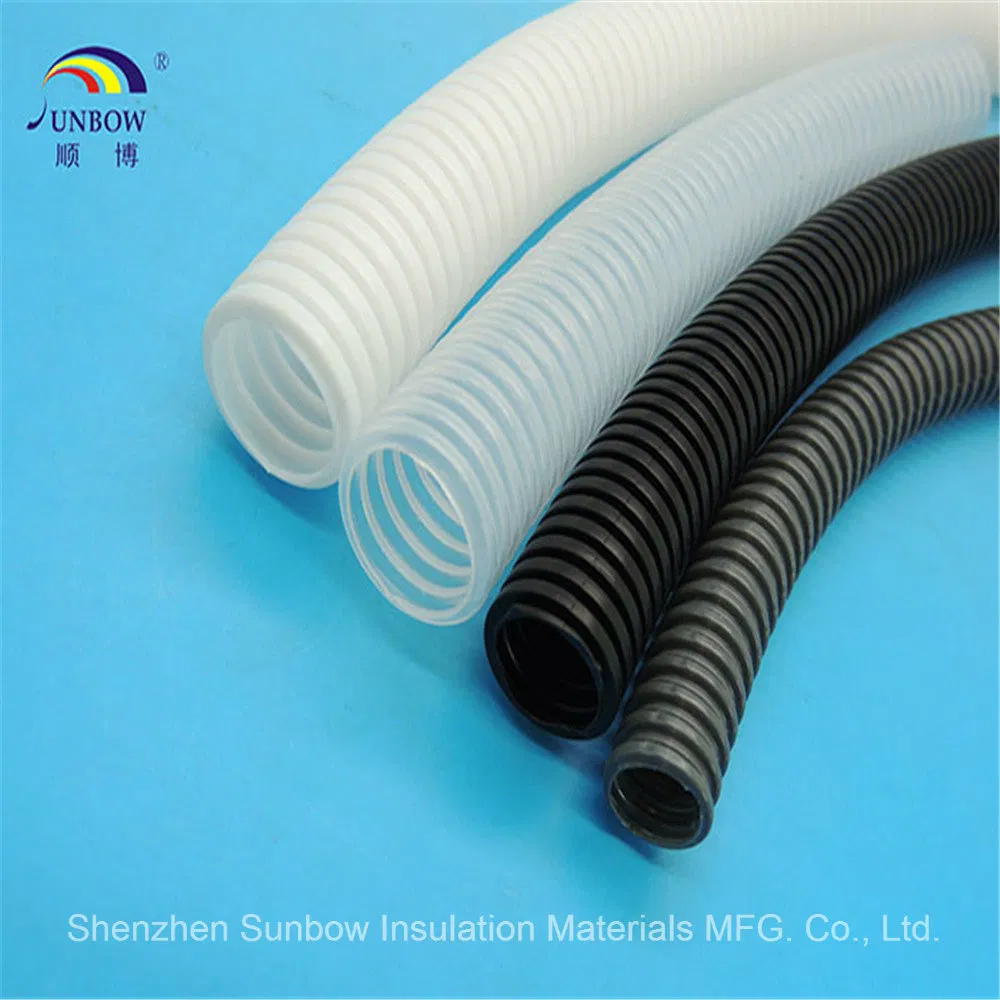

Fire Resistance Nylon Seal Type Corrugated Pipe for Electrical Equipment Protection

Model NO.	SB-STCP
Material	PP, PE, PA(Nylon)
Maximum Voltage	<10KV
Thermal Rating	E 120
Usage	Vehicles, High-Speed Rail Motor Car, Ship
Working Temperature	-40c~+125c
Size	5.0mm-91.0mm
MOQ	2000m
Voltage	300V/600V
Environmental Standards	RoHS
Tensile Strength	>=12MPa
Sample	Freely Supplied
Packing	Carton
Fluid Resistance Elongation	>=300%
Flammability	UL224, VW-1
Type	Insulation Sleeve & Tube
Chemistry	Inorganic Insulation
Classification	Organic Insulating Material
Certification	ISO9001, Ts16949
Brand	Sunbow
Transport Package	Carton
Specification	100M/ROLL
Trademark	SUNBOW
Origin	China
HS Code	39269090

Model Number: SB-STCP(seal type)

Working temperature: -40 ºC-125 ºC;

Performence
Good flexibility, abrasion resistance, acid resistance, fire resistance, etc.

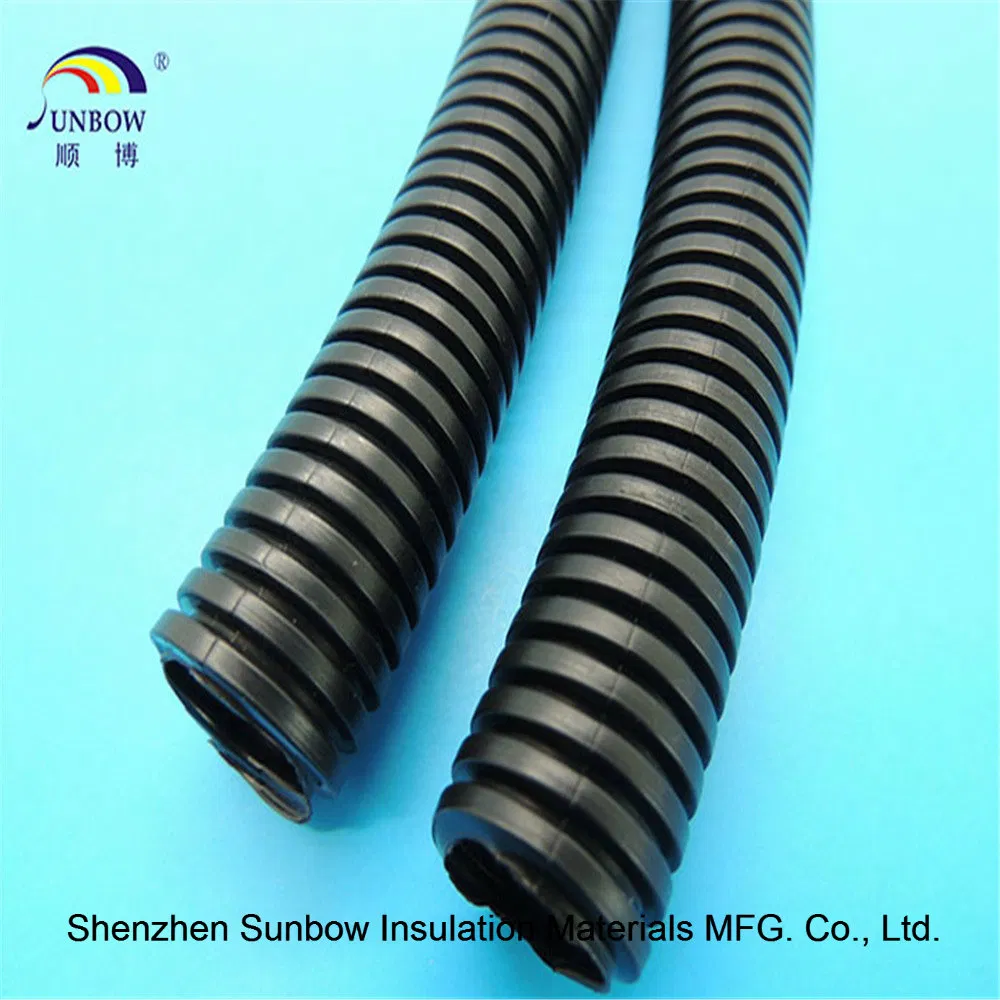

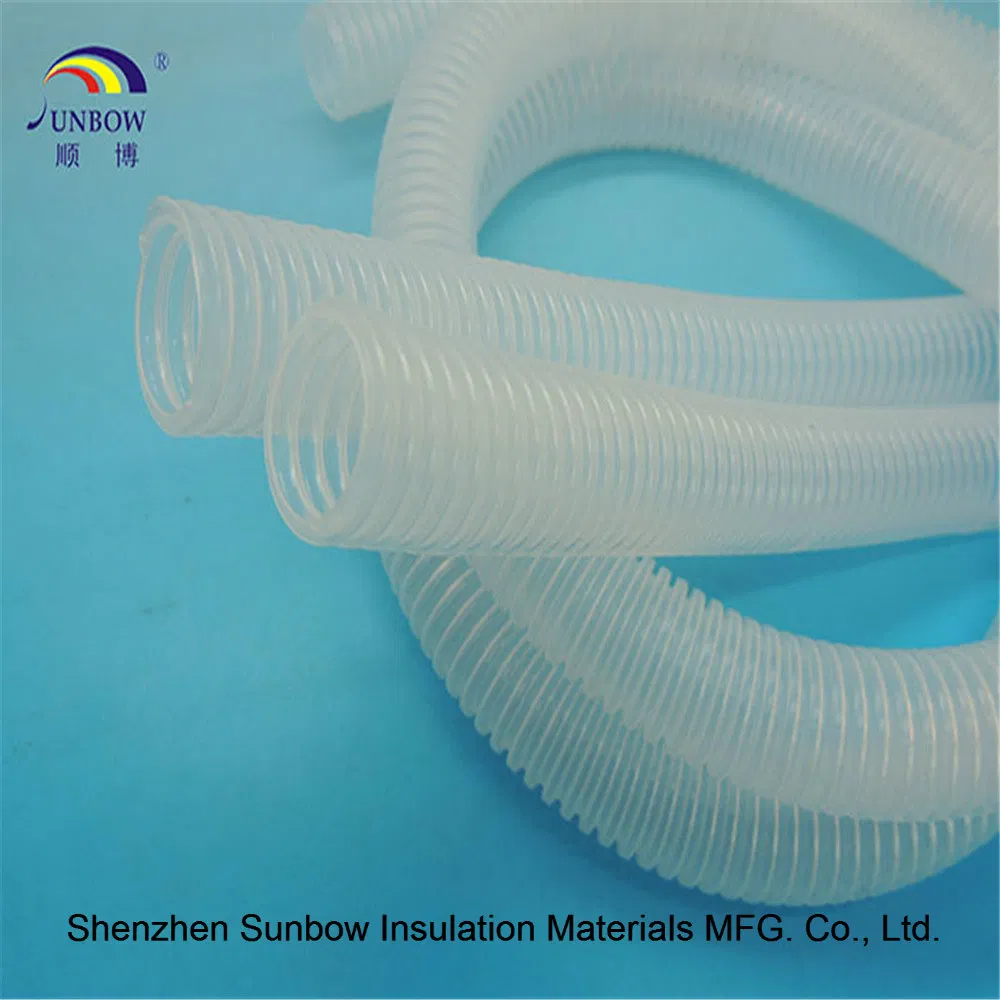

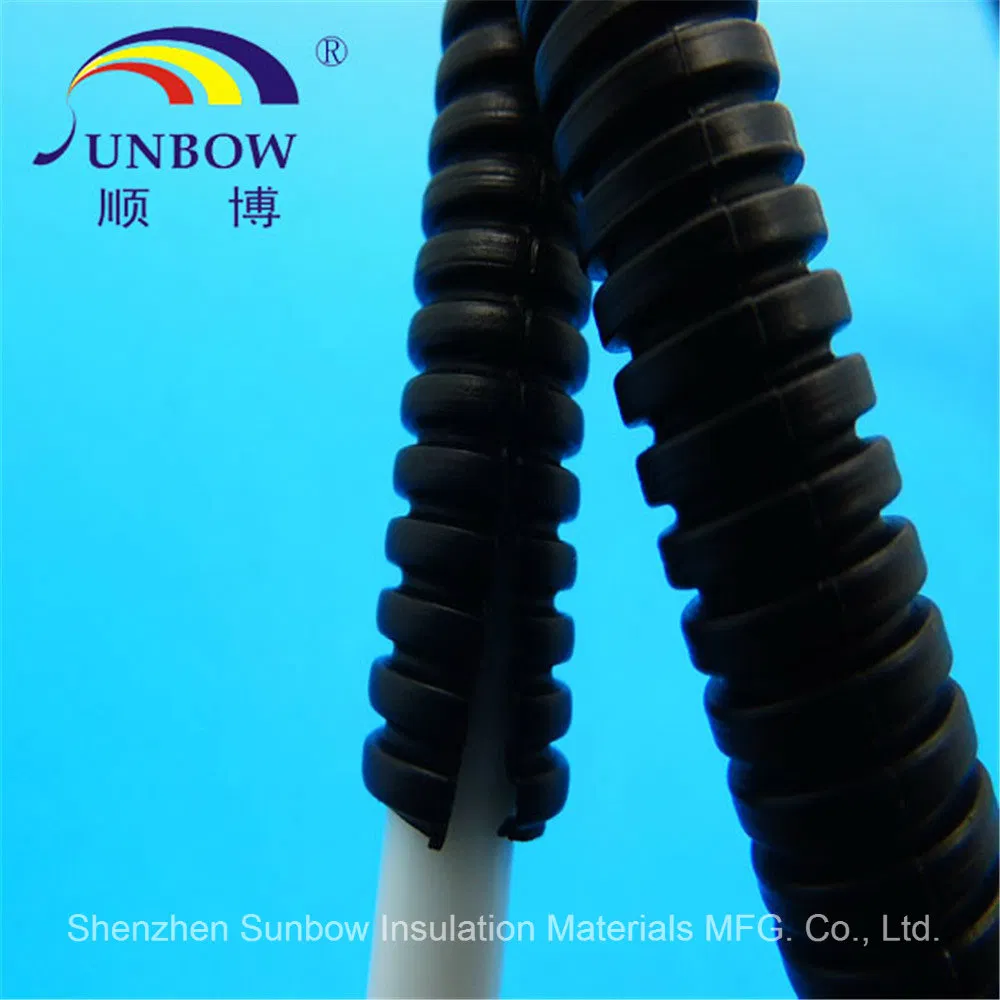

Structure: wavy shape both interior and exterior.Usage
It can be used in machinery, electrical equipment, foodstuff machinery, automatic meters and gauges and motors as abrasion and insulation protection for cables.

 Dimension

MaterialItem No.Size (mm)Packing
(meters/roll) Inner DiameterOuter Diameter PE, PP, PA Seal Type Corrugated Pipe
 AD7.05.07.0500 AD7.55.57.5500 AD9.06.09.0500 AD10.07.010.0500 AD11.08.011.0500 AD12.09.012.0500 AD13.010.013.0500 AD14.01114200 AD15.812.015.8200 AD18.514.318.5200 AD19.01519200 AD21.217.021.2200 AD22.018.022.0100 AD23.019.023.0100 AD25.020.025.0100 AD27.022.027.0100 AD28.523.028.5100 AD30.025.030.0100 AD32.027.032.0100 AD34.529.034.5100 AD42.536.042.550 AD54.548.054.525

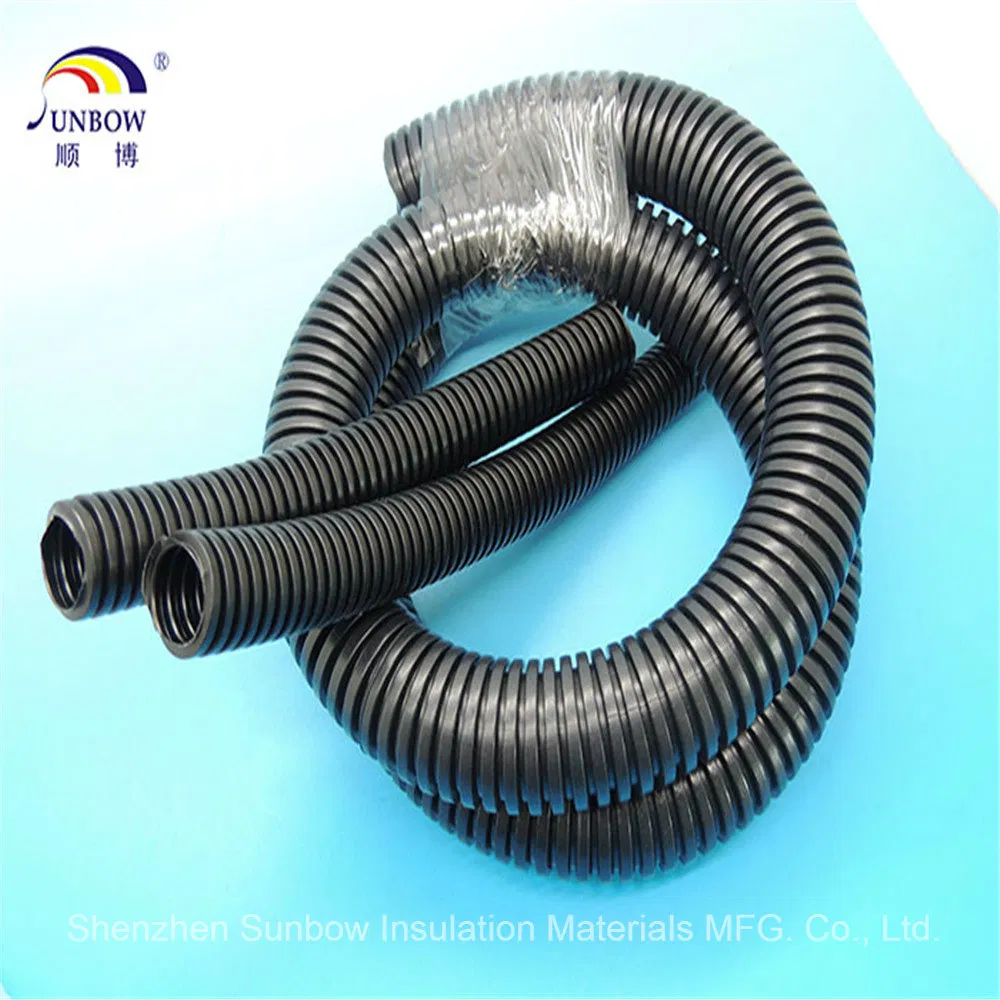

 Color: Standard color is black (other color available upon request).



 Company introduction

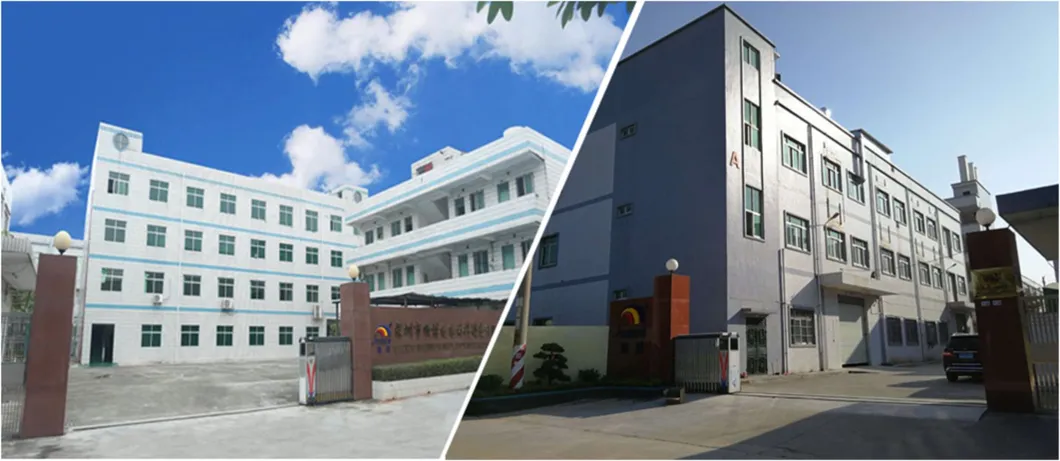

1.Sunbow established in 2003 and Sunbow has two factories located in Shenzhen and Guangdong,8millions sleeves could be made in one month.

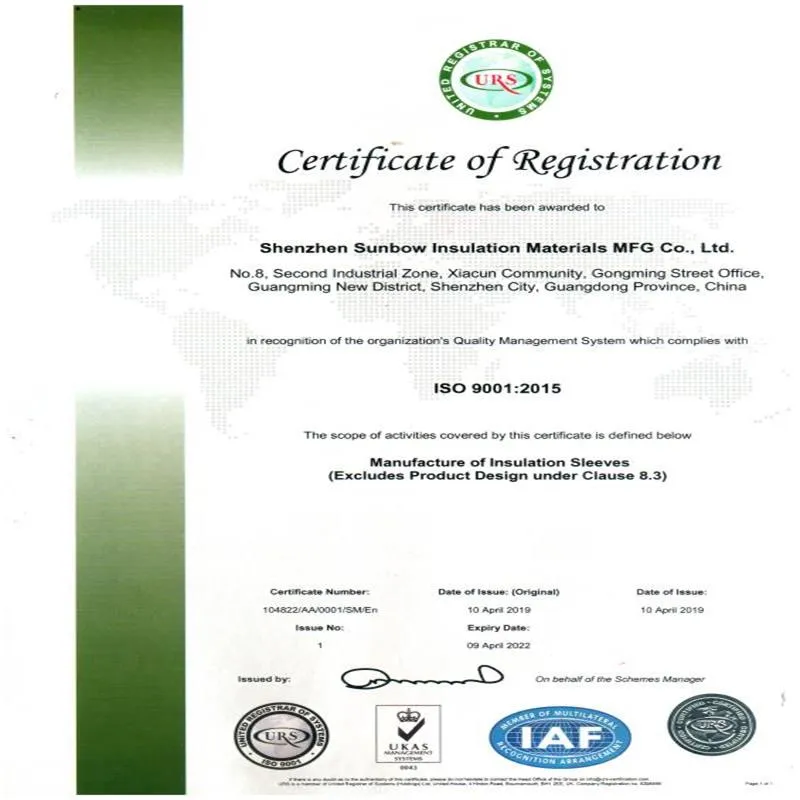

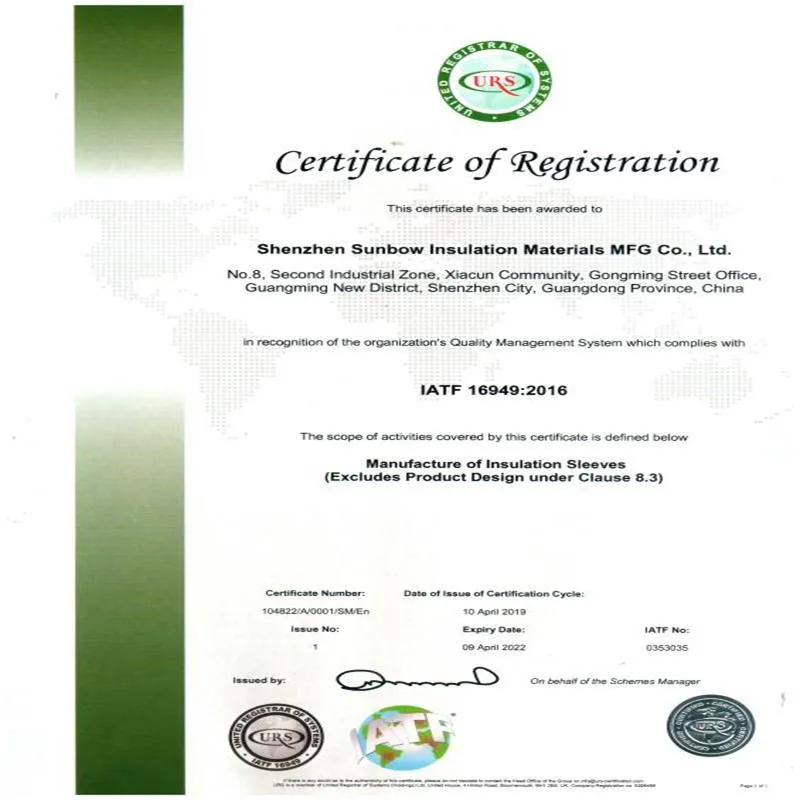

2.Certifications:ISO9001:2015,IATF16949:2016,UL,REACH,ROHS,all your requirement about its certifications could be meet;
3.Fiberglass sleeving(CUL No.E333177&E333178 ROHS REACH)
4.Silicone rubber tube(UL No.E360625)
5.PVC tube(CUL No.E360625,REACH,ROHS)

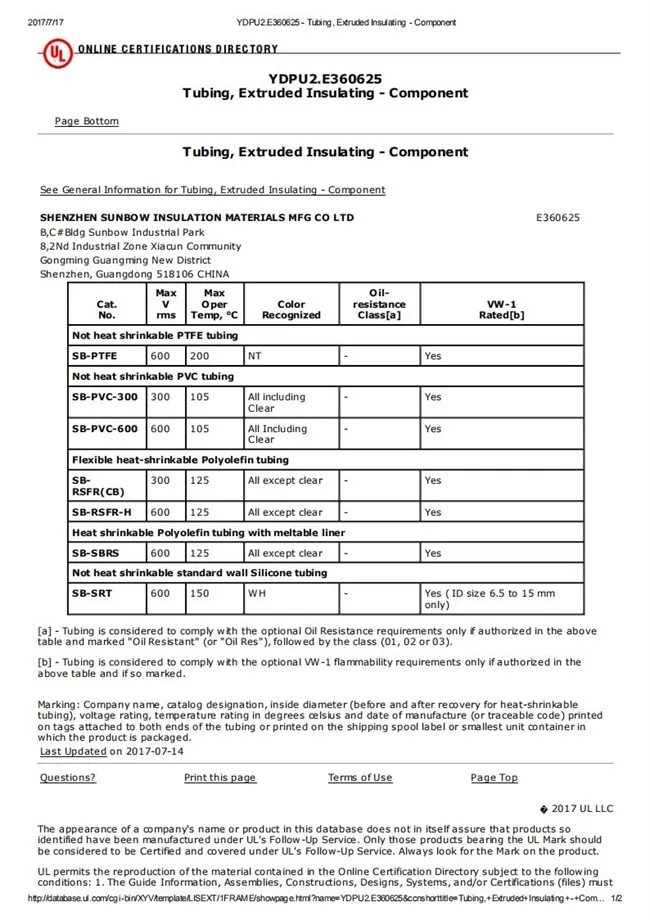

6.PE heat shrink tube(UL No.E360625,REACH,ROHS)
7.PTFE tube(UL No.E360625,ROHS)
8.Expandable sleeving(UL No.E333178,ROHS)
9.FEP/PFA/PVDF tube
10.Corrugated pipe
11.Cable accessories
12.Other special tubeService
1).Free samples for evaluation
2).Quick production&fast delivery
3).2 years quality guarantee
4).Prompt response&technical support
5).24 hours online service

Certification
