DN20-DN1200 PE100 Plastic Water Pipe HDPE Pipe for Water Supply Fire Protection Agricultural Irrigat

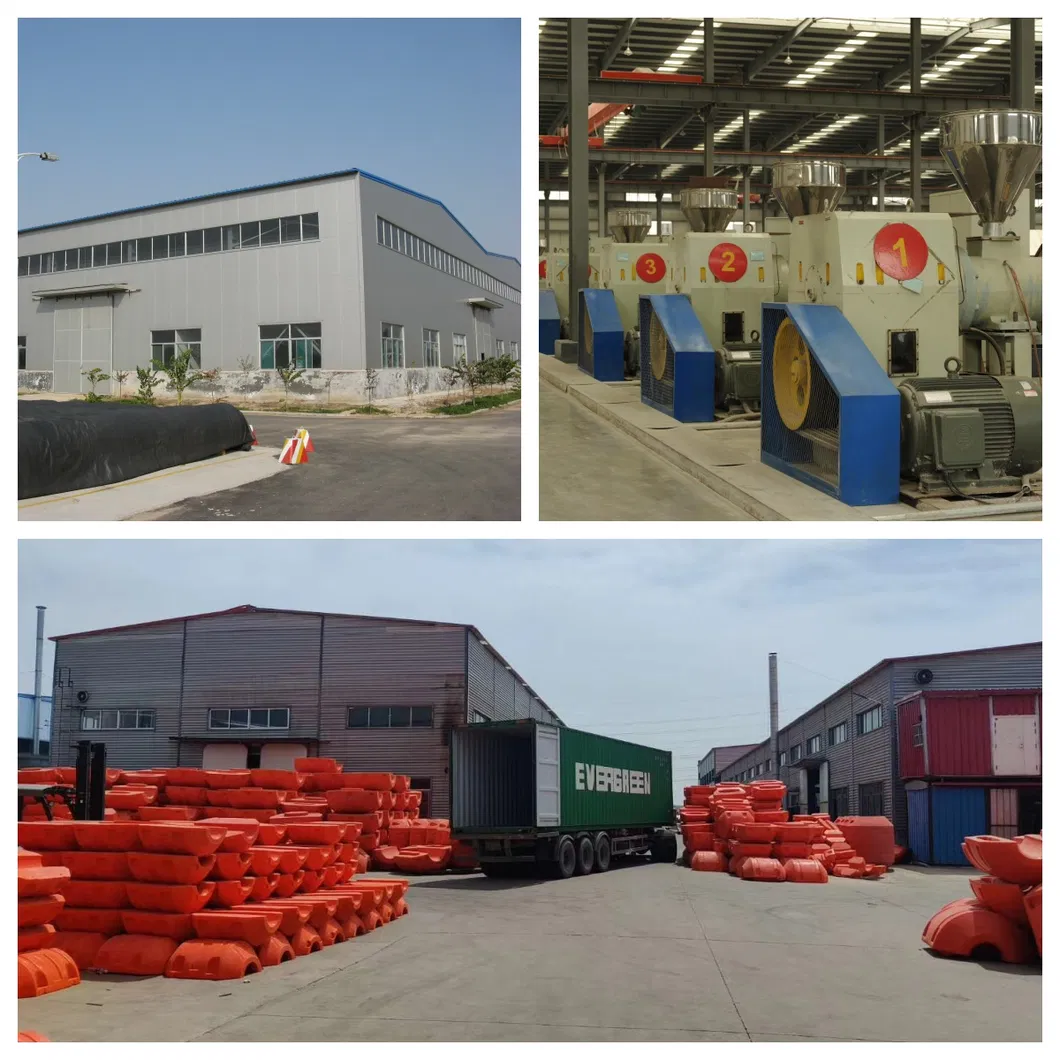

Shandong Jiubei Trading Co.,Ltd is a branch company of Shandong Jiuyuan Steel Structure Co.,Ltd, it is a trading company, located at the famous  water  city  -Liaocheng,  which  mainly  focus  on  supplying the products of steel structures and dredging materials: PE float, wear resistant PE/UHMWPE dredging pipeline, heavy duty rubber dredging hose, navigation and mark buoys , silt curtains and so on.
Our Benefits:
1, We have been worked in this field for more than 10 years, and have very rich workshop sources,  familiar with each workshop's advantage, will help you find the most suitable product.

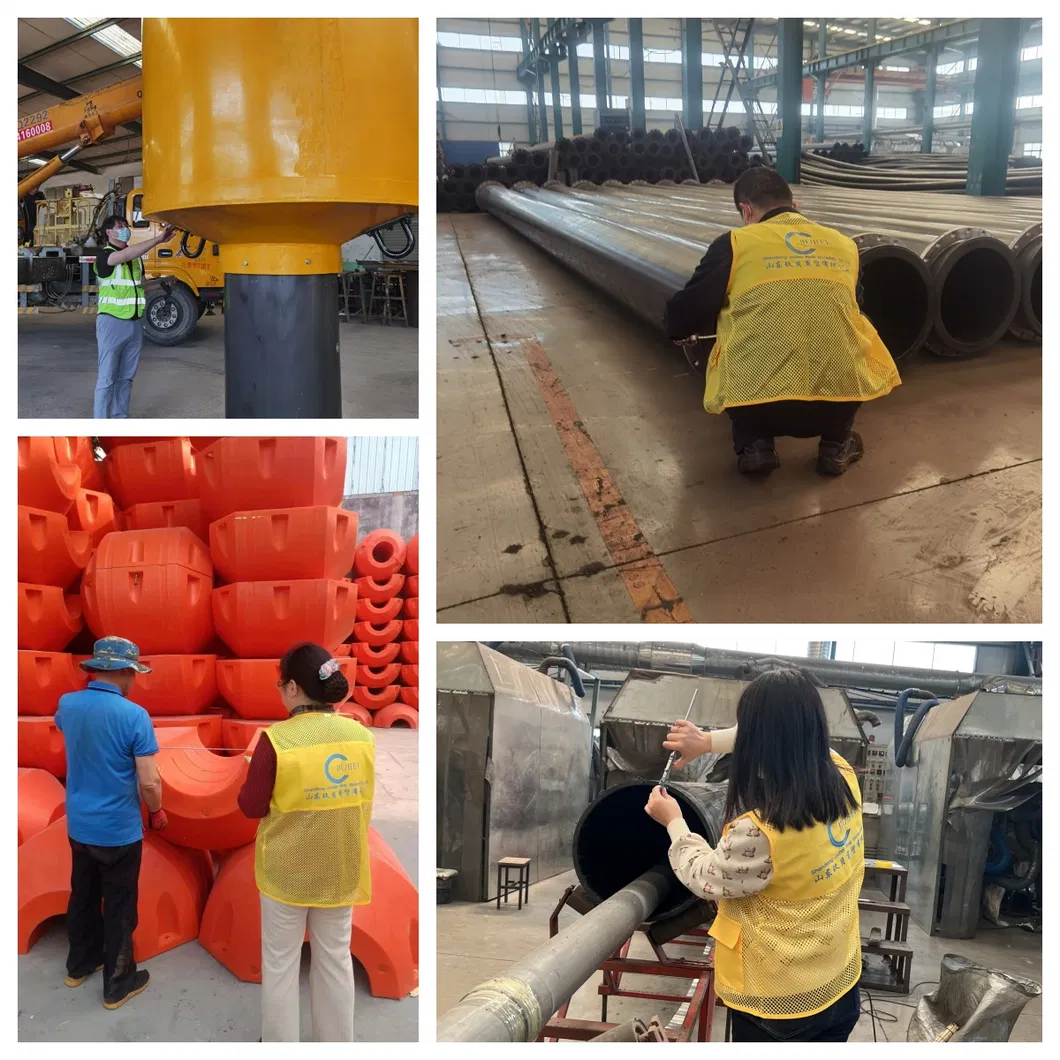

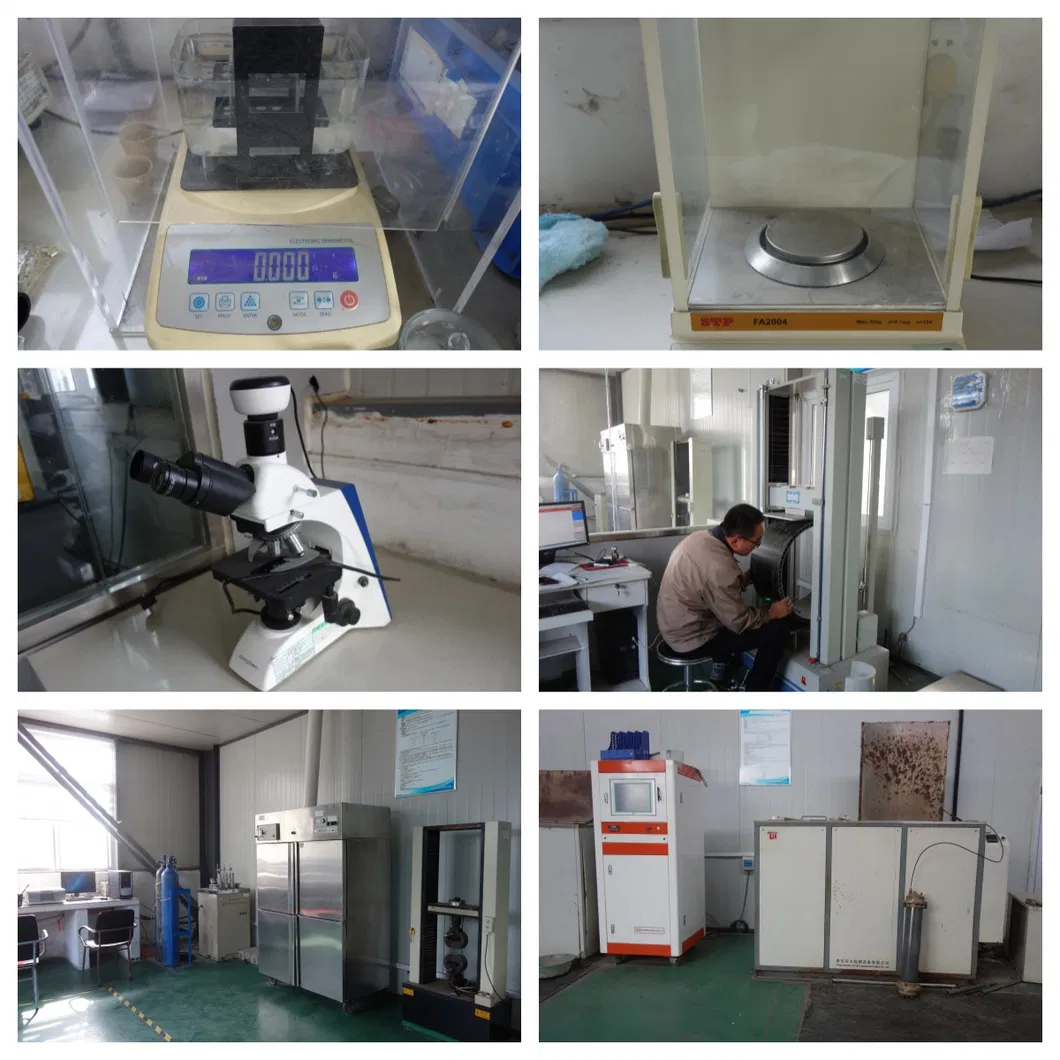

2, We have inspection team, since we get your order, our inspection people will follow on your goods' production process and quality,for production process, each day we have production status update; for inspection, we have raw material inspection, first goods inspection, random inspection and ex-works inspection as well as other tests for the exact goods.
3,  We have professional and experienced export team to handle the export issues.
Our Company promises: Qualified goods,reasonable price, delivery in time, and satisfied after-sales service!


HDPE Pipe Induction
The inner wall of the HDPE pipe is smooth and does not change with the time of use. The friction resistance is small, which saves energy. The pressure loss is about 30% smaller than that of the steel pipe. A smaller diameter than the steel pipe can be selected. Good hygienic performance, no additives, no possibility of polluting drinking water, ISO standard graded polyethylene material is 0 (lower grade), mold-free material, compared with other commonly used plastic materials, polyethylene's mold resistance It is much higher and does not accumulate scale after long-term use.

The comprehensive performance of PE pipes can be used in the fields of application|Temperature resistance|Low temperature embrittlement temperature is very low, and it can be used in the range of -40ºC to 60ºC, and there will be no pipeline embrittlement during installation and construction in winter.

ItemTest MethodUnitUHMWPE PipeHDPE PipePA66 PipePVC PipeSteel Pipe Viscosity-average
Molecular WeightISO1628-3104g/mol500-1050<50--- Approx Melting
TemperatureISO11357.3ºC1361292551601410 Water AbsorptionISO62-1999%<0.01<0.013.80.5- Coefficient of Linear Thermal
ExpansionISO11359-210-4/ºC1.51.20.80.90.17 DensityISO1183-1-2004g/cm30.935-0.945>0.9401.13-1.151.47.8 (0.45MPa)
Heat Deformation Temp at 0.45MpaISO75ºC8571182-224≥541230 Tensile StrengthISO527MPa>39<256140550 Yield StrengthISO527MPa≥2220-19≥245 Tensile ElongationISO527%≥250≥35060-3006020 Gap Beam Impact
StrengthISO179KJ/m2No fracture<275.9-10.8<10No
fracture Rockwell HardnessISO2039-2R403385-12011845(C) Friction
CoefficientISO8295-0.05-0.110.280.370.4-0.60.58 Mortar WearIndex--1105107 Scaling--NoScalingSlightSlightSlightHeavy Corrosion
Resistance--ExcellentCommonCommonCommonBad

HDPE Pipe dimensions



National standard nominal wall thickness of HDPE pipe
  GB/T13663.2.2018Standard Dimension SDR41SDR33SDR26SDR21SDR17SDR13.6SDR11SDR9 PE 80 Nominal Working Pressure 0.320.40.50.60.81.01.251,6 PE100 Nominal Working Pressure 0.40.50.60.81.01.251.62.0 DN(mm)Thickness(mm)Thickness(mm)Thickness(mm)Thickness(mm)Thickness(mm)Thickness(mm)Thickness(mm)Thickness(mm) 16       2.3 20      2.32.3 25    2.32.43.03.6 32    2.43.03.74.5 40   2.33.03.74.65.6 50  2.32.43.64.75.87.1 63  2.53.04.35.66.88.4 75  2.93.65.36.78.210.1 90  3.54.36.08.110.012.3 110  4.25.36.79.211.414.0 125  4.86.07.710.312.715.7 140  5.46.78.611.814.617.9 160  6.27.79.613.316.420.1 180  6.98.610.814.718.222.4 200  7.79.611.916.620.525.2 225  8.610.813.418.422.727.9 250  9.611.915.020.625.431.3 280  10.713.416.923.228.635.2 3157.79.712.115.019.126.132.239.7 3558.710.913.616.921.529.436.344.7 4009.812.315.319.123.933.140.950.3 45011.013.817.221.526.736.845.455.8 50012.315.319.123.929.741.250.862.5 56013.717.221.426.737.446.357.270.3 63015.419.324.130.042.152.264.579.3 71017.421.827.233.947.458.872.689.3 80019.624.530.638.153.366.281.7  90022.027.634.442.959.372.590.2  100024.530.638.247.767.988.2   120029.436.745.957.282.4102.9   140034.342.953.566.794.1117.6   160039.249.061.276.2105.9    180043.854.569.185.7117.6    200048.860.676.995.2     225055.070.086.0107.2     250061.277.795.6119.1

 Benefits of HDPE pipe for sand/slurry dredging:
 a. High Corrosion Resistance
HDPE material structure is saturated molecular group, with great    chemical stability,good resistance of various corrosion     mediums(acid,alkali,salt)and organic solvents.
 b. High Impact Resistance
 c. High Pressure Resistance
 d. Environment Proctection
The manufacturing and processing of wear resistant HDPE pipe is low carbon,without wasted water,exhausted gas and waste residue,which saves 20% energy compare with the traditional steel pipes.
 e. High Flexibility
 f. Non-scaling
 g.  Low energy consumption

Technical Parameters of HDPE pipeline


No.ItemRequirements 1Elongation at break% ≥350 2Longitudinal reversion(100ºC), %≤3 3Oxidation induction time(200ºC)min≥20 4Weather resistance after the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2≤80ºC static hydraulic strength(165h)Non breakage and leakage Percentage of breaking-elongation,% ≥350 Oxidation induction time(200ºC)min≥10

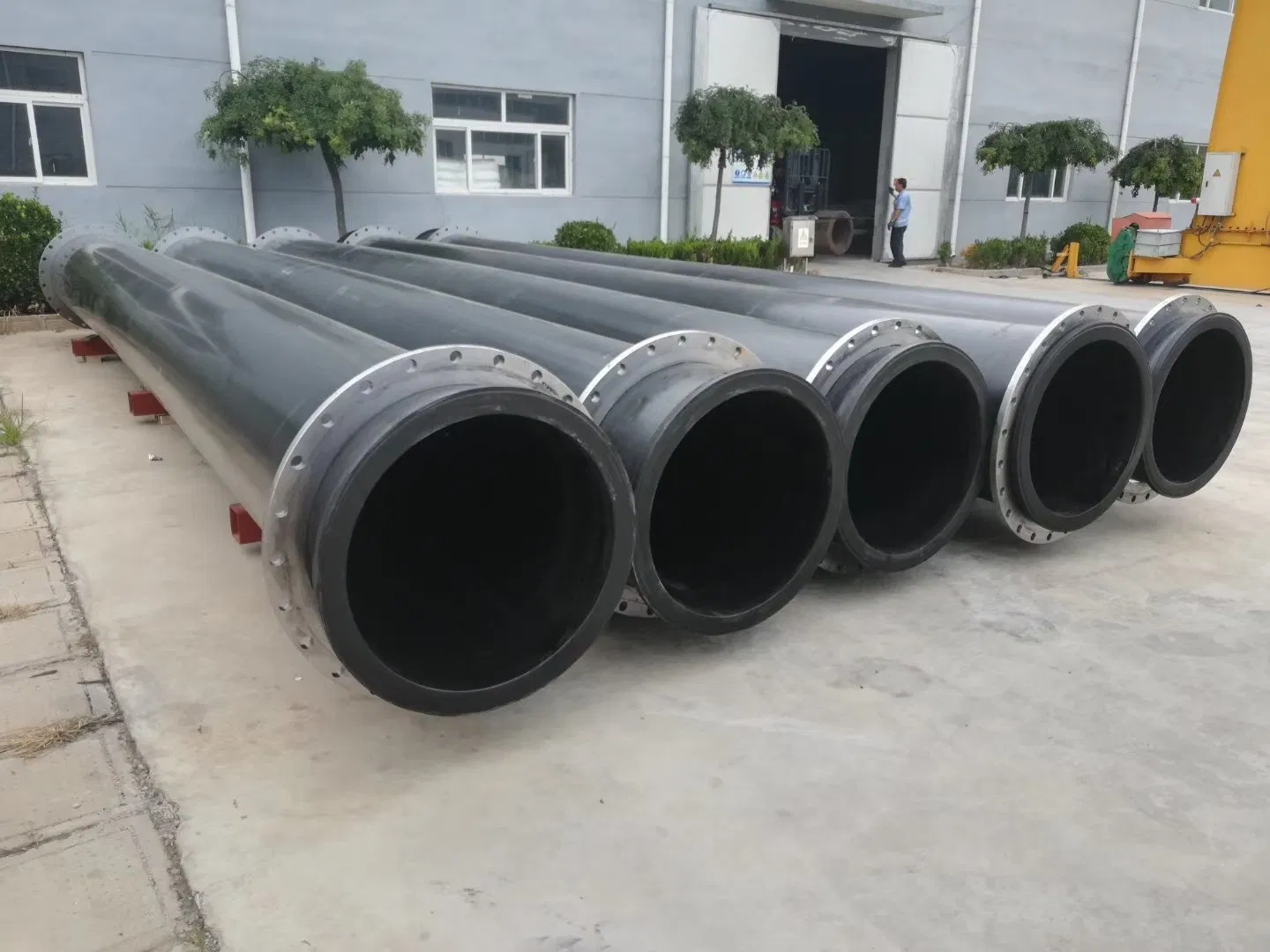

Installation of 11.8m length flanged high wear resistant HDPE pipeline applied for sand/slurry/mine discharging

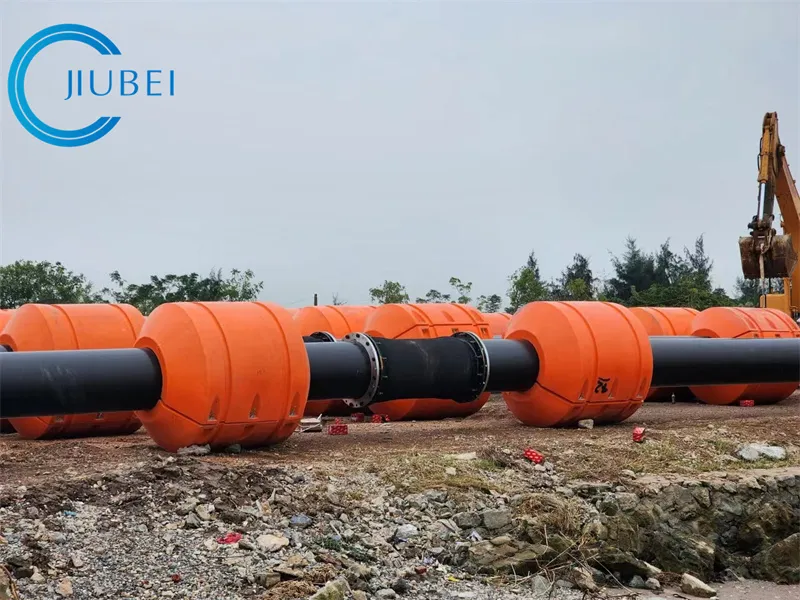

Cases of 11.8m length flanged high wear resistant UHMWPE pipeline applied for sand/slurry/mine discharging
