High-Density Polyethylene Material DN110 HDPE Drainage Tube Water Supply Pipe PE100 Black High-Densi
Detailed specification for High-Density Polyethylene Material DN110 HDPE Drainage Tube Water Supply Pipe PE100 Black High-Densi
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | PE |
| Material | HDPE |
| Kind | Thermosetting Plastics Pipe |
| Water Absorption | / |
| Contraction Percentage | / |
| Tensile Strength | 30~40MPa |
| Product Name | PE Pipe for Sand Dredging and Discharge / HDPE San |

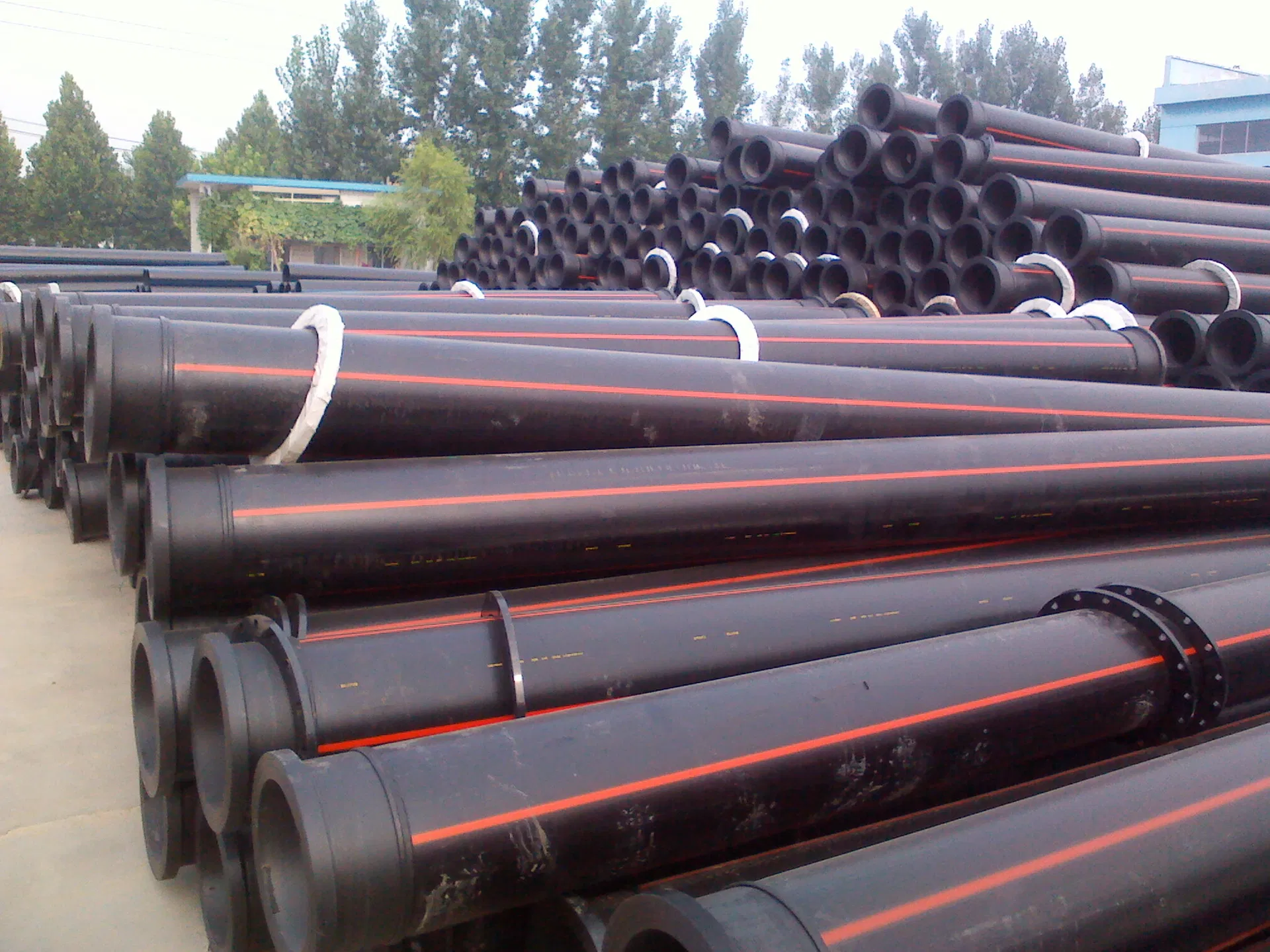

| Color | Black (with Color Stripes) / Yellow and Black / or |
| Manufacturing Process | Extrusion Molding, One-Piece Pipe |
| Nominal Outer Diameter | DN110-DN1200 mm (Larger Diameters Can Be Customize |
| Wall Thickness Range | 5-60 mm (Designed According to Pressure Rating and |
| Length | 5.8m/11.5m |

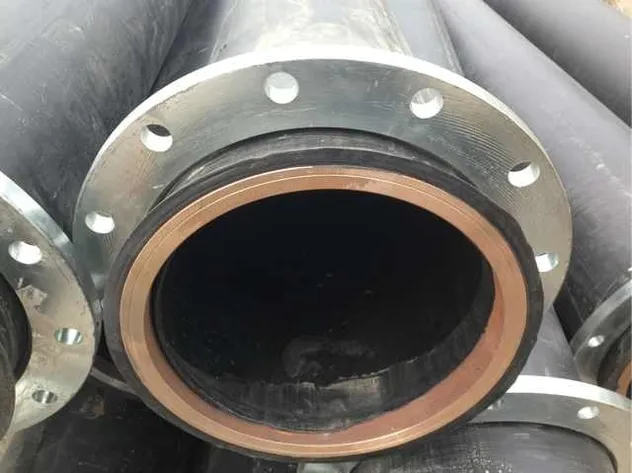

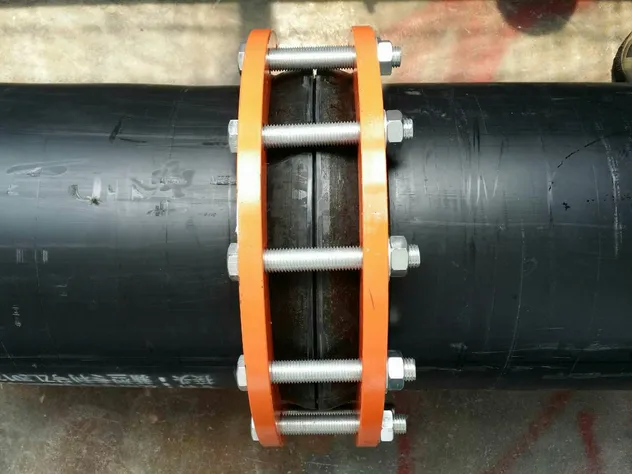

| Connection Method | Flange Connection / Clamp Connection |
| Nominal Pressure | Pn0.6 / Pn0.8 / Pn1.0 / Pn1.25 / Pn1.6 MPa |
| Safety Factor | Design Safety Factor ≥ 1.25 (Can Be Customized |
| Density | 0.94-0.96 G/Cm³ |
| Elongation at Break | ≥ 350% |
| Corrosion Resistance | Resistant to Seawater, Saline-Alkali, General Acid |
| Operating Temperature | -40 ℃ ~ +60 ℃ |
| Applications | River Dredging, Marine Dredging, Sand Pumping and |
| Float Accessories | PE Floats (Floating Sand Pumping Pipes) |
| Transport Package | Container |
| Specification | Round |
| Trademark | Taian Ocean Pump |
| Origin | China |
| HS Code | 39172100 |
High-performance HDPE Pipe
This product is made from high-quality PE100 grade high-density polyethylene raw materials and is specially designed for harsh industrial conveying environments. It boasts extremely high wear resistance, impact resistance, and corrosion resistance, making it particularly suitable for applications such as sand dredging, river clearing, slurry transportation, and agricultural irrigation. Compared to traditional steel pipes or ordinary plastic pipes, our PE pipes are lighter, more flexible, easier to install, and have a longer lifespan, significantly reducing your operating and maintenance costs. They are a core component of modern conveying systems.
Specification
Applications
Dredging Engineering: Sand removal, silt dredging, and land reclamation in rivers, lakes, and seas.
Mining Transportation: Pipeline transportation of tailings, slurry, pulverized coal, and other powdery materials.
Irrigation and Agriculture: Water conveyance and drainage in rivers, reservoirs, and irrigation canals.
Industrial Sector: Transportation of chemical fluids, seawater, and brine (media compatibility needs to be confirmed).
Municipal Engineering: Temporary drainage and engineering dewatering.
right elevation
left elevation
front elevation
Technical Specifications
(Custom configurations available upon request.)
PE
0.4MPa
0.5MPa
0.6MPa
0.8MPa
1.0MPa
1.25MPa
1.6MPa
2.0MPa
2.5MPa
Outside Diameter
PN4
PN5
PN6
PN8
PN10
PN12.5
PN16
PN20
PN25
SDR41
SDR33
SDR26
SDR21
SDR17
SDR13.6
SDR11
SDR9
SDR7.4
Wall Thickness (en)
20
-
-
-
-
-
-
2.0
2.3
3.0
25
-
-
-
-
-
2.0
2.3
3.0
3.5
32
-
-
-
-
2.0
2.4
3.0
3.6
4.4
40
-
-
-
2.0
2.4
3.0
3.7
4.5
5.5
50
-
-
2.0
2.4
3.0
3.7
4.6
5.6
6.9
63
-
-
2.5
3.0
3.8
4.7
5.8
7.1
8.6
75
-
-
2.9
3.6
4.5
5.6
6.8
8.4
10.3
90
-
-
3.5
4.3
5.4
6.7
8.2
10.1
12.3
110
-
-
4.2
5.3
6.6
8.1
10.0
12.3
15.1
125
-
-
4.8
6.0
7.4
9.2
11.4
14.0
17.1
140
-
-
5.4
6.7
8.3
10.3
12.7
15.7
19.2
160
-
-
6.2
7.7
9.5
11.8
14.6
17.9
21.9
180
-
-
6.9
8.6
10.7
13.3
16.4
20.1
24.6
200
-
-
7.7
9.6
11.9
14.7
18.2
22.4
27.4
225
-
-
8.6
10.8
13.4
16.6
20.5
25.2
30.8
250
-
-
9.6
11.9
14.8
18.4
22.7
27.9
34.2
280
-
-
10.7
13.4
16.6
20.6
25.4
31.3
38.3
315
7.7
9.7
12.1
15.0
18.7
23.2
28.6
35.2
43.1
355
8.7
10.9
13.6
16.9
21.1
26.1
32.2
39.7
48.5
400
9.8
12.3
15.3
19.1
23.7
29.4
36.3
44.7
54.7
450
11.0
13.8
17.2
21.5
26.7
33.1
40.9
50.3
61.5
500
12.3
15.3
19.1
23.9
29.7
36.8
45.4
55.8
-
560
13.7
17.2
21.4
26.7
33.2
41.2
50.8
62.5
-
630
15.4
19.3
24.1
30.0
37.4
46.3
57.2
70.3
-
710
17.4
21.8
27.2
33.9
42.1
52.2
64.5
79.3
-
800
19.6
24.5
30.6
38.1
47.4
58.8
72.6
89.3
-
900
22.0
27.6
34.4
42.9
53.3
66.2
81.7
-
-
1000
24.5
30.6
38.2
47.7
59.3
72.5
90.2
-
-
1200
29.4
36.7
45.9
57.2
67.9
88.2
-
-
-
1400
34.3
42.9
53.5
66.7
82.4
102.9
-
-
-
1600
39.2
49.0
61.2
76.2
94.1
117.6
-
-
-
Dimensions
After Sales Service
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
