PE Dredging Pipe Floating Pipe HDPE Water Pipe for Cutter Suction Ship

Model NO.	Pipe07
Type	Thermoplastic Pipe
Color	Color
Hollow	Hollow
Shape	Round
Usage	Water Supply Pipe, Dredging
Length	5.8m, 11.5m, Customized Length
Working Pressure	0.6MPa ~ 1.5MPa
Flanges	Loose Flanges at Both Ends
End	Flared Ends, No Welding
Application	Dredging, Sea Oil, Port Construction, etc.
Transport Package	in Nude or in Steel Frames
Specification	DN60-940
Trademark	Xincheng
Origin	China
HS Code	3917210000
Production Capacity	200000ton/Year

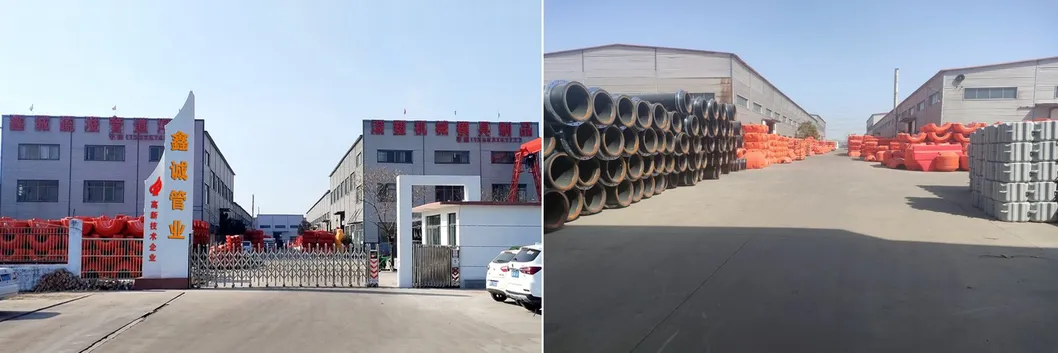

Factory Introduction:

1.specialized in producing dredger pipes and pipe floaters
2.established in 2009 with an area of 26000 square in Shandong Province.
3.15 years' experience of production and sales of dredging pipe and floaters.
4. earned much compliment and reputation among clients all over the world.



Products Introduction:

Dredging HDPE pipe is made from wear resistant HDPE mixed with anti-UV material by extrusion molding technology.Shandong Xincheng Pipe Co., Ltd. is a professional manufacture of dredging HDPE pipes with 15 years up experiences. HDPE pipes have exceptional properties such as corrosion resistance and light weight that makes them the best choice for dredging contractors.

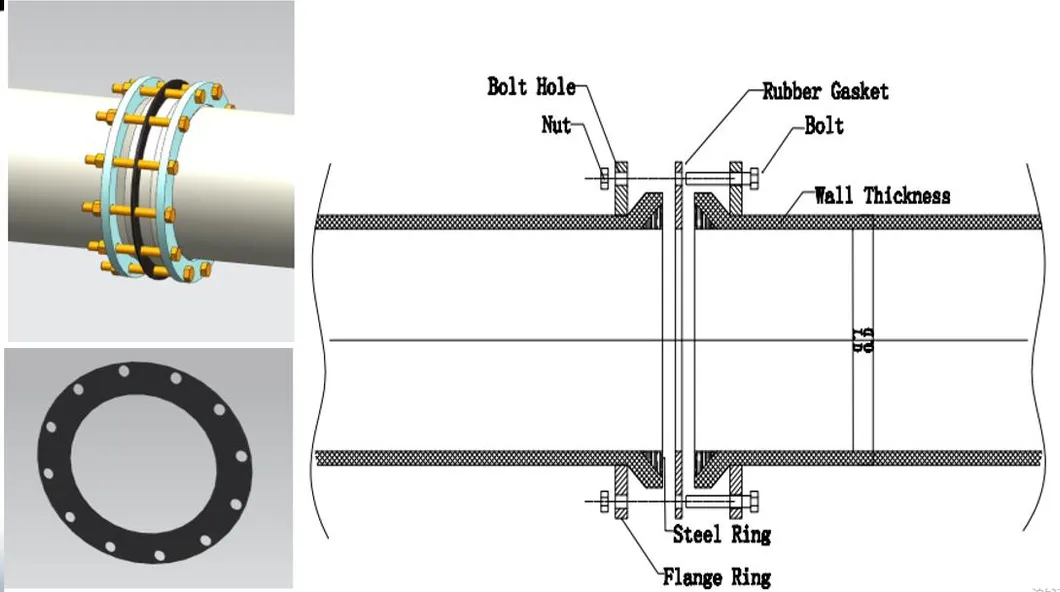

 HDPE Pipe Struction:

1. 100% HDPE raw material
2. Enlarged end, or flare end some people call, No welding required.

2. Nodular cast Iron inserts at end to protect it from deformation,breaking and leakage

3. Loose flang rings (carbon steel, galvanized) at both ends

4. Rubber gasket in between when two pipes are connected by bolts and nuts.


HDPE pipe from OD110mm to 1000mm, the sizes are as following:


Outer Dia. / mmStandard Size SDR26SDR21SDR17SDR13.6SDR11 Working Pressure / MPa 0.60.81.01.251.6 Wall Thickness / mm 1104.25.36.68.110.0 1254.86.07.49.211.4 1405.46.78.310.312.7 1606.27.79.511.814.6 1806.98.610.713.316.4 2007.79.611.914.718.2 2258.610.813.416.620.5 2509.611.914.818.422.7 28010.713.416.620.625.4 31512.815.619.824.530.1 35513.616.921.126.132.2 40015.319.123.729.436.3 45017.221.526.733.140.9 50019.123.929.736.845.4 56021.426.733.241.250.8 63024.130.037.446.357.2 71027.233.942.152.2  80030.838.147.458.8  90034.442.953.3   100038.247.759.3


HDPE Pipe Advantages:
1. Light weight, easy for transportaion and installation.
2. Good flexibility, tensille force and strength.
3. Strong wear resistance & corrosion resistance
4. Flared ends, no welding, loose flanges at both ends.
5. Smooth inner wall, small friction coefficient.
6. Enviromental friendly.

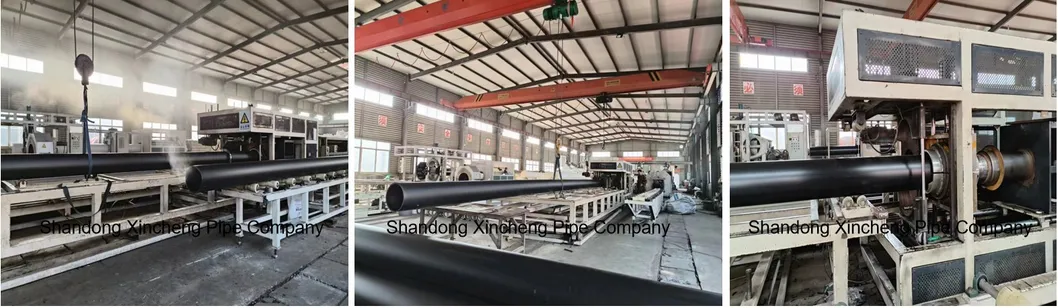

Production workshop:


Quality inspection:

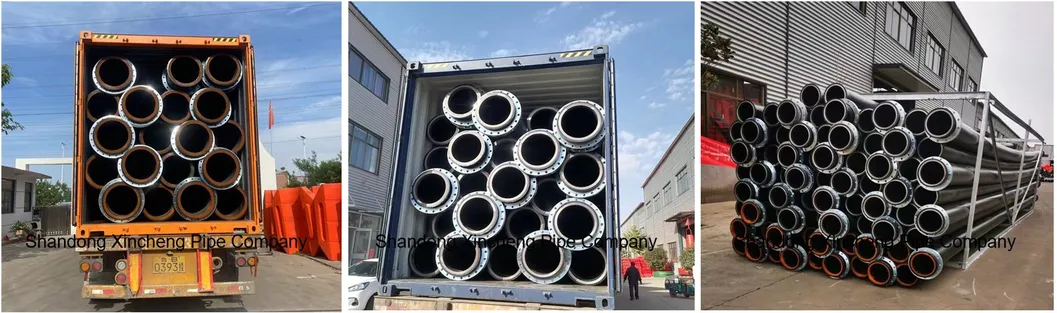

Delivery HDPE Pipe:

Certificate:

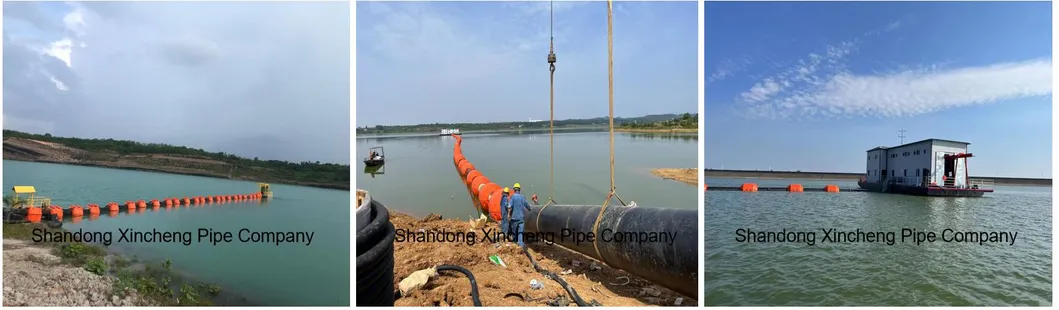

Construction Site:

Cooperation:
