25-800mm High Quality Environmental-Protection HDPE Pipe/PE Pipe/Water Supply Pipe Original Factory

Model NO.	HDPE
Kind	Thermoplastics Pipes
Longitudinal Change	<3% at 110 ℃
Oit	>20 Minutes at 200 ℃
Elongation Ar Break	>350%
Nominal Outside Diameter	25-800mm
Transport Package	by 40' Container
Specification	11.8 Meters Length to Fit 40' Container
Origin	China
HS Code	3917210000

High Quality HDPE Environmental-Protection Water Supply Pipe

Product Introduction
Pe environmental protection water supply pipes and fittings are made from PE100 or PE80 raw materials. Specifications, dimensions and performance conform to GB/T13663-2000 and GB/T13663.2-2005 standards. The hygienic performance conforms to GB/T17219-1998 standard requirements and relevant health and safety assessment requirements of the National Ministry of Health.
Our PE environmental water supply pipe have great performance of excellent flexibility, corrosion resistance, light weight, excellent impact resistance and so on. The pipes and pipe fittings can be connected by hot melt insertion, hot melt butt welding and electric melting, so that the pipes and the pipe fittings are fused together. The system is safe and reliable, the construction cost is low, and it is developing rapidly in the engineering application.


Performance Index

ItemIndex Elongation At Break≥350% Longitudinal Reversion (110 ºC)≤3% Oxidation Induction Time(200 ºC)≥20 min Hydrostatic StrengthPE80 at 20ºC, 100h & 9.0MPaNo cracking, no leakage PE100 at 20ºC, 100h & 12.4MPa PE80 at 80ºC, 165h & 4.6MPaNo cracking, no leakage PE100 at 80ºC, 165h & 5.5MPa PE80 at 80ºC, 1000h & 4.0MPaNo cracking, no leakage PE100 at 80ºC, 1000h & 5.0MPa

Product Specification

Nominal Diameter(mm)Wall Thickness EN(mm) PN0.6MPaPN0.8MPaPN1.0MPaPN1.25MPaPN1.6MPa 32----3.0 40----3.7 50----4.6 63---4.75.8 75--4.55.66.8 90-4.35.46.78.2 1104.25.36.68.110.0 1254.86.07.49.211.4 1306.27.79.511.814.6 1806.98.610.713.316.4 2007.79.611.914.718.2 2258.610.813.416.620.5 2509.611.914.818.422.7 28010.713.416.620.625.4 31512.115.018.723.228.6 35513.616.921.126.132.2 40015.319.123.729.436.3 45017.221.526.733.140.9 50019.123.929.736.845.4 56021.426.733.241.250.8 63024.130.037.446.357.2 71027.233.942.1-- 80030.638.147.4--

Main Features
1. Long service life--50 years service life under normal conditions
2. No toxic, no pollution--Since Pe pipe is no heavy metal additives, no fouling and does not breed bacteria. It can totally solve secondary pollution problem of drinking water.
3. Corrosion resistance and wear-resistance--Resistant variety of chemical and electrochemical corrosion. The inner wall is smooth and the friction coefficient is extremely low. The flowing capacity of medium is improved and the wear resistance is excellent.
4. Excellent flexibility, strong impact resistance and strong shock resistance--The PE pipe can be recovered quickly after being subjected to  external shock.
5. Light weight--Less density, handling, loading and unloading, convenient construction.

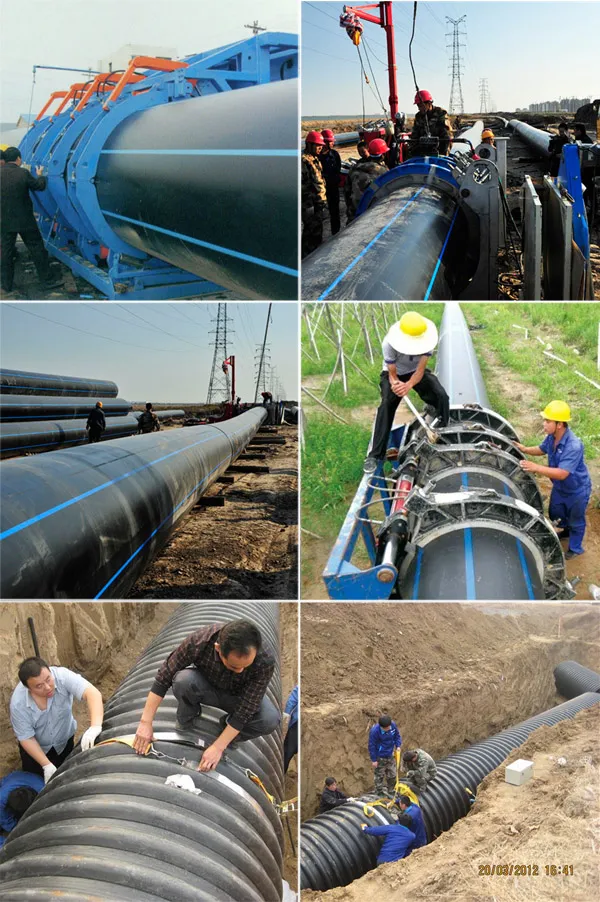

6. The welding process is simple, the whole engineering cost is low--Electric melt connection and hot melt connection, hot melt socket connection technology make the interface stronger than the pipe itself, which guarantee the safety and reliability of the interface.

Application Range
1. Municipal water supply system
2. Building water supply system
3. Buried water supply system in residential areas and factory areas
4. Industrial pipe system
5. Water treatment piping system in water treatment plant



Factory Introduction

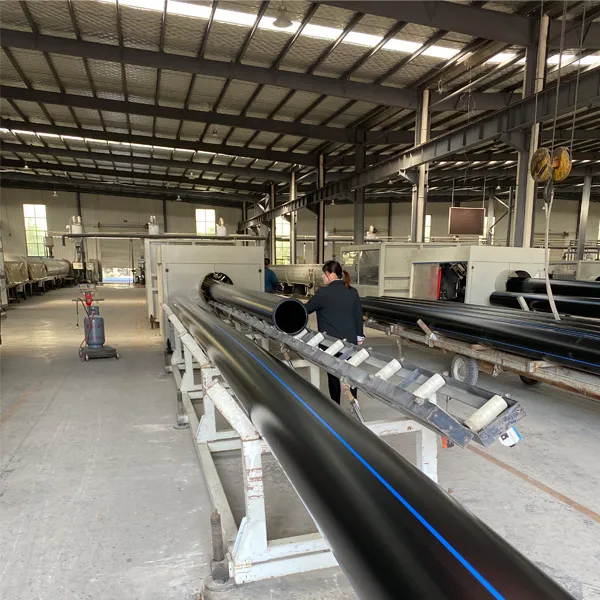

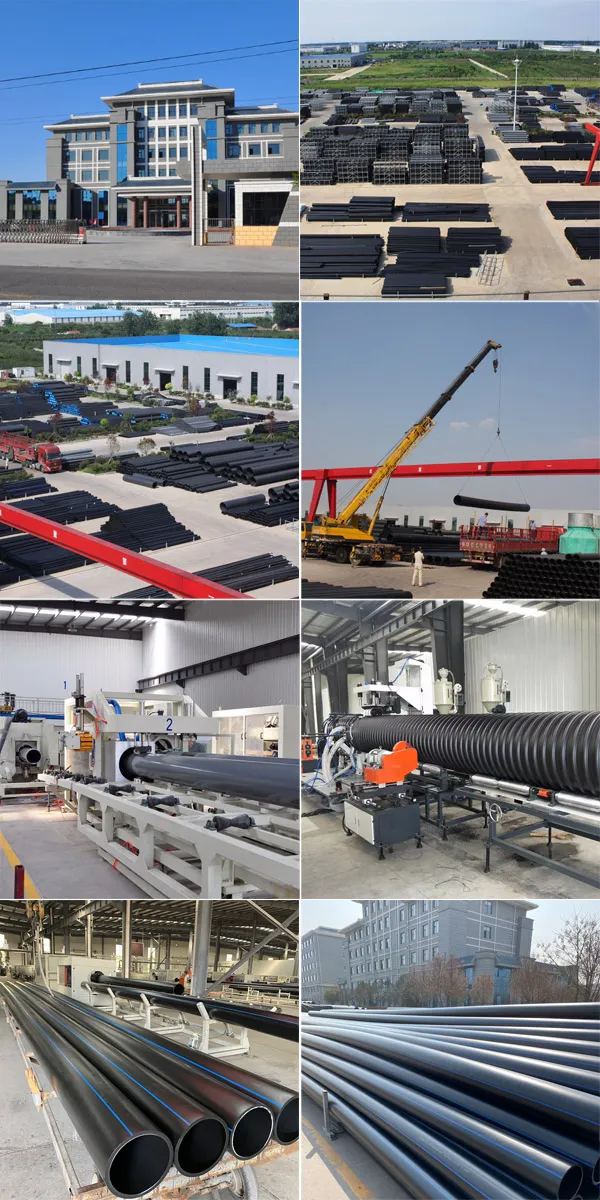

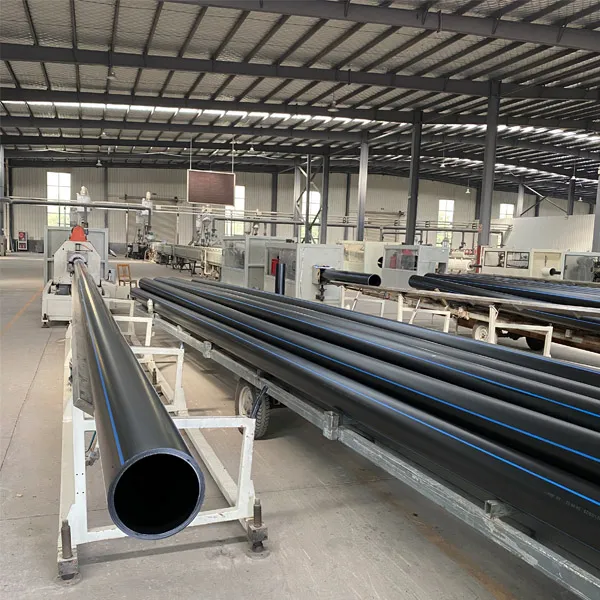

Our factory is founded in 2000, which is specialized in research, production and sales of PVC, PE and PPR series pipe and pipe fitting products and has introduced the most advanced production and testing equipment from Germany, Japan and Greece, etc. The production processes are all automatic and our products are qualified and reliable basing on the advanced production technology and the strict quality control system. Our pipes and pipe fittings are produced  strictly according to national standard and use environmental protection formula of organic tin to ensure product quality stability and water quality safety.
