Pex Al Pex Pipe Pex Al PE Pipe Hot Water Gas Pipe
Detailed specification for Pex Al Pex Pipe Pex Al PE Pipe Hot Water Gas Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | MC-PEX01 |
| Compound Material | Aluminium Plastic Compound Pipe |
| Material | PEX-Al-PEX |
| Installation and Connection | Clamping Type Installation |
| Technology of Plastic Composite Pipe | Internal and External Coating |
| base Pipe of Plastic Composite Pipe | Welded Steel Pipe |
| Internal Coating Materials of Plastic Composite Pipe | Standard |
| Plastic Composite Pipe Coating Form | Inner and Outside Coating |
| Plastic Composite Pipe Model | Standard |
| Steel Skeleton PE Pipe Use | Standard |
| Aluminium Plastic Compound Pipe Use | Water Heater Tube |
| Steel Plastic Composite Pipe Model | Standard |
| Aluminium Plastic Compound Pipe Material | Crosslinked Polyethylene Aluminum Composite Pipe |
| Certificate | ISO CE |
| Lifetime | 50years |
| Delivery Time | 15days |
| Color | Customized |
| Transport Package | Packed by Roll with Covers |
| Specification | 1216 1418 1620 2026 2632 |
| Trademark | MC |
| Origin | Zhejiang |
| HS Code | 3917210000 |
PEX-AL-PEX ALUMINIUM PLASTIC COMPOSITE PIPE
PRODUCT DEscriptION:
Specification
Item Name
PEX-AL-PEX PIPE
Place of Origin
China
City
Zhejiang
Brand Name
OEM/ODM/MINGCHI
Model Number
16-63mm
Material
PEX-Al-PEX
Heat Conductivity
0.45W/(M.K)
Specification
16-63mm
Linear Expansion Coefficient
0.025mm/(M.K)
Outer Diameter
16-63mm
Length
25/50/100/200/500M, 50m/100m/200m/500m
Thickness
2.0-3.0mm
Standard
CE, ISO
Color
OEM
Processing Service
Cutting
Product name
Multilayer pipe
Size
16-63
Certification
CE
Color
white/yellow/red/blue
Length
50m/100m/200m/500m
MOQ
20000meters
Related Products:
Introduction:

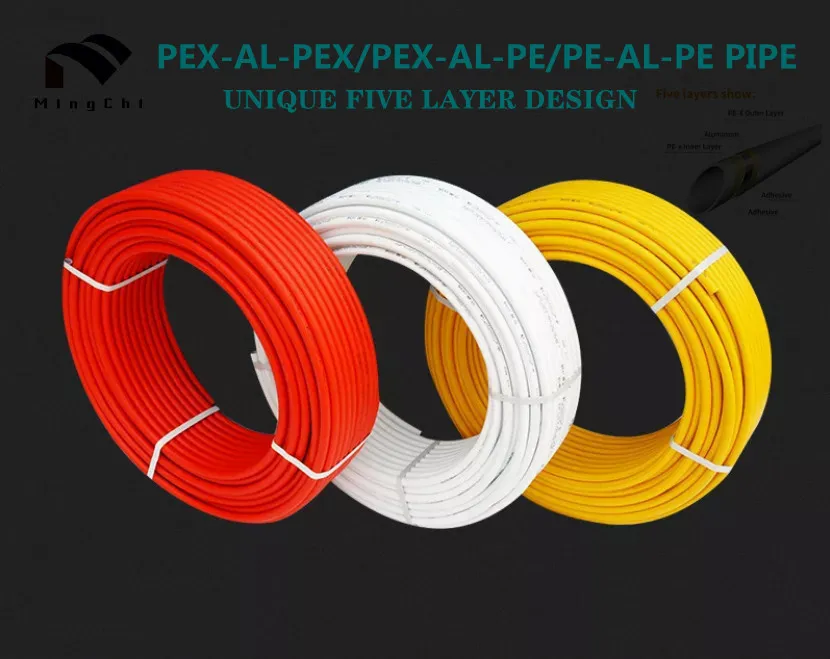

PEX AL PEX multilayer pipe
eField PEX-AL-PEX pipe is a five-layer composite pipe that combines the advantages of a metal and plastic pipe and eliminates the disadvantages of both materials at the same time. The aluminum core is absolutely diffusion tight; it reliably prevents oxygen/gases from permeating into pipe. It compensates and reduces snap-back forces and heat expansion with changes of temperature.
eField PEX multilayer composite pipe consists of an overlapped or butt welded aluminum core with an inner and outer layer or high temperature-resistant polyethylene. All layers are permanently bonded together by intermediate adhesive layers. The aluminum thickness for eField PEX pipe has been selected to meet compressive and flexural strength requirements.
Butt welded PEX pipe is moulding with several steps that is argon-arc welding style.
Applications of PEX-AL-PEX pipe:
1.Construction cold and hot water supply
2.Household heating system
3.Solar system
4.Swimming pool
5.Central air conditioner system
**High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
**Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
**Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
**Corrosion Resistant: resist chemical matters or electron chemical corrosion
**Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
**Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
**Long Life: more than 50 years under normal conditions
**Recycled and Environment-friendly
1. Sampe--Sample is available.
2. Low MOQ--Small quantity of a trail order is acceptable in various purchase order.
3. Container Loading service--We offer the service of booking container and loading to container if you need.
4. Custom Design--We provide OEM/ODM service can make your brand or logo.
5. Quality Control--We have quality checking before sending goods
6. Competitive Price--Assure you have resonable and competitive price in your market
7. One-stop Service--We have numerous varieties of products, can satisfy all your needs
Various Products
Quaity Guarantee
Excellent Service
"Mingchi with you forever" , we are willing to create a more colorful life for you with exquisite products. Sincerely welcome all customers to cooperate with us.
Our customer is all over the world, especialy in Middle East, Africa, East and Southeast Asia, South America and Occident countries all around the world. Every years we help our customers load more than 100 HQ containers, and our product and service have gained high reputation in this field.
