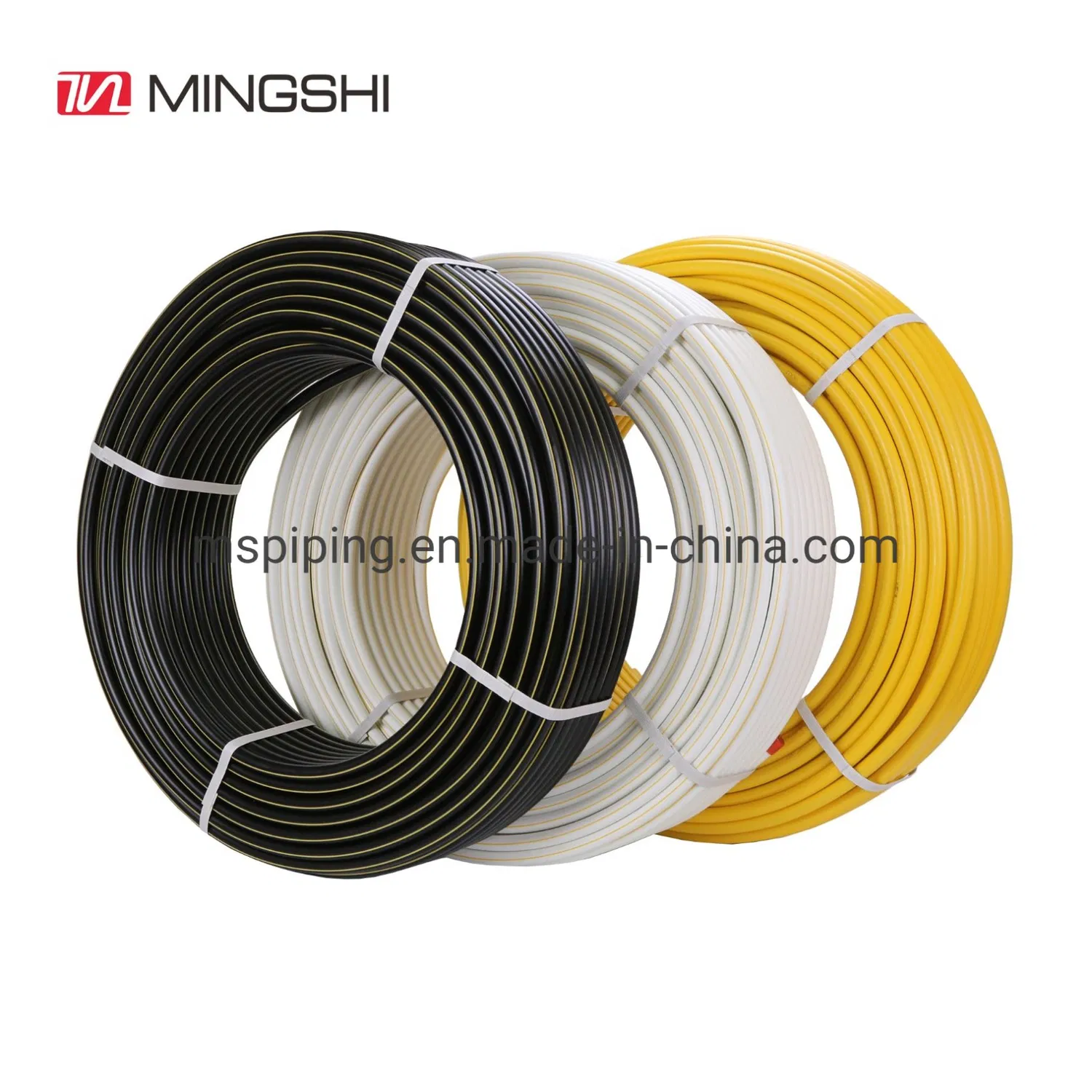

PE/Al/PE Multilayer Pipes for Plumbing Cold Water/ Gas Aenor Cstb Wras

Model NO.	S-1
Compound Material	Aluminium Plastic Compound Pipe
Material	PE-Al-PE
Installation and Connection	Clamping Type Installation
Aluminium Plastic Compound Pipe Use	Water Heater Tube, Water Distribution Pipe in Building, Gas Supplying
Aluminium Plastic Compound Pipe Material	Crosslinked Polyethylene Aluminum Composite Pipe
Certification	Aenor, Cstb, Wras, Skz, Watermark, Acs
Welding Types	Buttwelding/ Overlapped
Colors	White/ Black/ Yellow/ Orange/ Blue/ Red
Application	Gas/ Water/ Ufh Underfloor Heating
Length	4/5/6/25/50/100/200/500
Standard	ISO 21003/ Other
Transport Package	CTN Boxes, Knitting Bags, Kraft Papers, Pallets
Specification	15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/ 50/ 63mm
Trademark	MINGSHI/ MSP/ OEM
Origin	China
HS Code	39173900
Production Capacity	7million Meters/ Month



Multilayer PEX-AL-PEX/ PERT-AL-PERT Pipe Warranty More than 10 years Certification AENOR, WRAS, CSTB, ACS, WATERMARK, SKZ Application Water/ Gas/ Underfloor heating (UFH) Customized support OEM, ODM Place of Origin China, Zhejiang Brand Name OEM/MINGSHI/MSP Model Number S-1 Standard ISO 21003/ other Welding types Buttwelding/ Overlapped OD (mm) 15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63 Colors White/ Black/ Red/ Blue/ Yellow/ Orange Working pressure Max. 10 bars Working temperature Max. 95ºC Crosslinking degree ≥65%

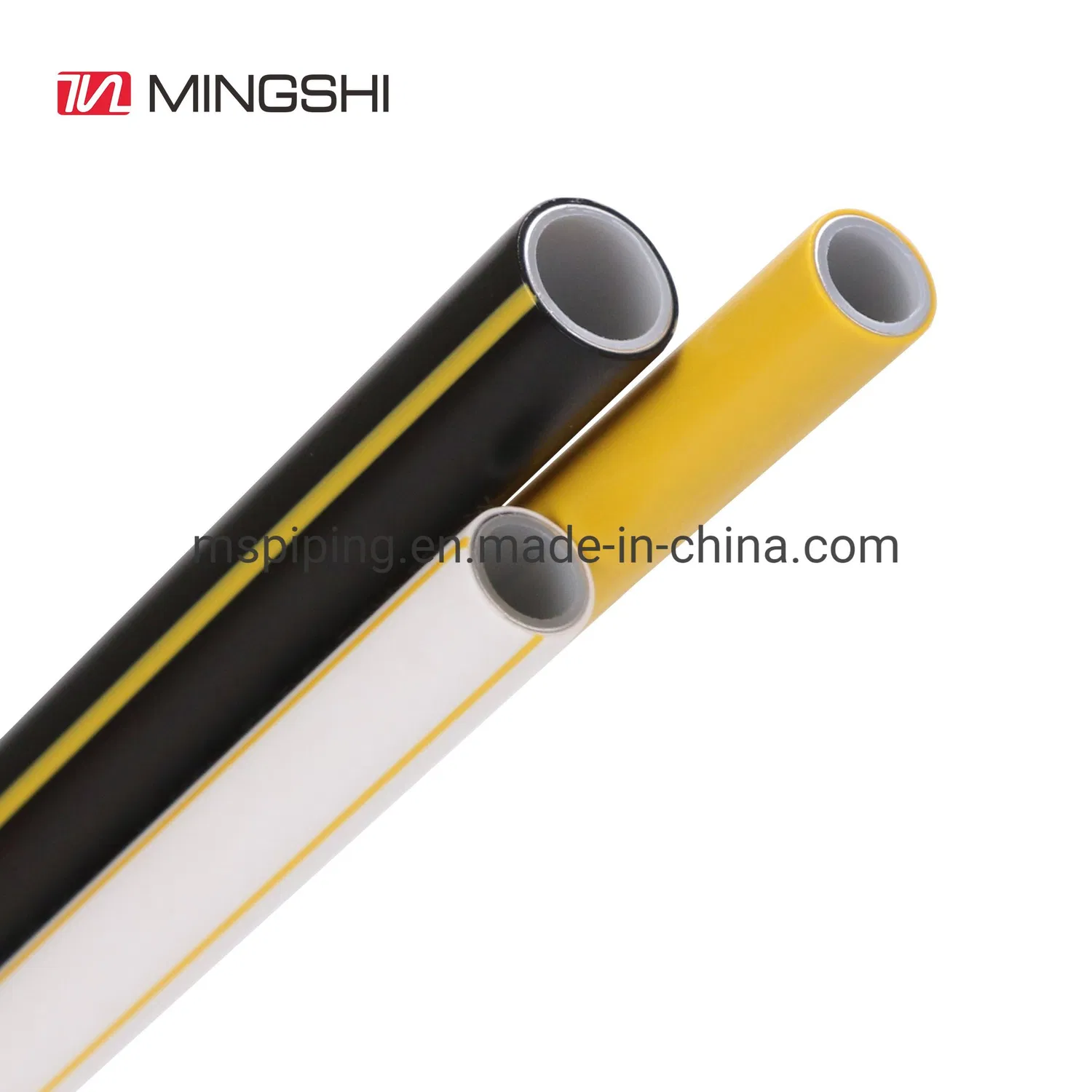

1. For water(cold & hot)/gas pipe system, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic

2. Certificates we have: CSTB, AENOR, WRAS, SKZ, SNAS, PHZ, SGS, WATERMAKR, STANDARDSMARK

3. Material: ConSTAB PEX

4. QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms

5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0

6. Lead time: 15-30days

7. Main makets: Europe, Asia, Australia

8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System

9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.


International Standards 1 EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings 2 AS 4176.2 & 3 Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS 3 ISO17484-2:2009 Multilayer Plastics piping systems for indoor gas installations International Certificates 1 AENOR refers to EN ISO 21003,UNE-EN ISO 53007 2 CSTB refers to EN ISO 21003 3 ACS refers to XP P41-250 4 Watermark refers to AS 4176.2 & 3 5 WRAS refers to Regulators' Specification 6 ISO 9001:2015 Quality management system



Size&Tolerance Nominal size(D x e)14×2.016×2.018×2.020×2.025×2.532×3.040x4.050x4.563x6.0 Outside diameter (mm)141618202532405063 Tolerance of Outer diameter  (mm)Min141618202532405060.6 Max14.316.318.320.325.332.340.450.563 Inside diameter(mm)101214162026324151 Tolerance of Inner diameter (mm)Min9.911.913.915.919.925.930.939.449.3 Max10.212.214.216.220.226.231.940.850.8 Pipe thickness (mm)22222.5344.56 Tolerance of pipe thickness (mm)Min22222.42.944.56 Max2.252.252.252.252.73.24.65.26.8
