Mingshi Plumbing Materials Underfloor Heating System Aenor Watermark Skz Cstb Wras Certified Composi

Model NO.	16-32
Compound Material	Aluminium Plastic Compound Pipe
Material	PE-Al-PE

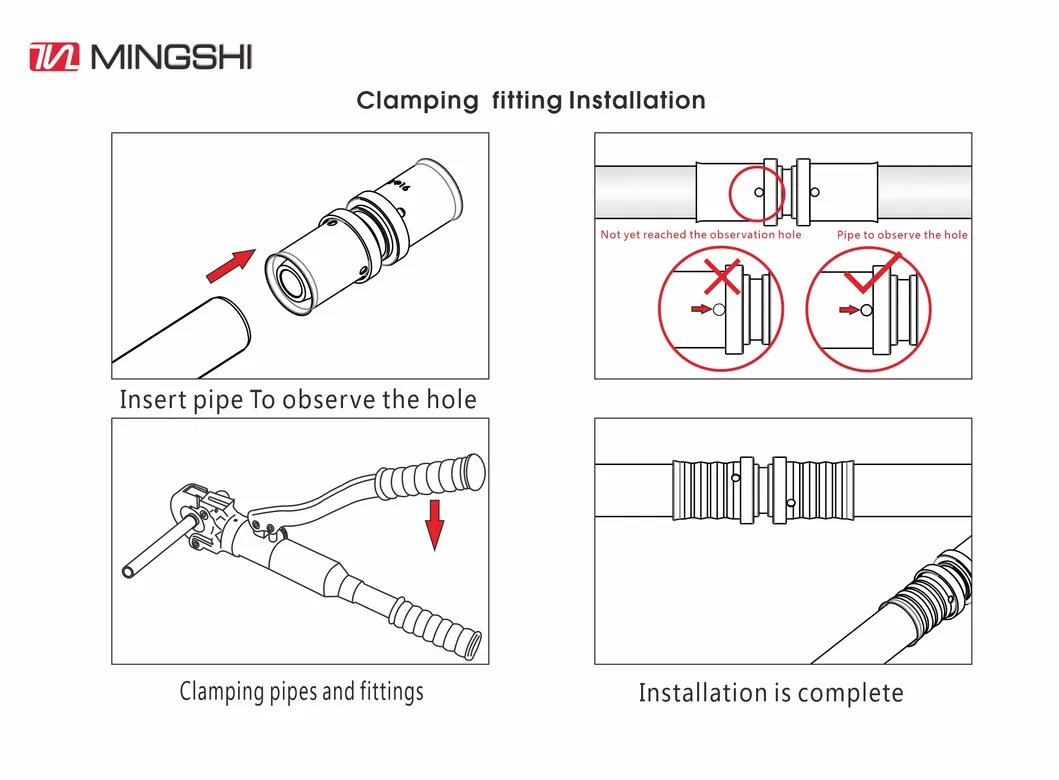

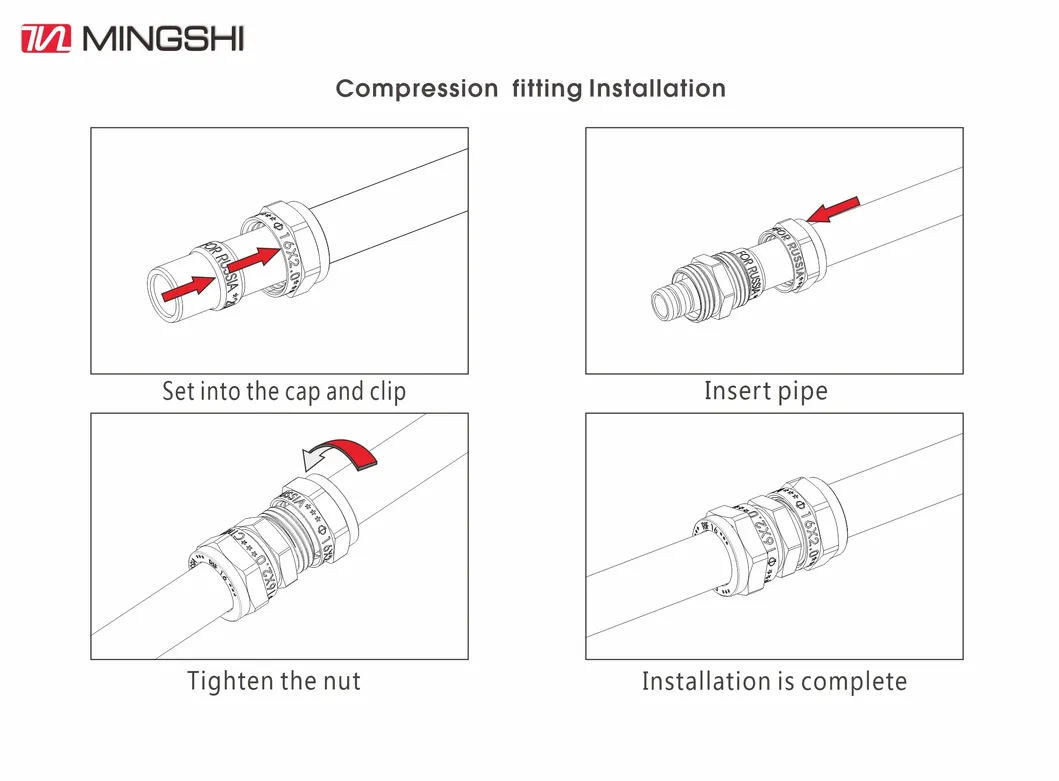

Installation and Connection	Clamping Type Installation
Technology of Plastic Composite Pipe	Internal and External Coating
base Pipe of Plastic Composite Pipe	Overlapped and Buttwelded
Internal Coating Materials of Plastic Composite Pipe	Polyethylene Coating Steel Pipe
Plastic Composite Pipe Coating Form	Inner and Outside Coating
Plastic Composite Pipe Model	PE-Al-PE or Pex-Al-Pex or PE-Al-Pex
Aluminium Plastic Compound Pipe Use	Water Distribution Pipe in Building
Aluminium Plastic Compound Pipe Material	High Density Polyethylene Aluminum Composite Pipe
Szie	16-63mm
Transport Package	CTN Boxes, Knitting Bags, Kraft Papers, Pallets
Specification	Aenor,Skz,SGS,Watermark,Acs,Wras,Snas,Jaswic,CE
Trademark	MSP/MINGSHI/OEM
Origin	China
HS Code	39173900
Production Capacity	7million Meters/ Month

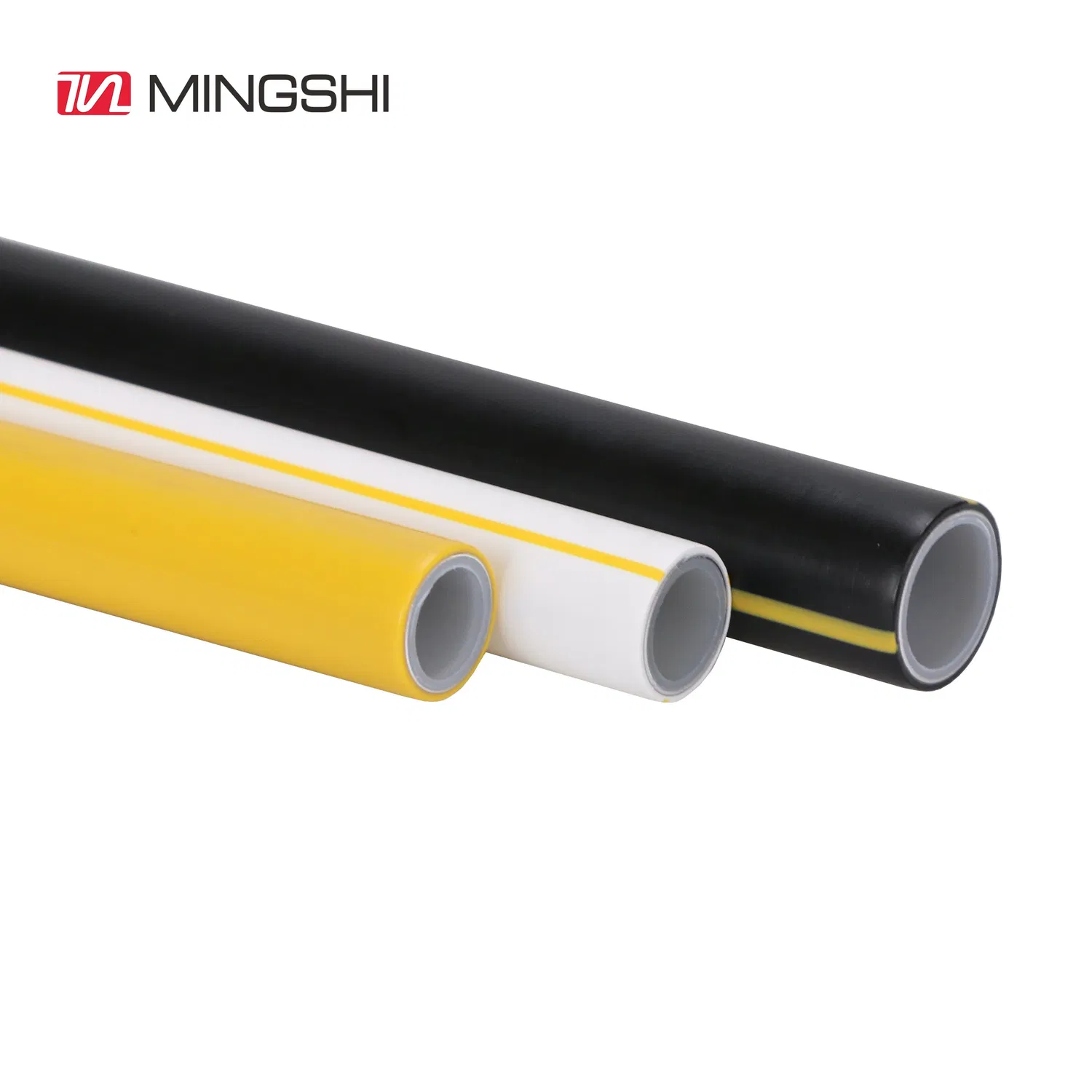

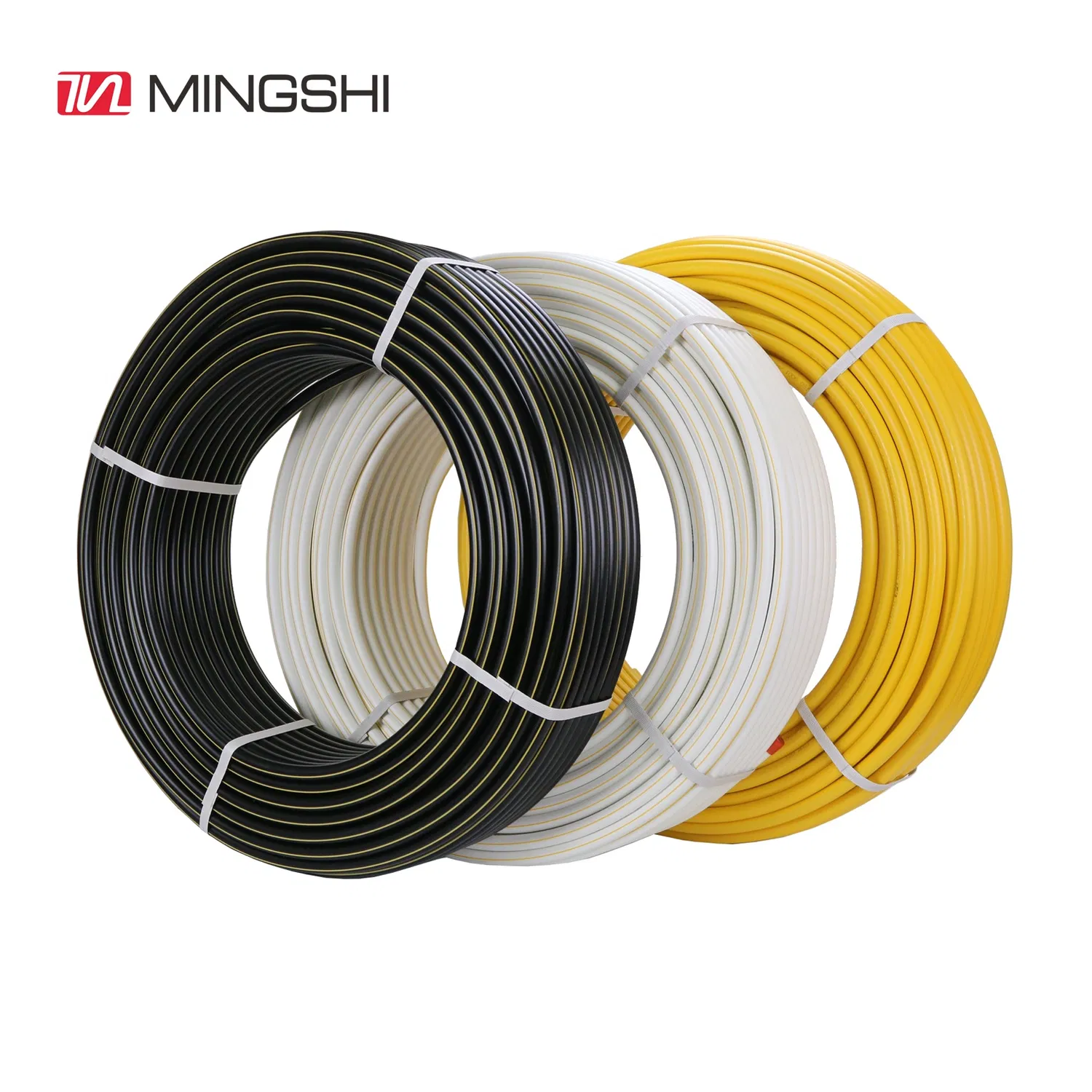

Multilayer PEX-AL-PEX/ PERT-AL-PERT Pipe WarrantyMore than 10 years CertificationAENOR, WRAS, CSTB, ACS, WATERMARK, SKZ ApplicationWater/ Gas/ Underfloor heating (UFH) Customized supportOEM, ODM Place of OriginChina, Zhejiang Brand NameOEM/MINGSHI/MSP Model NumberS-1 StandardISO 21003/ other Welding typesButtwelding/ Overlapped OD (mm)15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63 ColorsWhite/ Black/ Red/ Blue/ Yellow/ Orange Working pressure Max. 10 bars Working temperatureMax. 95ºC Crosslinking degree≥65%

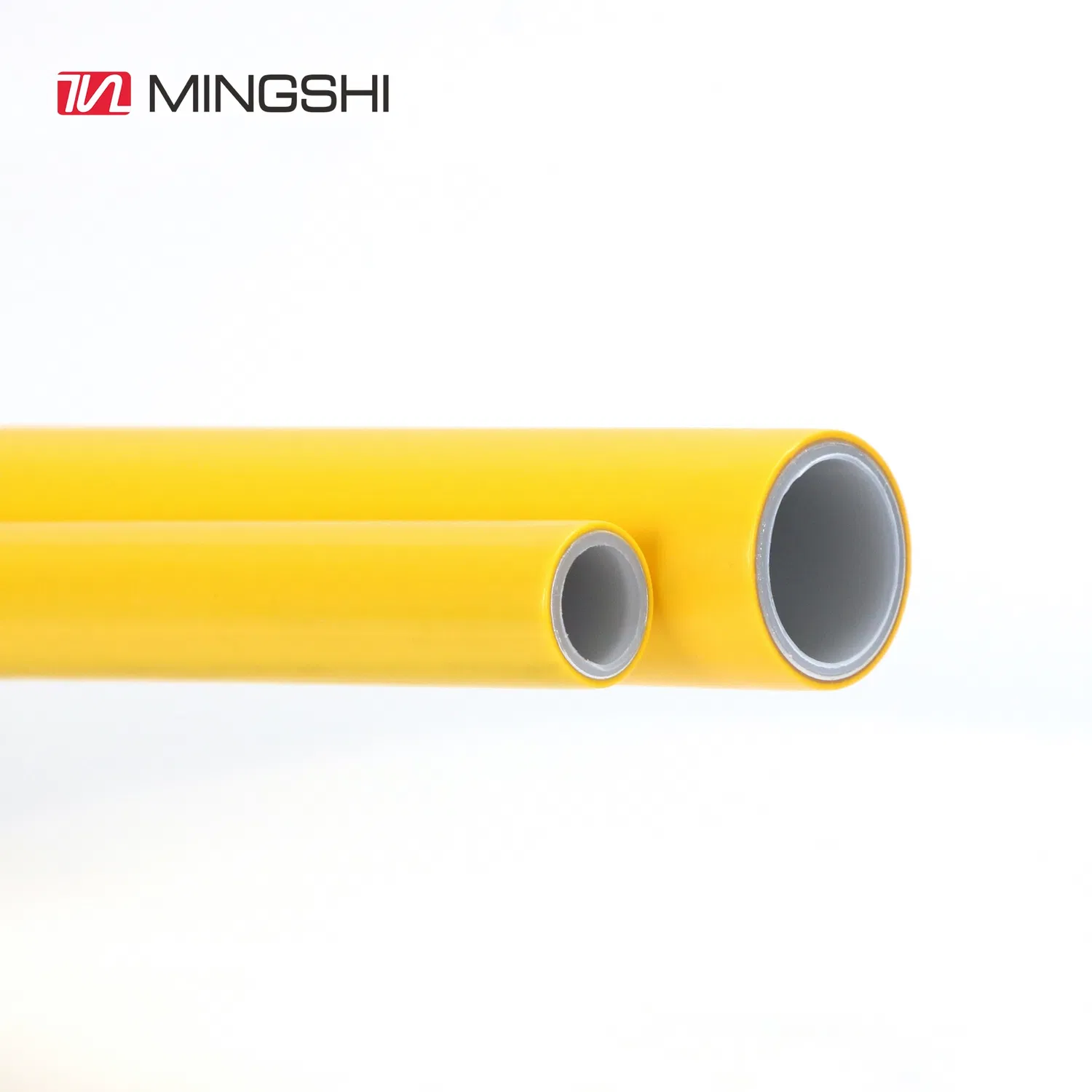

1. For water(cold & hot)/gas pipe system, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic

2. Certificates we have: CSTB, AENOR, WRAS, SKZ, SNAS, PHZ, SGS, WATERMAKR, STANDARDSMARK

3. Material: ConSTAB PEX

4. QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms

5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0

6. Lead time: 15-30days

7. Main makets: Europe, Asia, Australia

8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System

9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.


International Standards 1EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings 2AS 4176.2 & 3Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS 3ISO17484-2:2009Multilayer Plastics piping systems for indoor gas installations International Certificates 1AENOR refers to EN ISO 21003,UNE-EN ISO 53007 2CSTBrefers to EN ISO 21003 3ACS refers to XP P41-250 4Watermarkrefers to AS 4176.2 & 3 5WRASrefers to Regulators' Specification 6ISO 9001:2015Quality management system

Size&Tolerance Nominal size(D x e) 14×2.0 16×2.0 18×2.0 20×2.0 25×2.5 32×3.0 40x4.0 50x4.5 63x6.0 Outside diameter (mm) 14 16 18 20 25 32 40 50 63 Tolerance of Outer diameter  (mm) Min 14 16 18 20 25 32 40 50 60.6 Max 14.3 16.3 18.3 20.3 25.3 32.3 40.4 50.5 63 Inside diameter(mm) 10 12 14 16 20 26 32 41 51 Tolerance of Inner diameter (mm) Min 9.9 11.9 13.9 15.9 19.9 25.9 30.9 39.4 49.3 Max 10.2 12.2 14.2 16.2 20.2 26.2 31.9 40.8 50.8 Pipe thickness (mm) 2 2 2 2 2.5 3 4 4.5 6 Tolerance of pipe thickness (mm) Min 2 2 2 2 2.4 2.9 4 4.5 6 Max 2.25 2.25 2.25 2.25 2.7 3.2 4.6 5.2 6.8
