Eaglestar HDPE Pipe / Poly Pipe / PE Pipe for Fuel Pipeline Gas Station

Advantage of Petroleum Pipeline

Zero leakage efficient environmental protection: Seepage control material without any modification. maintains high barrier property, original material to eliminate medium inside the transportation pipe on soil and water pollution, and leave behind a clean and healthy environment for future generations.
Long service life: oil pipeline with 30 years of quality assurance.
Powerful loading capacity, resiliant and reliable: Pipe strong compressive strength, impact resistance, puncture resistance, tensile, ground shaking resistance. Can effective resistance to stress the role of, not because of the ground shaking influence the compactness of the connection parts, sa as to ensure the safety of gas pipeline system is reliable.
Corrosion material used widely: Pipe have strong corrosion turbidity and never rust, the advantages of more embodied in the soil corrosion turbidity strong sex, the coastal areas of high humidity and high sallinity pipe of oil pipeline can be in the soil temperature was -40ºC,50ºC within the scope of work, for the most part adapted to the region.

Fisrt why: Why PE flexible pipeline not traditional steel pipeline

1. Within -40ºC~50ºC temperature range, the burst pressure of PE flexible pipeline which is over 40 standard atmospheric pressure protect the pipeline to perform durably.

2. The efficient Electro fusion welding techniques connect pipe with its accessories and produce a seamless buried oil-supply pipeline system.

3. The pipeline can eliminate all the leakage from oil tank to fuel dispenser, thus protecting the environment. It prevents the underground water from permeating into the pipe.

4. PE pipeline with polytene composite material can be used for all kinds of fuel, ethanol mixture and additives. According to EN14125 standard testing and proving, the pipe can apply to hydrocarbon, ethanol fuel mixture and biofuel at 10 standard atmospheres of pressure (bar)

5. Excellent static conductivity demonstrates the PE flexible pipeline with high safety performance.

6. No need concrete furrow. It can significantly reduce the construction cost for fuel station.

7. Easy installation with rich choice for accessories provides the flexibility of pipeline direction.

Second why: why choose Eaglestar pipeline

1. Strong Oil and Solvent Resistance

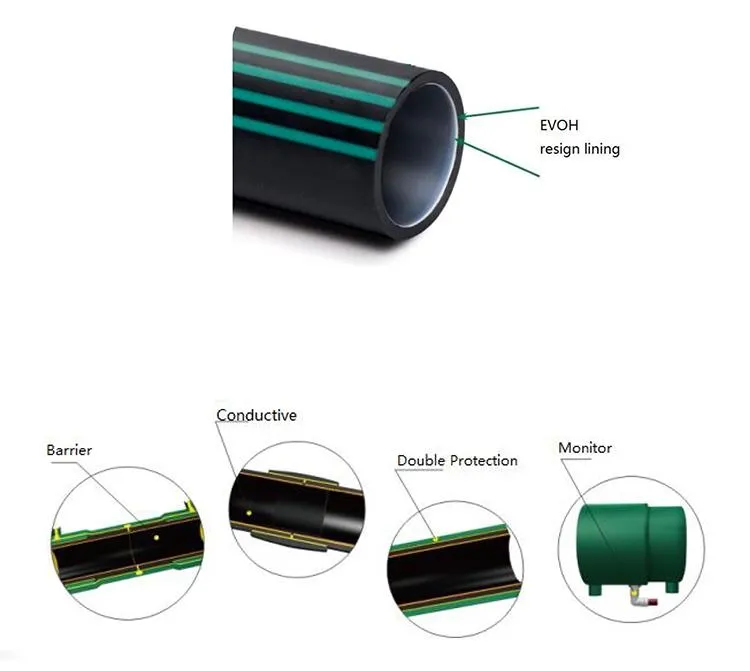

The special EVOH lining has smooth surface and good oil resistance, which not only helps to reduce the frictional loss in fuel transmission but also totally cut off fuel permeation, thus improving fueling efficiency.

2. Strong Static Conductivity
With advantage of EVOH resign lining, PE pipe has less than 104Ω electrical resistance. Comparison to other materials, PE pipe has more safety for fuel transmission.

3. Excellent Mechanical Property

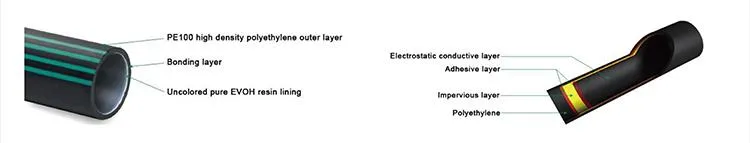

Applying to Multi-layer co-extrusion techniques to guarantee the strength and durability, Eaglestar PE pipe has excellent resistance to curve and fracture. It can also bear a pulling force of 7000N, which efficiently prevents oil leakage casing by land subsidence.

4. Strong Corrosion Resistance
The high density polyethylene outer layer has strong corrosion resistance and it can endure the corrosion of various chemical mediators. It has no electrochemical corrosion and never rusts. Compared with metal pipe, polyethylene composite pipe saves much cost for corrosion prevention and reduce much risks casing by pipe corrosion.

5. Wide Range Temperature Suitability
Eaglestar PE pipeline can work well in -40ºC to +50ºC environment without leakage. Its burst pressure which is over 40 standard atmospheric pressure protects the pipeline to perform durably.

6. Super Long Lifetime
The traditional metal pipe generally needs complicated preservative treatment before laying the underground pipes. Even in neutral and non-corrosion soil, the average life of traditional metal pipe is only 10 years. PE flexible pipeline, with PE100 as its outer layer, has a resistance to backfill material and dynamic traffic load. Therefore its life span can achieve 30 years.


Eaglestar, located in Zhengzhou City, Henan Province China, is one leading manufacturer of petroleum equipment for retail petroleum markets Eaglestar is involved in fuel dispenser industry since 2005, After over 18 years development, Eagletar continuously set up the sales network in Africa Middle East and Asia markets, The high quality products and the convenient rapid service bring well reputation for Eaglestar, n some markets such as Nigeria, Ghana. Eaglestar has been No.1 brand and achieved over 50% market share.
