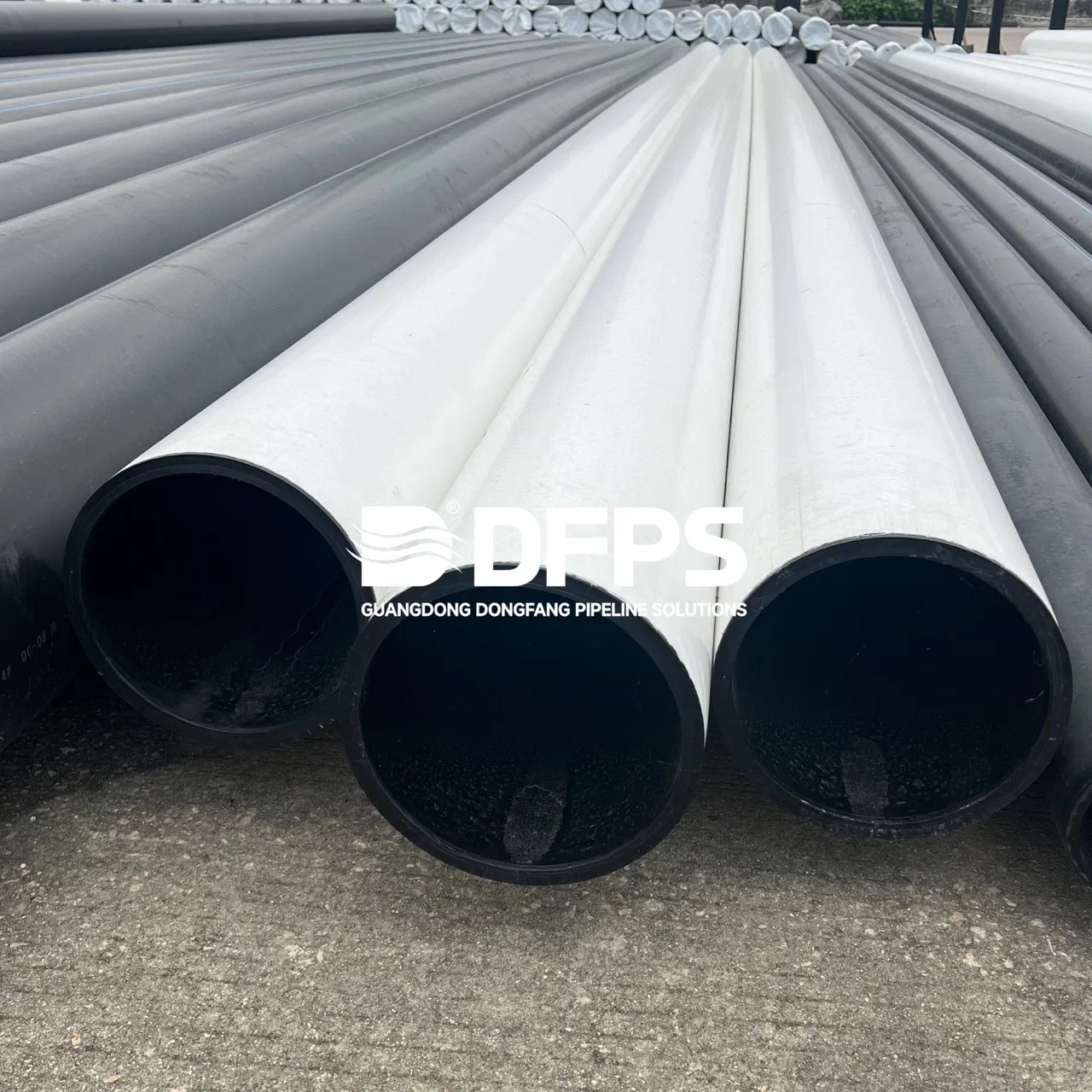

PE100 Steel Wire Mesh Underground Gas Supply HDPE Srtp Srcp Pipe Dfps

Product Description

SRCP/SRTP is a high-performance composite pipe built with a mesh-wound steel-wire reinforcement layer and inner/outer HDPE bonded through high-adhesion molten resin, creating a fully integrated, high-strength structure. It combines the pressure capacity of steel with the hygiene, corrosion resistance, and easy installation of PE, making it ideal for municipal water systems, drainage, firefighting, gas supply, and industrial media transport in chemical, petroleum, and pharmaceutical applications.

Product Features

Nominal outer diameter (dm)/mmNominal Pressure/MPa 1.01.62.02.53.03.54.05.06.36.8 Basic DimensionNominal Wall Thickness e_n 50 4.55.05.55.55.56.06.06.56.5 63 4.55.05.55.55.56.06.06.56.5 75 5.05.09.09.09.59.510.510.510.5 90 5.55.59.59.510.010.011.011.011.0 1105.57.07.010.510.511.012.012.513.013.0 1405.58.08.512.012.012.012.513.013.513.5 1606.09.09.513.013.013.013.013.514.515.0 2006.09.510.514.014.014.015.015.016.016.0 2258.010.010.515.015.015.516.016.016.016.5 25010.512.012.016.016.016.516.516.516.517.0 31511.513.013.017.017.017.017.517.518.018.0 35512.014.014.517.517.517.518.018.018.518.5 40012.515.015.018.518.518.519.019.019.519.5 45013.513.516.019.019.019.019.519.5   50015.518.018.020.020.020.020.520.5   56020.022.022.023.023.024.024.0    63023.026.026.026.526.527.027.0

Remark:1. Products above meet the criterion of CJ/T537-2009

Application

• Municipal water supply & distribution

• Industrial water and chemical media transportation

• Mining water supply, drainage, and slurry pipelines

• Coal mine underground pipelines (water, gas drainage, nitrogen injection, tailing)

• Oilfield water injection and produced-water transportation

• Firefighting pipeline networks

• Agricultural and irrigation systems

• Seawater and corrosive fluid pipelines

• Trenchless pipeline rehabilitation & long-distance transmission lines



Certifications

Connection methods
