Product Overview
Detailed specification for Factory Price High Quality PE Foam Coated Single Pipe Insulation Copper Pipe for HVAC
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Pair Coils |
| Type | Pancake Coil Copper Pipe |
| Wall Thickness | 0.8/1.0mm |
| Shape | Round |
| Customized | Customized |
| Color | Yellow |
| Usages | HVAC |
| MOQ | 500kgs |
| Package | in Bundles in Plastic Bag or in Wooden Box |
| Cu (Min) | 99.99% |
| Temperature Classification | High Temperature Piping |
| MPa Classfication | High Pressure Piping |
| Material | Copper Alloy |
| Standard | ASTM, GB, DIN, JIS, En 12375 |
| Medium | Gas |
| Cross-Section Shape | Round |
| Connection Type | Welding |
| Diameter | 9mm-25mm |
| Transport Package | Standard Carton |
| Specification | 1/4" -3/8"to 1/2"-3/4" |
| Trademark | Comforplanet |

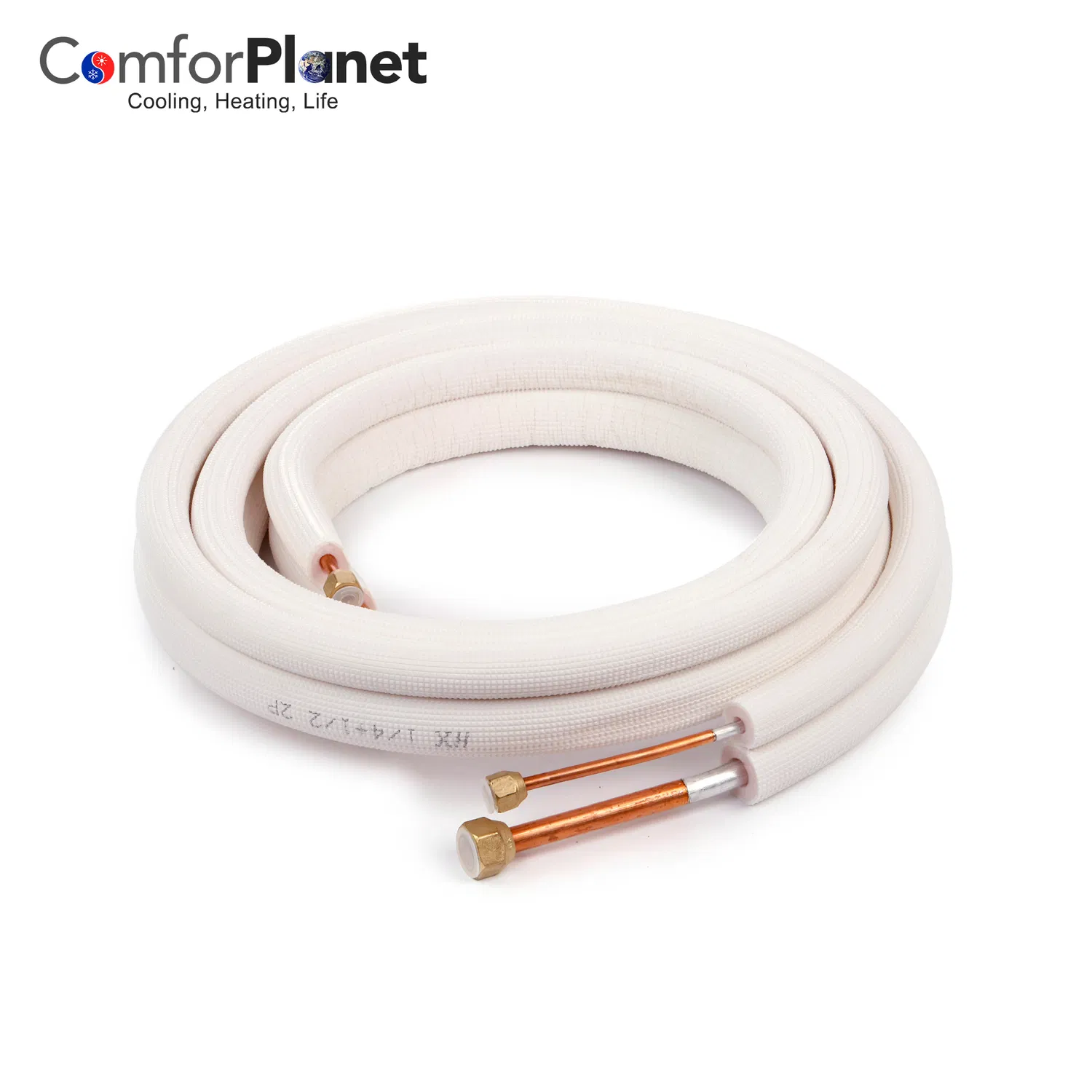

Air conditioner parts PE rubber Insulated copper tube
1. Inside cleaned copper tubes for refrigerant gas and closed at the extremities.
2. Phosphorus deoxidized soft temper copper pipe DHP99.9 (C12200)
3. Dimensions and features according to AS TM B280, EN 12735-1, AS1571, JIS 3300
Insulation Properties:
1.Extruded and closed cell white polyethylene with a white outside PE-protection layer
2.Average Density: 33Kg/m3
3.Heating conduction at 0°C 0.033W/mK
4.Working temperature from -40°C until +120°C
5.Vapour resistance: μ>5000
6.White external non toxic and resistance to external chemical agents and ultra -violat rays
7.RoHS Certificate approved
| Pair Coil Description | Insulating | Pair Coils | Carton Dimensions |
| Copper tube outside diameter x wall thickness | thickness | per carton | Pair Coils Length |
| (Inch) | (mm) | (mm) | | (20m) | (30m) |
| 1/4-3/8 | 6.35x0.80 - 9.53x0.80 | 9 | 1 Coil | 57x57x18 | 67x67x17 |
| 1/4-1/2 | 6.35x0.80-12.70x0.80 | 9 | 1 Coil | 61x61x19 | 69x69x18 |
| 1/4-5/8 | 6.35x0.80-15.88x1.00 | 9 | 1 Coil | 72x72x20 | 83x83x22 |
| 3/8-1/2 | 9.53x0.80-12.70x0.80 | 9 | 1 Coil | 61x61x19 | 72x72x19 |
| 3/8-5/8 | 9.53x0.80-15.88x1.00 | 9 | 1 Coil | 72x72x20 | 83x83x22 |
| 3/8-3/4 | 9.53x0.80-19.05x1.00 | 9 | 1 Coil | 75x75x22 | 87x87x22 |
| 1/2-3/4 | 12.70x0.80-19.05x1.00 | 9 | 1 Coil | 75x75x22 | 87x87x22 |
Primary ProductFactory Price High Quality PE Foam Coated Single Pipe Insulation Copper Pipe for HVAC
Contact PersonMrs.Luna
Minimum Order1 Pieces
PaymentsLC, T/T, PayPal, Western Union
DeliveryContact the supplier about freight and estimated delivery time.
OriginD4-109 Liangzhu Cultural Town Haishu District 315175 Ningbo China, Ningbo, Zhejiang, China
PackingCarton Box+Plastic Bag
InspectionASTM, GB, DIN, JIS, En 12375
SamplesProvide Samples
For faster quotation, share your preferred specification, target quantity, destination and packaging requirements when contacting the supplier.
FAQ
Frequently Asked Questions
Find quick answers about samples, payment, delivery, packaging and quality assurance before placing an order.
Q1: May I get one sample before placing order?
AYes, Sample are available. For normal products, samples are for free and you just need to bear the freight; For those high value products, you just need to freight and certain product cost. When we both cooperate for some times or when you are our VIP customer, free sample will be offered when you need.
Q2: Which payment is available for your company?
AT/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.
Q3: How and when can I get my goods after payment?
AFor small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.) or by air. Usually it will cost 3-5days that you can get the goods after delivery. For large quantity products,shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on where the port is.
Q4: Is there any possible to use my appointed label or package?
AYes. If needed, we'd like to use label or package according to your requirement.
Q5: How can you guarantee the goods you offer is qualified?
AWe always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q6: Is the price on this page correct?
AThe listed price is only for reference, for latest price, pls contact us directly.
Q7: How can I get some samples?
AWe are honored to offer you free samples, just need to pay the freight cost.
