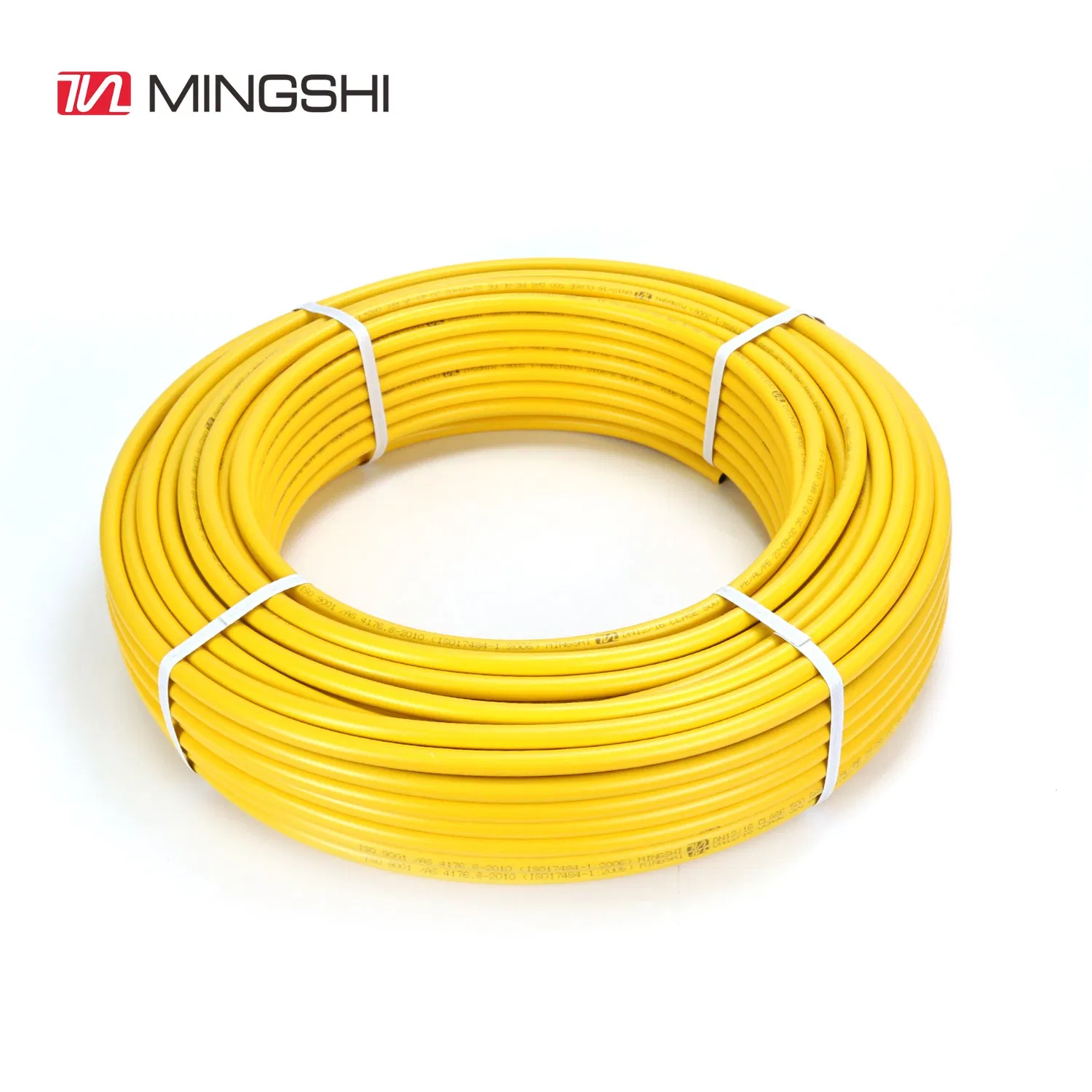

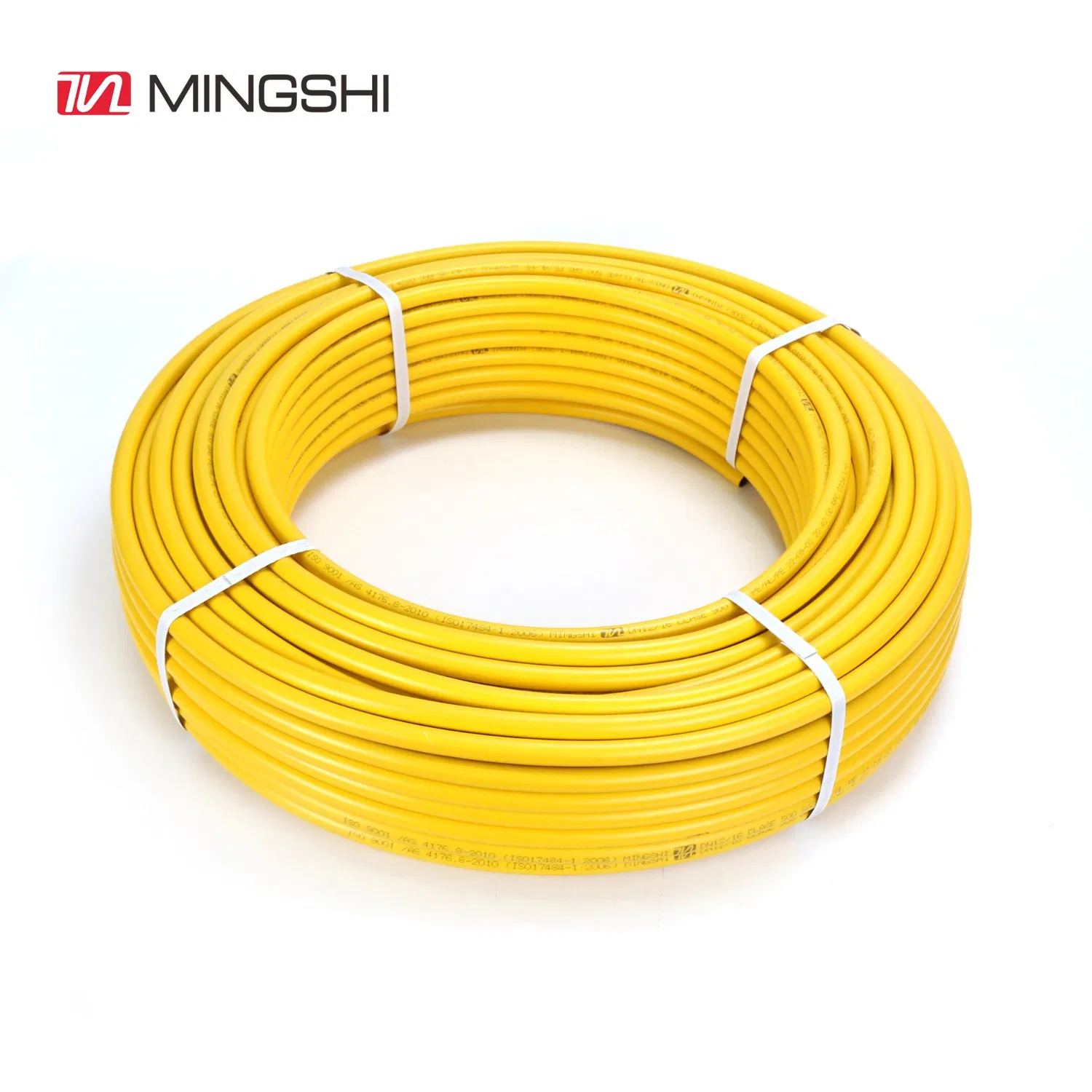

PE-Al-PE Overlapped Multilayer/Composite Pipe for Gas

Reference Pricing
$0.28/ Meters
Min. Order 20 Meters
PaymentsLC, T/T, PayPal, Western Union
DeliveryContact the supplier about freight and estimated delivery time.
PackingCarton Box+Plastic Bag
SamplesProvide Samples
Trade Information
Origin5/F, Blk 3, Mingshi Plaza, 8 Mingshi Rd, Diankou Town, Zhuji City, Shaoxing, Zhejiang, China CTI Audit Report No.
Sample Price0.28
RemarksZhejiang Mingshi Piping Systems Co., Ltd is the largest subsidiary of Mingshi Group. Established in 1999, the company now is one of the top manufacturers of plastic and composite pipes, tubes, brass fittings, manifolds and valves in China. * Excellent R&
Model NO.PE-AL-PE
Installation and ConnectionClamping Type Installation
Technology of Plastic Composite PipeInternal and External Coating
For faster quotations, include required quantity, target market, packaging requests and delivery destination in your message.
Product Overview

Detailed specification for PE-Al-PE Overlapped Multilayer/Composite Pipe for Gas

Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.

Model NO. PE-AL-PE
Installation and Connection Clamping Type Installation
Technology of Plastic Composite Pipe Internal and External Coating
base Pipe of Plastic Composite Pipe Lase Welding Aluminum
Plastic Composite Pipe Coating Form Inner and Outside Coating
Aluminium Plastic Compound Pipe Use Gas
Aluminium Plastic Compound Pipe Material Crosslinked Polyethylene Aluminum Composite Pipe
Transport Package Knitting Bags, Cartons
Specification 16-63mm
Trademark MSP/MINGSHI/OEM
Origin China
HS Code 74122090
Production Capacity 100000m/Days
PE-Al-PE Overlapped Multilayer/Composite Pipe for Gas

PE-Al-PE Overlapped Multilayer/Composite Pipe for Gas



Essential details Place of Origin: Zhejiang,China Material: Pex,PE Specification: 16-63MM Length: 25/50/100/200/300/500 or OEM Thickness: 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 Standard: AENOR,SKZ,WRAS,WATERMARK Processing Service: Cutting Product name: Pex-Al-Pe pipe Application: Gas system,Water system, Under floor heating. Type: Plastic Building Material Raw Material: Pex, Aluminum Colors: White,Red,Blue,Orange,Red or OEM
  Logo: Support custom logo Features: Corrosion Resistant,fire resistant,high pressure MOQ: 10000m Shape: Round Advantage: Flexible,easy to install             Supply Ability Supply Ability: 3000000 Meters per month Packing&Delivery Packing Details: With craft paper, then plastic film outside/Plastic bag Port: Ningbo or Shanghai



International Standards 1 EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings 2 AS 4176.2 & 3 Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS 3 ISO17484-2:2009 Multilayer Plastics piping systems for indoor gas installations International Certificates 1 AENOR refers to EN ISO 21003,UNE-EN ISO 53007 2 QB refers to EN ISO 21003 3 ACS refers to XP P41-250 4 Watermark refers to AS 4176.2 & 3 5 WRAS refers to Regulators' Specification 6 ISO 9001:2015 Quality management system



Size&Tolerance Nominal size(D x e)14×2.016×2.018×2.020×2.025×2.532×3.040x4.050x4.563x6.0 Outside diameter (mm)141618202532405063 Tolerance of Outer diameter  (mm)Min141618202532405060.6  Max14.316.318.320.325.332.340.450.563 Inside diameter(mm)101214162026324151 Tolerance of Inner diameter (mm)Min9.911.913.915.919.925.930.939.449.3  Max10.212.214.216.220.226.231.940.850.8 Pipe thickness (mm)22222.5344.56 Tolerance of pipe thickness (mm)Min22222.42.944.56  Max2.252.252.252.252.73.24.65.26.8


PE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for GasPE-Al-PE Overlapped Multilayer/Composite Pipe for Gas
