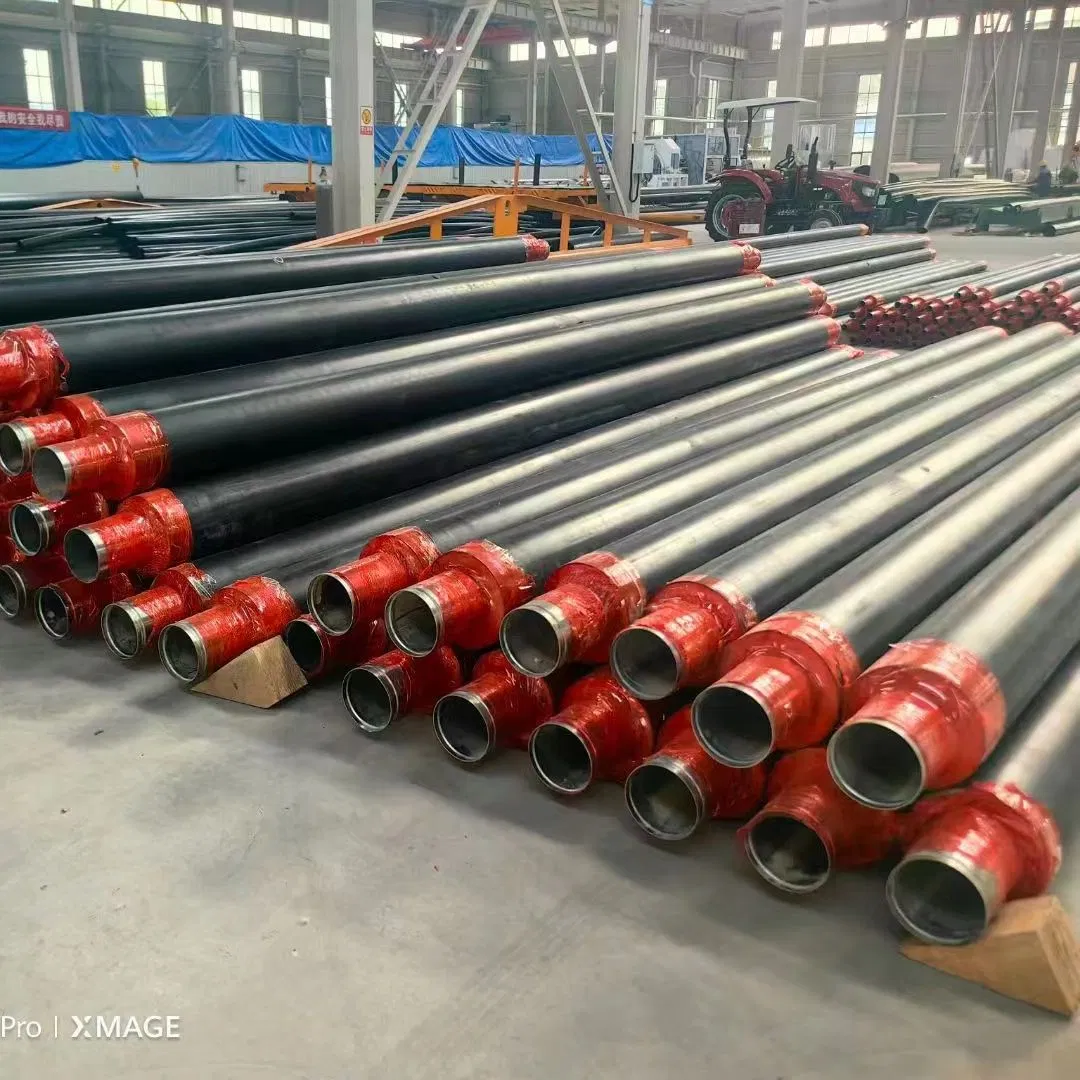

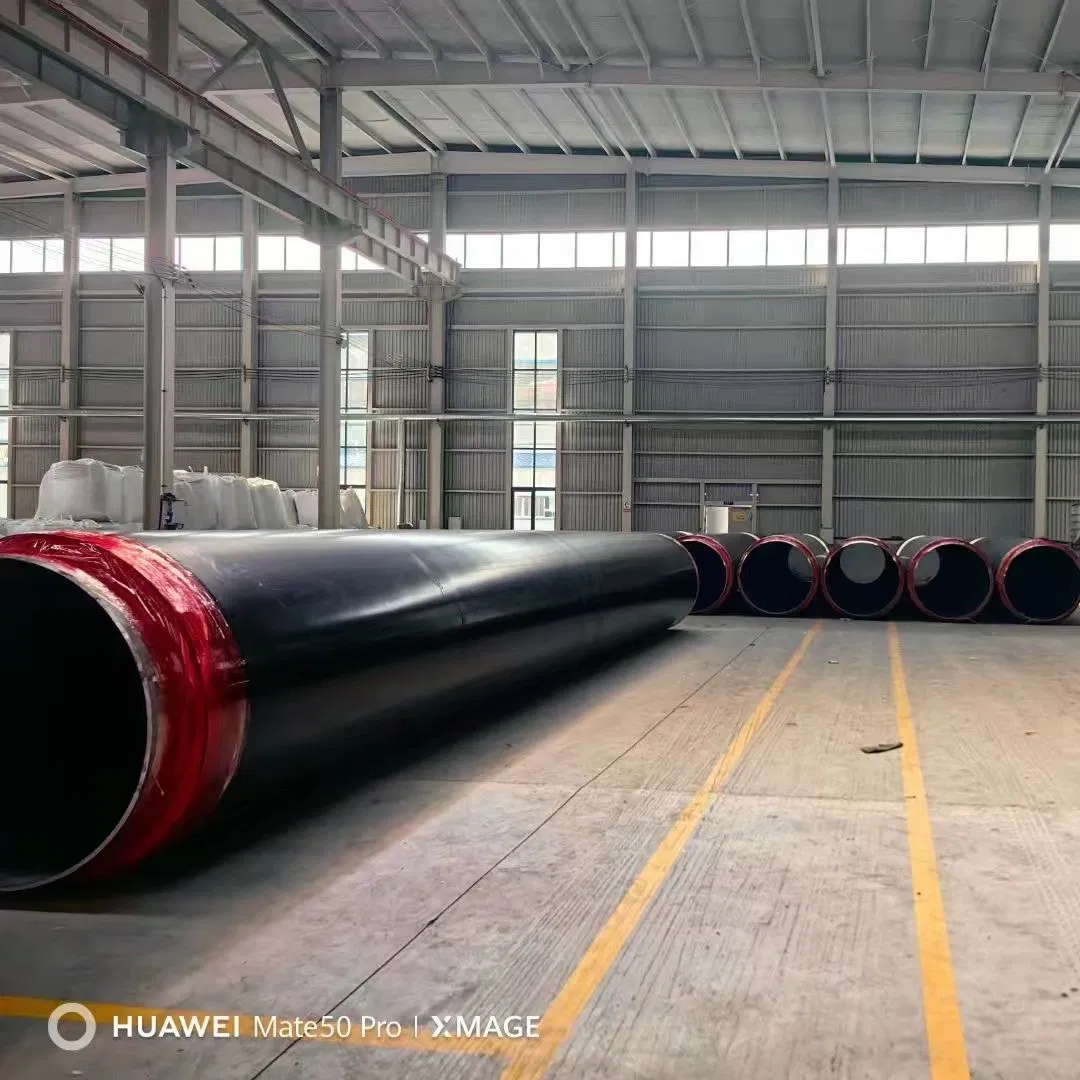

HDPE Jacket Insulated Steel Pipe for Chilled Water Gas Oil Project Smls Insulated Pipe

Model NO.	HDPE JACKET INSULATION PIPE
Compound Material	Steel Plastic Composite Pipe
Material	PE-Al-PE
Installation and Connection	Clamping Type Installation
Technology of Plastic Composite Pipe	Internal and External Coating
base Pipe of Plastic Composite Pipe	Seamless Steel Tube
Internal Coating Materials of Plastic Composite Pipe	Polyethylene Coating Steel Pipe
Plastic Composite Pipe Coating Form	out Side Coating
Plastic Composite Pipe Model	GS-—D-SP-T-EP(PE)
Steel Skeleton PE Pipe Use	Municipal, Chemical, Oil Pipeline
Aluminium Plastic Compound Pipe Use	Water Heater Tube
Steel Plastic Composite Pipe Model	GS-—D-SP-T-EP(PE)
Aluminium Plastic Compound Pipe Material	Crosslinked Polyethylene Aluminum Composite Pipe
Od	2" 3" 6" 8" 12" 14" 16"
Wt	5mm~25mm
Inspection	Inspection Report
Documents	Mtc En10204 3.1 Certificate
Transport Package	Nylon Slings
Specification	219mm~2020mm
Trademark	HD STEEL
Origin	China
HS Code	730799
Production Capacity	500000 Ton Per Year

HDPE Jacket Insulated Steel Pipe  for Chilled Water Gas Oil Project SMLS Insulated Pipe

Product Description

Product Name

  HDPE Jacket Insulation Pipe

Material

Carbon Steel

Size

   219mm~2020mm

Wall thickness

   5mm~25mm

Standard

ANSI, ASME API 5L, BS, DIN and JIS, etc.

Packaging

Nylon Slings

Delivery Time

  Usually Within 30 Days After The Order Date Or As Your Requirement

Quality

First Grade

Applicable standard

ASME, ASTM, MSS, JIS, DIN, EN

Port

Tianjin

Payment

 L/C at sight, T/T

Application rang

Such As Oil, Chemical Industry, Water Conservancy, Electric Power,

Boiler, Machinery, Metallurgy,

 Sanitary Cconstruction etc

What is HDPE Jacket Insulation Pipe?


HDPE jacket insulation pipe is a composite pipe with great performance. It has an inner metal pipe, often steel, for transporting fluids like hot water or steam. Between this and the outer layer is an insulation layer, usually polyurethane foam, cutting down heat transfer.



The outer layer, made of high - density polyethylene, safeguards against corrosion, abrasion, moisture, and UV rays. This pipe offers excellent thermal insulation, promoting energy savings. Its HDPE jacket ensures durability, withstanding harsh conditions.



It's flexible during installation, fitting well in complex setups. Widely applied in district heating, industrial media transport, and cold - storage/air - conditioning systems, it plays a vital role in keeping media at the right temperature.









HD STEEL OBTAINED API Q1, CE, IAO, CCS, ASME, BV, CCS AND AAA CERTIFICATES

Wooden Cases Packing

Wooden Plate Packing


Nylon Slings Packing

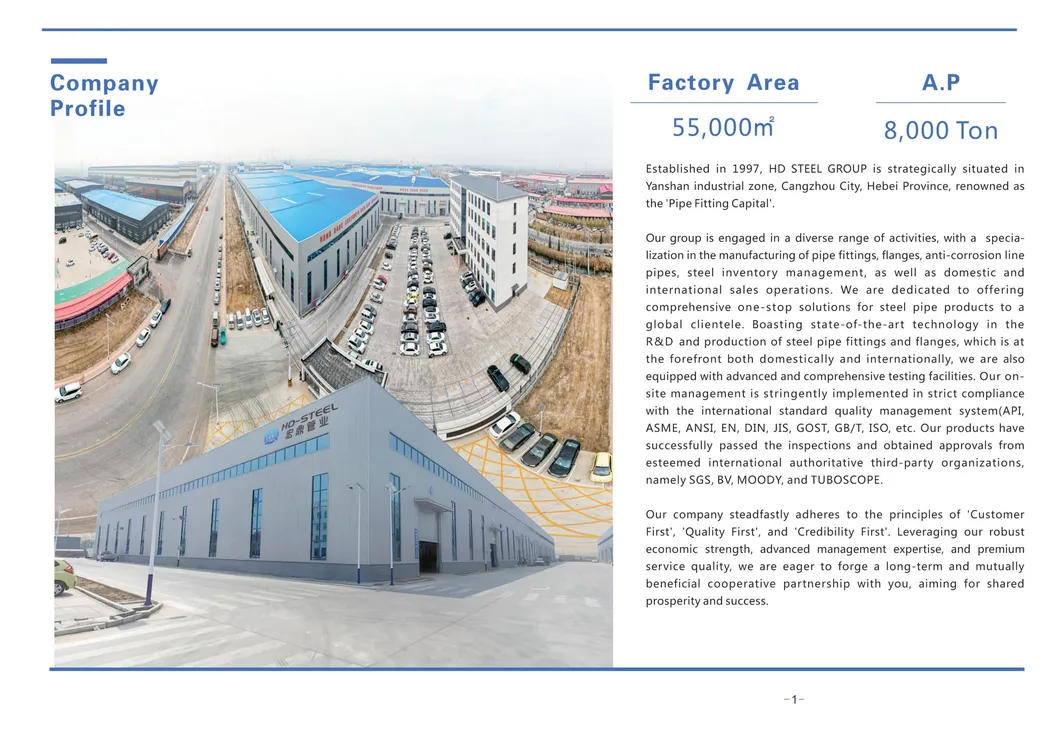

HD-STEEL---CANGZHOU HonGDING PIPE INDUSTRY CO., LTD



HD-STEEL(CANGZHOU HonGDING PIPE INDUSTRY CO., LTD) is a professional manufacturer in Carbon steel/Alloy steel/ Stainless steel Pipe fittings & Flanges & ANTI-CORROSION STEEL PIPE in China. Our registered fund is 16.7 million, With strong economic strength & advanced production equipment. Certificated by API Q1, CE, ISO, CCS, AMSE, etc. All products adopted to API, ASME(ANSI), EN, DIN, JIS, GOST, GB/T, ISO and so on. Our continuing commitment to the production of quality products has made us internationally recognized in the following industries: power generation, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy, among others.

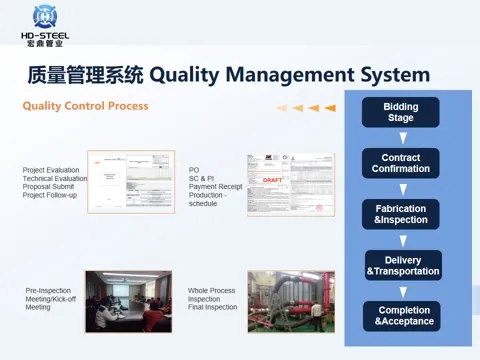

Quality Management System
