Company Price Manufacturing Competitive Double Walled Corrugated Water Drainage Pipe Production Line
Detailed specification for Company Price Manufacturing Competitive Double Walled Corrugated Water Drainage Pipe Production Line
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | SNJH90/33 SNJH75/33 SNJH120/33 SNJH150/33 |
| Type | Pipe Extruder |
| Plastic Processed | HDPE/PE/PVC |
| Product Type | Extrusion Molding Machine |
| Feeding Mode | Multiple Feed |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Deep Screw |
| Exhaust | Exhaust |
| Automation | Automatic |
| Computerized | Computerized |
| Name | Double Wall Corrugated Plastic Pipe Making Machine |
| Pipe Diameter | 800-1200mm |
| Main Motor | Siemens |
| Cooling Way | Water Circulation |
| Speed | 1-2.5m/Min |
| Dimension(L*W*H) | 10m*1.8m*2.5m |
| Weight | 65000 Kg |
| Automatic Grade | Fully Automaitc |
| After-Sales Service Provided | 1 Year |
| Material | PE HDPE PVC |
| Usage | Plastic Extrusion |
| Application | Double Wall Corrugated Plastic Pipe |
| Condition | New |
| Power (Kw) | 15 |
| Machinery Test Report | Provided |
| Transport Package | to Be Package with PE Film with Wooden Pallet Whic |
| Specification | CE, ISO9001 |
| Trademark | SINOTECH |
| Origin | Made in China |
| HS Code | 3917210000 |
Product Description
DOUBLE WALL CORRUGATED PIPE MAKING MACHINE
PE/HDPE double wall corrugated pipe making production machine adopts extruding and forming process, it has the features of reliable quality and high efficiency. Compared with other plastic pipe wall structure, double wall corrugated pipe has excellent wall structure design, its low weight reach the lower production cost and improve the market competitiveness. The pipe is widely used in various field instead of concrete pipe and iron pipes,because it has excellent features such as:easy connected and accessories installed, and quality reliable.
Main Features
*The main machine adopts special designed high efficiency screw which is specially used for polyolefin,it has the features of stable performance and high efficiency.
*High and stable extrusion capacity
*Corrugator mould easily changed.*Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.

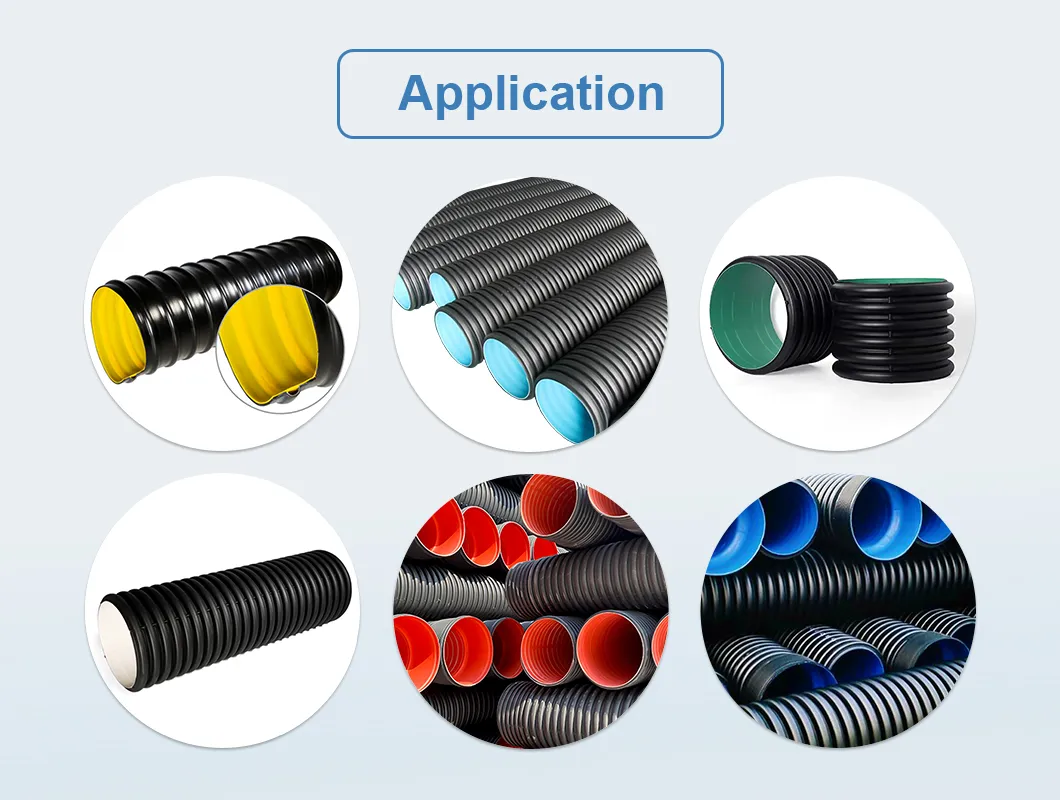

*Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion,good ring stiffness and flexibility.
Product Parameters
Detailed Photos
01 Electric Control System
SIEMENS PLC control system
Frequency converting control
02 Extruders
The machine has two independence extruders,which can realize both inside and outside layer with different material and colors.
03 Die Head
Composite extrusion die head with specially helical structure to make the wall thickness uniform and stable production, the surface of die is chromeplated

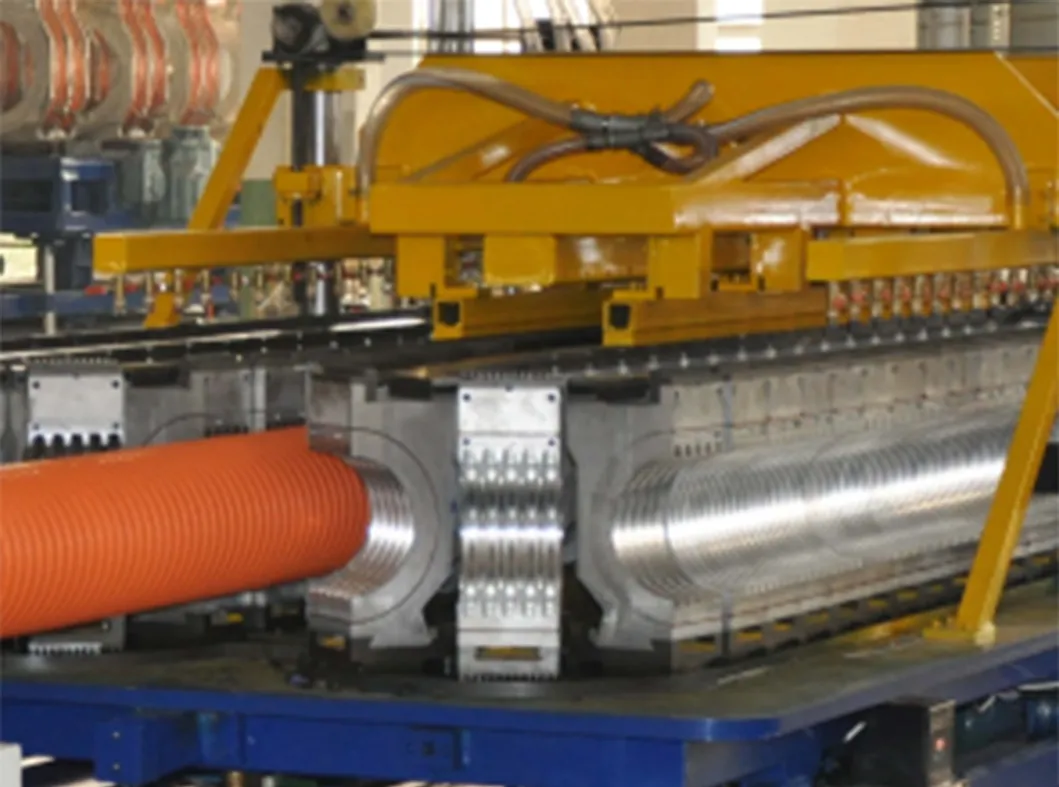

04 Forming Machine
The corrugated forming system is in combination with water cooling and air cooling to ensure high production speed continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smoothly with high precision to ensure the products quality stability.

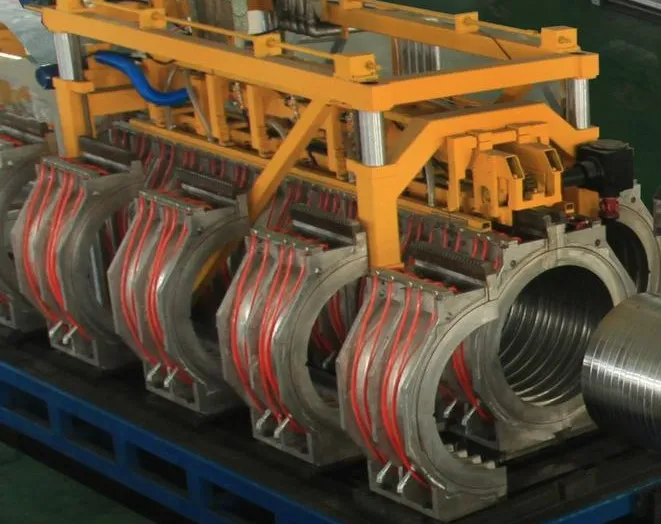

05 Mould
Mould adopts specially aluminum alloy material and high precision die casting forming mould method,it has the advantages of high precision,high strength, good abrasive resistance and better heat dissipation performance.
06 Water cooling tank
Better cooling effect in order to improve the production speed
Process Flow
Progress of Plastic HDPE PE Double Wall Corrugated Washer Pipe/Tube/Hose Extrusion Production Line:
Material →Color mixer →Material feeding →Single screw extruder →Extrusion die→ Forming machine→Cutting machine→Stacker
Customer Feedback
Our Services
1.We supply one year guarantee for all of our machines.
2.We free supply 2 years normal spare parts for all of our machines.
3.24 hours service.
5.After service is full life of machine.
