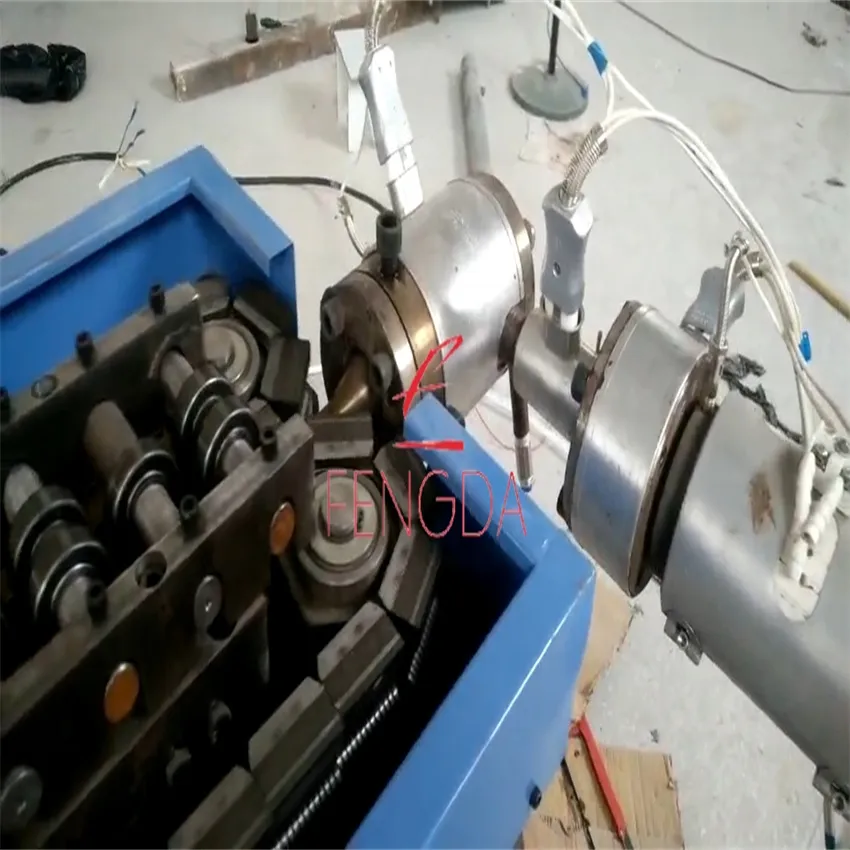

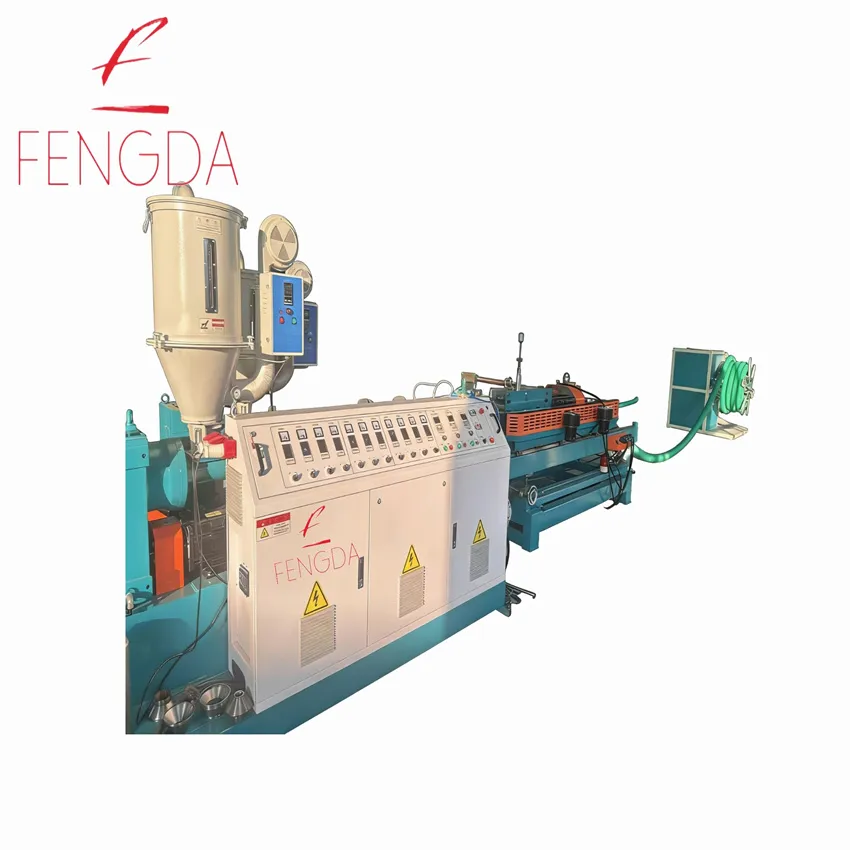

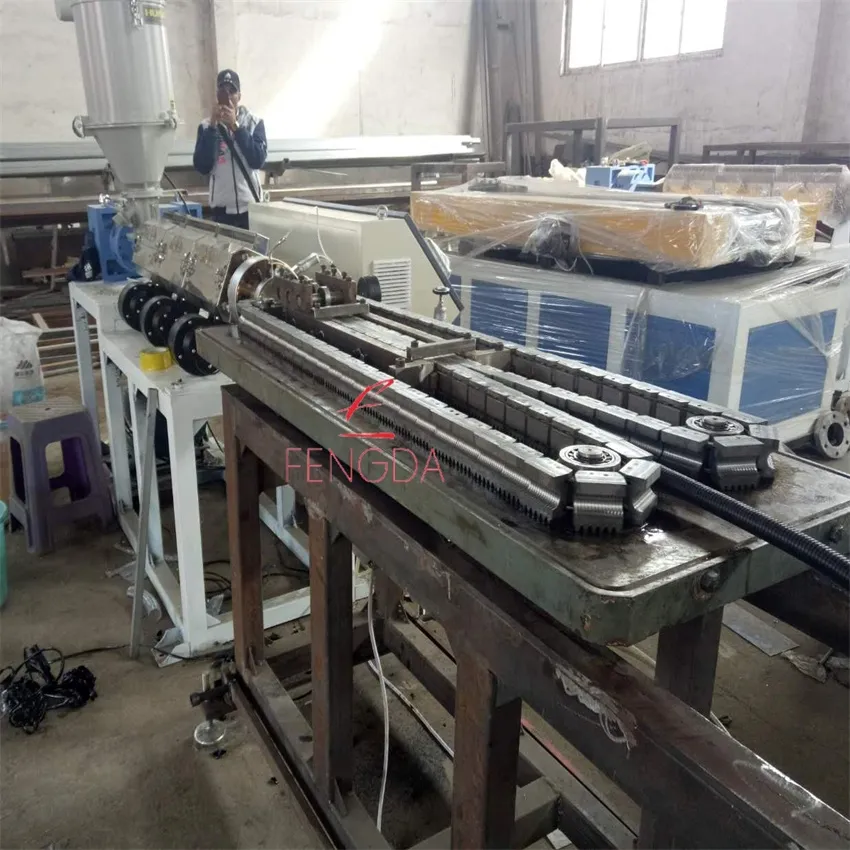

PE/PP/PVC Single Wall Electric Flexible Corrugated Conduit Threading Electrical Wire Pipe Making Mac

New Air Corrugated pipe

Prestressed flat pipe

Corrugated conduit pipe

The core features of the new wave corrugated pipe equipment are high-efficiency dual extrusion molding and precise shape control, which can stably produce functional pipes that meet the requirements of the fresh air system. At the same time, it takes into account the convenience of operation and product compatibility.

The core feature of the prestressed flat corrugated pipe is its flat structure, which is suitable for narrow spaces and has high impermeability and compressive resistance. It is specially designed for prestressed concrete components such as bridges and sleepers, and can be accurately embedded to ensure the tensioning effect of the steel strands.

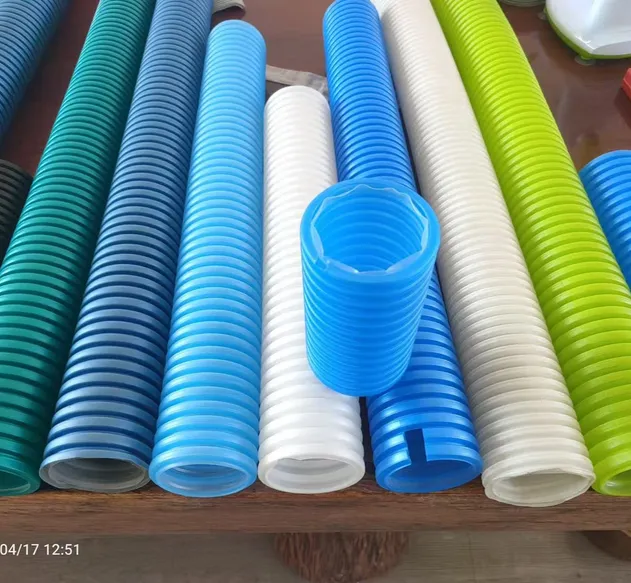

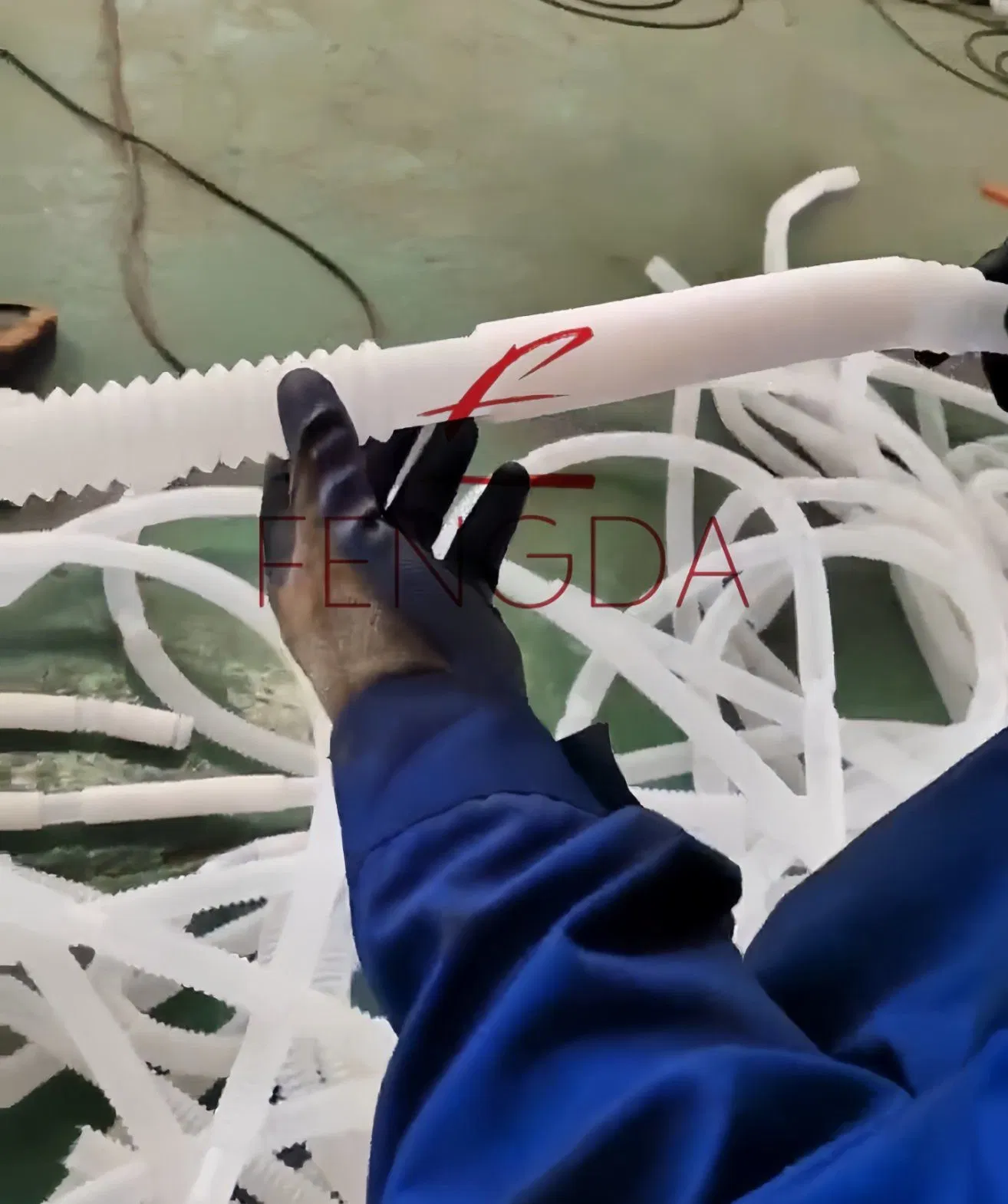

The core feature of the threaded corrugated pipe is its flexible protection and convenient wiring. It can provide physical protection for wires and cables, and is also suitable for complex wiring environments.

Bamboo-sectioned circular prestressed corrugated duct

Washing machine corrugated pipe

flexible corrugated

The core feature of the bamboo-joint corrugated pipe is the "bamboo-joint" structure, which brings high compressive strength and the flow-through advantage of a circular cross-section. It combines rigidity support with smooth transportation capability.

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

The core characteristic of the expansion bellows is that the free expansion compensation displacement and flexible sealing prevent leakage, which is designed to solve the displacement problem caused by heat expansion and cold shrinkage, vibration or installation deviation of the pipe.

Main feature

Its key functions include: - Connecting the fresh air unit, air outlets, and other equipment to form a complete airflow path, ensuring the directed flow of air. - Utilizing the flexible structure of the corrugated pipe, it can easily bypass obstacles such as walls, beams, and columns, reducing the installation difficulty. - Some high-quality corrugated pipes come with noise reduction and sealing designs, which can reduce air flow noise and prevent outdoor polluted air from infiltrating.

screw size

SJ65/33

SJ75/33

main motor

30KW

37KW

pipe range

20mm-50mm

50mm-110mm

heating method

ceramic heating

ceramic heating

cooling method

fan and water cooling

fan and water cooling

module

72

42

forming machine motor

3KW

4KW

vacuum power

5.5KW

7.5KW

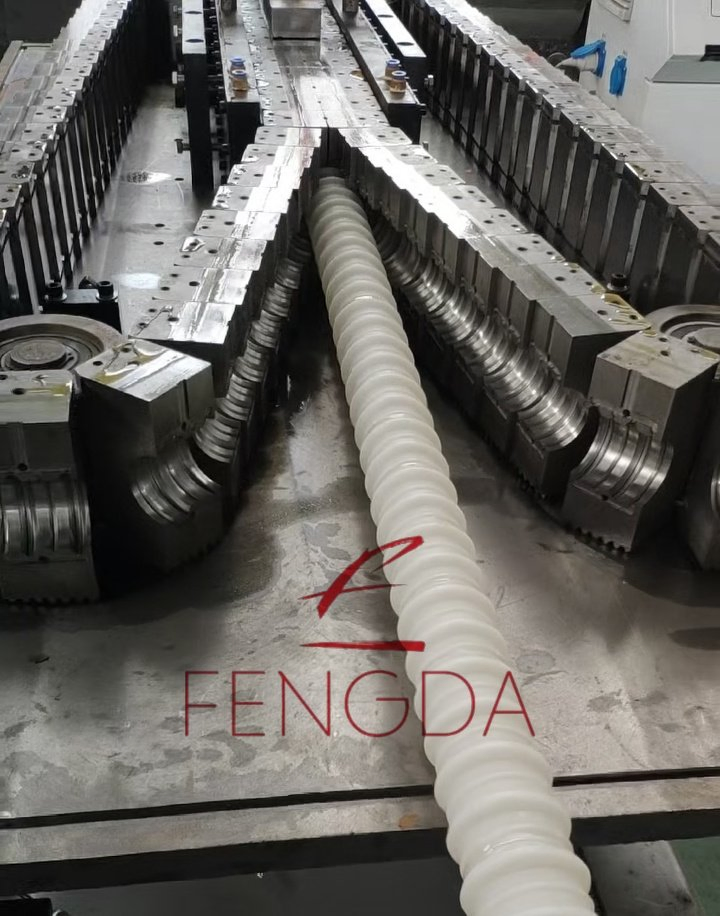

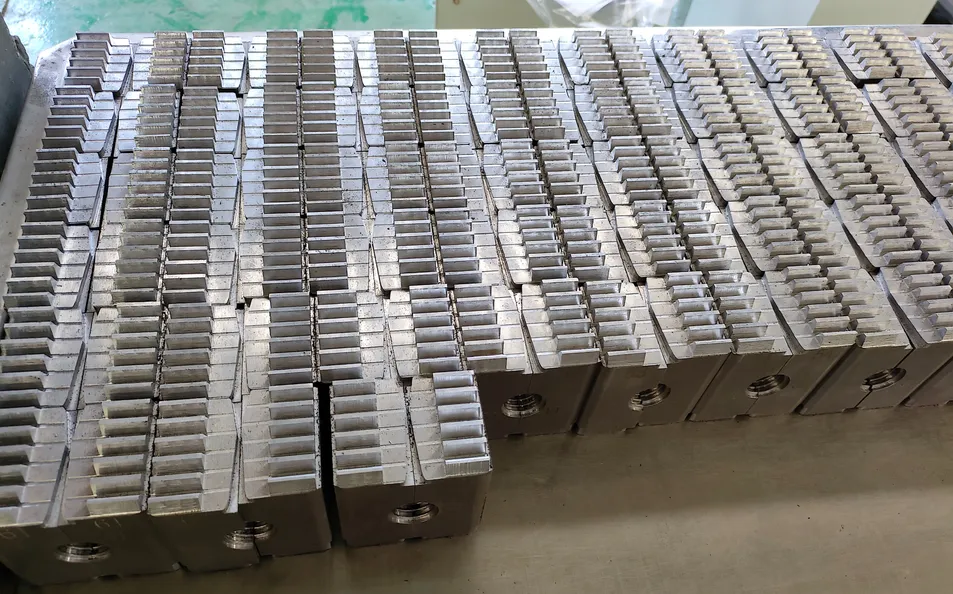

mold

New Wave corrugated Pipe: Generally made of materials such as PE or HDPE. For example, Pule's elegant grey PE-HD flexible wave-shaped round pipe has features such as flame retardancy, flexibility and smoothness, high-quality environmental friendliness, insulation and noise reduction. Its double-walled hollow structure can reduce the noise of air supply, the inner wall is smooth to reduce wind resistance, has good flexibility and is convenient for construction and installation. It can be used continuously without leakage.

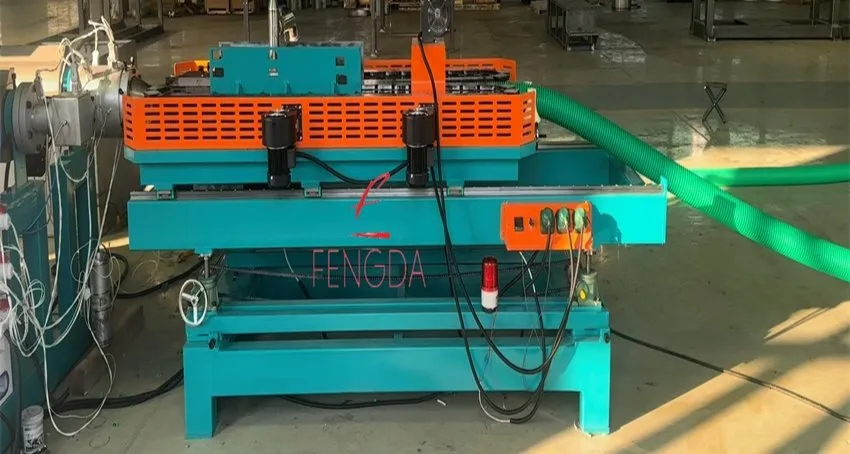

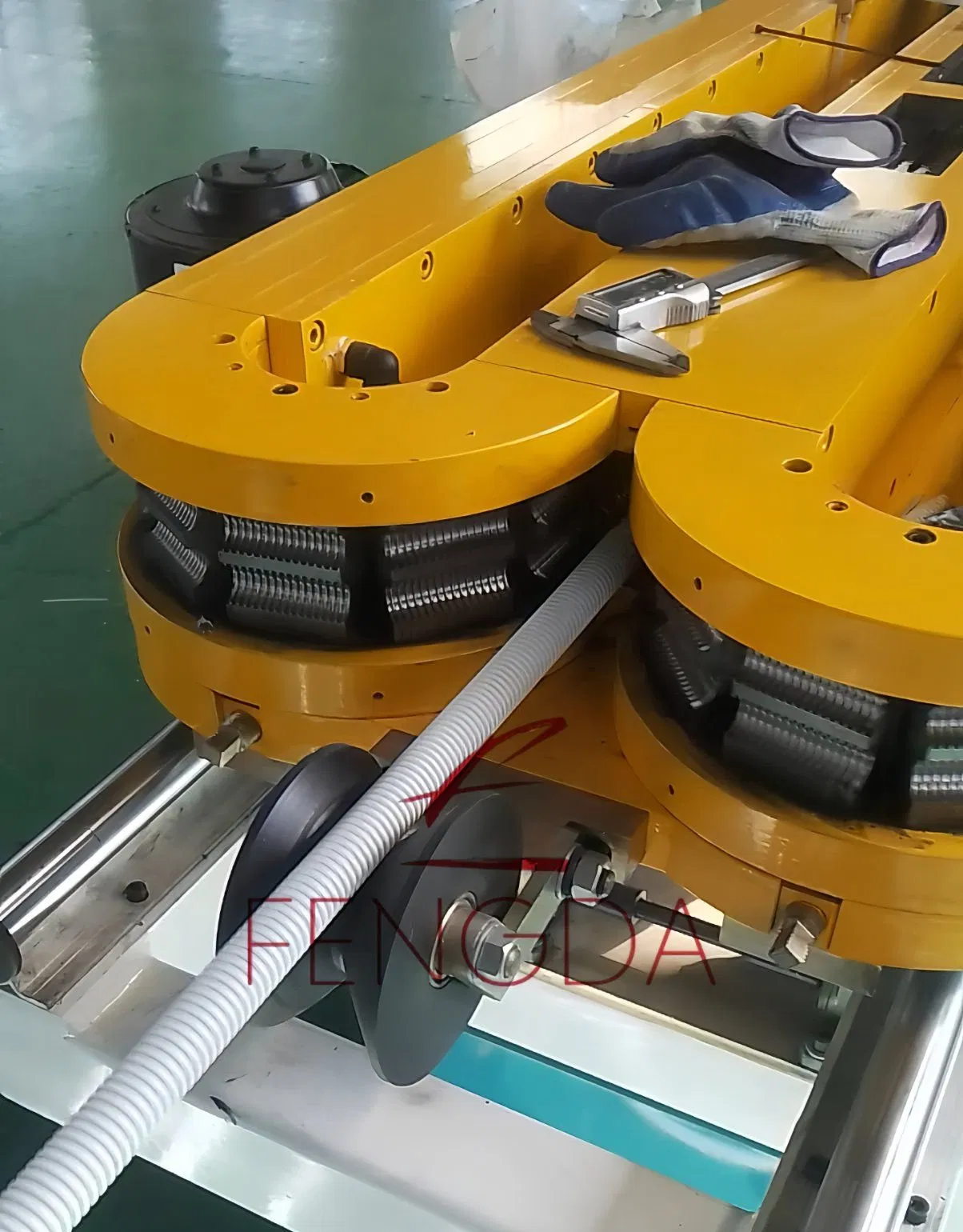

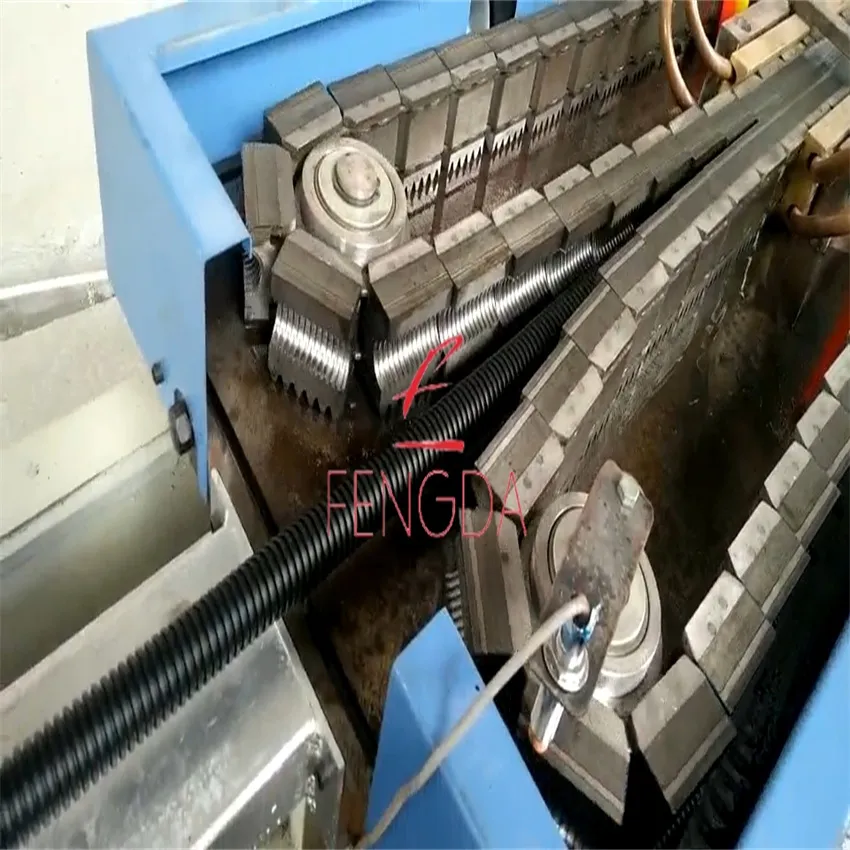

forming

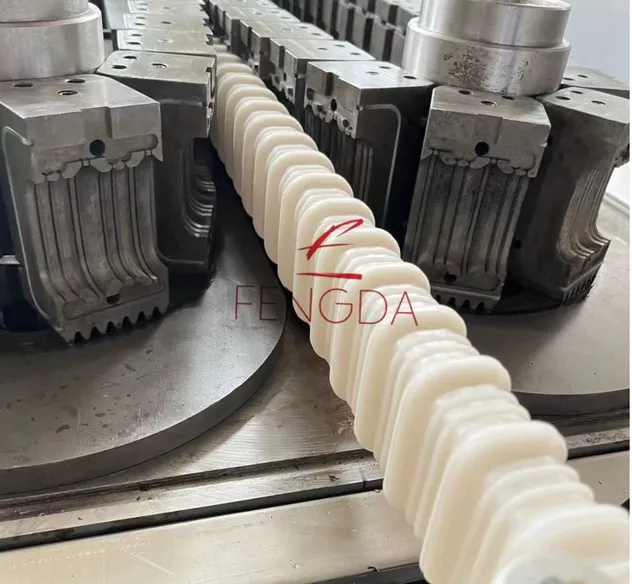

The new wave tube forming machine is a core equipment specifically designed for manufacturing PE/HDPE material wave tubes used in new ventilation systems. Through the integrated process of "extrusion - forming - cooling - cutting", it transforms plastic raw materials into tubular products with smooth inner walls and wave-like outer surfaces.

winding

The new Waveform Tube Conveying Machine is the core equipment at the end of the new Waveform Tube production line. Its main function is to neatly and uniformly roll up the PE/HDPE Waveform Tubes that have been formed and cut into rolls, making it convenient for subsequent storage, transportation, and on-site construction access. It is a crucial link that connects production and application. Its core features and functional design revolve around "stable rolling, protecting the tubes, and adapting to production."
