Prestressed Metal Corrugated Pipe Galvanized Corrugated Pipe Galvanized Bridge Highway Metal Corruga

Prestressed metal corrugated pipe galvanized corrugated pipe galvanized Bridge Highway metal corrugated pipe machine

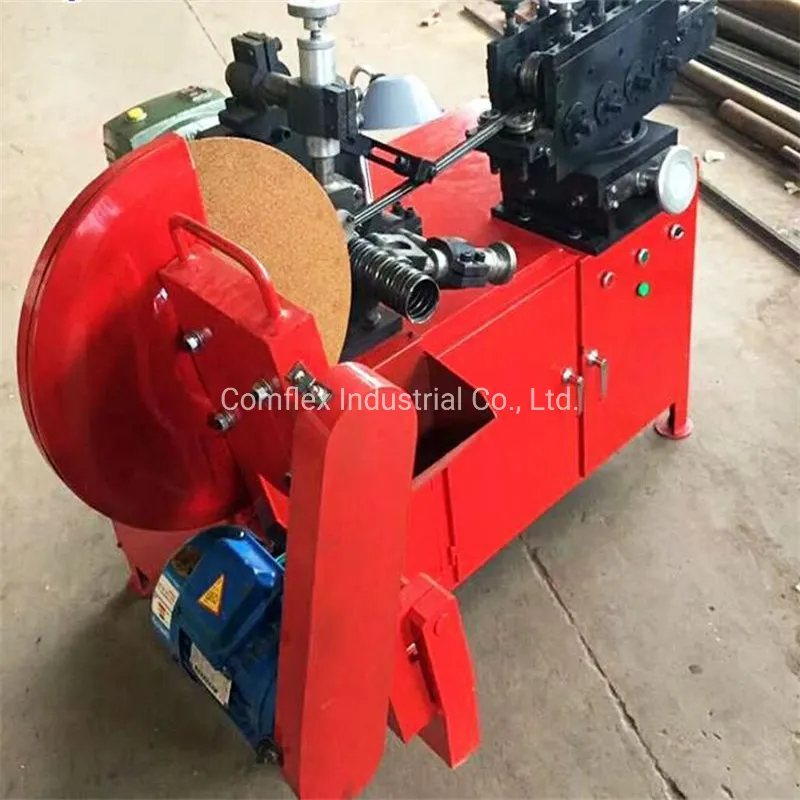

Machinery Pictures

Application

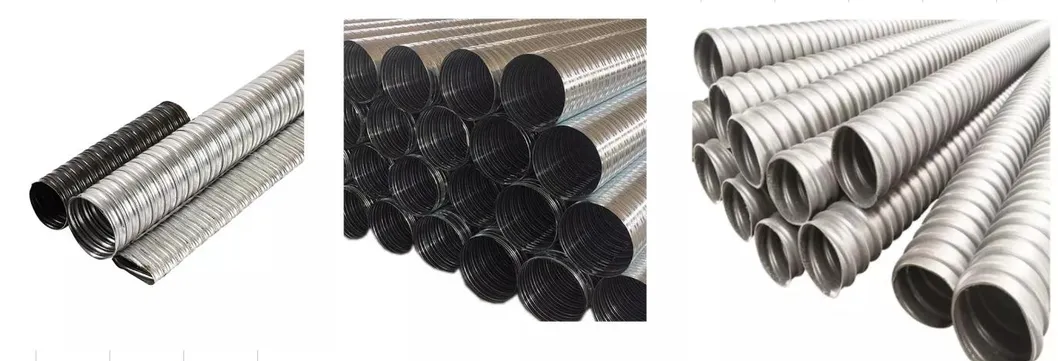

     Prestressed corrugated metal bellow has been widely used in modern construction by developed countries such as Britain, France, the United States and Japan. It is light, thin-walled, rigid, non-breakable and non-leaking, because of the obvious concave and convex double waves on the exterior of the pipe body, the steel pipe joints are tightly embossed, firm and non-disconnected, and the contact grip with concrete is extremely strong after casting on site, and the concrete is formed into a complete whole, enhancing the seismic performance of the structure. It has excellent function, compared with the general solid flat slab, it has light self-weight, large span, small deflection, no column cap, good safety, low comprehensive cost, thus improving the building headroom, increasing the use and sales area, compared with the existing domestic ordinary beam-slab structure, solid beamless slab, unbonded prestressed concrete floor slab, saving steel 5%-7%, saving concrete volume 10%-30%, saving vertical water, electricity, air conditioning, It also has the effect of sound insulation and heat insulation, which brings considerable economic benefits to the owner.

     Prestressed corrugated metal bellow is mainly used in highway bridges, railroad bridges, construction of water conservancy, electric power and other national key projects. Corrugated pipe and accessories consisting of prestressing hole-forming system should meet the needs of post-tensioning prestressing grouting; the connection between pipe and tube, in addition to the hot welding connection, should also provide a special sealing connection device, this device should be with a hole grouting process of exhaust, drainage, slurry and observation of the efficacy of the discharge pipe, in order to achieve pressure grouting or vacuum-assisted grouting.


Advantages
1. Have a certain strength that is sufficient to maintain its shape and resist damage, penetration or deformation during construction;
2. Sufficient flexibility to accommodate special forms of prestressing tendon laying;
3. Have certain resistance to abrasion in order to prevent the orifice from being destroyed by the prestressing tendons during cable transfer and tensioning.
4. The cross-sectional area inside the bellows is at least 2~2.5 times of the prestressing tendons
5. With certain sealing, to ensure the sealing connection between bellows and anchorage, bellows and bellows;
6. Have a certain bonding ability

cutting machine power2.2kw35-588-10 water pump machine40w60-857-9 water tank capacity23L90-1156-7 radial rigidityless than or equoal to 0.2120-1552-4 tensile load resistancemore than or equal to 4500160-2051-2 resistance to concentrated load800N deflection less than 0.2d210-3051
