Professional PE 100 HDPE Pipe for Water Supply Drainage Sewage Irrigation
Detailed specification for Professional PE 100 HDPE Pipe for Water Supply Drainage Sewage Irrigation
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | HDPE pipe |
| Material | HDPE |
| Kind | Thermoplastics Pipes |
| Water Absorption | 0.1%~0.3% |
| Contraction Percentage | 0.4%~1.4% |
| Tensile Strength | 81~130MPa |
| Size | Customizable |
| Materials | HDPE |
| Production Process | Extrusion Molding |
| Standards | GB/T 13663, ISO 4427, etc. |
| Maximum Pressure-Bearing Capacity | 0.6MPa-2.5MPa |
| Working Temperature | -40ºC to 60ºC |
| HDPE Density | ≥0.941 G/Cm³ |
| Transport Package | Container Transportation |
| Specification | customizable |
| Trademark | Furex |
| Origin | Shandong, China |
| HS Code | 4009210000 |
| Production Capacity | 500000PCS/Year |
HDPE Pipes – Superior Performance, Versatile Applications
Made from high-density polyethylene (HDPE), these pipes deliver exceptional corrosion resistance, impact strength, flexibility, and a service life exceeding 50 years. Ideal for municipal water supply, drainage, gas distribution, agricultural irrigation, and industrial fluid transport, HDPE pipes are a cost-effective, lightweight, and durable alternative to traditional metal pipes.
Specification
Parameter
Specification
Material
High-Density Polyethylene (HDPE), compliant with GB/T 13663, ISO 4427, etc.
Density
≥0.941 g/cm³
Working Pressure
PN6-PN25 (0.6MPa-2.5MPa)
Temperature Range
‘-40℃to 60℃(short-term up to 80℃)
Corrosion Resistance
Resistant to acids, alkalis, salts, and chemicals; no scaling or rusting.
Connection Methods
Butt fusion, electrofusion, flange connections, etc.
Service Life
Over 50 years (underground installation)
Color Options
Black (with UV-resistant carbon black), blue (water supply), yellow (gas), etc
Production Process of HDPE Pipe
Raw Material Blending
Premium HDPE pellets are mixed with antioxidants and UV stabilizers for enhanced durability.
Extrusion Molding

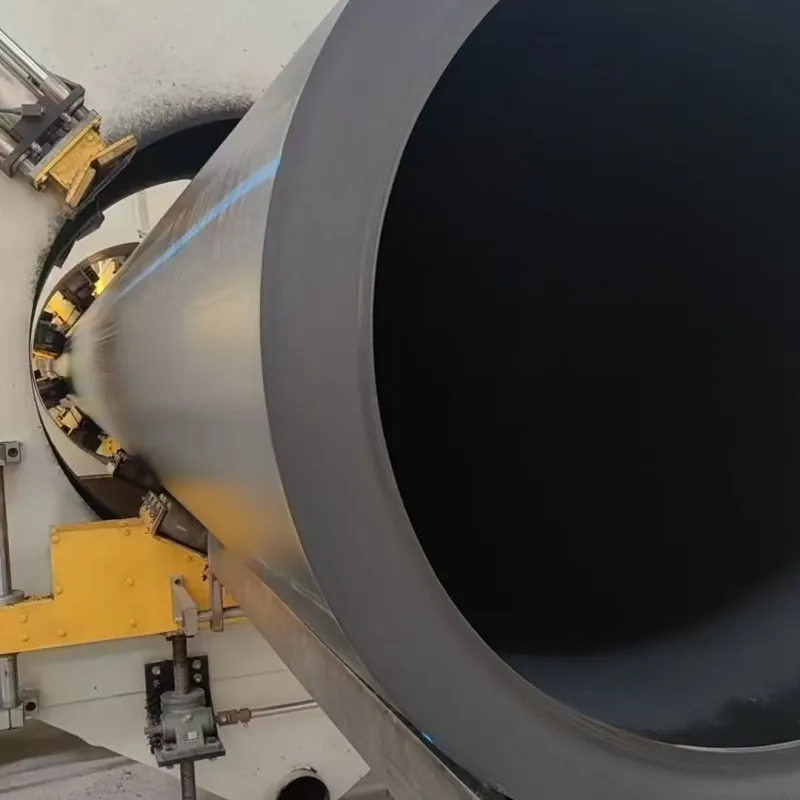

The material is melted via single or twin-screw extruders and shaped through precision dies.
Pipe Sizing
Vacuum or internal pressure calibration ensures dimensional accuracy and uniform wall thickness.
Marking
Laser printing displays specifications, pressure ratings, production dates, and traceability codes.
Quality Inspection
Includes visual checks, wall thickness measurement, hydrostatic pressure testing, and melt flow index tests.
Packaging & Storage
Pipes are cut to required lengths, wrapped in protective film, or bundled for safe transportation.
Key Advantages of HDPE Pipe
Why HDPE Pipes Outperform Traditional Materials
1. High Pressure Resistance – Withstands demanding geological stresses.
2. Superior Flexibility – Enables bendable, joint-minimized trenchless installations.
3. Safe & Sustainable – Certified non-toxic for potable water (GB/T 17219).
4. Cost-Efficient – Lightweight design slashes installation time and labor expenses.
5. Durability Guaranteed – Weatherproof and corrosion-resistant for a 50+ year service life underground.
Applications
1. Municipal Engineering

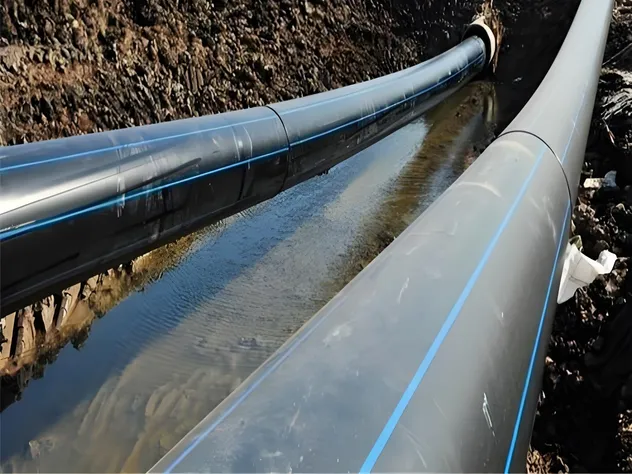

Water & Sewage Systems: Urban potable water and wastewater pipelines.
Stormwater Management: Drainage and rainwater harvesting networks.
2. Gas Distribution
Medium/low-pressure gas pipelines (compliant with GB 15558.1).
3. Agricultural Irrigation

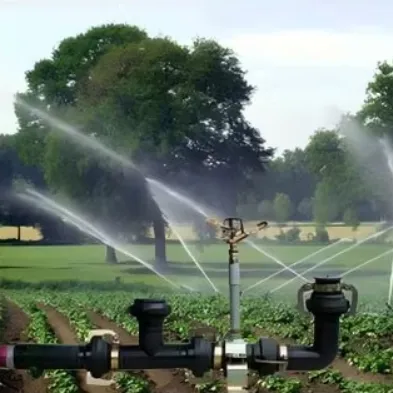

Drip and sprinkler systems with excellent weather resistance for water conservation.
4. Industrial Use
Chemical fluid transport, slurry pipelines, cable protection conduits, etc.
5. Other Applications
Geothermal heat pump systems, landfill leachate collection, and more.
Premium HDPE Pipes – Engineered for Excellence
As a leading manufacturer of High-Density High-performance (HDPE) pipes, Furex specialize in delivering superior-quality piping solutions tailored to your needs.
Why Choose Our HDPE Pipes?
1. Premium Materials – Sourced from high-grade raw materials for unmatched durability and performance.
2. Advanced Extrusion Technology – Precision-engineered with expert craftsmanship to ensure consistent quality.
3. Rigorous Quality Control – Every pipe undergoes strict inspection to meet industry-leading standards.
4. Custom Solutions – Flexible customization to fit your specific project requirements.
5. Reliable & Timely Delivery – Efficient logistics to ensure your orders arrive on schedule, every time.
Trusted by industries worldwide, we provide robust, high-performance piping solutions designed to excel in demanding applications. Partner with us for reliability, innovation, and excellence.
Contact us today to discuss your project needs!
