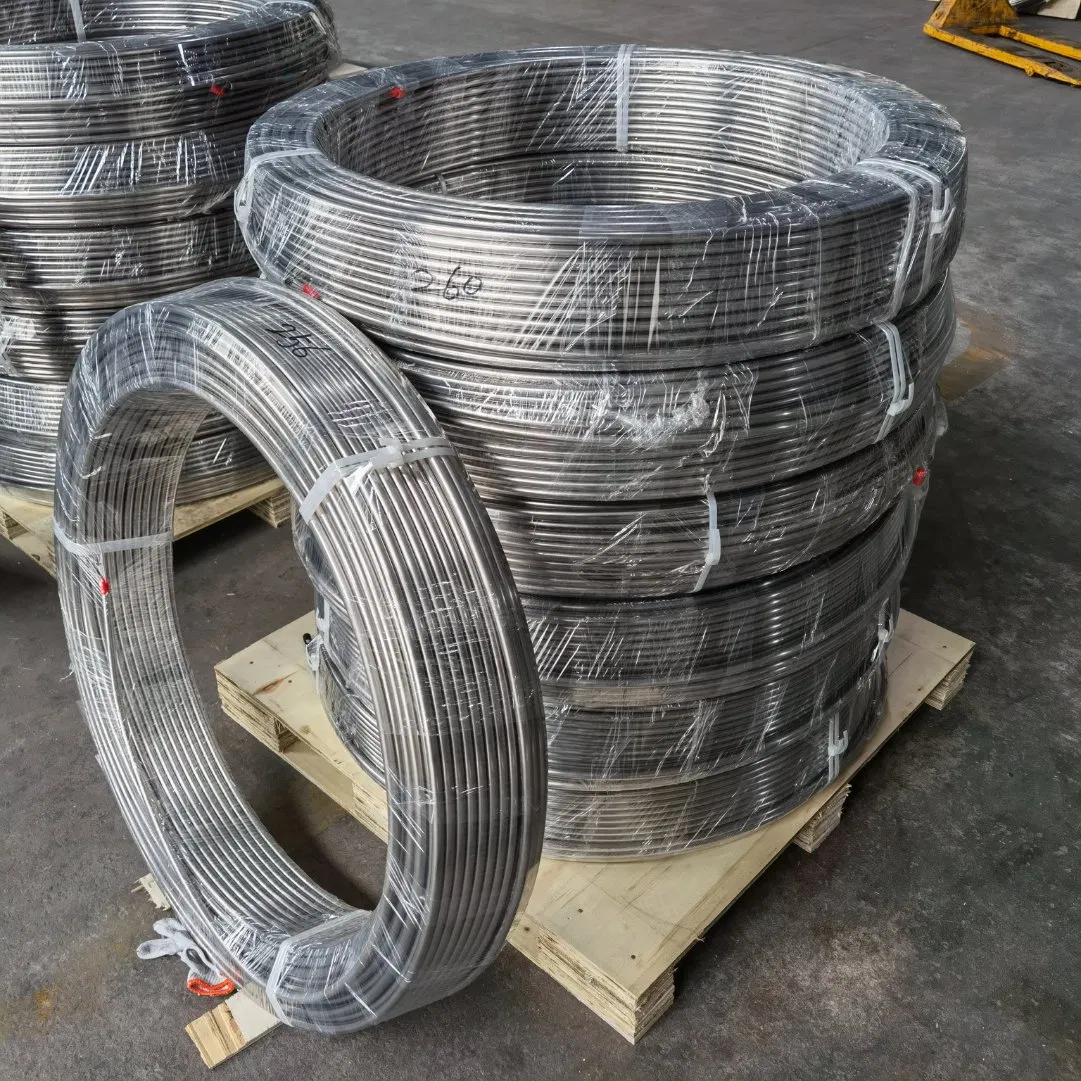

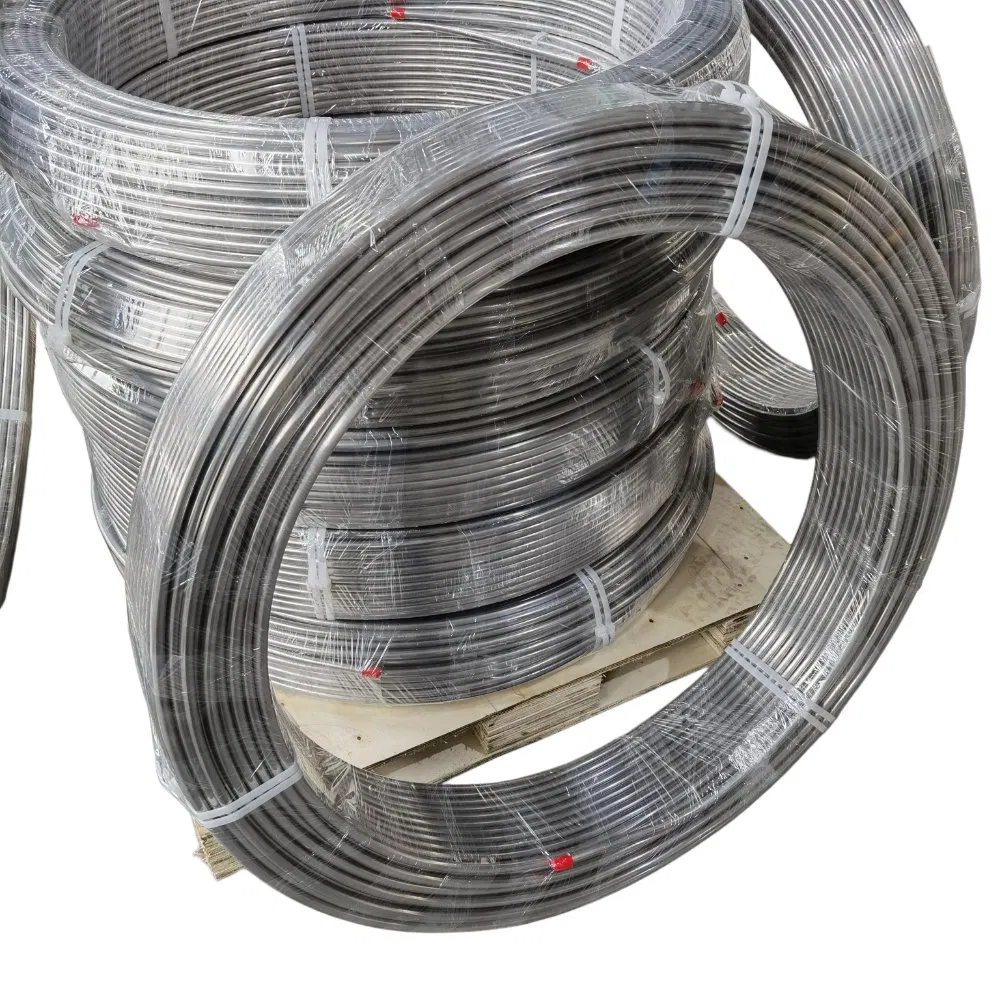

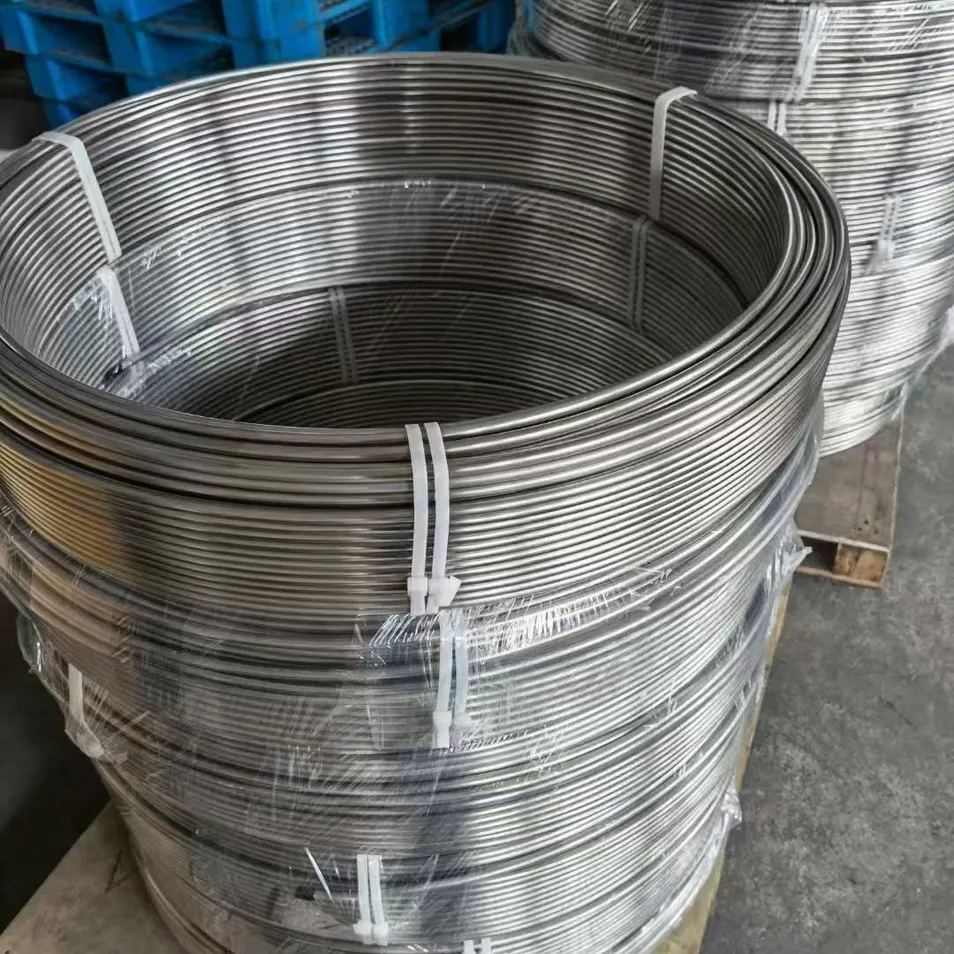

Stainless Coiled Tubing 304/304L A269/A213 6mm OD 1.5mm WT
Detailed specification for Stainless Coiled Tubing 304/304L A269/A213 6mm OD 1.5mm WT
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | FL6M-1.5-C |
| Shape | Round |
| Grade | 304/304L |
| Standard | ASTM A213/A269 |
| Size | 6mm X 1.5mm |
| O.D Tolerance | +/-0.05mm |
| Wall Thickness Tolerance | +/-0.05mm |
| Delivery Condition | Bright Annealing |
| Transport Package | Plywood Case |
| Trademark | FILET TUBE |
| Origin | China |
| HS Code | 7304119000 |
| Production Capacity | 4000000m/Year |
Stainless Coiled Tubing 304/304L A269/A213 6mm OD 1.5mm Wall Thickness
Our high-quality hydraulic tubing is produced by cold drawn or cold rolling, with good size tolerance, good outside and inside roughness, each tube will be protected by end caps and pvc bags. Reinforced steel angle bar will be used for export packing. Well proteced during sea transporation.
Specification
Applications
1.Hydraulic system
2.Automotive brake system
3.Oil & Gas
4.New energy sector
5.Aerospace
Key Configurations
Smelting method: We choosse EAF+AOD+ESR
Cold working method: Cold drawn or cold rolling
Size tolerance:
O.D: +/-0.05mm
Thickness: +/-0.05mm
Internal wall roughness: Ra<0.4μm

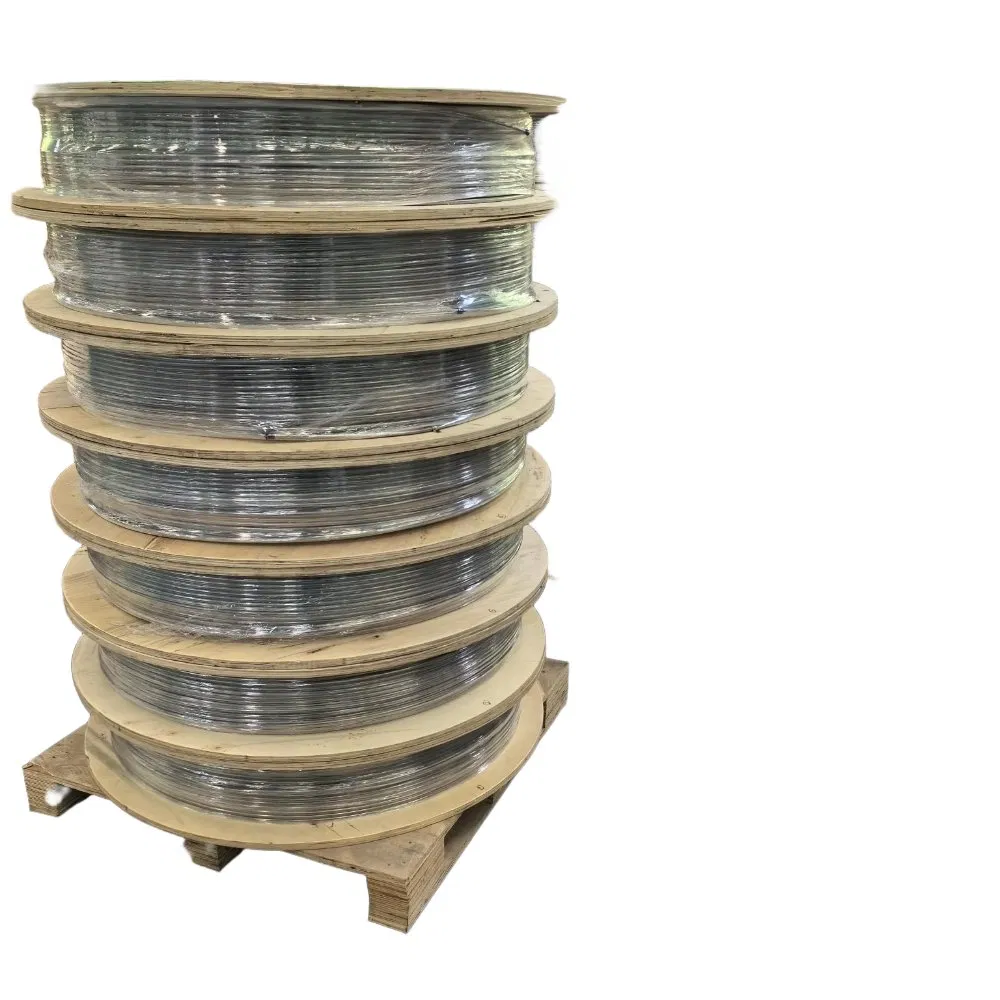

Packing: Plywood casse (Reinforced by steel angle bar)
PMI Test
Size Checking
Internal checking
Technical Specifications
(Custom configurations available upon request.)
Delivery Condition
MP(Mechnical Polishing)
BA(Bright Annealing)
EP(Electro-polishing)
Internal Roughness (ra)
Ra<1.0μm
Ra<0.6μm
Ra<0.25μm
Specification
ASTM A269
ASTM A269
ASTM A269
Austenitic Stainless Steel
304/304L, 316/316L, 317L, 321
304/304L, 316/316L, 317L, 321
304/304L, 316/316L, 317L, 321
Super Austenitic Stainless Steel
6mo(S31254), 904L
6mo(S31254), 904L
6mo(S31254), 904L
Duplex & Super Duplex
S31803, S32205, S32750, S32760
S31803, S32205, S32750, S32760
S31803, S32205, S32750, S32760
Nickel alloy
600/625/800H/Monel 400/ HC276
600/625/800H/Monel 400/ HC276
600/625/800H/Monel 400/ HC276
After Sales Service
Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
